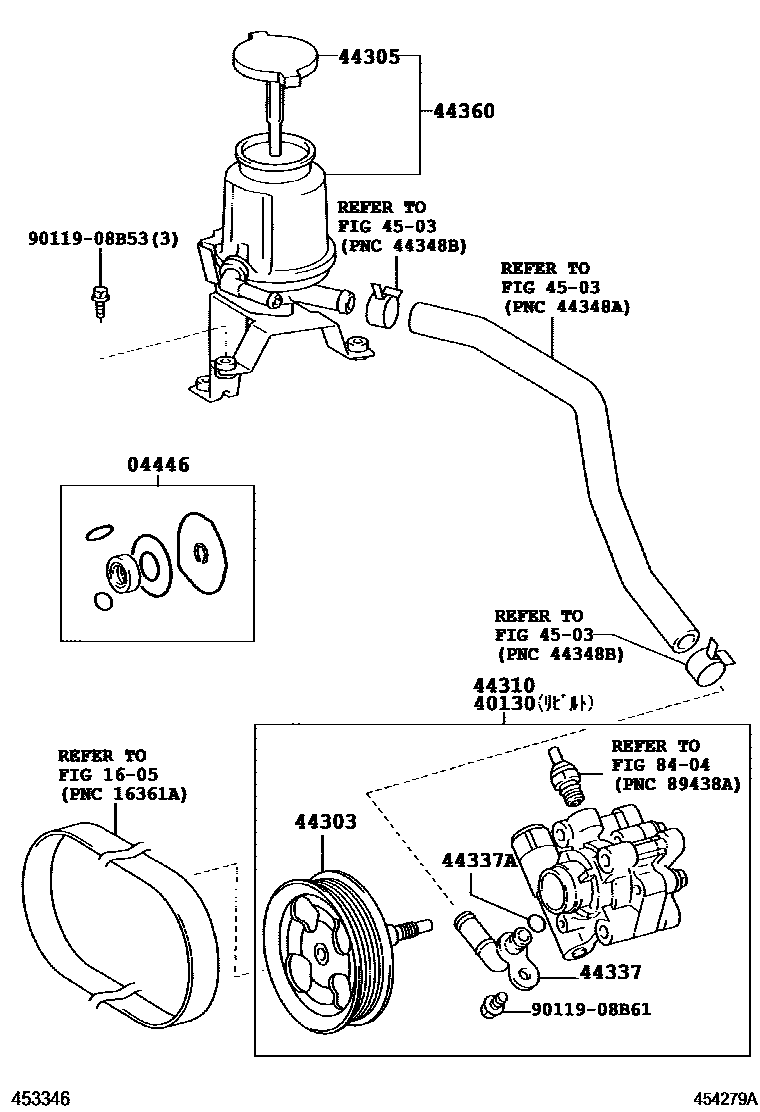

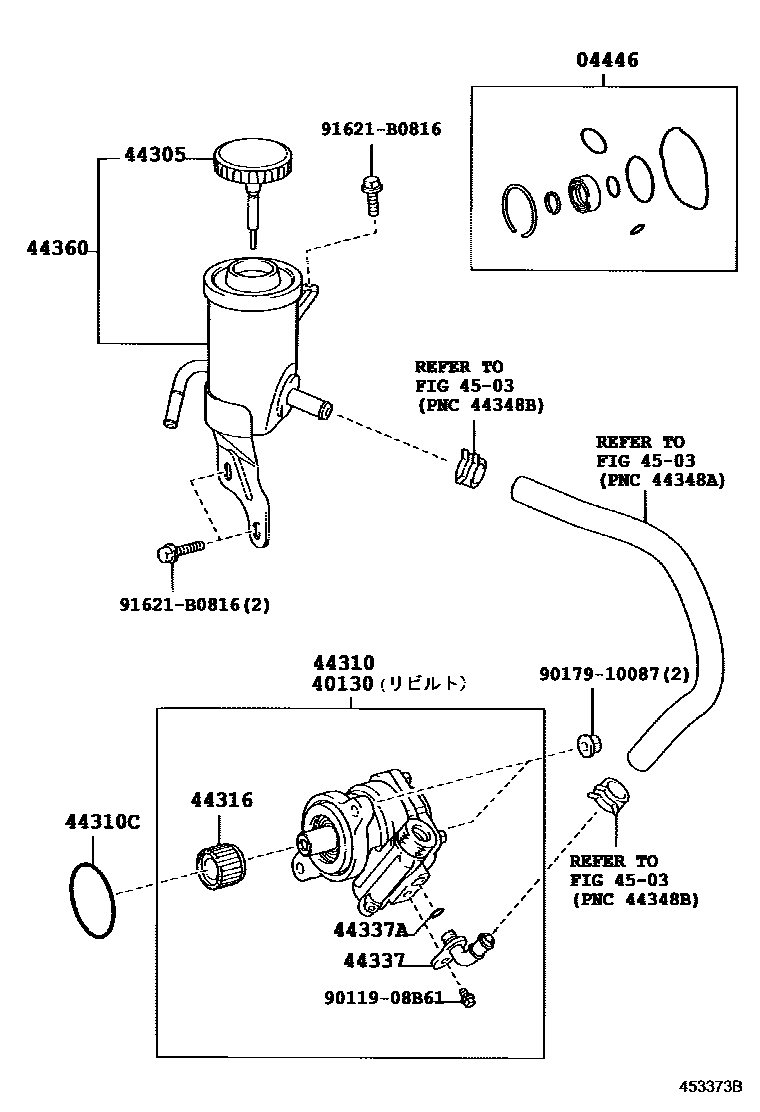

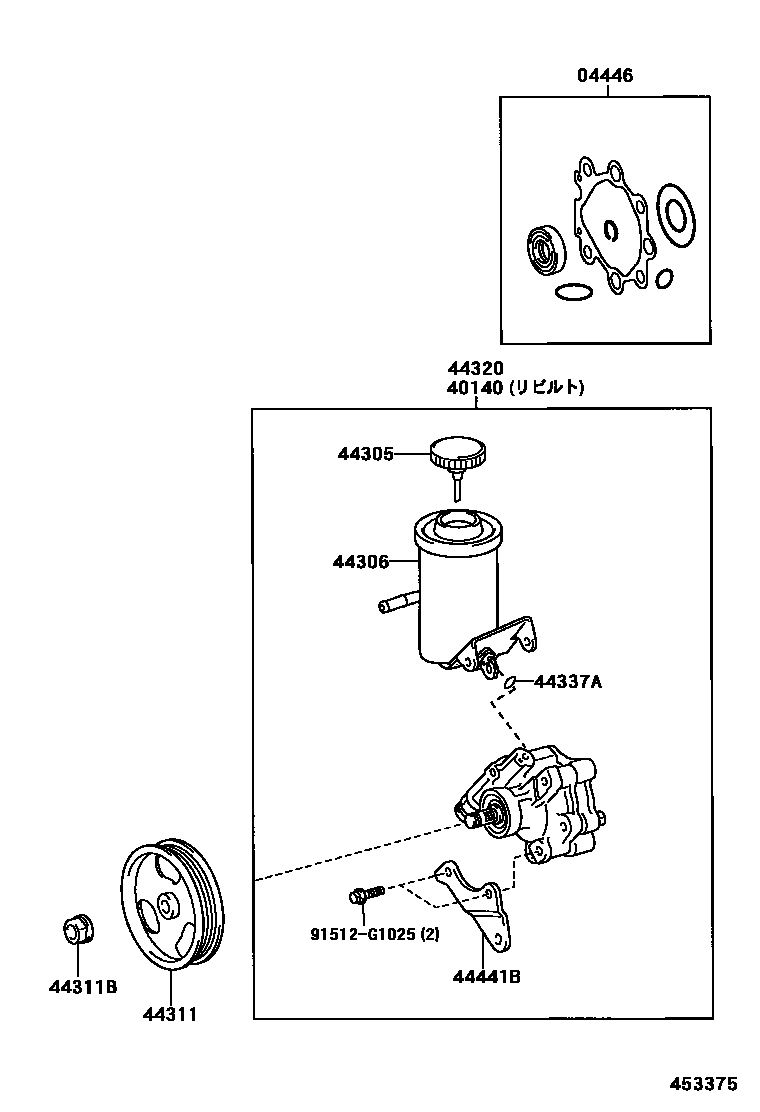

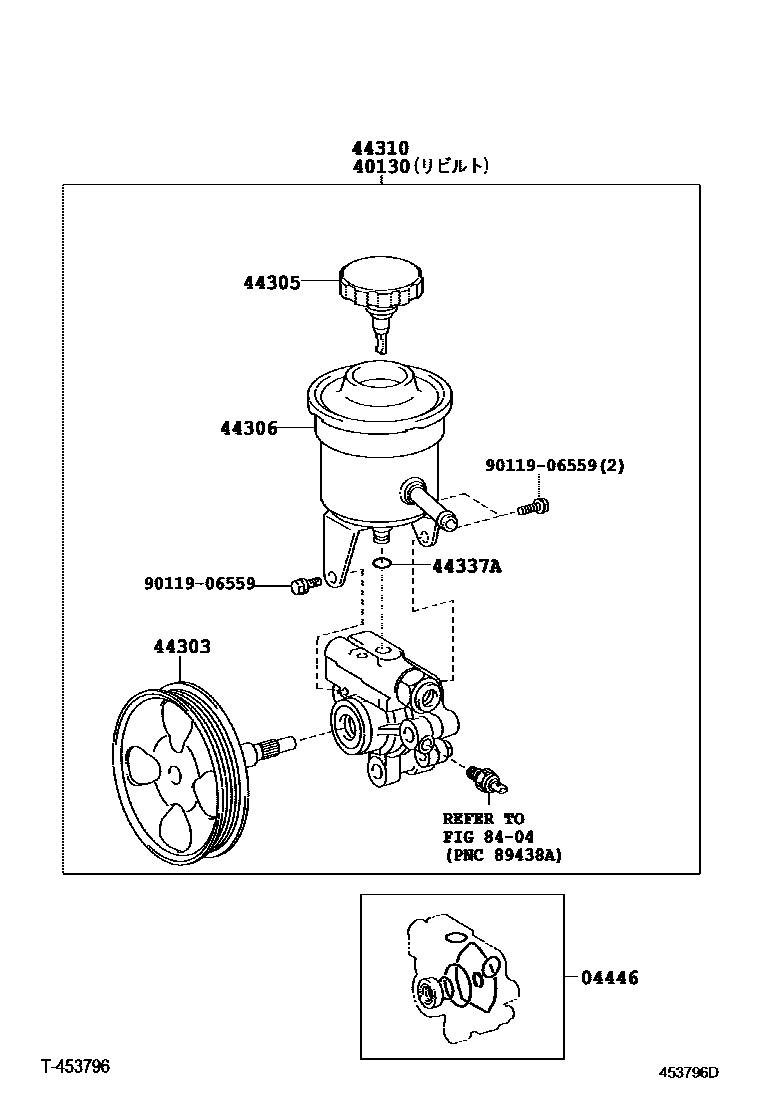

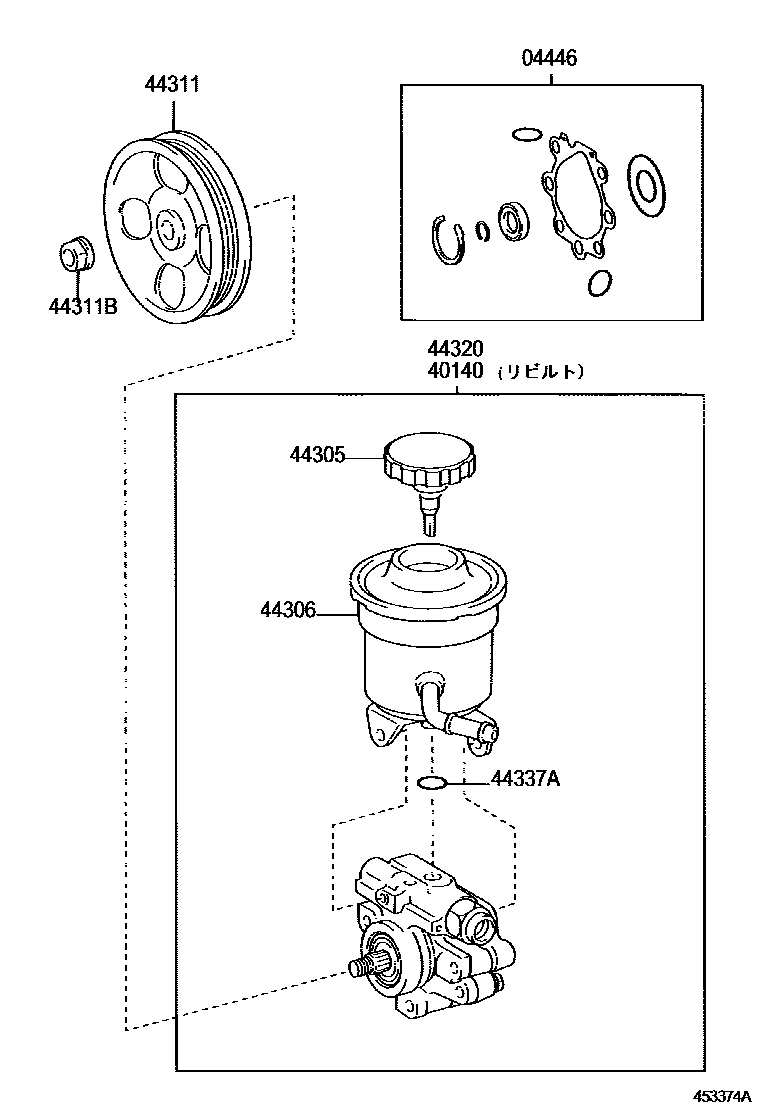

Toyota HILUX 叶片泵和储油罐(动力转向) — Figure 4502
Toyota HILUX EPC diagram 4502, 叶片泵和储油罐(动力转向), with 5 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04446 | Power steering pump gasket assembly | 04446-30120 · 04446-32050 · 04446-35070 · 04446-53030 |
| 40130 | Refurbished vane pump assembly | 40130-35660 · 40130-35690 · 40130-35710 |
| 40140 | Refurbished vane pump assembly | 40140-35620 · 40140-35630 |
| 44303 | Shaft sub-assembly with rotor | 44303-28010 |
| 44305 | Vane pump oil storage tank cover sub-assembly | 44305-22040 · 44305-22060 · 44305-24030 · 44305-28030 · 44305-28060 · 44305-50010 |
| 44306 | Vane pump oil storage tank sub-assembly | 44306-25060 · 44306-35250 · 44306-35300 |
| 44310 | Vane pump assembly | 44310-35660 · 44310-35690 · 44310-35710 |
| 44310C | O-ring (for vane pump) | 90301-60002 |
| 44311 | vane pump pulley | 44311-34030 · 44311-35070 |
| 44311B | Nut (for vane pump pulley) | 90178-12003 |
| 44316 | vane pump gear | 44316-60030 |
| 44320 | Vane pump assembly | 44320-35620 · 44320-35630 |
| 44337 | Power steering suction port connector | 44337-32110 · 44337-42010 |
| 44337A | O-ring (for power steering oil suction port) | 90301-11016 · 90301-11020 |
| 44360 | Vane pump oil storage tank assembly | 44360-35160 · 44360-35170 |
| 44441B | Pump front bracket | 44441-34010 |
