Toyota HILUX Steering Column & Shaft — Figure 4501

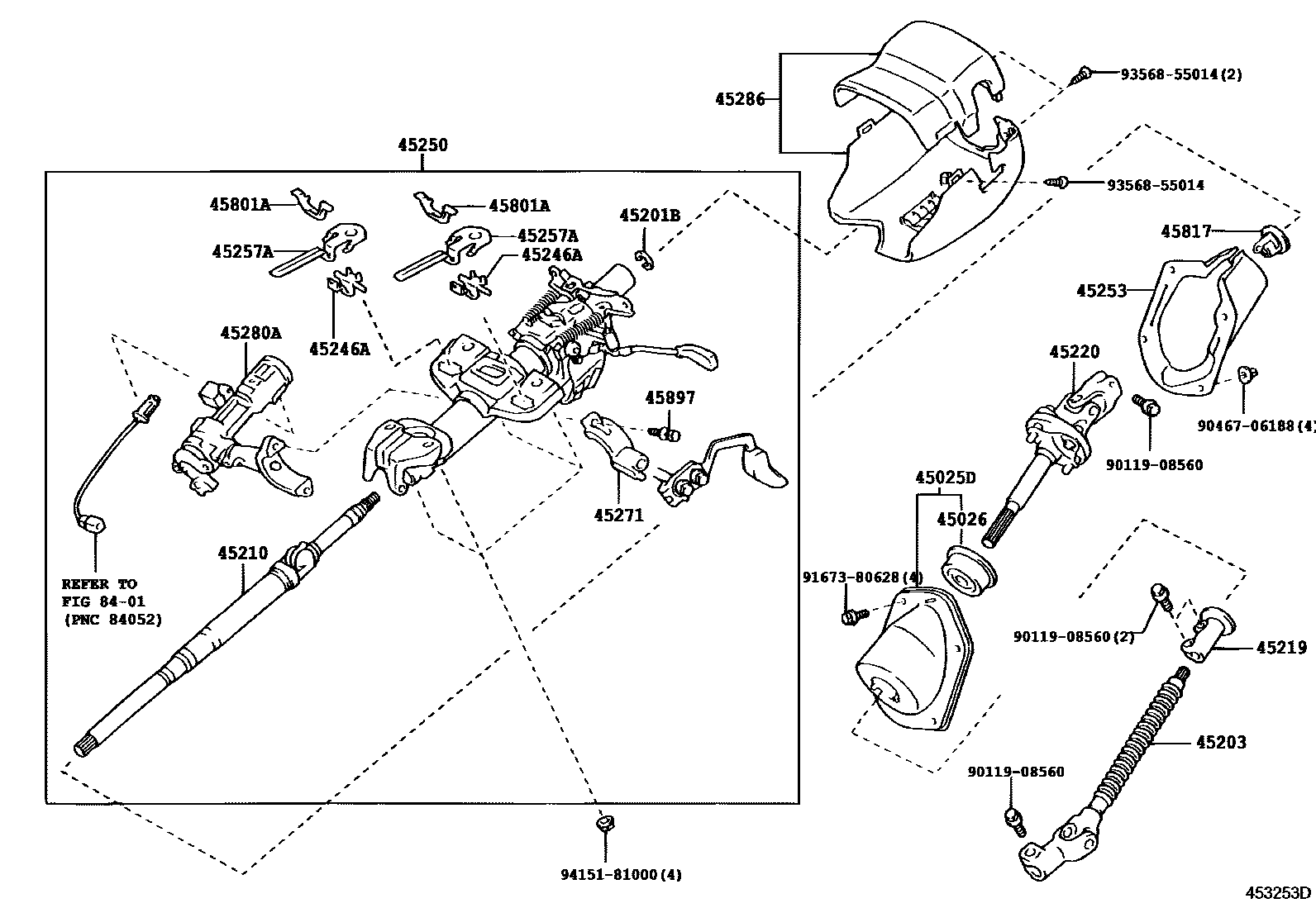

Toyota HILUX EPC diagram 4501, Steering Column & Shaft, with 1 images and 16 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 45025D | No. 1 steering column hole cover sub-assembly | 45025-35380 |
| 45026 | No. 2 steering column hole cover sub-assembly | 45026-35060 |
| 45201B | Shaft snap ring (for steering spindle) | 90520-17042 |
| 45203 | No. 2 steering intermediate shaft sub-assembly | 45203-35320 |
| 45210 | Steering spindle assembly | 45210-35250 |
| 45219 | steering fork | 45219-35170 |
| 45220 | Steering intermediate shaft assembly | 45220-35180 |
| 45246A | Steering energy absorbing sheet guide bush | 45246-28040 |
| 45250 | Steering column assembly | 45250-3D870 |
| 45253 | Steering column hole cover | 45253-35360 |
| 45257A | Steering column energy absorbing sheet | 45257-28010 |
| 45271 | Clamp on steering column | 45271-22010 |
| 45280A | Steering column upper bracket assembly | 45280-35390 |
| 45801A | Steering energy absorption pin sub-assembly | 45875-12010 |
| 45817 | Steering shaft thrust stop | 45817-35050 |
| 45897 | Steering lock fixing bolt | 45897-12020 |
