Toyota HILUX Front Drive Shaft — Figure 4302

Toyota HILUX EPC diagram 4302, Front Drive Shaft, with 2 images and 19 PNC and OE references.

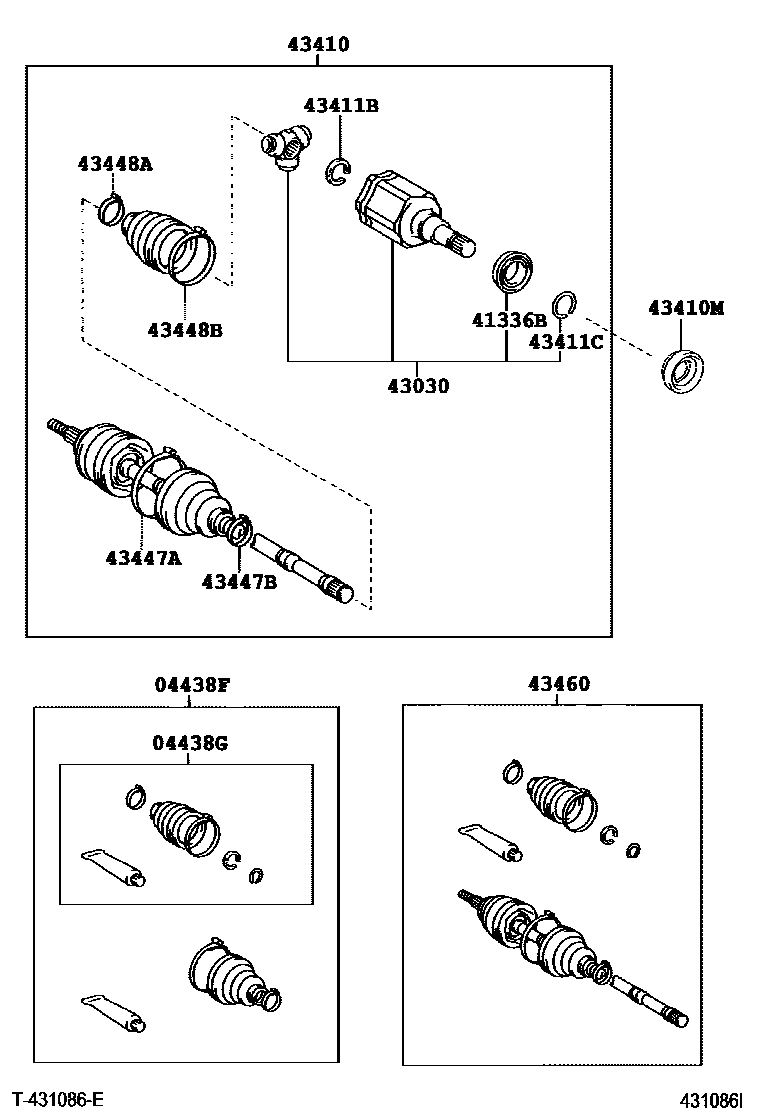

Toyota HILUX Front Drive Shaft EPC diagram — 431086I
Front Drive Shaft — 431086I (200211 – 999999)

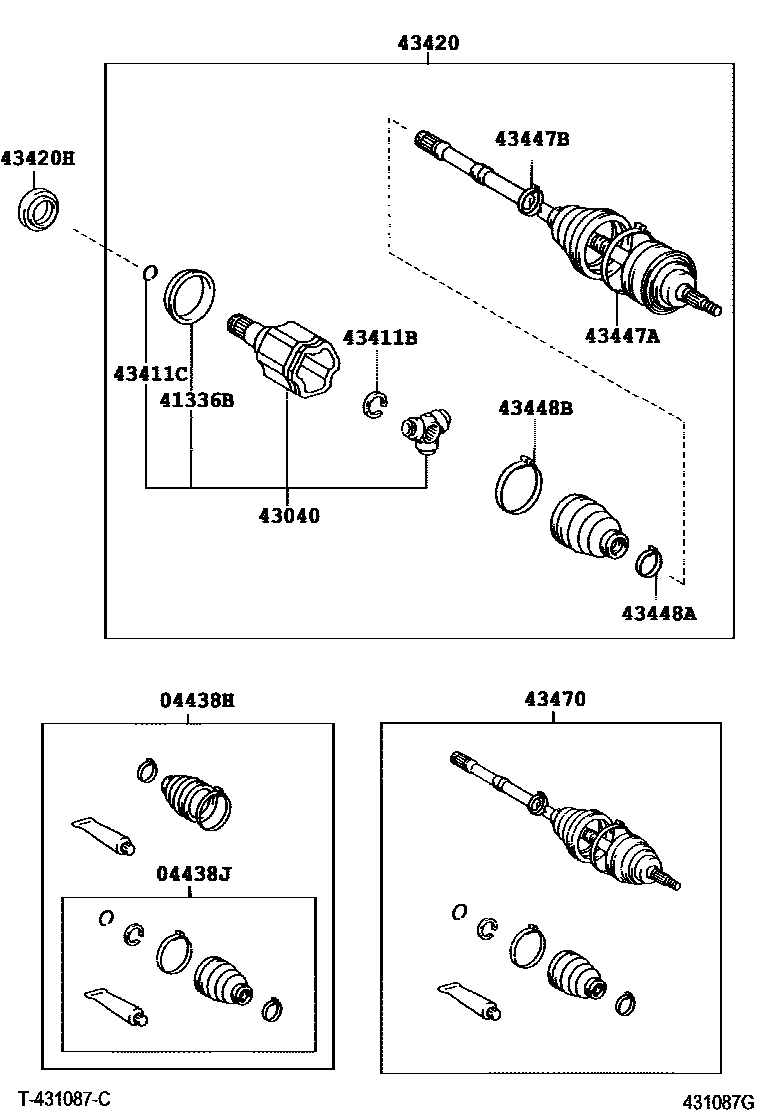

Toyota HILUX Front Drive Shaft EPC diagram — 431087G
Front Drive Shaft — 431087G (200211 – 999999)

PNC and OE references

PNCPart nameOE numbers
04438FRight front driveshaft inboard and outboard dust boot assembly04427-60080 · 04438-60030
04438GRight front drive shaft inner universal joint dust boot assembly04437-60040 · 04438-60040
04438HLeft front driveshaft inboard and outboard dust boot assembly04427-60080 · 04438-60030
04438JLeft front drive shaft inner universal joint dust boot assembly04437-60040 · 04438-60040
41336BDust cover (for front drive shaft)41336-35020
43030Right front drive shaft inner universal joint assembly43403-60020
43040Left front drive shaft inner universal joint assembly43403-60020
43410Right front driveshaft assembly43430-60060
43410MToyota part90311-47013
43411BInner shaft snap ring (for front axle inner shaft)90520-26028
43411COuter shaft snap ring (for front axle inner shaft)90521-34003
43420Left front drive shaft assembly43430-60060
43420HToyota part90311-47012
43447AClamp No. 1 (used to fix the universal joint dust cover on the outside of the front axle)42345-60120
43447BClamp No. 2 (used to fix the universal joint dust cover on the outside of the front axle)42345-60110
43448AClamp No. 1 (used to fix the universal joint dust cover on the inside of the front axle)42345-60090
43448BNo. 2 clip (used to fix the universal joint dust cover on the inside of the front axle)90949-01339
43460Right front outer drive universal joint shaft assembly43460-69055 · 43460-69105
43470Left front outer drive universal joint shaft assembly43460-69055 · 43460-69105
