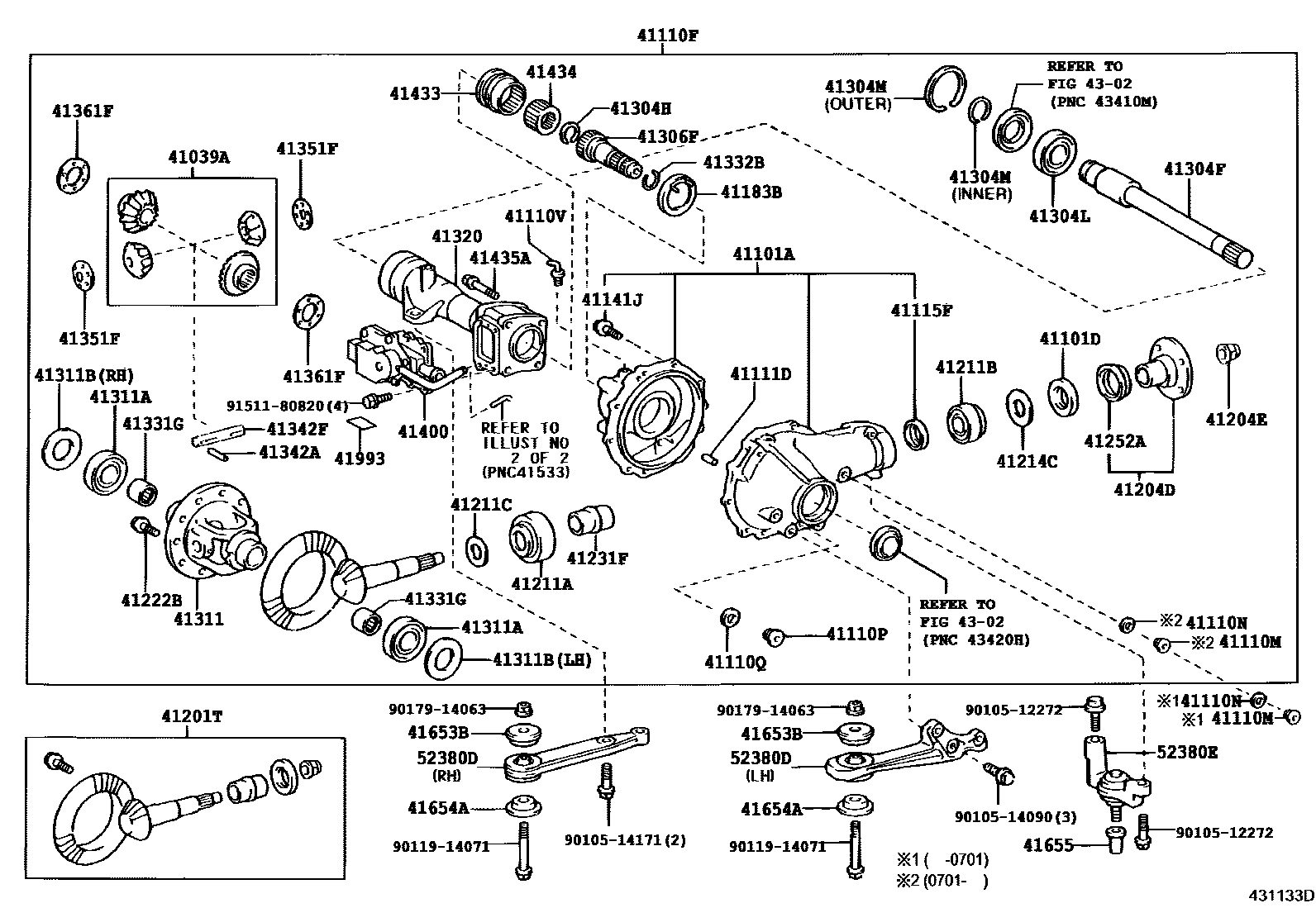

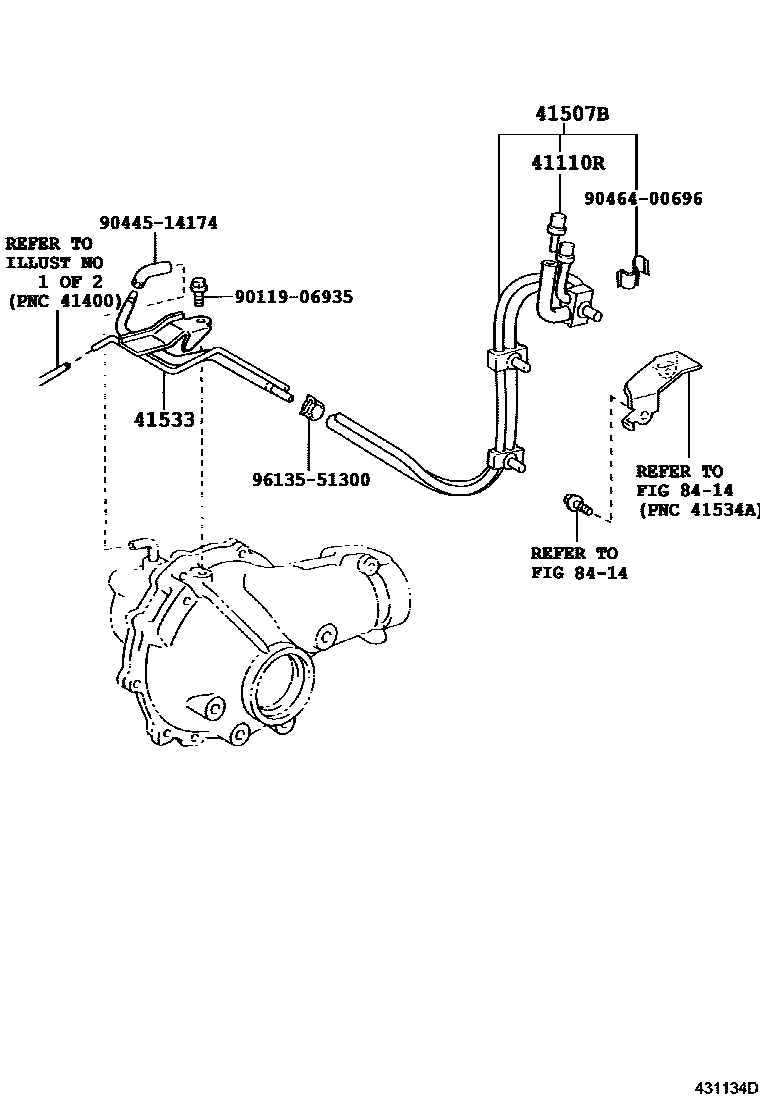

Toyota HILUX 前桥壳和差速器 — Figure 4301
Toyota HILUX EPC diagram 4301, 前桥壳和差速器, with 2 images and 51 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 41039A | Differential gear assembly | 41039-35010 |
| 41101A | Front differential housing sub-assembly | 41101-35160 |
| 41101D | Oil seal (for front differential case) | 90311-41009 |
| 41110F | Front differential case assembly | 41110-35901 · 41110-35902 · 41110-35A90 · 41110-3D520 · 41110-3D530 · 41110-3D540 |
| 41110M | Front differential oil filling plug | 90341-18032 · 90341-18066 |
| 41110N | Front differential oil plug gasket | 12157-10010 |
| 41110P | Front differential drain plug | 90341-24014 |
| 41110Q | Front differential drain plug gasket | 90430-24003 |
| 41110R | Breather plug (for front differential) | 90930-03136 |
| 41110V | Connector (for front differential) | 90404-08004 |
| 41111D | Direct sales (for front differential case) | 90250-10017 |
| 41115F | Front differential oil reservoir ring | 41115-35010 |
| 41141J | Bolt (for front differential side bearing retainer) | 90105-10391 |
| 41183B | Front differential side bearing retainer oil baffle | 41183-35040 |
| 41201T | Front differential final drive gear assembly | 41201-80194 · 41201-80196 · 41201-80197 · 41201-80198 |
| 41204D | Front driving pinion front coupling flange sub-assembly | 41204-35110 |
| 41204E | Nut (front driving pinion front binding flange) | 90177-22003 |
| 41211A | Front roller tapered bearing (for front driving pinion) | 90366-35087 |
| 41211B | Rear tapered bearing (for front driving pinion) | 90366-30067 |
| 41211C | differential ring gear | 90564-35109 · 90564-35110 · 90564-35111 · 90564-35112 · 90564-35113 · 90564-35114 · 90564-35115 · 90564-35116 · 90564-35117 · 90564-35118 · 90564-35119 · 90564-35120 · 90564-35121 · 90564-35123 · 90564-35124 · 90564-35125 · 90564-35126 · 90564-35127 · 90564-35128 · 90564-35129 · 90564-35130 · 90564-35131 |
| 41214C | Front differential drive pinion oil retaining ring | 41214-26011 |
| 41222B | Bolt (for front differential ring gear assembly) | 90901-05002 |
| 41231F | Front differential drive pinion bearing spacer | 41231-35040 |
| 41252A | Dust cover (for front differential) | 41252-35050 |
| 41304F | Right differential side gear shaft sub-assembly | 41337-35040 · 41337-35060 |
| 41304H | Hole snap ring (for differential side gear shaft) | 90520-31011 |
| 41304L | Right side bearing (for front differential side gear shaft) | 90363-43001 |
| 41304M | Right shaft snap ring (for differential side gear shaft) | 90520-41014 · 90520-75002 |
| 41306F | Differential side gear countershaft sub-assembly | 41306-35050 |
| 41311 | front differential case | 41311-35110 · 41311-35120 |
| 41311A | Bearings (for front differential housing) | 90366-53001 |
| 41311B | Flat washer (for front differential case) | 90564-50124 · 90564-50125 · 90564-50126 · 90564-50127 · 90564-50128 · 90564-50129 · 90564-50130 · 90564-50131 · 90564-50132 · 90564-50133 · 90564-50134 · 90564-50135 · 90564-50136 · 90564-50137 · 90564-50138 · 90564-50139 · 90564-50140 · 90564-50141 · 90564-50142 · 90564-50143 · 90564-50144 · 90564-50145 · 90564-50146 · 90564-50147 · 90564-50148 · 90564-50149 · 90564-50150 · 90564-50151 · 90564-50152 · 90564-50153 · 90564-50154 · 90564-50155 · 90564-50156 · 90564-50157 · 90564-50158 · 90564-50159 · 90564-50160 · 90564-50161 · 90564-50162 · 90564-50163 · 90564-50164 · 90564-50165 · 90564-50166 · 90564-50167 · 90564-50168 · 90564-50169 · 90564-50170 · 90564-50171 · 90564-50172 · 90564-50173 · 90564-50174 · 90564-50175 · 90564-50176 · 90564-50177 · 90564-50178 · 90564-50179 · 90564-50180 · 90564-50181 · 90564-50182 · 90564-50183 · 90564-50184 · 90564-50185 · 90564-50186 · 90564-50187 · 90564-50188 · 90564-50189 · 90564-50190 · 90564-50191 · 90564-50192 · 90564-50193 · 90564-50194 · 90564-50195 · 90564-50196 · 90564-50197 · 90564-50198 · 90564-50199 · 90564-50200 · 90564-50201 · 90564-50202 · 90564-50203 · 90564-50204 · 90564-50205 · 90564-50206 · 90564-50207 · 90564-50208 · 90564-50209 · 90564-50210 · 90564-50211 · 90564-50212 · 90564-50213 · 90564-50214 · 90564-50215 · 90564-50216 · 90564-50217 · 90564-50218 · 90564-50219 · 90564-50220 · 90564-50221 · 90564-50222 · 90564-50223 · 90564-50224 · 90564-50225 · 90564-50226 · 90564-50227 · 90564-50228 · 90564-50229 · 90564-50230 · 90564-50231 · 90564-50232 · 90564-50233 · 90564-50234 · 90564-50235 · 90564-50236 · 90564-50237 |
| 41320 | Front differential tube assembly | 41320-35050 |
| 41331G | Needle roller bearings (for front differential side gears) | 90364-35008 |
| 41332B | Hole snap ring (for differential side gear countershaft) | 90521-34003 |
| 41342A | Direct sales (for front differential planetary gear shaft) | 90250-06058 |
| 41342F | No. 1 front differential planetary gear shaft | 41342-35020 |
| 41351F | Front differential planetary gear thrust washer | 41351-35030 |
| 41361F | No. 1 front differential side gear thrust washer | 41361-34010 · 41361-34020 · 41361-34030 · 41361-34040 · 41361-34050 · 41361-34060 · 41361-34070 · 41361-34080 · 41361-34090 |
| 41400 | Differential vacuum actuator assembly | 41400-35030 · 41400-35031 |
| 41433 | Differential clutch sleeve | 41433-35010 |
| 41434 | Differential clutch hub | 41434-35030 |
| 41435A | Bolt (for securing differential clutch housing) | 90107-12002 |
| 41507B | Front differential lock actuator breather pipe | 41507-60150 |
| 41533 | front differential breather pipe | 41533-60060 |
| 41653B | Differential fixed part upper stop | 41653-60030 |
| 41654A | Differential fixed part lower block | 41654-60010 |
| 41655 | No. 1 front differential retainer nut | 41655-60010 |
| 41993 | Differential oil information label | 41993-35010 |
| 52380D | Front differential bracket assembly | 52380-60010 · 52380-60012 · 52380-60020 · 52380-60021 |
| 52380E | Differential bracket assembly | 52380-60050 |
