Toyota HILUX 车轮和车轮盖 — Figure 4103
Toyota HILUX EPC diagram 4103, 车轮和车轮盖, with 5 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|

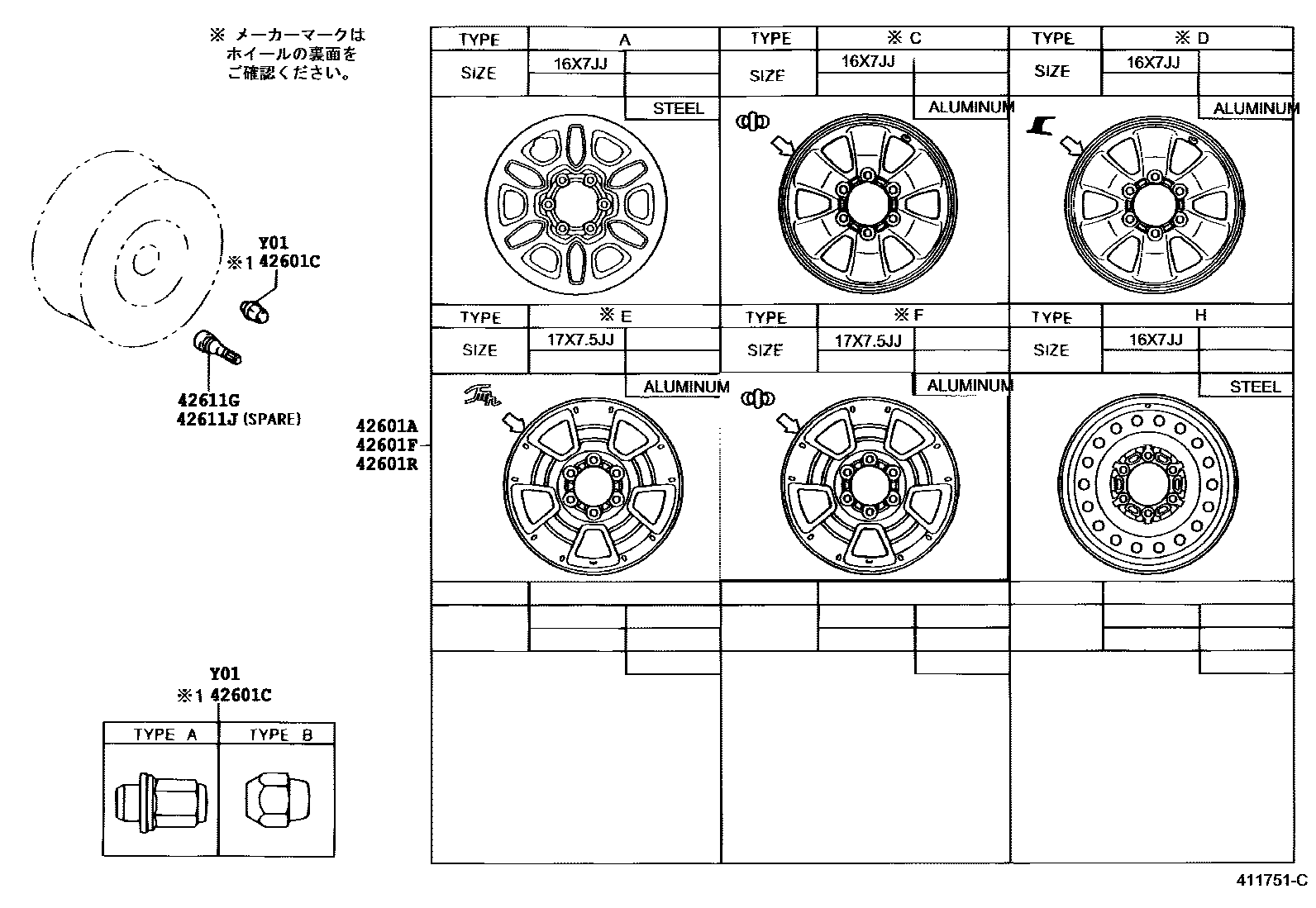

| 42601A | Spoke wheel (for spare tire) | 42611-35240 · 42611-35250 · 42611-35251 · 42611-35260 · 42611-35261 · 42611-35270 · 42611-35271 · 42611-35280 · 42611-35281 |
| 42601C | Hub nut (for axle) | 90942-01058 · 90942-01104 |
| 42601F | Spoke wheels (for front tires) | 42611-35230 · 42611-35231 · 42611-35250 · 42611-35251 · 42611-35260 · 42611-35261 · 42611-35270 · 42611-35271 · 42611-35280 · 42611-35281 |
| 42601R | Spoke wheels (for rear tires) | 42611-35230 · 42611-35231 · 42611-35250 · 42611-35251 · 42611-35260 · 42611-35261 · 42611-35270 · 42611-35271 · 42611-35280 · 42611-35281 |
| 42603 | Wheel hub decorative parts sub-assembly | 42603-35800 · 42603-35810 · 42603-35820 |

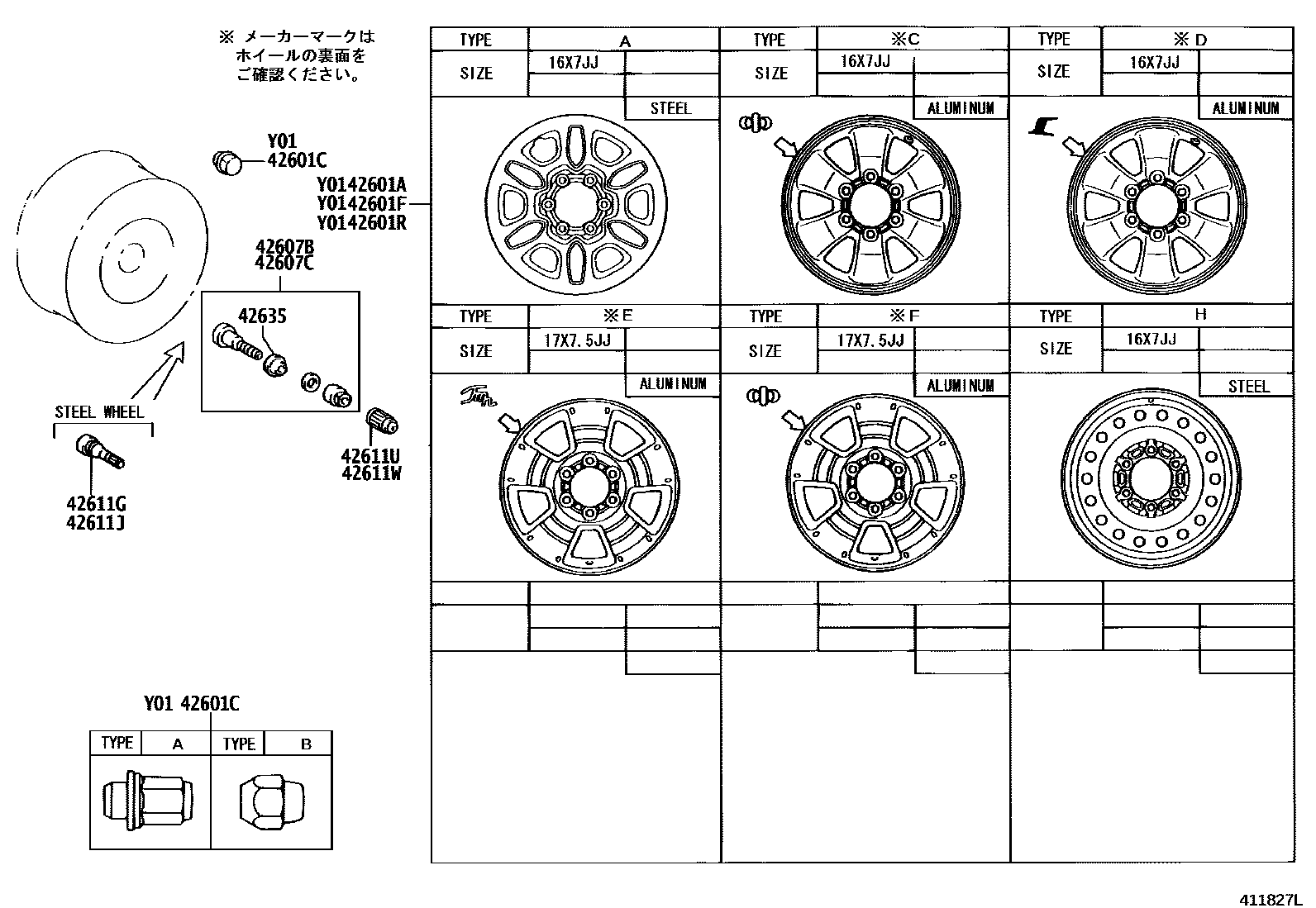

| 42607B | Tire pressure balance valve sub-assembly | 42607-35020 |
| 42607C | Tire pressure balance valve sub-assembly (for spare tire) | 42607-35020 |
| 42611G | Valve (for tubeless tires) | 90942-05009 |
| 42611J | Valve (for tubeless spare tire) | 90942-05009 |
| 42611U | tire valve cover | 90942-05035 |
| 42611W | Tire valve cap (for spare tire) | 90942-05035 |
| 42635 | Tire valve seals | 42635-35010 |
