Toyota HILUX 后桥半轴和后桥轮毂 — Figure 4102

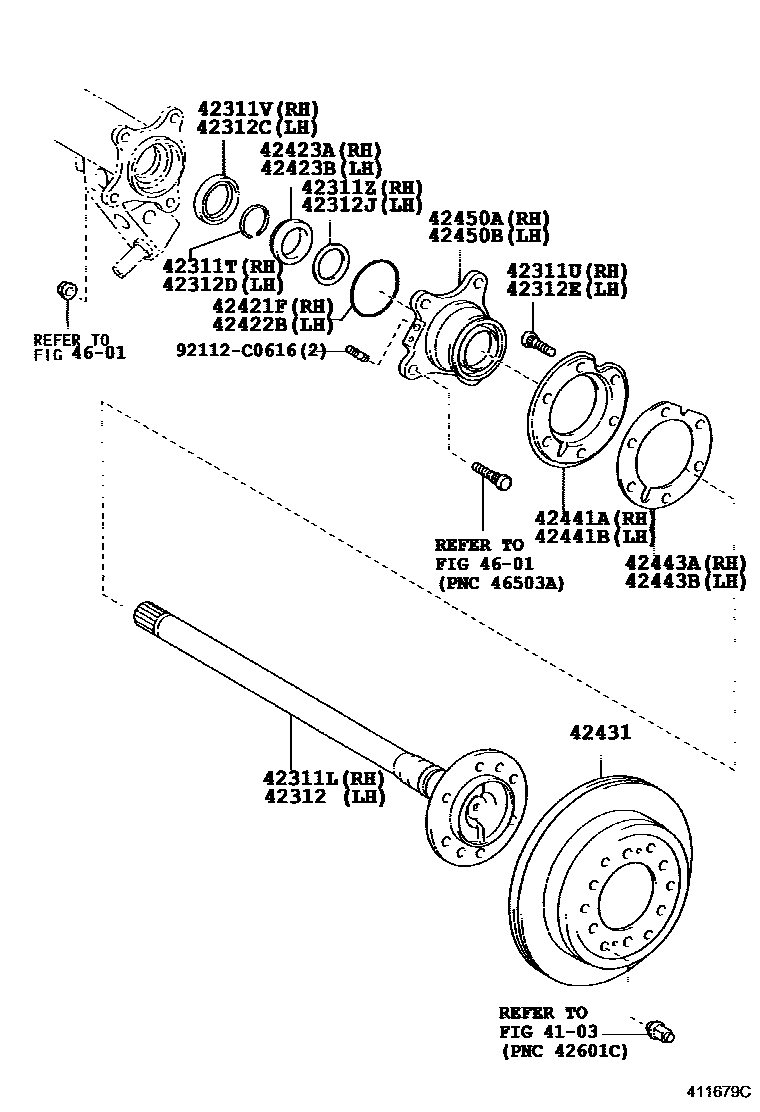

Toyota HILUX EPC diagram 4102, 后桥半轴和后桥轮毂, with 1 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 42311L | Rear axle right half shaft | 42311-60240 |
| 42311T | Snap ring (for rear axle right half shaft) | 90520-41019 |
| 42311U | Hub bolt (for rear axle right) | 90942-02079 |
| 42311V | Oil seal (for rear axle right half shaft) | 90310-58003 |
| 42311Z | Washer (for rear axle right half shaft) | 90208-44001 |
| 42312 | Rear axle left half shaft | 42311-60240 |
| 42312C | Oil seal (for rear axle left half shaft) | 90310-58003 |
| 42312D | Snap ring (for rear axle left half shaft) | 90520-41019 |
| 42312E | Hub bolt (for left rear axle) | 90942-02079 |
| 42312J | Washer (for rear axle left half shaft) | 90208-44001 |
| 42421F | O-ring (for rear axle right bearing housing) | 90301-83002 |
| 42422B | O-ring (for rear axle left bearing housing) | 90301-83002 |
| 42423A | Rear axle right bearing inner retainer | 42423-60050 |
| 42423B | Rear axle left bearing inner retainer | 42423-60050 |
| 42431 | rear brake disc | 42431-60200 · 42431-60201 |
| 42441A | Brake drum right oil baffle | 42441-60060 |
| 42441B | Brake drum left oil baffle | 42441-60060 |
| 42443A | Brake drum right fender pad | 42443-60010 |
| 42443B | Brake drum left oil deflector gasket | 42443-60010 |
| 42450A | Rear axle right hub and bearing assembly | 42450-60050 |
| 42450B | Rear axle left wheel hub and bearing assembly | 42460-60010 |
