Toyota HILUX Propeller Shaft & Universal Joint — Figure 3701

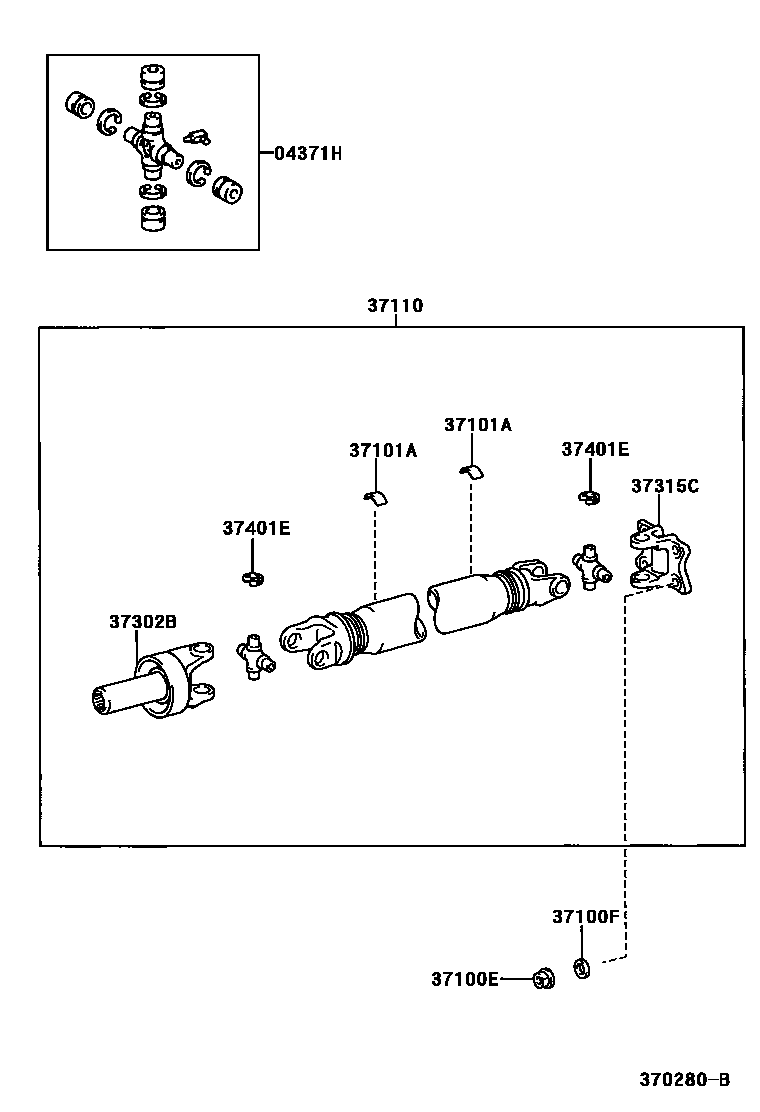

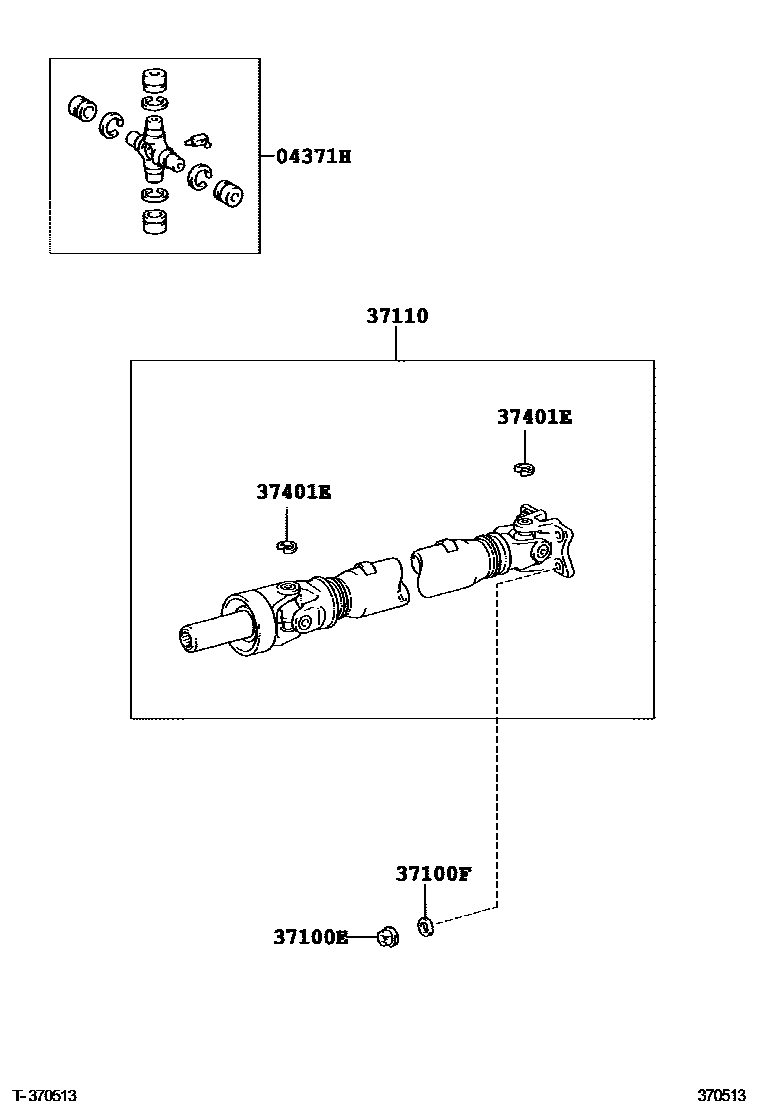

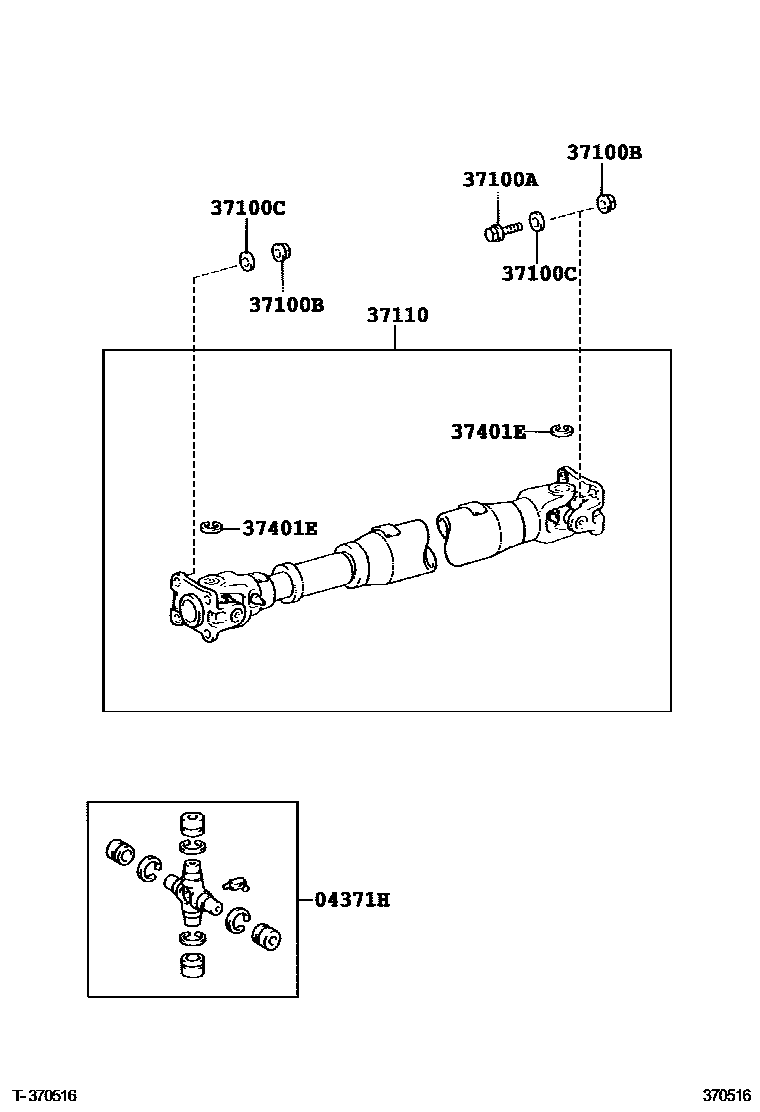

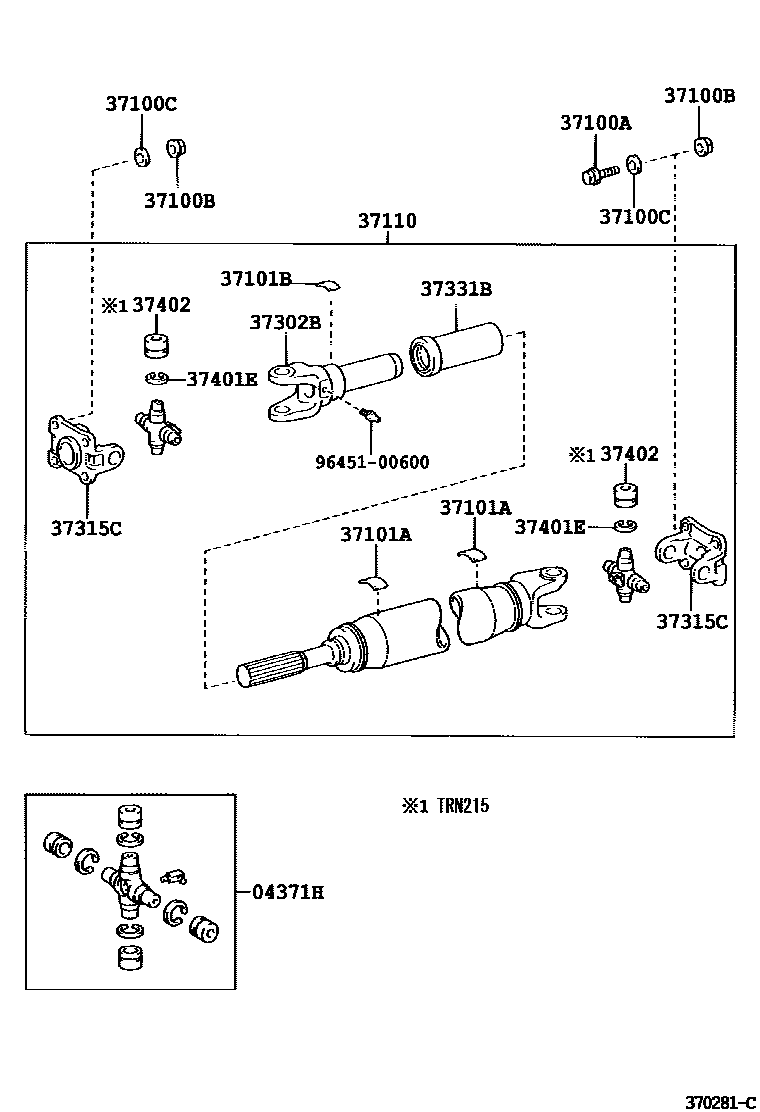

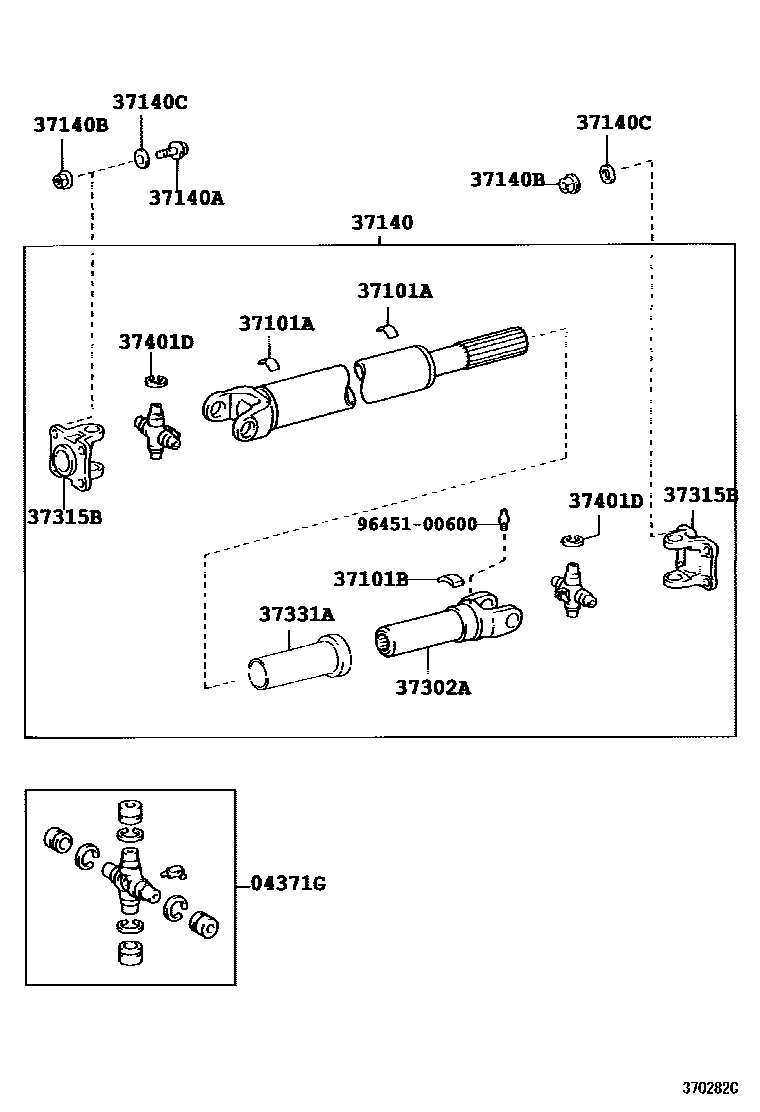

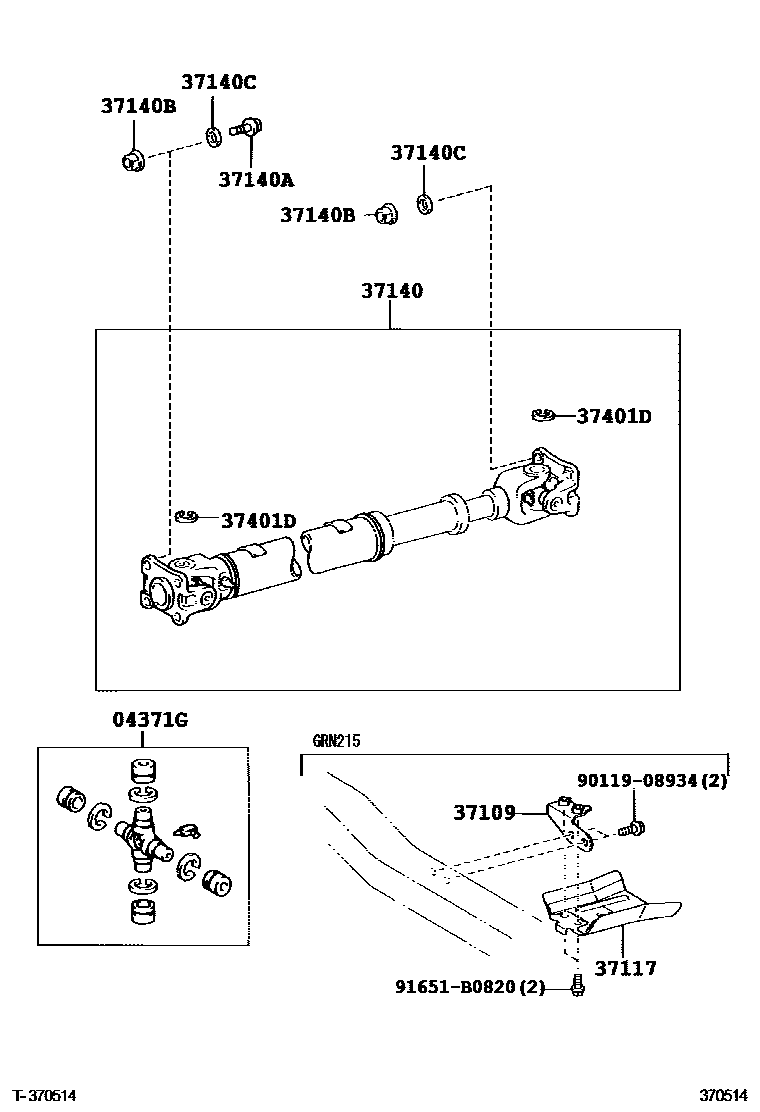

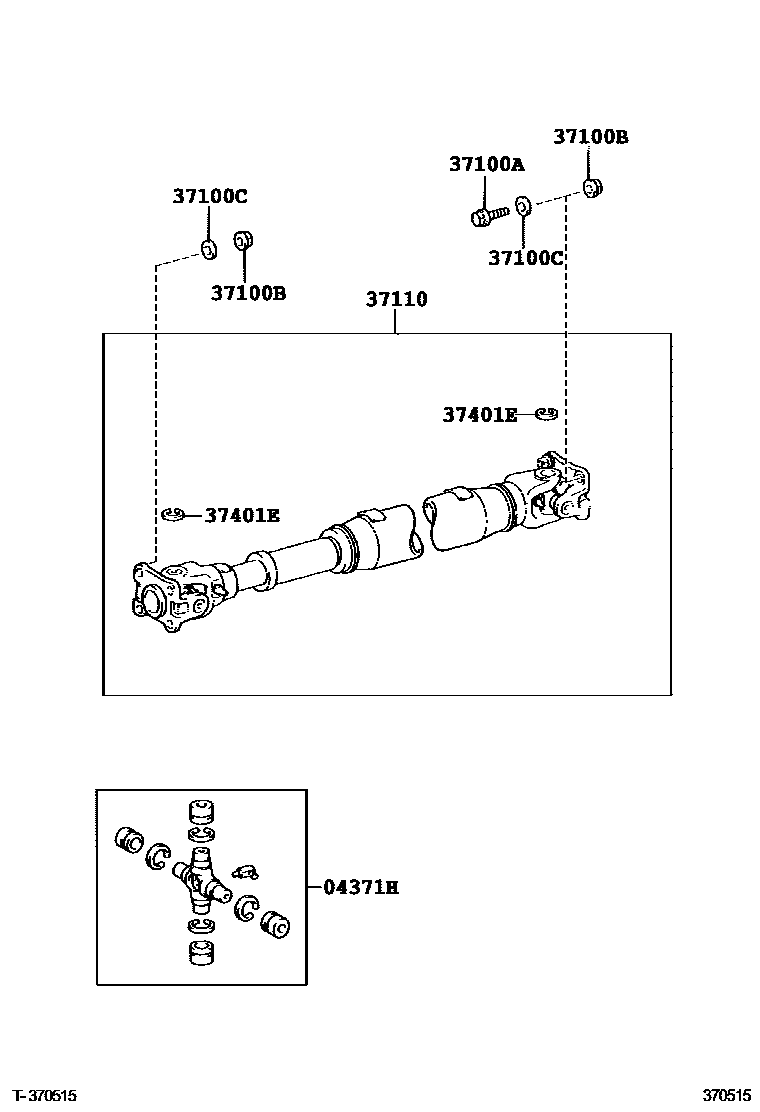

Toyota HILUX EPC diagram 3701, Propeller Shaft & Universal Joint, with 7 images and 25 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04371G | Front drive shaft universal joint cross shaft assembly | 04371-60070 |
| 04371H | Rear drive shaft universal joint cross shaft assembly | 04371-36030 · 04371-36050 · 04371-60070 · 04371-60080 · 04371-60100 |
| 37100A | No. 1 bolt (used to secure the drive shaft and differential) | 90105-11044 |
| 37100B | No. 1 nut (used to secure the drive shaft and differential) | 90178-11001 |
| 37100C | No. 1 washer (used to secure drive shaft and differential) | 90201-11013 |
| 37100E | No. 2 nut (used to secure the drive shaft and differential) | 90178-11001 |
| 37100F | No. 2 washer (used to secure drive shaft and differential) | 90201-11013 |
| 37101A | Balance weight No. 1 (for drive shaft) | 90937-01132 · 90937-01136 · 90937-01147 · 90937-01148 · 90937-01149 · 90937-01150 · 90937-01151 · 90937-01152 · 90937-01153 · 90937-01154 · 90937-01155 · 90937-01156 · 90937-01157 · 90937-01158 · 90937-01201 · 90937-01202 · 90937-01203 · 90937-01204 · 90937-01205 · 90937-01206 · 90937-01207 · 90937-01208 · 90937-01209 · 90937-01210 · 90937-01211 · 90937-01396 · 90937-01397 · 90937-01398 · 90937-01399 · 90937-01400 · 90937-01401 · 90937-01402 |
| 37101B | No. 2 balance weight (for drive shaft) | 90937-01184 · 90937-01271 · 90937-01272 · 90937-01273 · 90937-01274 · 90937-01396 · 90937-01397 · 90937-01398 · 90937-01497 · 90937-01498 · 90937-01499 · 90937-01500 · 90937-01501 · 90937-01502 · 90937-01503 · 90937-01504 · 90937-01505 · 90937-01506 · 90937-01507 · 90937-01508 · 90937-01509 · 90937-01510 |
| 37109 | Drive shaft heat insulation pad bracket sub-assembly | 37109-60010 |
| 37110 | Drive shaft assembly | 37110-3D510 · 37110-3D550 · 37110-60A20 · 37110-6A440 · 37110-6A450 · 37110-6A490 |
| 37117 | drive shaft insulation pad | 37117-60010 |
| 37140 | Front drive shaft assembly | 37140-60380 · 37140-60390 · 37140-60410 |
| 37140A | Bolt (for front driveshaft) | 90105-11044 |
| 37140B | Nut (for front driveshaft) | 90178-11001 |
| 37140C | Washer (for front driveshaft) | 90201-11013 |
| 37302A | Front drive shaft universal joint fork assembly | 37302-35050 |
| 37302B | Rear drive shaft universal joint fork assembly | 37302-24010 · 37302-35050 · 37302-36020 |
| 37315B | Front drive shaft universal joint flange shift fork | 37315-35060 |
| 37315C | No. 1 rear drive shaft universal joint flange shift fork | 37315-35060 · 37315-35080 · 37315-36020 |
| 37331A | Front drive shaft sliding shaft dust cover sub-assembly | 37305-60030 |
| 37331B | Rear drive shaft sliding shaft dust cover sub-assembly | 37305-36020 · 37305-60030 |
| 37401D | Snap ring (for front drive shaft universal joint cross shaft bearing) | 90520-25039 · 90520-25040 · 90520-25041 · 90520-25042 · 90520-25043 · 90520-25044 · 90520-25045 · 90520-25046 · 90520-25047 · 90520-25048 · 90520-25049 · 90520-25050 · 90520-25051 · 90520-25052 · 90520-25053 · 90520-25054 · 90520-25055 · 90520-25056 · 90520-25057 · 90520-25058 |
| 37401E | Snap ring (for rear drive shaft universal joint cross shaft bearing) | 90520-25039 · 90520-25040 · 90520-25041 · 90520-25042 · 90520-25043 · 90520-25044 · 90520-25045 · 90520-25046 · 90520-25047 · 90520-25048 · 90520-25049 · 90520-25050 · 90520-25051 · 90520-25052 · 90520-25053 · 90520-25054 · 90520-25055 · 90520-25056 · 90520-25057 · 90520-25058 · 90520-29024 · 90520-29025 · 90520-29026 · 90520-29027 · 90520-29039 · 90520-29040 · 90520-29041 · 90520-29042 · 90520-29043 · 90520-29044 · 90520-29045 · 90520-29046 · 90520-29047 · 90520-29048 |
| 37402 | Universal joint cross shaft bearing sub-assembly | 37402-36070 · 37402-36080 |
