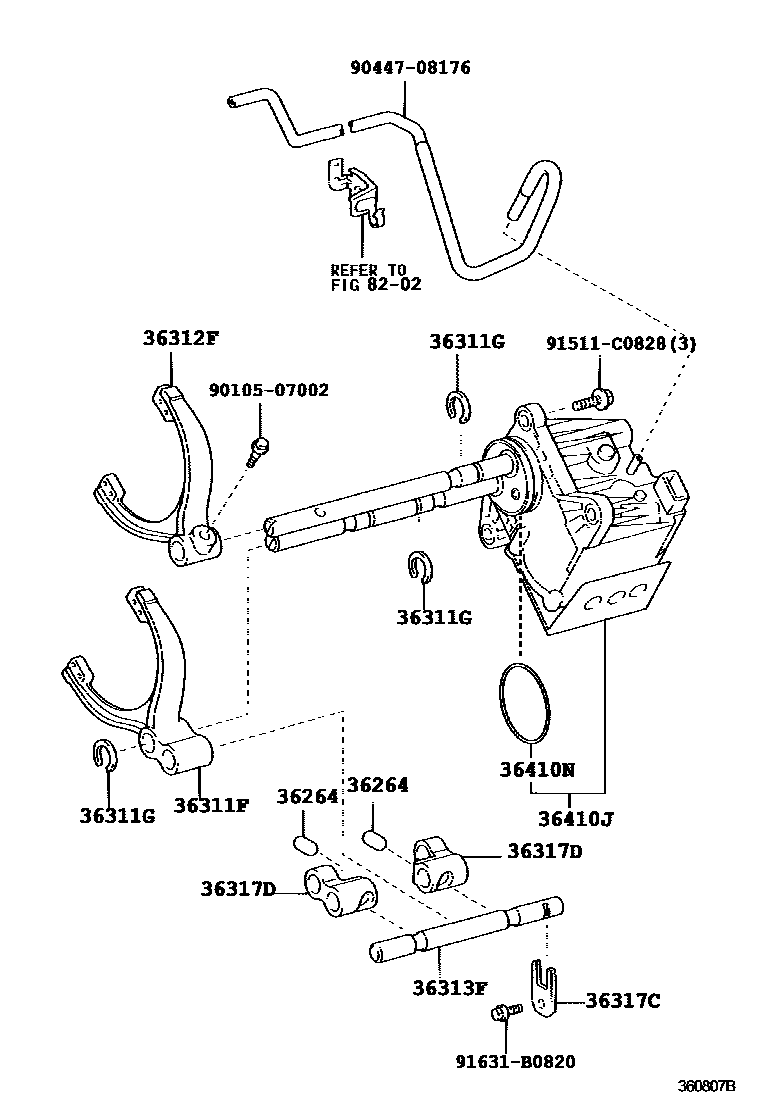

Toyota HILUX Transfer Lever & Shift Fork Shaft — Figure 3611
Toyota HILUX EPC diagram 3611, Transfer Lever & Shift Fork Shaft, with 1 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 36264 | Shift interlock pin or roller | 90250-06007 |
| 36311F | No. 1 transfer case shift fork | 36301-35010 |
| 36311G | Shaft snap ring (for transfer case shift fork) | 90520-13002 |
| 36312F | No. 2 transfer case shift fork | 36302-35011 |
| 36313F | Transfer case front wheel drive shift fork shaft | 36313-35130 |
| 36317C | Transfer case shift shaft limiter | 36317-35041 |
| 36317D | Transfer case shift shaft No. 2 stopper | 36317-35060 |
| 36410J | Transfer case shift actuator assembly | 36410-35090 · 36410-35091 · 36410-35092 |
| 36410N | O-ring (for transfer case shift actuator) | 90301-56009 |
