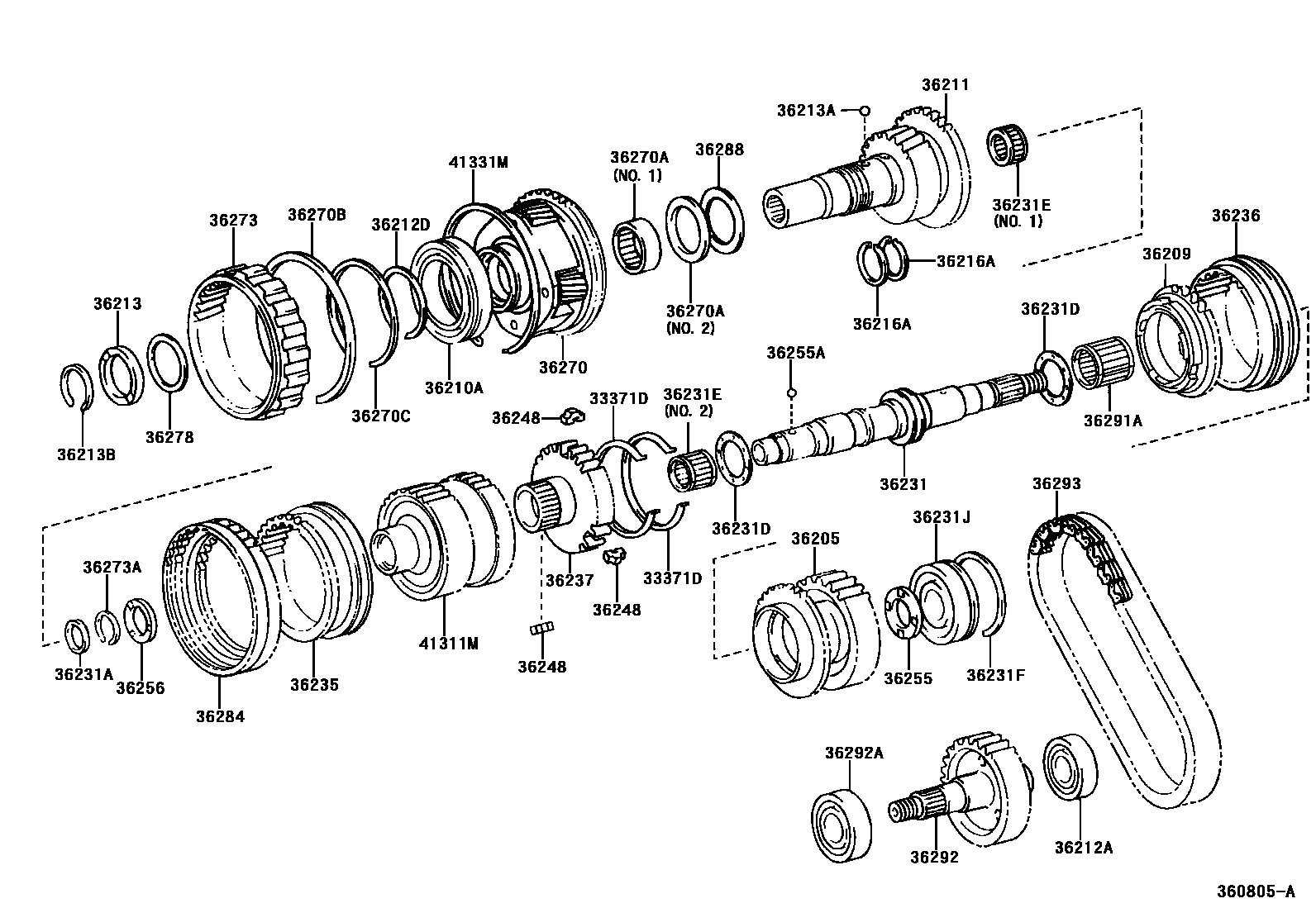

Toyota HILUX Transfer Gear — Figure 3610
Toyota HILUX EPC diagram 3610, Transfer Gear, with 1 images and 39 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33371D | No. 1 synchromesh shift key spring (for transfer case) | 33371-35030 |
| 36205 | Transfer case drive sprocket sub-assembly | 36205-35100 |
| 36209 | Transfer case synchronizer lock ring assembly | 36209-35030 |
| 36210A | Bearing (for transfer case input shaft) | 90363-75001 |
| 36211 | Transfer case input shaft | 36201-35120 |
| 36212A | Radial ball bearing (for transfer case input gear) | 90363-28013 |
| 36212D | Shaft snap ring (for transfer case input bearing) | 90520-72001 · 90520-72002 · 90520-72003 · 90520-72004 · 90520-72005 |
| 36213 | Transfer case input gear block | 36213-35020 |
| 36213A | Steel ball (for transfer case input gear block) | 90360-05012 |
| 36213B | Shaft snap ring (for transfer case input gear block) | 90520-44003 · 90520-44004 · 90520-44005 · 90520-44006 · 90520-44007 · 90520-44008 · 90520-44009 · 90520-44010 · 90520-44011 · 90520-44012 · 90520-44013 · 90520-44014 · 90520-44015 · 90520-44016 · 90520-44017 · 90520-44018 · 90520-44019 · 90520-44020 · 90520-44021 |
| 36216A | No. 1 transfer case input shaft seal ring | 36216-35011 · 36216-35012 |
| 36231 | Transfer case rear output shaft | 36231-35050 |
| 36231A | Spacer (for transfer case output shaft) | 90560-28004 |
| 36231D | Flat washer (for transfer case output shaft) | 36275-35020 |
| 36231E | Needle roller bearing (for transfer case front output shaft) | 90364-28004 · 90364-35009 |
| 36231F | Shaft snap ring (for transfer case output shaft) | 90520-82001 |
| 36231J | Radial ball bearing (for transfer case rear output shaft) | 90363-32040 |
| 36235 | Transfer case high and low speed clutch sleeves | 36235-35030 · 36235-35031 |
| 36236 | Front wheel drive clutch sleeve | 36236-35060 |
| 36237 | Transfer case clutch hub | 36203-35020 |
| 36248 | No. 1 transfer case drive synchromesh shift key | 36248-35040 |
| 36255 | No. 1 transfer case output shaft spacer | 36255-35030 |
| 36255A | Steel ball (for transfer case output shaft spacer) | 90360-05012 |
| 36256 | No. 2 transfer case output shaft spacer | 36256-35030 |
| 36270 | Transfer case low speed planetary gear assembly | 36270-35040 |
| 36270A | Bearings (for transfer case low-speed planetary gear) | 90364-47001 · 90374-49001 |
| 36270B | Shaft snap ring (for transfer case low range planetary gear) | 90520-99078 |
| 36270C | Shaft snap ring (for transfer case low speed planetary gear bearing) | 90520-99072 |
| 36273 | Transfer case low gear planetary ring gear | 36273-35030 |
| 36273A | Hole snap ring (for transfer case low-speed planetary ring gear) | 90520-29052 |
| 36278 | Manual transfer case planetary gear washer | 36278-35020 |
| 36284 | Transfer case low gear planetary gear spline | 36284-35030 · 36284-35031 |
| 36288 | No. 1 transfer case thrust bearing race | 36288-28010 |
| 36291A | Bearings (for transfer case drive sprocket) | 90364-37013 |
| 36292 | Transfer case driven sprocket | 36292-35050 |
| 36292A | Bearings (for transfer case driven sprocket) | 90363-32037 |
| 36293 | Transfer case front wheel drive chain | 36293-35031 · 36293-35040 |
| 41311M | center differential housing | 41301-35140 |
| 41331M | Hole snap ring (for center differential planetary ring gear) | 90520-99079 |
