Toyota HILUX 变速器油冷却器和配管(ATM) — Figure 3514

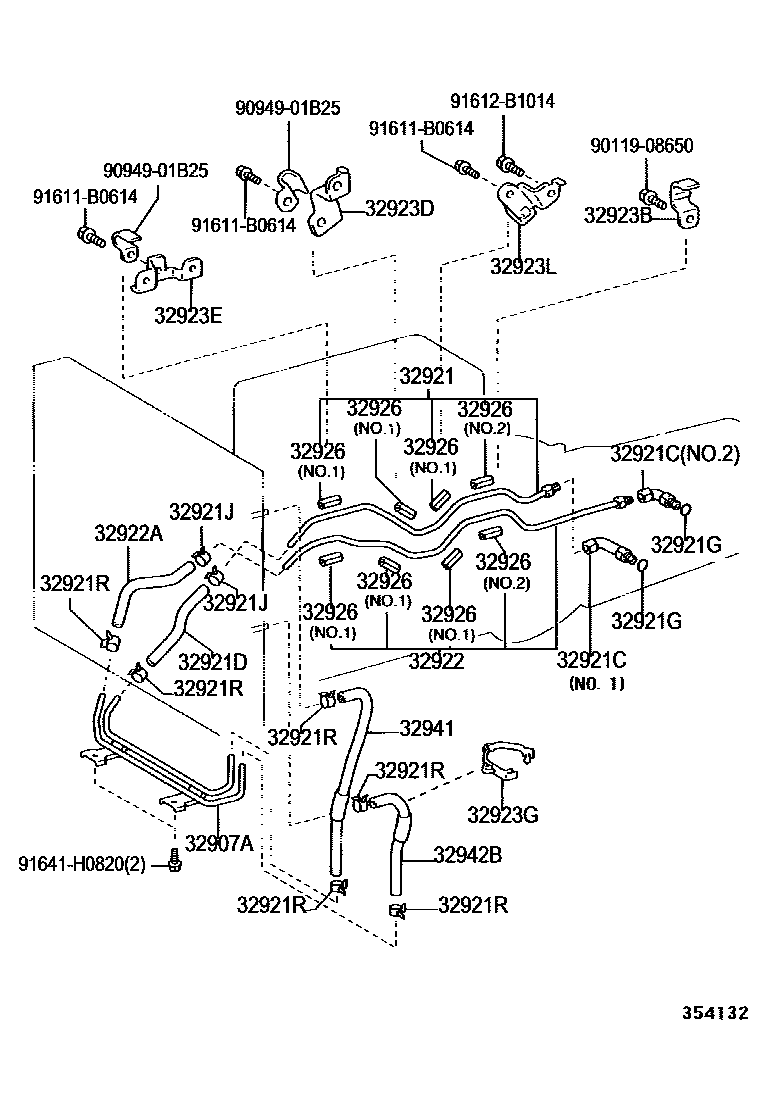

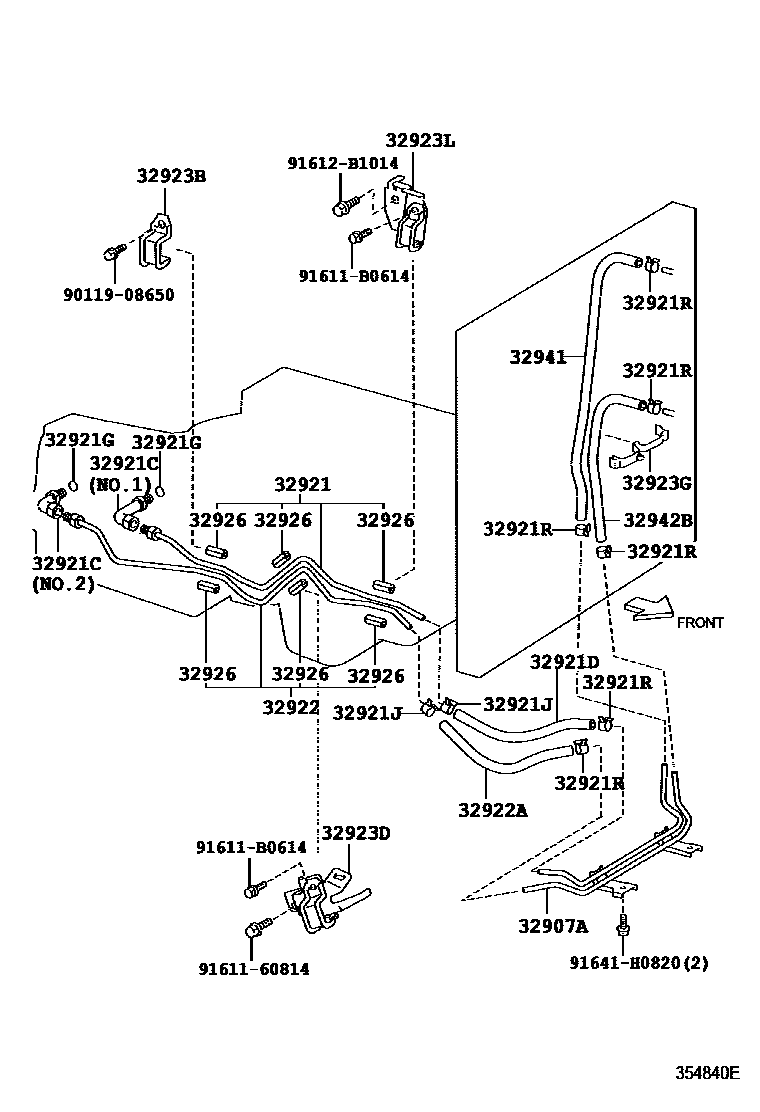

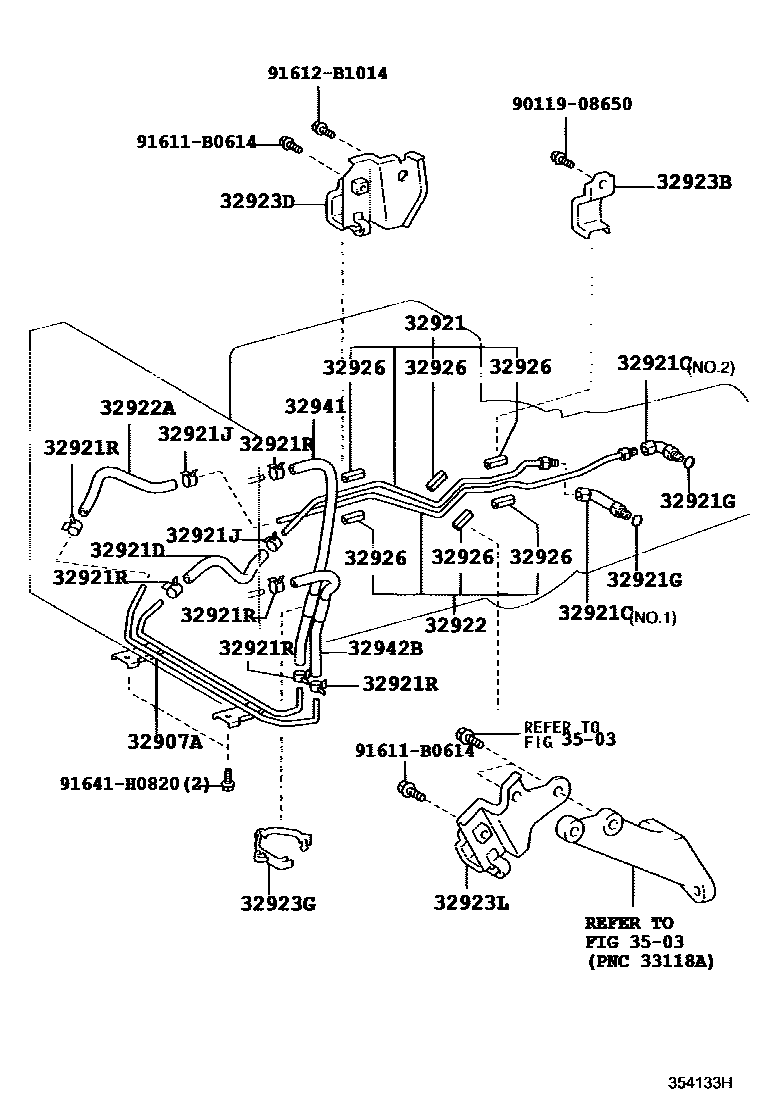

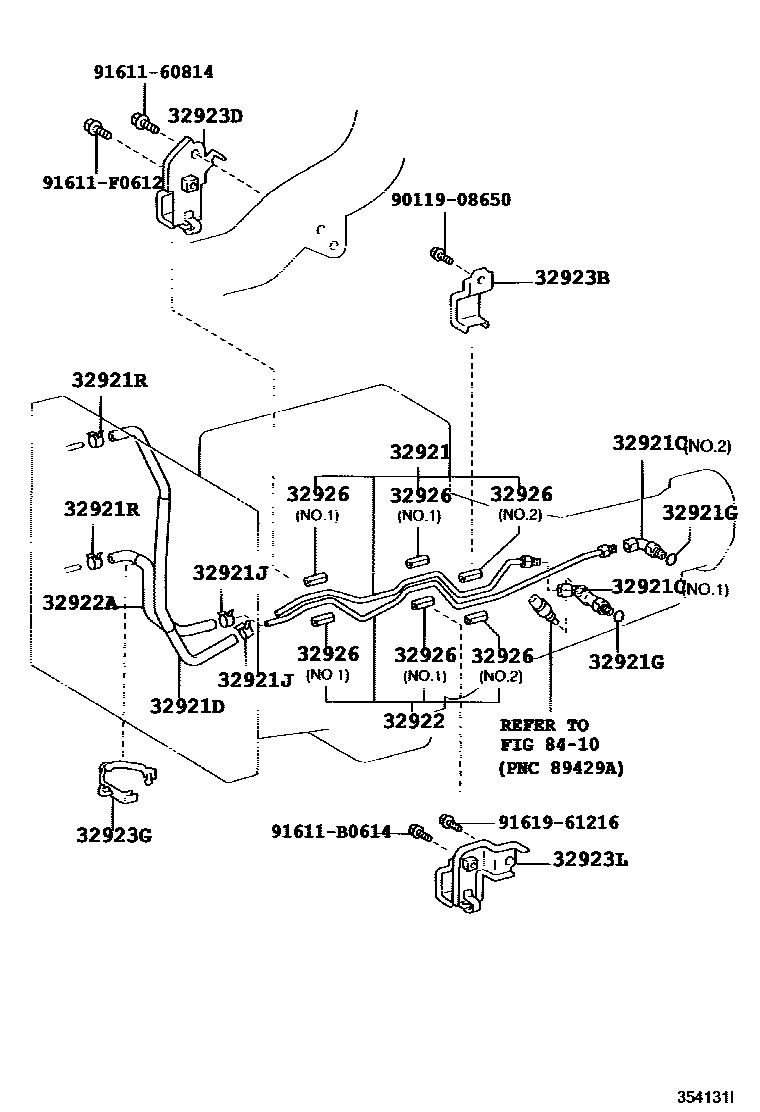

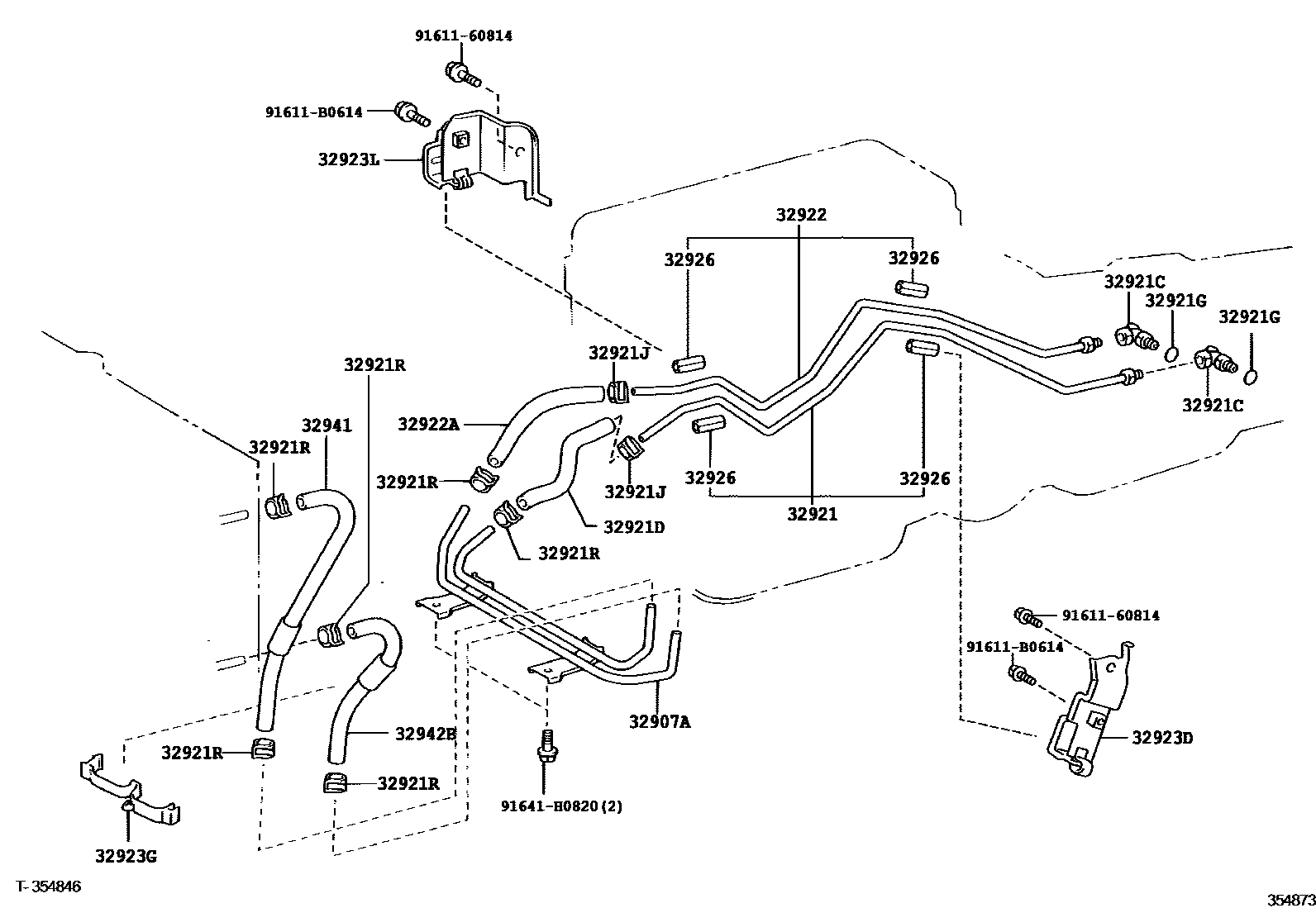

Toyota HILUX EPC diagram 3514, 变速器油冷却器和配管(ATM), with 5 images and 17 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 32907A | Transmission oil cooler pipe | 32907-60070 |
| 32921 | No. 1 transmission oil cooler oil inlet pipe | 32921-60250 · 32921-60270 · 32921-60290 · 32921-60310 · 32921-60340 |
| 32921C | Fitting (for transmission oil cooler tube) | 90407-14024 · 90407-16009 · 90407-16012 |
| 32921D | Hose (for transmission oil cooler oil inlet) | 32941-22360 · 32941-60270 · 90445-17103 · 90445-17106 · 90445-17124 |
| 32921G | O-ring (for transmission oil cooler pipe joint) | 90301-11006 · 90301-11030 |
| 32921J | Clamp (for transmission oil cooler hose) | 90466-16004 · 90467-16022 |
| 32921R | Clamp No. 2 (for transmission oil cooler hose) | 90466-16004 · 90467-16022 |
| 32922 | No. 1 transmission oil cooler oil outlet pipe | 32922-60270 · 32922-60290 · 32922-60310 · 32922-60330 · 32922-60360 |
| 32922A | Hoses (for transmission oil cooler oil outlet) | 32941-22360 · 32941-26170 · 32942-60380 · 32942-60400 |
| 32923B | No. 1 automatic transmission oil cooler pipe clamp | 32929-24060 |
| 32923D | No. 5 automatic transmission oil cooler pipe clamp | 32909-34040 · 32909-60110 · 32909-60160 · 32909-60170 · 32909-60171 · 32925-60150 |
| 32923E | No. 6 automatic transmission oil cooler pipe clamp | 32925-60170 |
| 32923G | No. 8 automatic transmission oil cooler pipe clamp | 32928-60100 |
| 32923L | No. 3 automatic transmission oil cooler pipe clamp | 32909-34040 · 32909-34050 · 32909-35130 · 32909-35170 · 32909-60130 |
| 32926 | Automatic transmission oil cooler pipe cushion | 32926-30020 · 32926-30030 |
| 32941 | No. 1 transmission oil cooler oil inlet hose | 32941-60280 |
| 32942B | No. 3 transmission oil cooler oil outlet hose | 32942-60390 |
