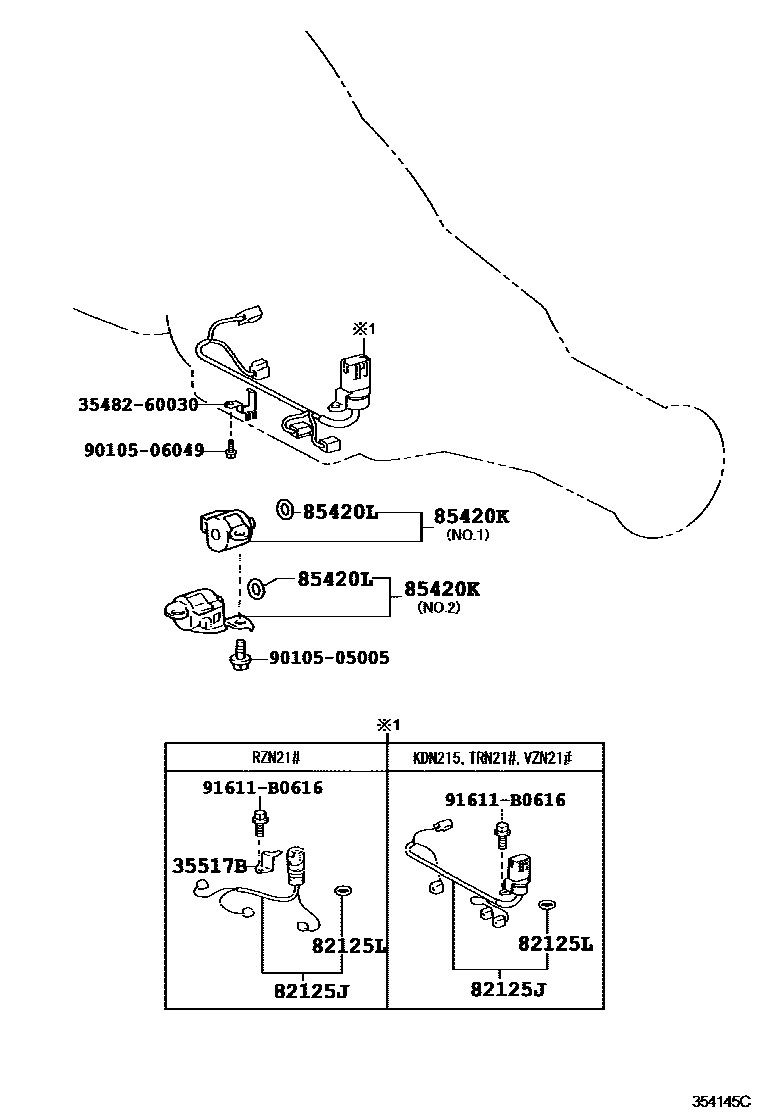

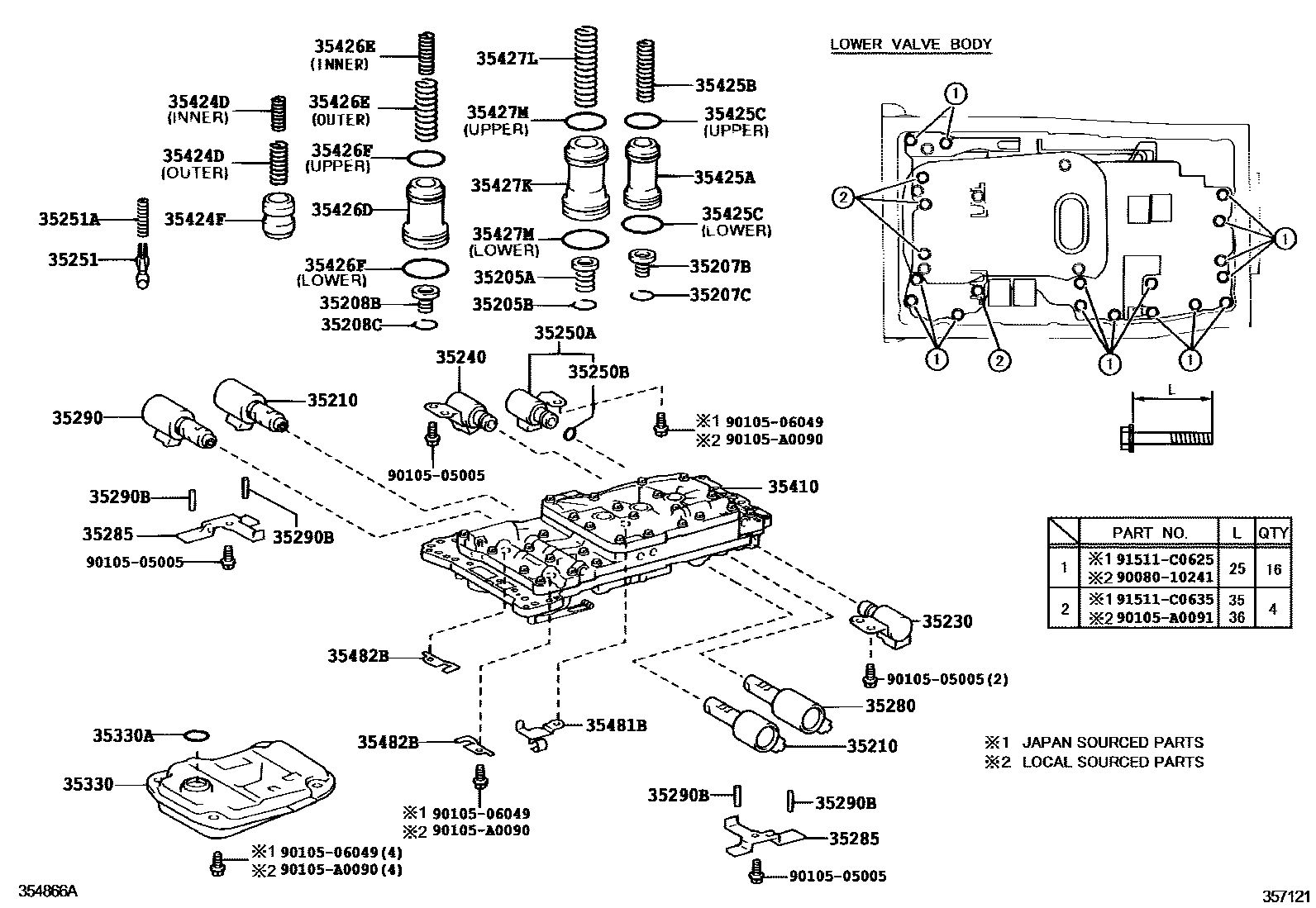

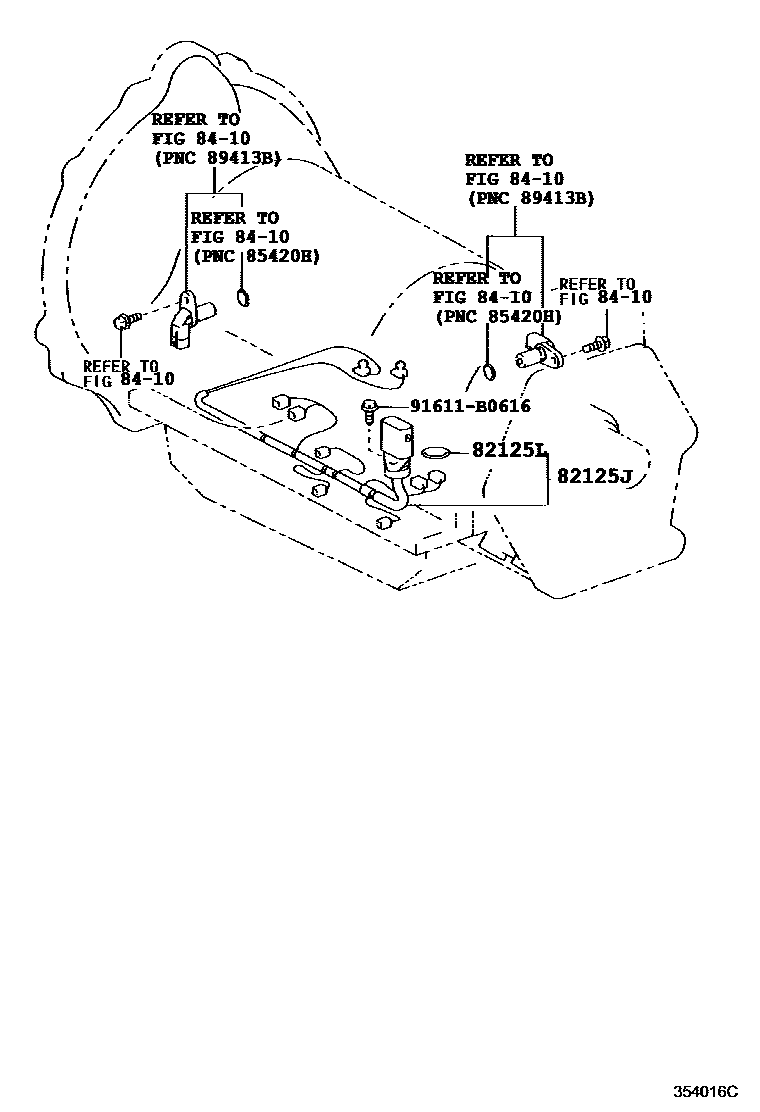

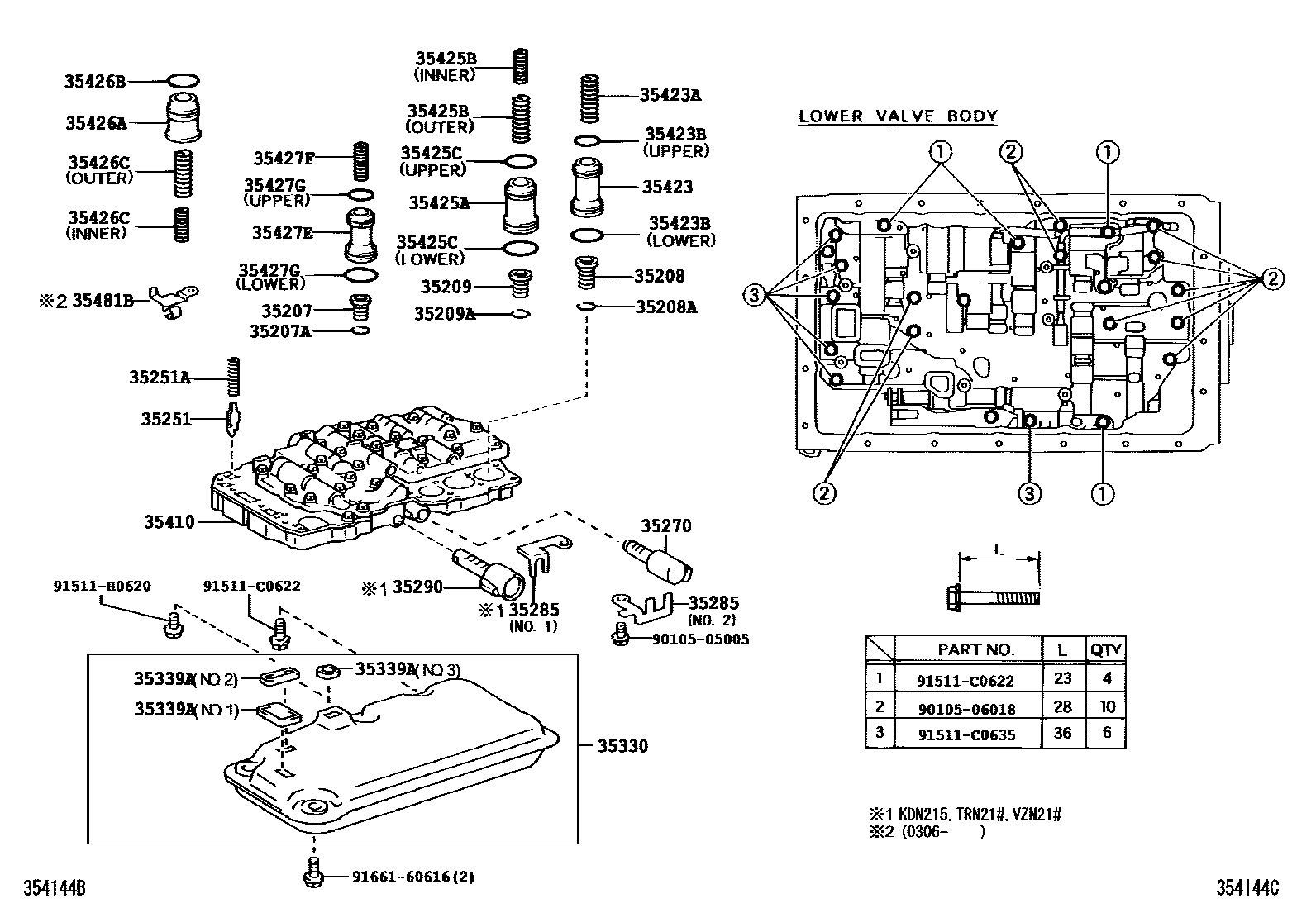

Toyota HILUX 阀体和滤油网(ATM) — Figure 3512
Toyota HILUX EPC diagram 3512, 阀体和滤油网(ATM), with 4 images and 55 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35205A | B-3 accumulator spring sub-assembly | 35205-60010 |
| 35205B | Hole snap ring (for B-3 accumulator spring) | 90521-22004 |
| 35207 | B-0 accumulator spring sub-assembly | 35207-22010 |
| 35207A | Hole snap ring (for B-0 accumulator spring) | 90521-22004 |
| 35207B | C-2 Accumulator spring sub-assembly | 35207-22010 |
| 35207C | Hole snap ring (for C-2 accumulator spring) | 90521-22004 |
| 35208 | B-2 Accumulator Spring Sub-Assembly | 35208-22010 · 35208-30010 · 35208-35010 |
| 35208A | Hole snap ring (for B-2 accumulator spring) | 90521-22004 |
| 35208B | C-3 Accumulator Spring Sub-Assembly | 35208-60010 |
| 35208C | Hole snap ring (for C-3 accumulator spring) | 90521-22004 |
| 35209 | C-2 Accumulator spring sub-assembly | 35209-22020 · 35209-30010 · 35209-50020 |
| 35209A | Hole snap ring (for C-2 accumulator spring) | 90521-22004 |
| 35210 | No. 1 clutch control solenoid valve assembly | 35210-50010 |
| 35230 | No. 2 transmission three-way solenoid valve assembly | 35230-60010 |
| 35240 | Automatic transmission three-way solenoid valve assembly | 35240-34010 · 35240-60020 |
| 35250A | No. 3 transmission solenoid valve assembly | 35250-60010 |
| 35250B | No. 3 O-ring (for transmission solenoid valve) | 90301-06004 |
| 35251 | Ball check valve body | 35251-30020 |
| 35251A | Compression spring (for ball check valve body) | 90080-50308 · 90501-03005 |
| 35270 | Shift control solenoid valve assembly | 35270-14010 |
| 35280 | Lock control solenoid valve assembly | 35280-30050 · 35280-50020 |
| 35285 | Solenoid valve lock plate | 35285-24010 · 35285-24020 · 35285-34010 |
| 35290 | Pipe pressure control solenoid valve assembly | 35290-34010 · 35290-50010 · 35290-60020 · 35290-71010 |
| 35290B | Direct sales (for pipeline pressure control solenoid valve) | 90250-03045 · 90250-A0003 |
| 35330 | Valve body oil filter assembly | 35330-60030 · 35330-60050 |
| 35330A | O-ring (for oil filter) | 90301-31014 |
| 35339A | No. 1 oil filter gasket | 35339-30080 · 35339-30090 · 35339-30100 |
| 35410 | Transmission valve body assembly | 35410-0C010 · 35410-26740 · 35410-35730 · 35410-35740 · 35410-35750 · 35410-35760 · 35410-35770 · 35410-35790 · 35410-60580 |
| 35423 | B-2 Accumulator Piston | 35423-30030 |
| 35423A | Compression spring (for B-2 accumulator piston) | 90501-23094 · 90501-24015 · 90501-25028 · 90501-27019 |
| 35423B | O-ring (for B-2 accumulator piston) | 90301-23010 · 90301-31010 |
| 35424D | Compression spring (for C-1 accumulator piston) | 90501-20173 · 90501-21040 · 90501-A0037 · 90501-A0038 |
| 35424F | C-1 Accumulator Valve | 35424-60030 |
| 35425A | C-2 Accumulator Piston | 35425-30020 · 35425-50020 · 35425-60060 |
| 35425B | Compression spring (for C-2 accumulator piston) | 90501-22015 · 90501-22062 · 90501-23093 · 90501-23135 · 90501-25027 · 90501-A0036 |
| 35425C | O-ring (for C-2 accumulator piston) | 90301-20008 · 90301-25010 · 90301-28008 · 90301-31010 |
| 35426A | C-0 Accumulator Piston | 35426-40010 |
| 35426B | O-ring (for C-0 accumulator piston) | 90301-24010 |
| 35426C | Compression spring (for C-0 accumulator piston) | 90501-22008 · 90501-23073 |
| 35426D | C-3 Accumulator Piston | 35426-50020 · 35426-60020 |
| 35426E | Compression spring (for C-3 accumulator piston) | 90501-24038 · 90501-25028 · 90501-A0034 · 90501-A0035 |
| 35426F | O-ring (for C-3 accumulator piston) | 90301-26011 · 90301-34011 |
| 35427E | B-0 accumulator piston | 35427-30040 |
| 35427F | Compression spring (for B-0 accumulator piston) | 90501-21006 · 90501-23095 |
| 35427G | O-ring (for B-0 accumulator piston) | 90301-20008 · 90301-26011 |
| 35427K | B-3 Accumulator Piston | 35427-50020 · 35427-60020 |
| 35427L | Compression spring (for B-3 accumulator piston) | 90501-27036 · 90501-A0033 |
| 35427M | O-ring (for B-3 accumulator piston) | 90301-23010 · 90301-34011 |
| 35481B | Valve body wiring harness clip | 35481-24010 · 35481-60010 |
| 35482B | temperature sensor clip | 35482-60040 |
| 35517B | Transmission harness locking plate | 35517-30010 |
| 82125J | Transmission wiring harness | 82125-30470 · 82125-35140 · 82125-35150 · 82125-60480 · 82125-60650 |
| 82125L | O-ring (for transmission wiring harness) | 90301-21009 · 96721-24018 |
| 85420K | Transmission solenoid valve assembly | 35250-30050 · 35250-30070 |
| 85420L | O-ring (for transmission solenoid valve) | 90301-06004 |
