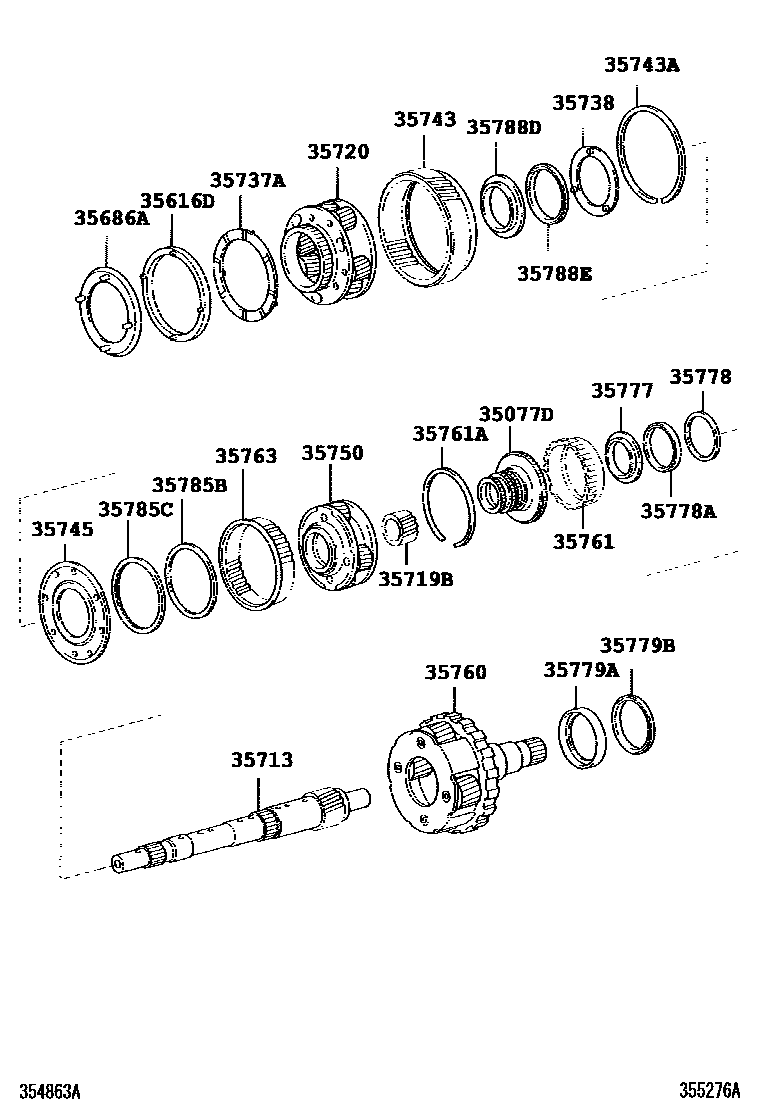

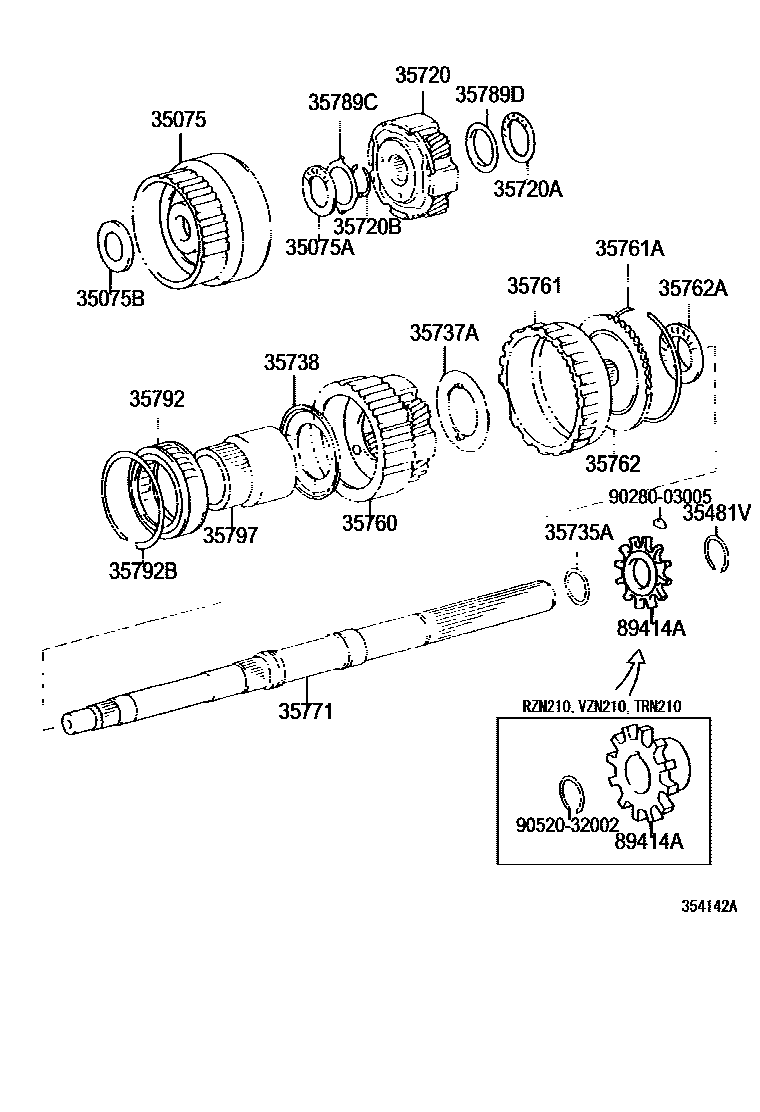

Toyota HILUX 行星齿轮、倒档活塞和中间轴齿轮(ATM) — Figure 3510
Toyota HILUX EPC diagram 3510, 行星齿轮、倒档活塞和中间轴齿轮(ATM), with 2 images and 41 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35075 | Front planetary ring gear sub-assembly | 35075-50010 |
| 35075A | Thrust needle roller bearing (for front planetary ring gear) | 90374-35004 |
| 35075B | Front thrust bearing race (for front planetary ring gear) | 35789-30120 |
| 35077D | Rear planetary ring gear flange sub-assembly | 35077-60010 |
| 35481V | Ring or spacer (for automatic transmission speedometer drive gear) | 90520-28009 · 90520-29004 |
| 35616D | Clutch drum thrust washer | 35616-60010 |
| 35686A | No. 2 clutch drum thrust washer | 35686-60010 |
| 35713 | intermediate shaft | 35713-0C030 · 35713-60050 · 35713-60090 |
| 35719B | planetary gear system sun gear | 35719-60050 |
| 35720 | Front planetary gear assembly | 35720-30080 · 35720-35030 · 35720-60070 |
| 35720A | Thrust needle roller bearing (for front planetary gear) | 90374-35001 |
| 35720B | Shaft snap ring (for front planetary gear) | 90520-24026 |
| 35735A | Planetary gear output shaft oil protection ring | 35735-30020 |
| 35737A | No. 1 planetary gear carrier thrust washer | 35737-30030 · 35737-60030 |
| 35738 | No. 2 planetary gear carrier thrust washer | 35738-60030 · 35739-30030 |
| 35743 | Front planetary ring gear | 35743-60050 · 35743-60060 |
| 35743A | Shaft snap ring (for front planetary gear) | 90520-99076 |
| 35745 | Front planetary gear flange | 35745-60010 |
| 35750 | Central planetary gear assembly | 35750-60010 |
| 35760 | Rear planetary gear assembly | 35705-30010 · 35760-0C012 · 35760-60061 · 35760-60100 |
| 35761 | Rear planetary ring gear | 35761-0C010 · 35761-30020 · 35761-60040 |
| 35761A | Hole snap ring (for rear planetary ring gear) | 90520-99073 · 90521-99024 |
| 35762 | Rear planetary gear flange | 35762-30040 |
| 35762A | Thrust needle roller bearing (for rear planetary gear flange) | 90374-38003 |
| 35763 | Central planetary ring gear | 35763-60010 · 35763-60020 |
| 35771 | output shaft | 35073-35030 · 35771-30040 |
| 35777 | No. 7 thrust bearing race | 35777-0C010 · 35777-60010 |
| 35778 | No. 8 thrust bearing race | 35778-0C010 · 35778-60010 |
| 35778A | Thrust needle roller bearing | 90374-32010 · 90374-A0005 |
| 35779A | No. 9 thrust bearing race | 35779-0C020 · 35779-60011 |
| 35779B | Thrust needle roller bearing | 90374-43007 · 90374-A0018 |
| 35785B | No. 4 thrust bearing race | 35785-60010 |
| 35785C | Thrust needle roller bearing | 90374-55004 |
| 35788D | No. 3 thrust bearing race | 35788-60010 |
| 35788E | Thrust needle roller bearing | 90374-44005 |
| 35789C | Front thrust bearing race (for front planetary gear) | 35789-30080 |
| 35789D | Rear thrust bearing race (for front planetary gear) | 35789-30100 |
| 35792 | No. 2 one-way clutch | 35792-14020 |
| 35792B | Hole snap ring (for No. 2 one-way clutch) | 90521-87001 |
| 35797 | One-way clutch inner race | 35797-50010 |
| 89414A | sensor rotor | 89414-30040 · 89414-60020 |
