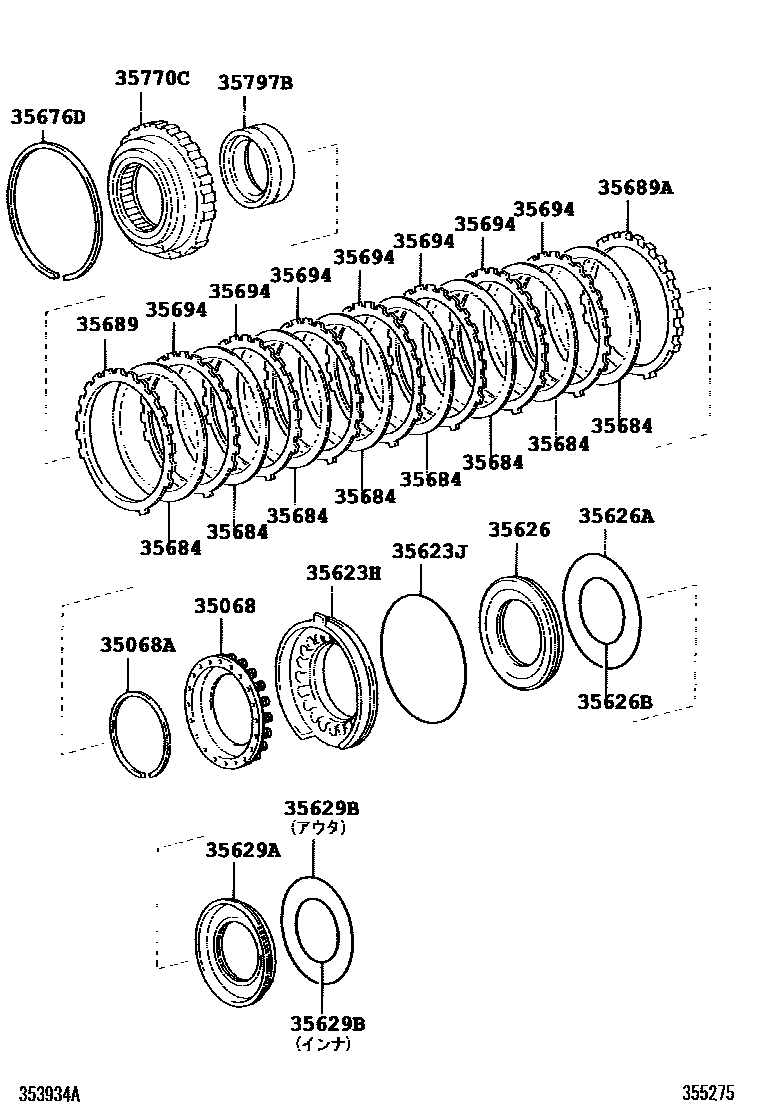

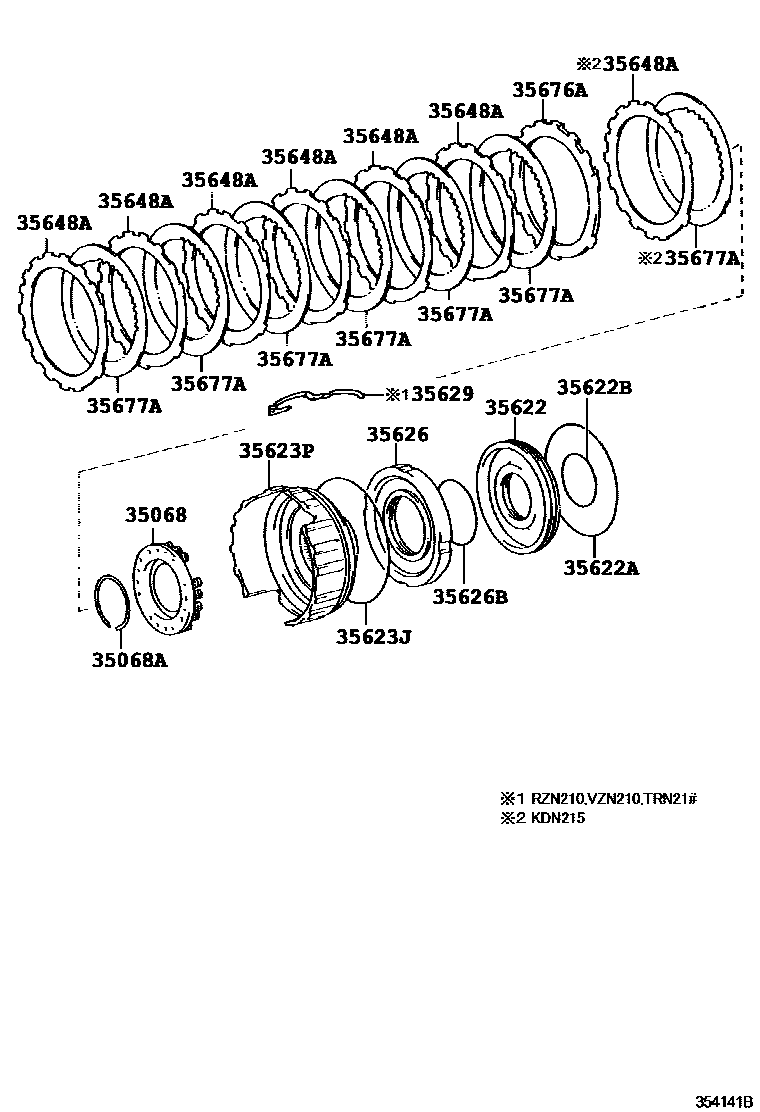

Toyota HILUX 3号制动器、一档和倒档制动器(ATM) — Figure 3509
Toyota HILUX EPC diagram 3509, 3号制动器、一档和倒档制动器(ATM), with 2 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 35068 | First and reverse brake return spring sub-assembly | 35068-0C010 · 35068-50010 · 35068-60010 |
| 35068A | Shaft snap ring (for first and reverse brake return spring) | 90520-52262 · 90520-61001 |
| 35622 | Brake piston No. 2 | 35622-30010 |
| 35622A | Outer ring (for brake piston) | 90301-99084 |
| 35622B | Inner ring (for brake piston) | 90301-56007 |
| 35623H | First and reverse brake piston | 35623-60050 · 35623-60060 |
| 35623J | O-ring (for first and reverse brakes) | 90301-99087 · 90301-99110 · 90301-99192 |
| 35623P | No. 2 first and reverse brake piston | 35623-14011 · 35623-30012 |
| 35626 | Brake reaction sleeve | 35626-30020 · 35626-60010 |
| 35626A | Outer ring (for brake reaction sleeve) | 90301-99143 |
| 35626B | Inner ring (for brake reaction sleeve) | 90301-67005 · 90301-79003 |
| 35629 | Limit spring (first and reverse brake pads) | 35629-22020 |
| 35629A | No. 4 brake piston | 35629-60010 |
| 35629B | O-ring (for brake piston No. 4) | 90301-67006 · 90301-99151 |
| 35648A | Clutch disc (for first and reverse brakes) | 35648-30031 |
| 35676A | Brake flange (for first and reverse brakes) | 35676-30100 · 35676-30110 · 35676-50010 · 35676-50020 · 35676-50030 · 35676-50040 · 35676-50050 · 35676-50060 |
| 35676D | Hole snap ring (for first and reverse brake flange) | 90521-99131 |
| 35677A | Clutch disc (for first and reverse brake) | 35677-30180 |
| 35684 | No. 4 brake disc | 35684-0C010 · 35684-60010 |
| 35689 | No. 4 brake flange | 35689-0C010 · 35689-0C020 · 35689-0C030 · 35689-0C040 · 35689-0C050 · 35689-0C060 · 35689-0C070 · 35689-0C080 · 35689-60100 · 35689-60110 · 35689-60120 · 35689-60130 · 35689-60140 · 35689-60150 · 35689-60160 · 35689-60170 |
| 35689A | No. 4 brake flange | 35689-60090 |
| 35694 | No. 4 brake pad | 35694-0C010 · 35694-60011 |
| 35770C | No. 3 one-way clutch assembly | 35770-0C010 · 35770-50010 |
| 35797B | One-way clutch inner race | 35797-50030 · 35797-50031 · 35797-60020 |
