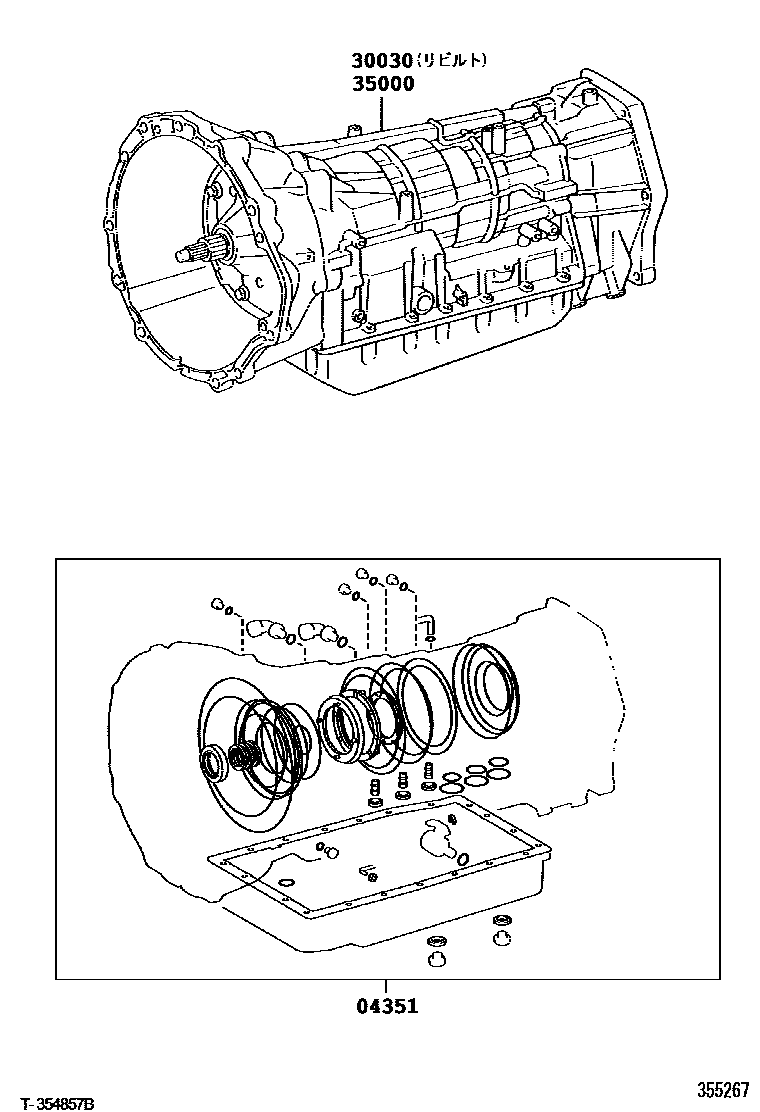

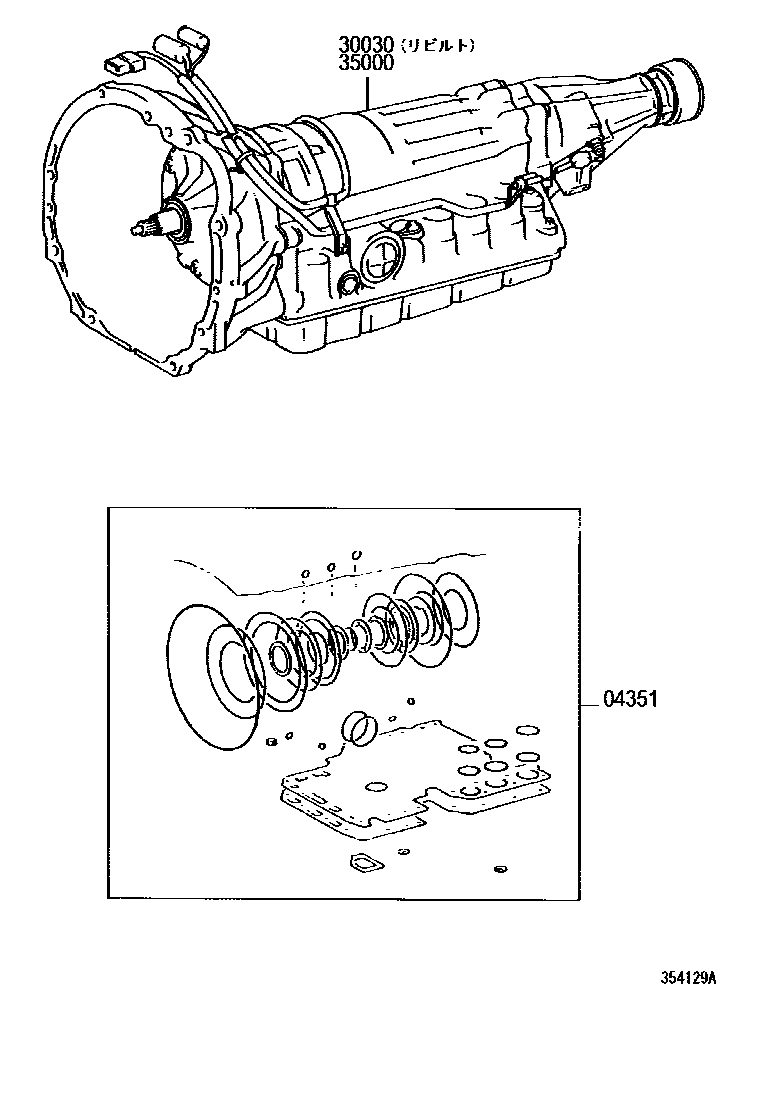

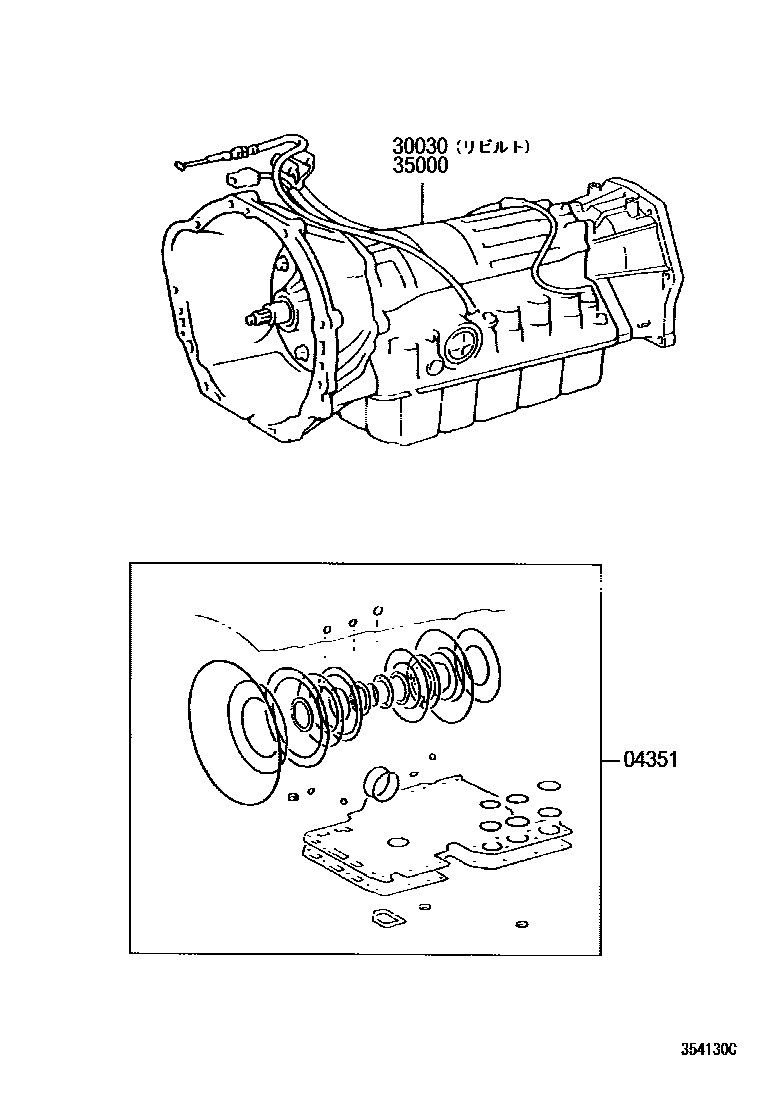

Toyota HILUX 传动桥或变速器总成和衬垫组件(ATM) — Figure 3501
Toyota HILUX EPC diagram 3501, 传动桥或变速器总成和衬垫组件(ATM), with 3 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04351 | Automatic transmission overhaul gasket assembly | 04351-30650 · 04351-35201 · 04351-35240 · 04351-35250 · 04351-35260 · 04351-35390 · 04351-60470 |
| 30030 | Refurbished transmission assembly | 30030-35A70 · 30030-35A80 · 30030-35A90 · 30030-35B00 · 30030-3G410 · 30030-3G420 · 30030-3G430 · 30030-3G440 · 30030-6A120 |
| 35000 | Automatic transmission assembly | 35000-0W030 · 35000-35A70 · 35000-35A80 · 35000-35A90 · 35000-35B00 · 35000-3G410 · 35000-3G420 · 35000-3G430 · 35000-3G440 · 35000-6A120 |
