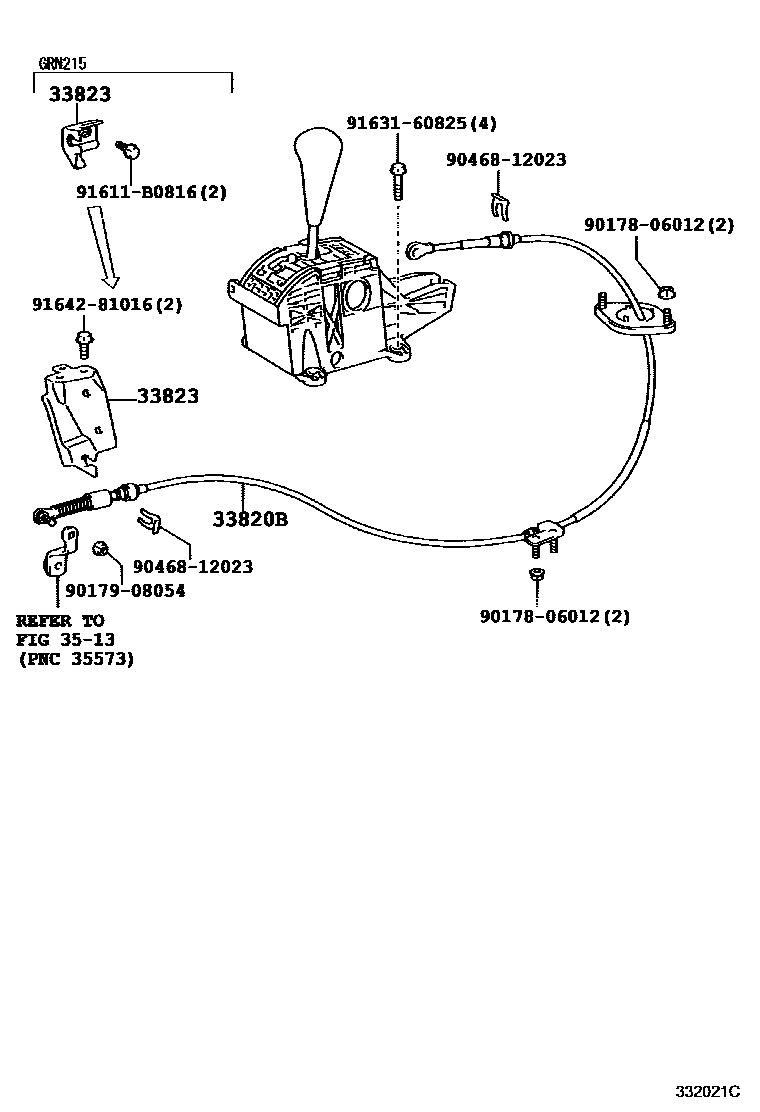

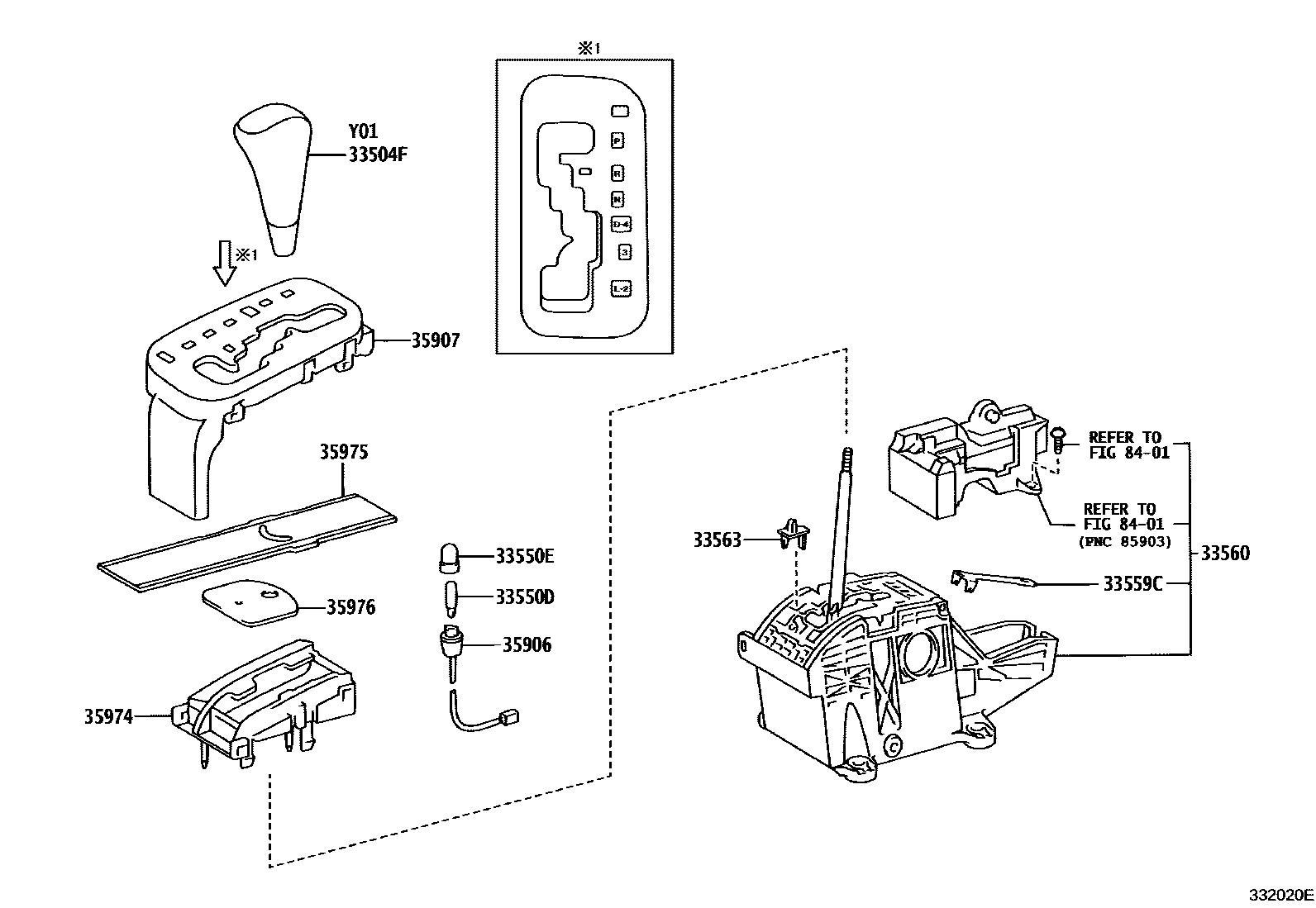

Toyota HILUX Shift Lever & Retainer — Figure 3312
Toyota HILUX EPC diagram 3312, Shift Lever & Retainer, with 2 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 33550D | position indicator light bulb | 90981-11014 |
| 33550E | position indicator cover | 90339-04074 |
| 33559C | Shift lever spring damper | 33559-60010 |
| 33560 | Shift lock control unit assembly | 33560-35010 · 33560-35040 |
| 33563 | Shift lock release button | 33563-35090 |
| 33820B | Transmission control cable assembly | 33820-60010 · 33820-60020 · 33820-60030 · 33820-60070 |
| 33823 | No. 1 transmission control cable bracket | 33823-60010 · 33823-60020 |
| 35906 | Indicator light wiring harness sub-assembly | 35906-35110 |
| 35907 | Position indicator light housing sub-assembly (for floor shift) | 35907-35200 · 35907-35250 |
| 35974 | Position indicator light lower shell | 35974-35150 |
| 35975 | Slide cover (for position indicator light) | 35975-35140 |
| 35976 | Slide No. 2 (for position indicator light) | 35976-35090 |
