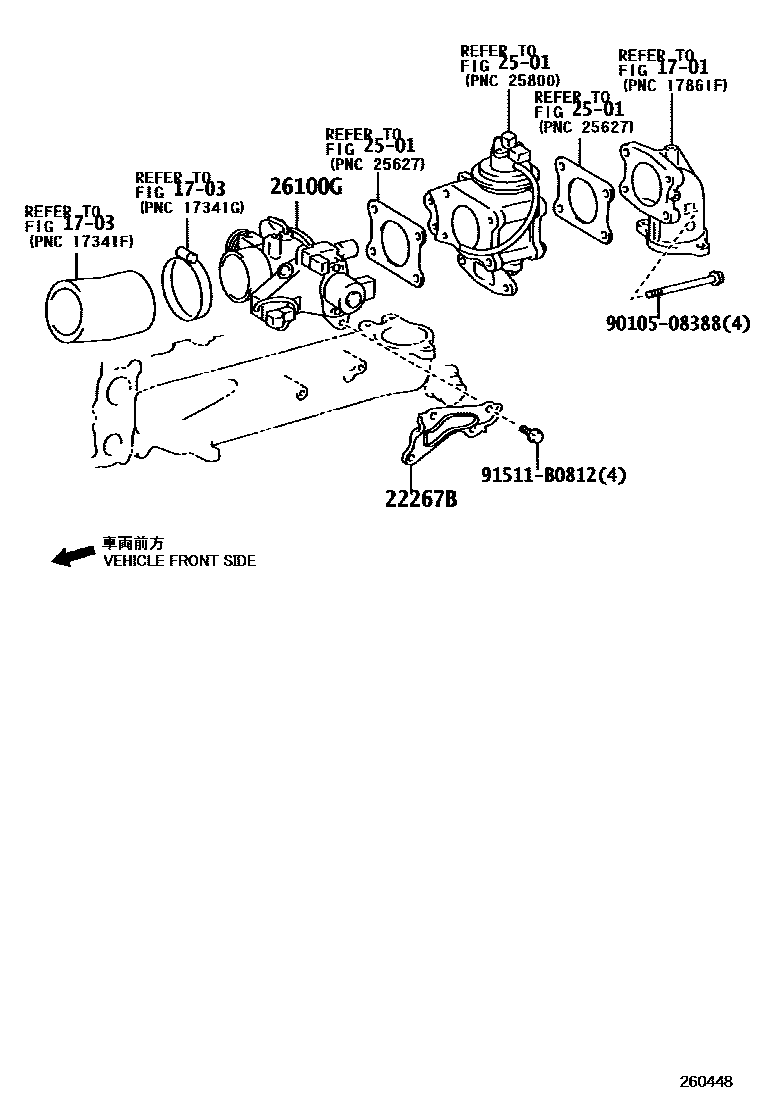

Toyota HILUX 文氏管 — Figure 2606
Toyota HILUX EPC diagram 2606, 文氏管, with 1 images and 2 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22267B | Throttle body bracket | 22267-30010 |
| 26100G | Diesel engine throttle body assembly | 26100-30050 |
