Toyota HILUX 燃油喷射系统 — Figure 2211

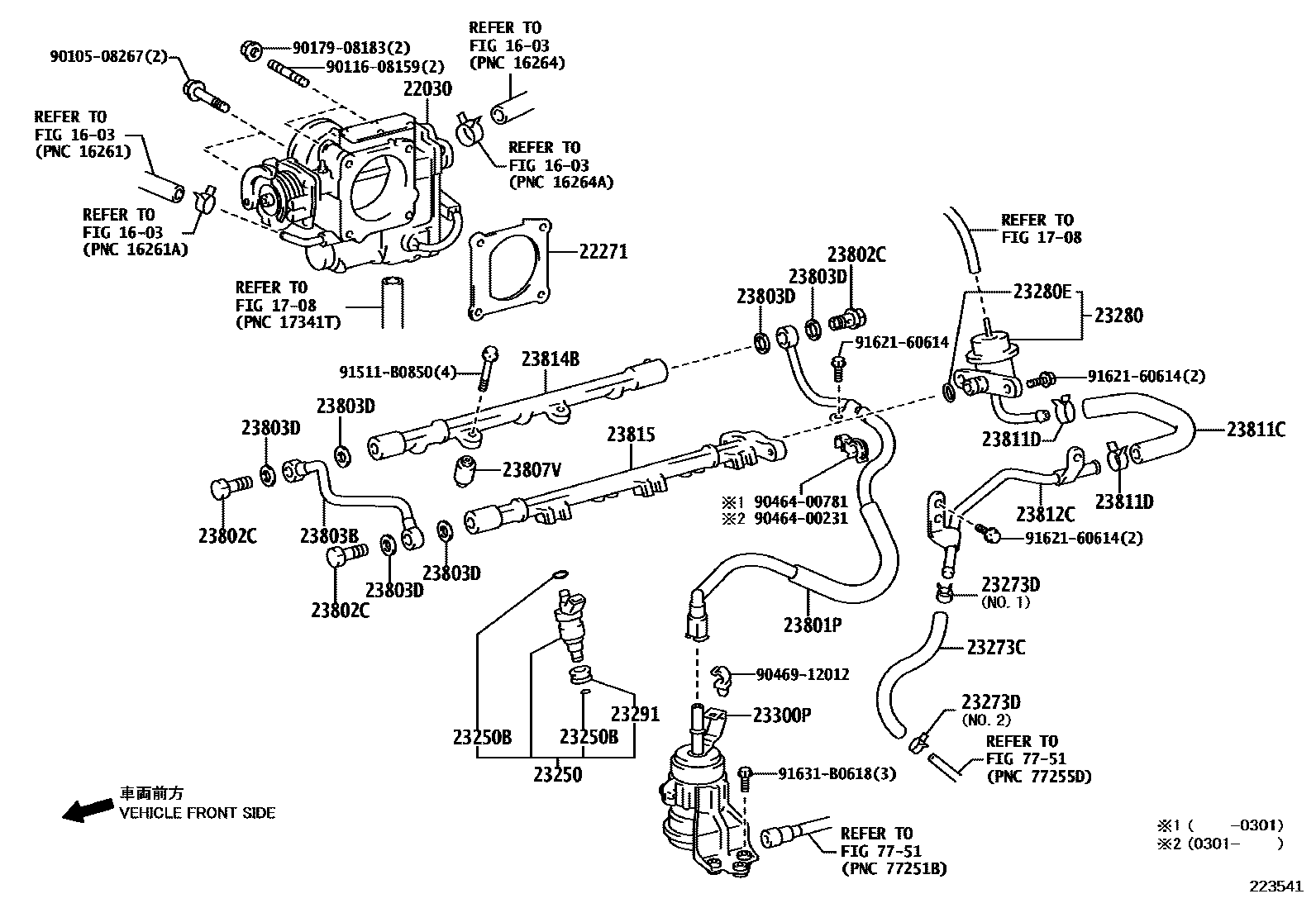

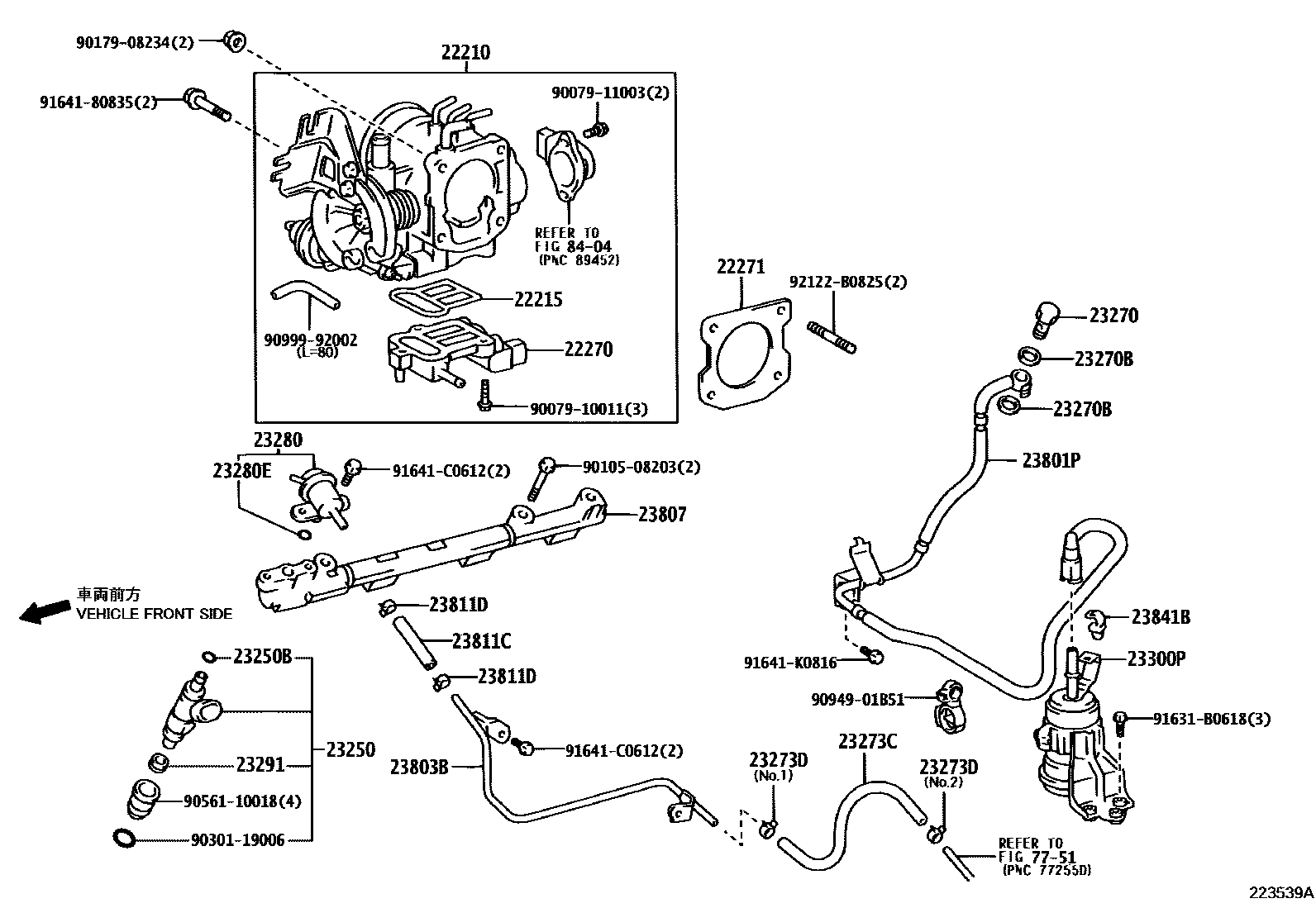

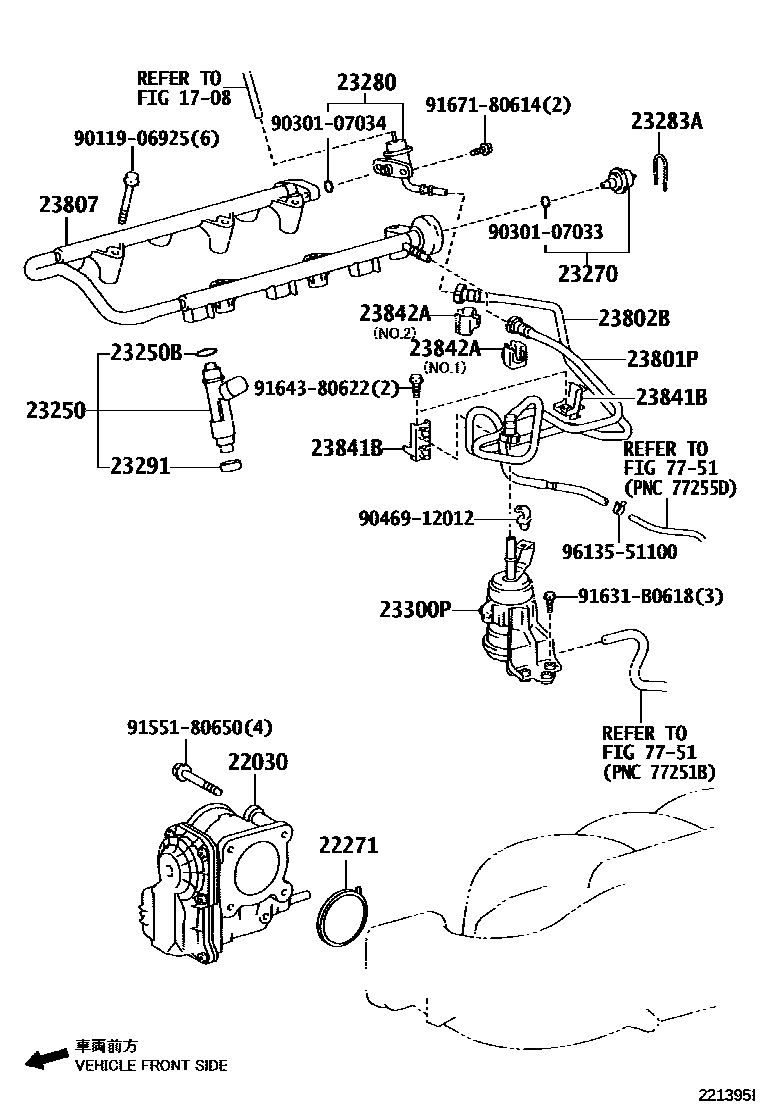

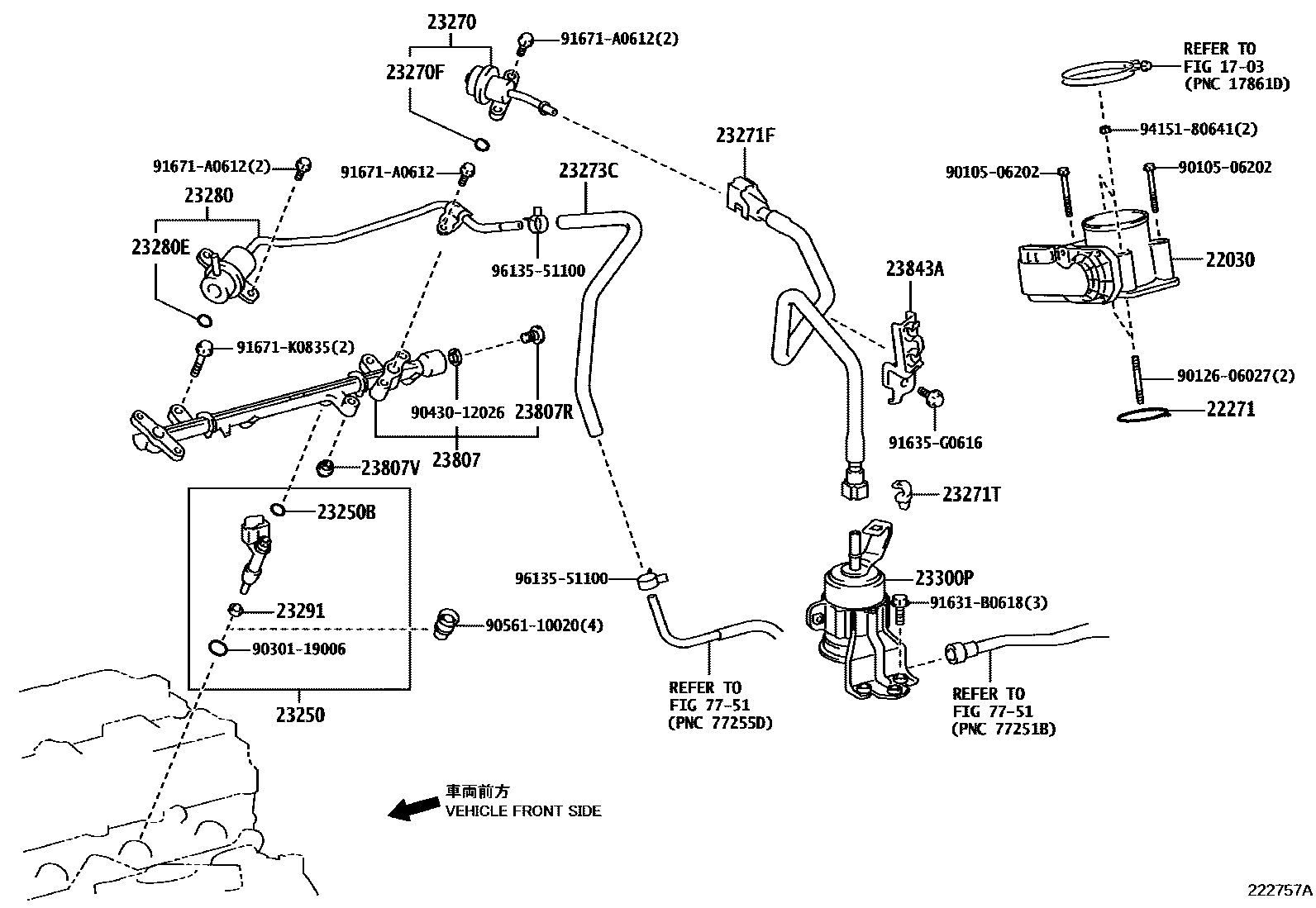

Toyota HILUX EPC diagram 2211, 燃油喷射系统, with 4 images and 35 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 22030 | Electronic throttle body assembly | 22030-31010 · 22030-62020 · 22030-75020 |
| 22210 | Throttle body assembly | 22210-75240 |
| 22215 | Throttle body cover gasket | 22215-7A680 |
| 22270 | Idle speed control valve assembly (for throttle body) | 22270-75050 · 22270-75051 |
| 22271 | Throttle body gasket | 22271-0C021 · 22271-31012 · 22271-62050 · 22271-75020 |
| 23250 | Fuel injector assembly | 23209-39015 · 23209-39075 · 23209-62040 · 23209-79135 · 23209-79155 |
| 23250B | O-ring (for fuel injector) | 90301-07024 · 90301-07033 · 90301-07037 |
| 23270 | Fuel pressure pulsation damper assembly | 23207-46010 · 23270-31010 · 23270-75010 |
| 23270B | Gasket (for pulsation damper hose) | 23279-74010 |
| 23270F | O-ring (for pulsation damper) | 90301-07037 |
| 23271F | fuel hose | 23271-75210 |
| 23271T | Clip or clip (for fuel hose) | 90469-12012 |
| 23273C | No. 2 fuel hose | 23273-75220 · 23273-75221 · 95337-06022 |
| 23273D | Clamp (for No. 2 fuel hose) | 96132-51100 · 96135-51100 |
| 23280 | Fuel pressure regulator assembly | 23280-31010 · 23280-62030 · 23280-75020 · 23280-75040 |
| 23280E | O-ring (for fuel pressure regulator) | 90301-07024 · 90301-07037 |
| 23283A | Fuel pressure regulator mount | 23283-31010 |
| 23291 | Injector vibration isolation pad | 23291-20010 · 23291-23010 · 23291-73010 |
| 23300P | Fuel filter (for EFI) | 23300-31090 |
| 23801P | No. 1 fuel pipe sub-assembly | 23801-31060 · 23801-62130 · 23801-75110 |
| 23802B | No. 2 fuel pipe sub-assembly | 23802-31010 |
| 23802C | Connector bolt (for No. 2 fuel pipe) | 90401-12036 |
| 23803B | No. 3 fuel pipe sub-assembly | 23803-62010 · 23803-75020 |
| 23803D | Joint bolt (for No. 3 injector overflow pipe) | 90430-12026 |
| 23807 | Oil pipe sub-assembly | 23807-31010 · 23807-75021 · 23807-75022 · 23807-75050 |
| 23807R | Oil pipe plug | 90341-12030 |
| 23807V | No. 1 spacer (for oil pipe) | 90561-08020 · 90561-08036 |
| 23811C | Fuel hose (for fuel line to pressure regulator) | 90445-12290 |
| 23811D | Hose clip (for fuel hose) | 90467-11065 · 96135-51100 |
| 23812C | No. 2 fuel pipe | 23812-62041 |
| 23814B | oil pipeline | 23814-62050 · 23814-62051 |
| 23815 | No. 2 oil pipeline | 23815-62050 · 23815-62051 |
| 23841B | No. 1 fuel pipe clamp (for EFI) | 23841-31030 · 90469-12012 |
| 23842A | No. 2 fuel line clamp (for EFI) | 23842-31020 · 23842-31030 |
| 23843A | No. 3 fuel pipe clamp (for EFI) | 23847-75010 |
