Toyota HILUX 喷油泵总成 — Figure 2202

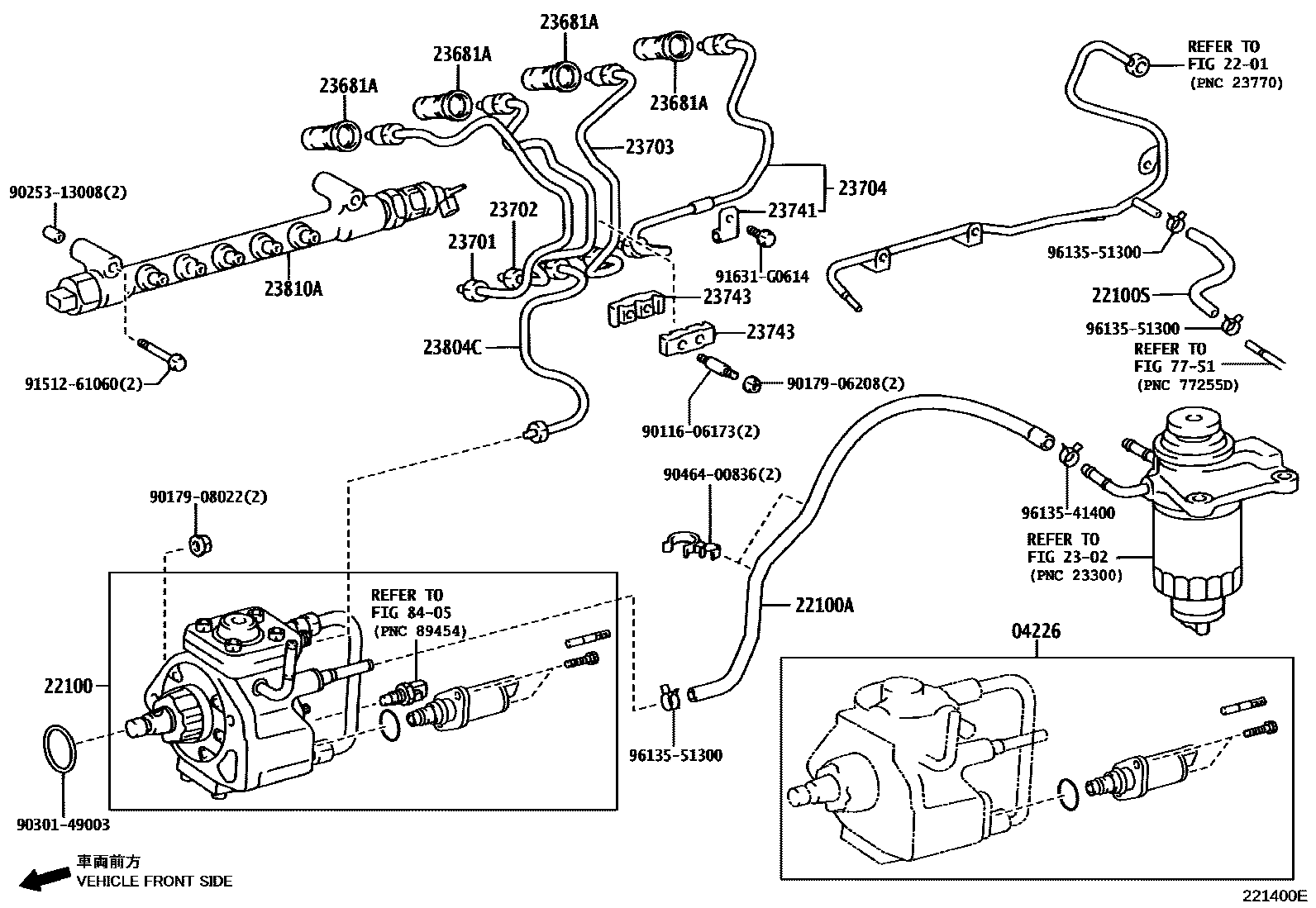

Toyota HILUX EPC diagram 2202, 喷油泵总成, with 1 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04226 | Oil suction control valve assembly | 04226-30020 |
| 22100 | Fuel injection pump or fuel supply pump assembly | 22100-30021 |
| 22100A | Fuel hose or fuel line (for injection pump to fuel filter) | 23271-30120 |
| 22100S | Fuel hose (for injection pump to fuel pipe) | 23273-30080 |
| 23681A | Injector body seal | 23681-30010 |
| 23701 | No. 1 fuel injection pipe sub-assembly | 23701-30030 |
| 23702 | No. 2 fuel injection pipe sub-assembly | 23702-30030 |
| 23703 | No. 3 fuel injection pipe sub-assembly | 23703-30030 |
| 23704 | No. 4 fuel injection pipe sub-assembly | 23704-39035 |
| 23741 | No. 1 fuel injection pipe clamp | 23741-30010 |
| 23743 | No. 3 fuel injection pipe clamp | 23743-30011 |
| 23804C | Fuel inlet pipe sub-assembly | 23804-30030 |
| 23810A | Common rail assembly | 23810-30080 |
