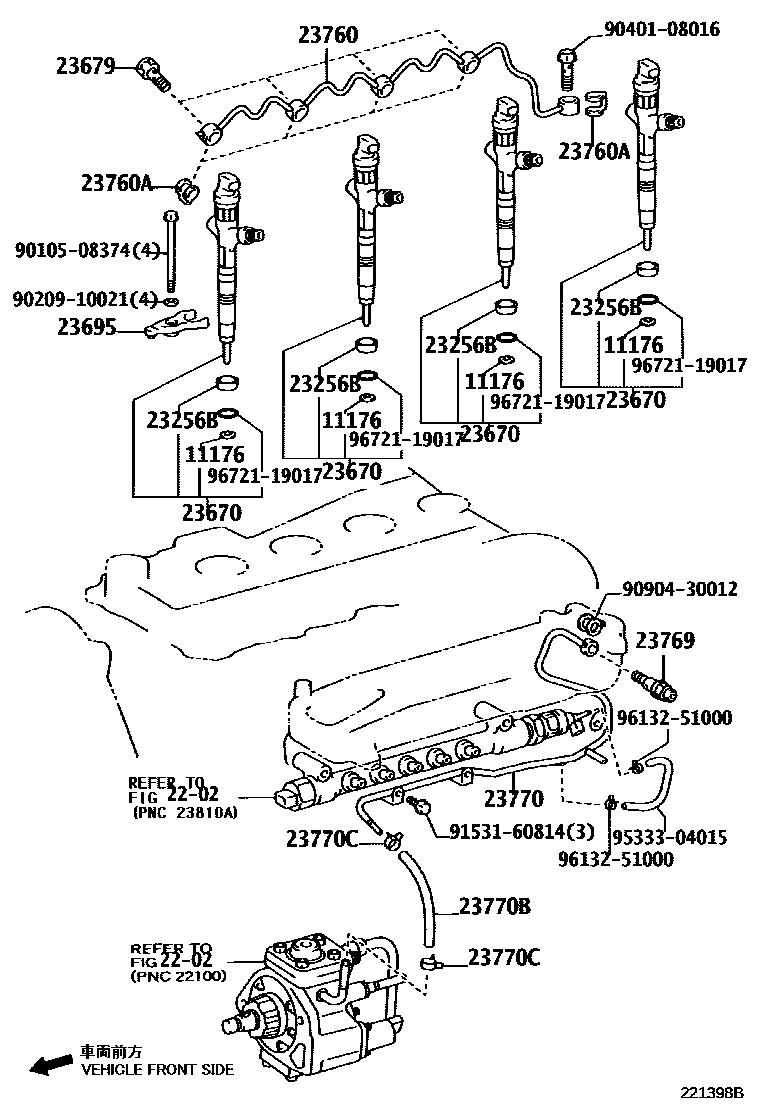

Toyota HILUX 喷油嘴 — Figure 2201
Toyota HILUX EPC diagram 2201, 喷油嘴, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11176 | Injector seat | 11176-30010 |
| 23256B | No. 1 injector retaining ring | 23256-30010 |
| 23670 | Fuel injector assembly | 23670-39085 |
| 23679 | Fuel injector hollow screw | 23679-30020 |
| 23695 | No. 1 injector body clamp | 23695-30010 |
| 23760 | Fuel injector overflow pipe assembly | 23760-30020 |
| 23760A | padding | 90904-30013 |
| 23769 | fuel check valve | 23769-30010 |
| 23770 | No. 2 injector oil spill pipe assembly | 23770-30040 |
| 23770C | Clip or clip (for fuel hose assembly) | 96135-51100 |
