Toyota HILUX 起动机 — Figure 1904

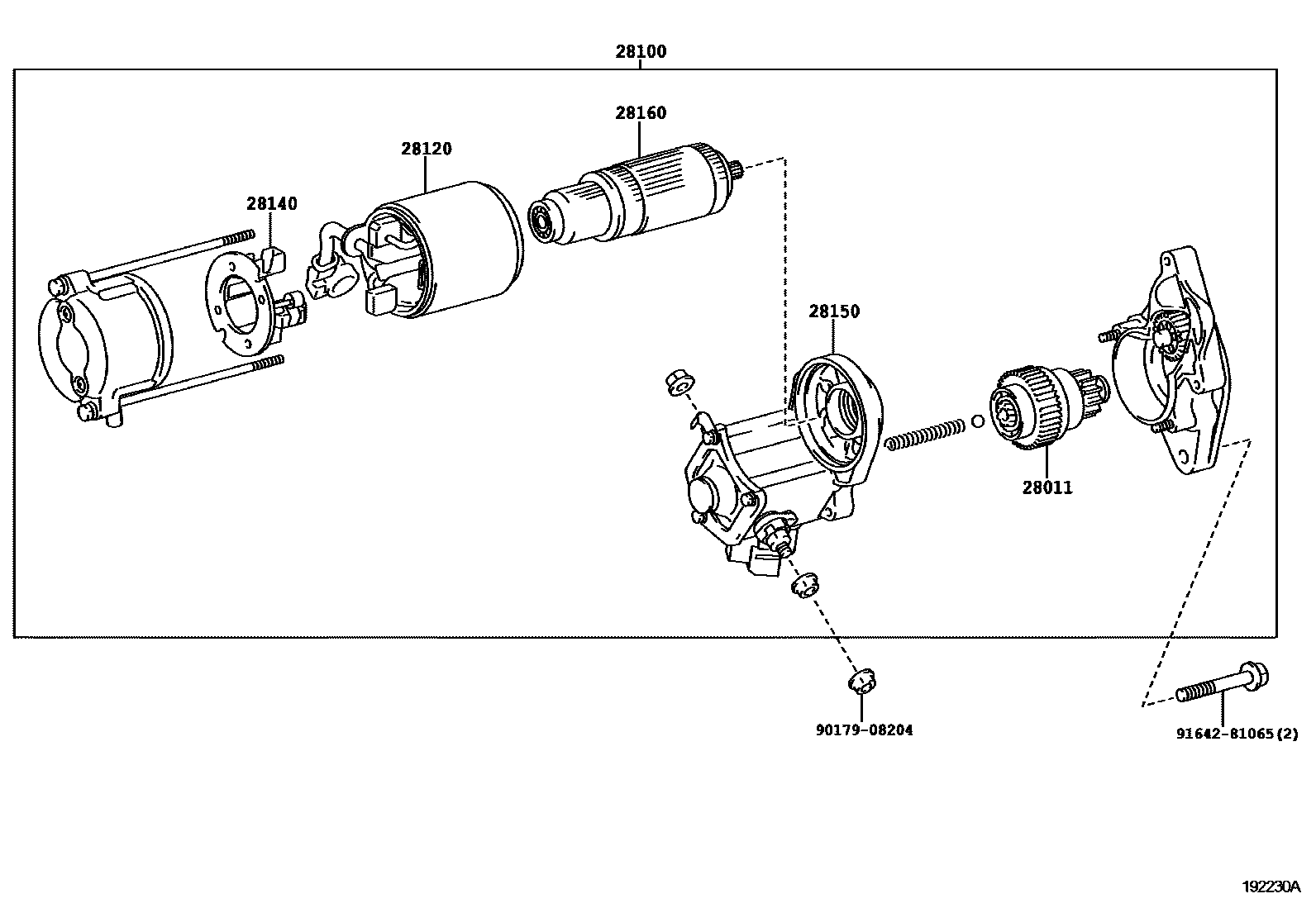

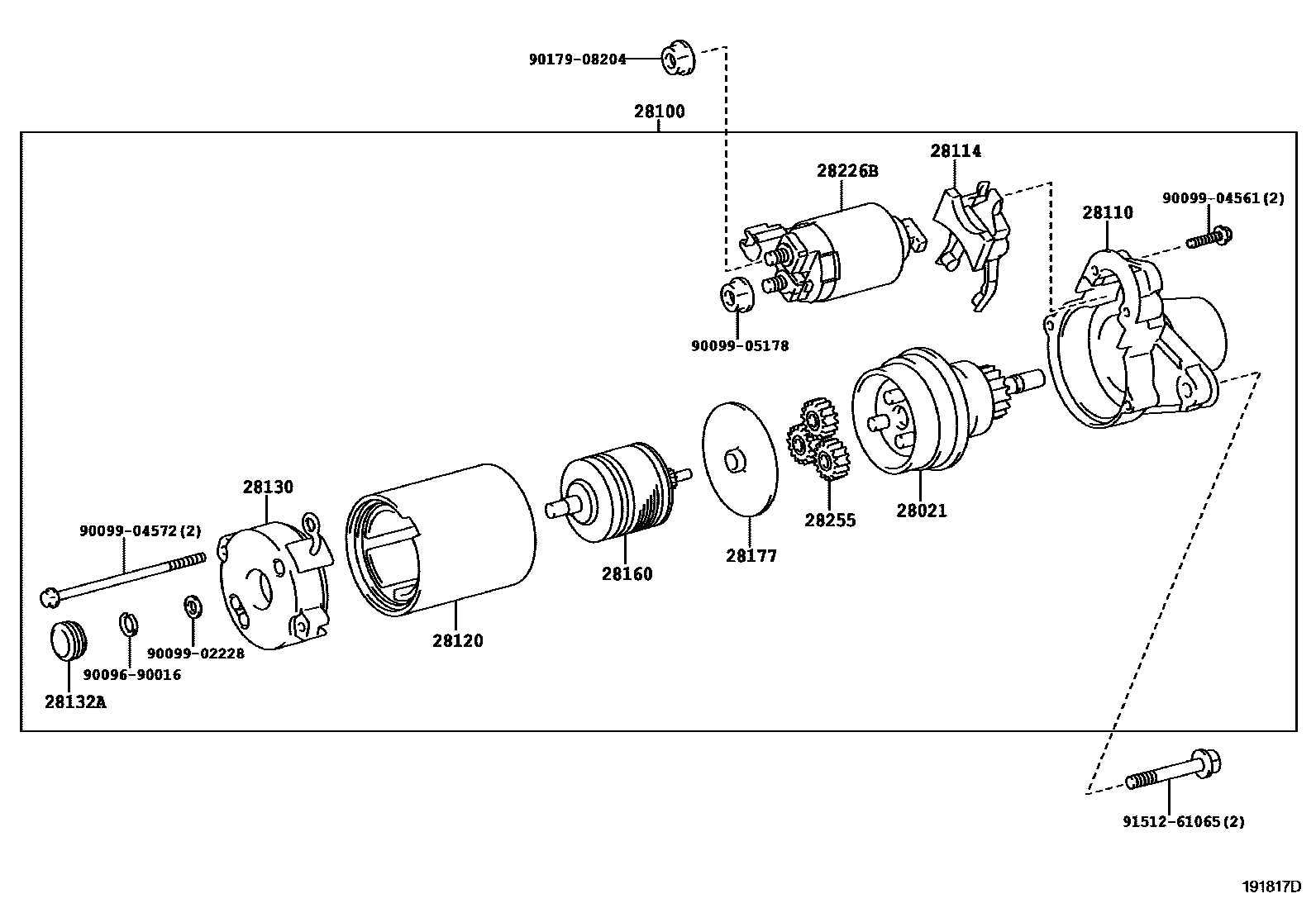

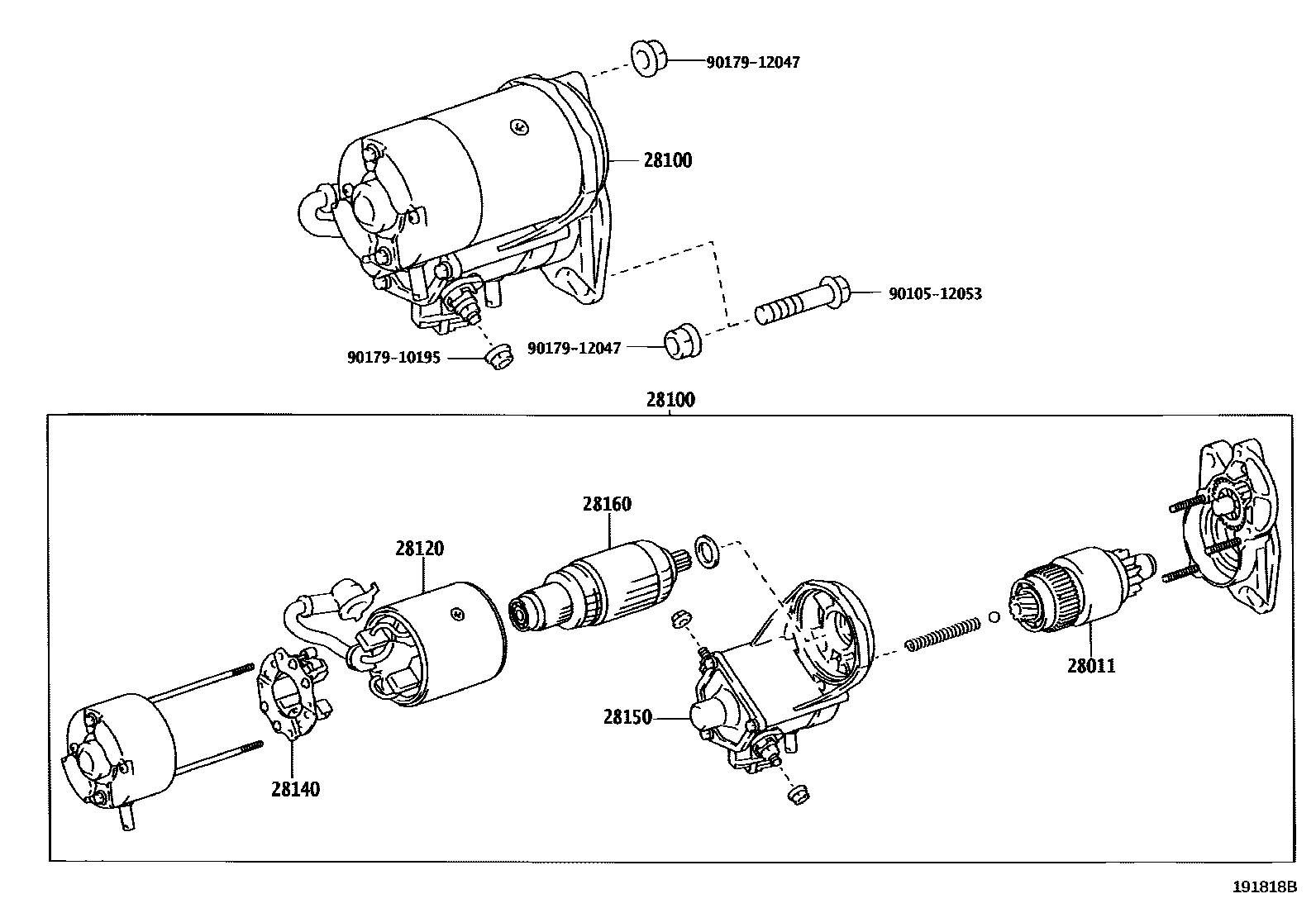

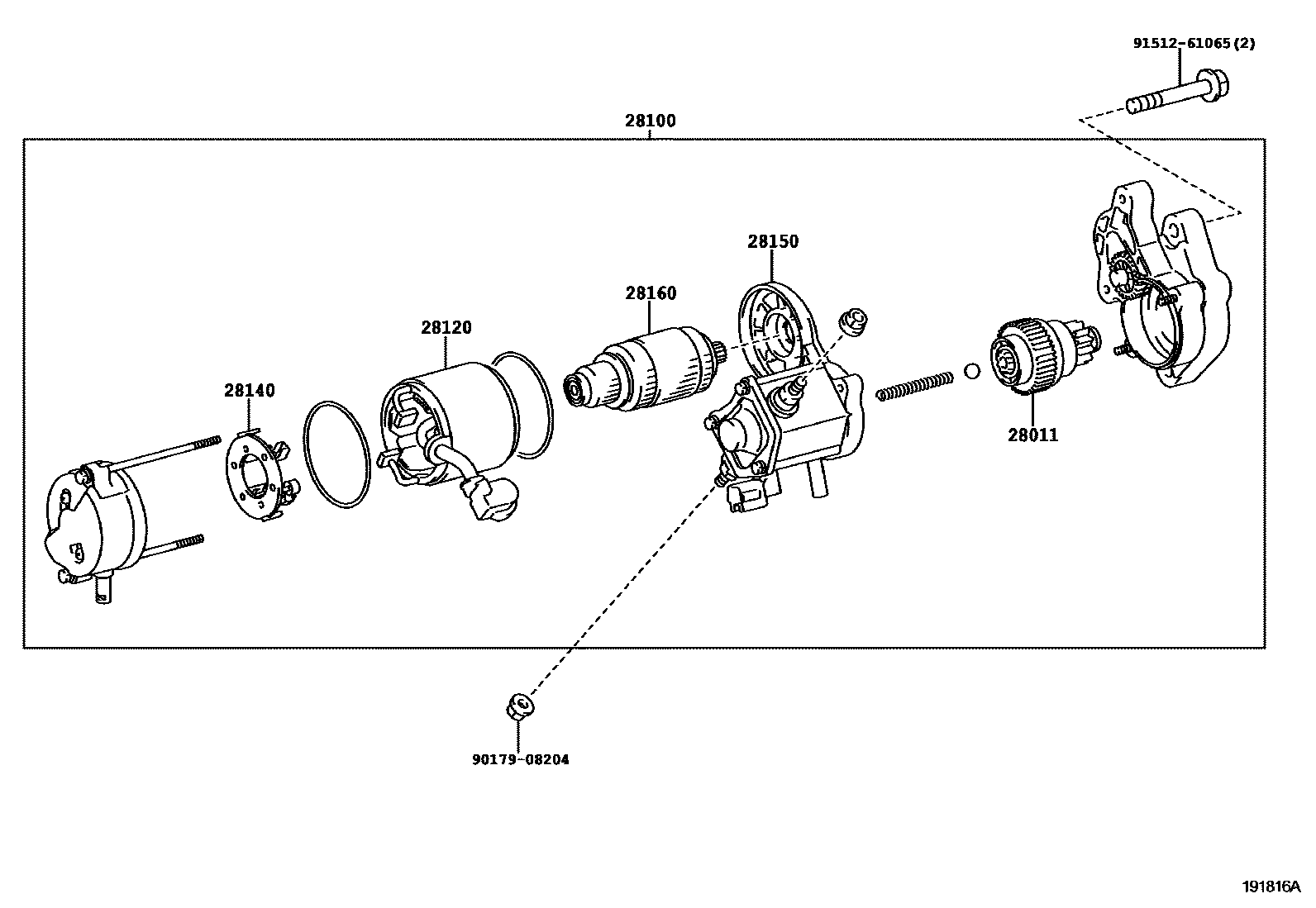

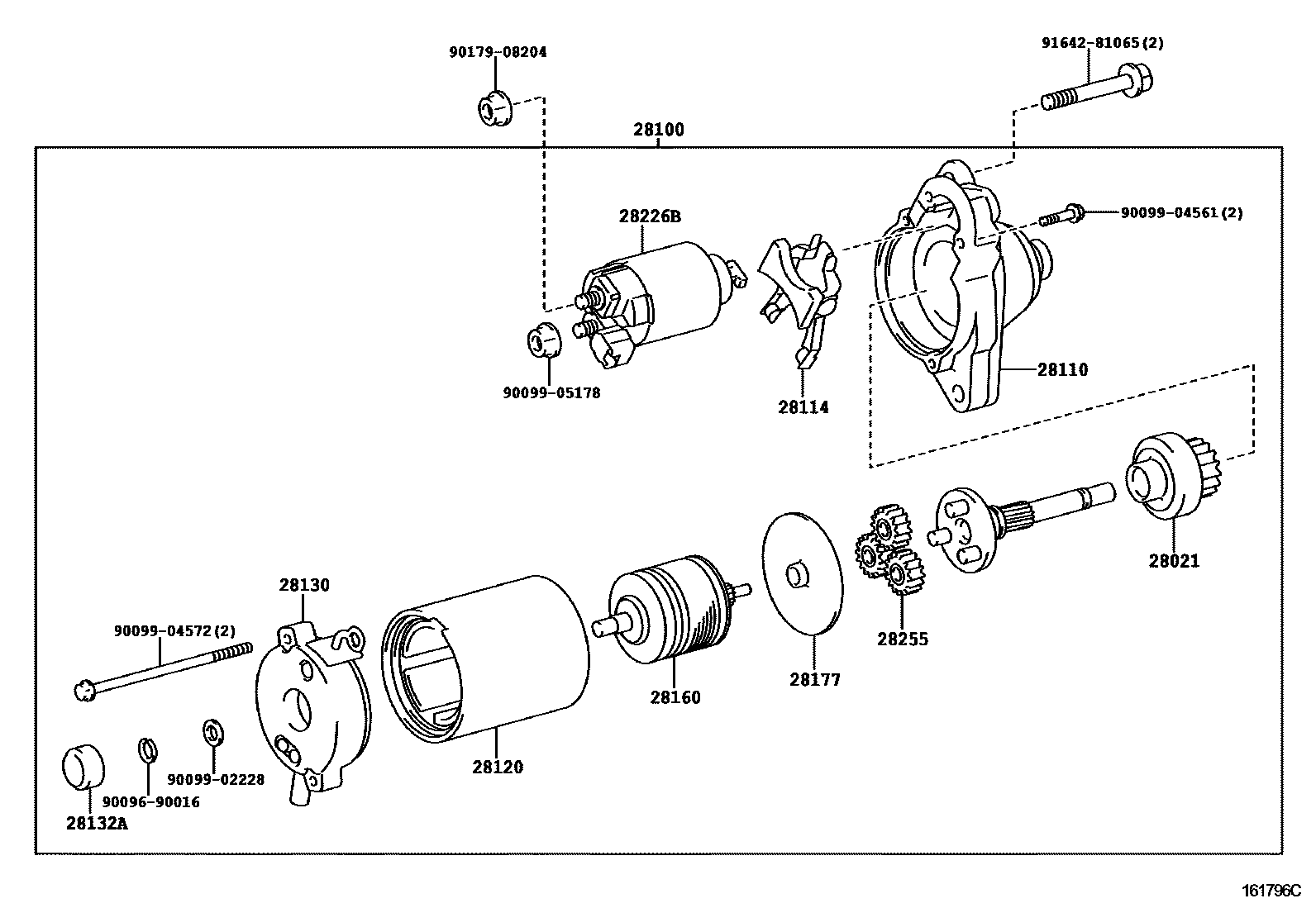

Toyota HILUX EPC diagram 1904, 起动机, with 5 images and 14 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 28011 | Starter clutch sub-assembly | 28011-30050 · 28011-66060 · 28011-76070 |
| 28021 | Starter intermediate bearing clutch sub-assembly | 28021-21060 · 28021-73020 |
| 28100 | Starter assembly | 28100-30050 · 28100-31040 · 28100-31050 · 28100-62050 · 28100-75190 |
| 28110 | Starter drive end housing assembly | 28110-31040 · 28110-75190 |
| 28114 | starter drive lever | 28114-21060 |
| 28120 | Starter yoke assembly | 28120-28040 · 28120-28060 · 28120-54380 · 28120-66040 · 28120-67020 |
| 28130 | Starter commutator end frame assembly | 28130-31040 · 28130-75190 |
| 28132A | Starter commutator end frame cover | 28132-28040 |
| 28140 | Starter brush holder assembly | 28140-35060 · 28140-62030 · 28140-77090 |
| 28150 | Starter electromagnetic switch assembly | 28150-30050 · 28150-31051 · 28150-62050 |
| 28160 | Starter armature assembly | 28160-21060 · 28160-54140 · 28160-74070 · 28160-75120 |
| 28177 | Plate (for starter armature) | 28177-28040 |
| 28226B | starter magnetic switch | 28226-22061 · 28226-28051 |
| 28255 | Planetary gear | 28255-28040 |
