Toyota HILUX 点火线圈和火花塞 — Figure 1901
Toyota HILUX EPC diagram 1901, 点火线圈和火花塞, with 5 images and 13 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 19100P | spark plug | 90919-01164 · 90919-01191 · 90919-01192 · 90919-01235 |

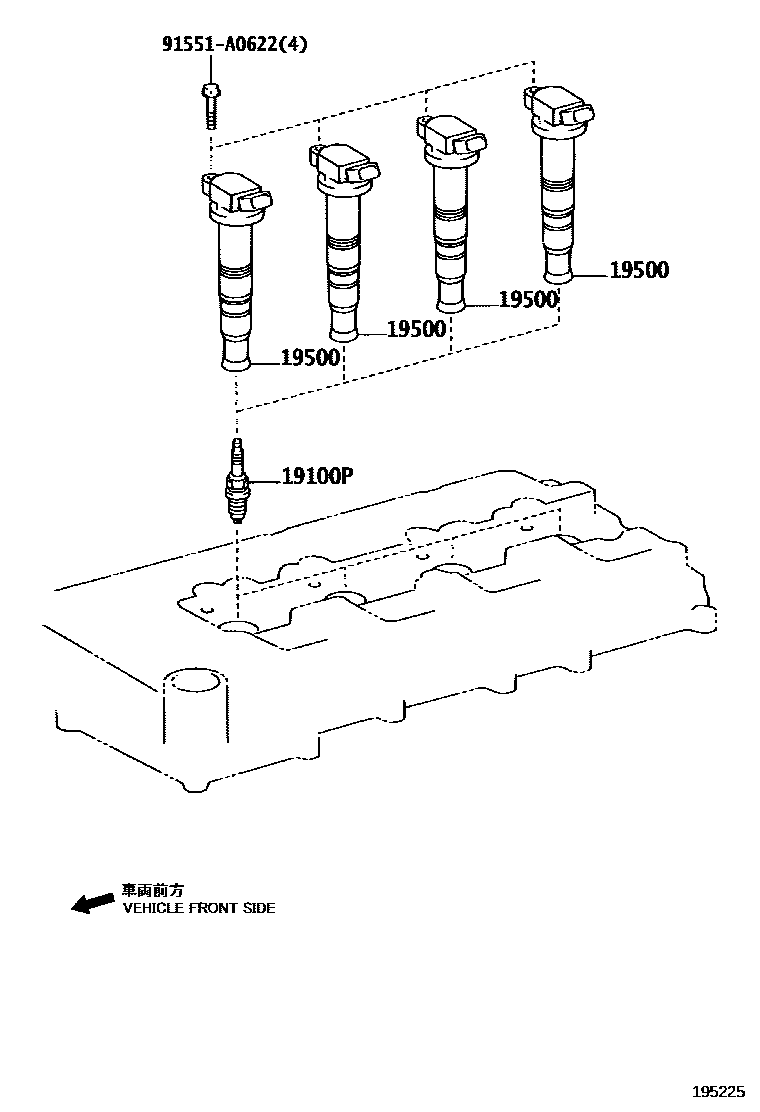

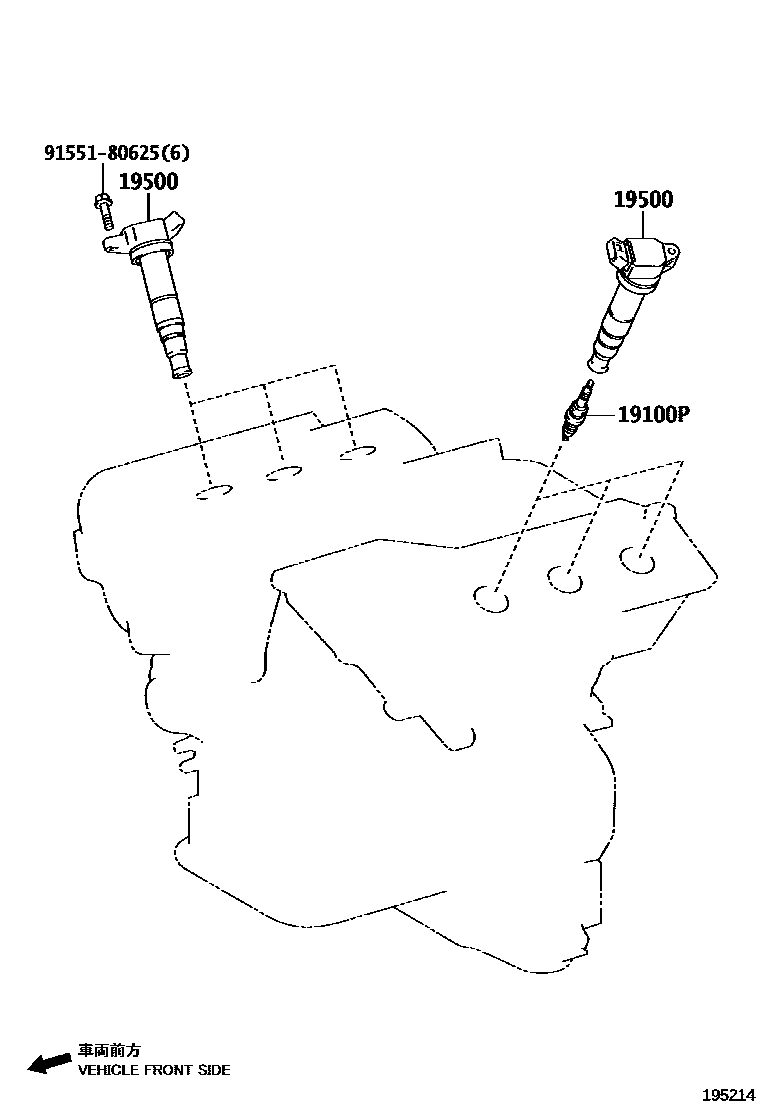

| 19500 | Ignition coil assembly | 90919-02212 · 90919-02248 |

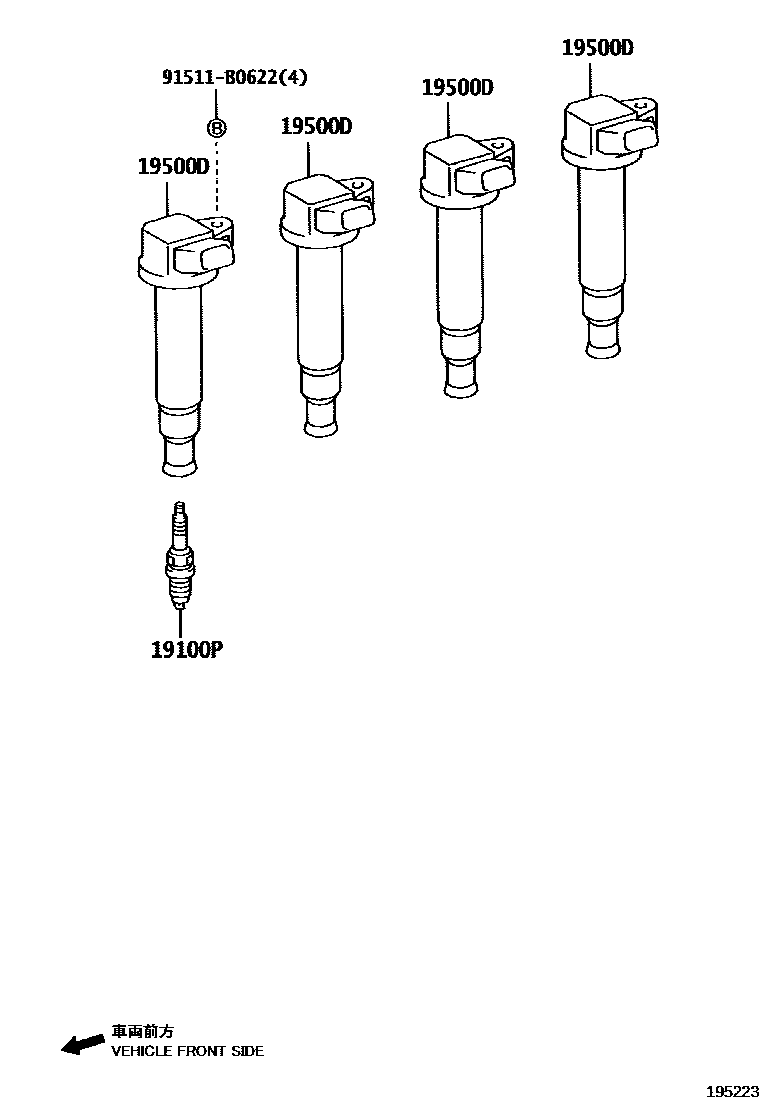

| 19500D | No. 1 ignition coil | 90919-02237 |
| 19539 | No. 4 damping wire fixing piece | 19539-11040 |
| 19539A | No. 5 damping wire fixing piece | 19539-11030 |

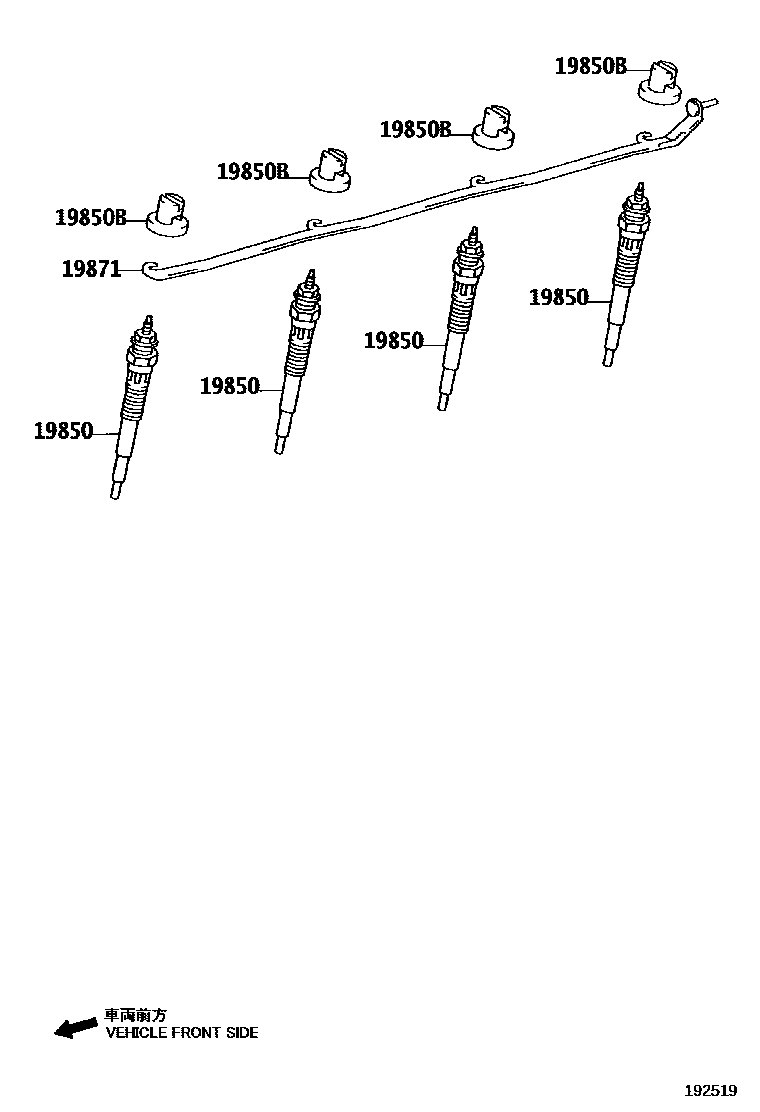

| 19850 | Glow plug assembly | 19850-30010 |
| 19850B | Screw seal (for glow plug) | 90189-04024 |
| 19871 | Glow plug connector No. 1 | 19871-30030 · 19871-30031 |

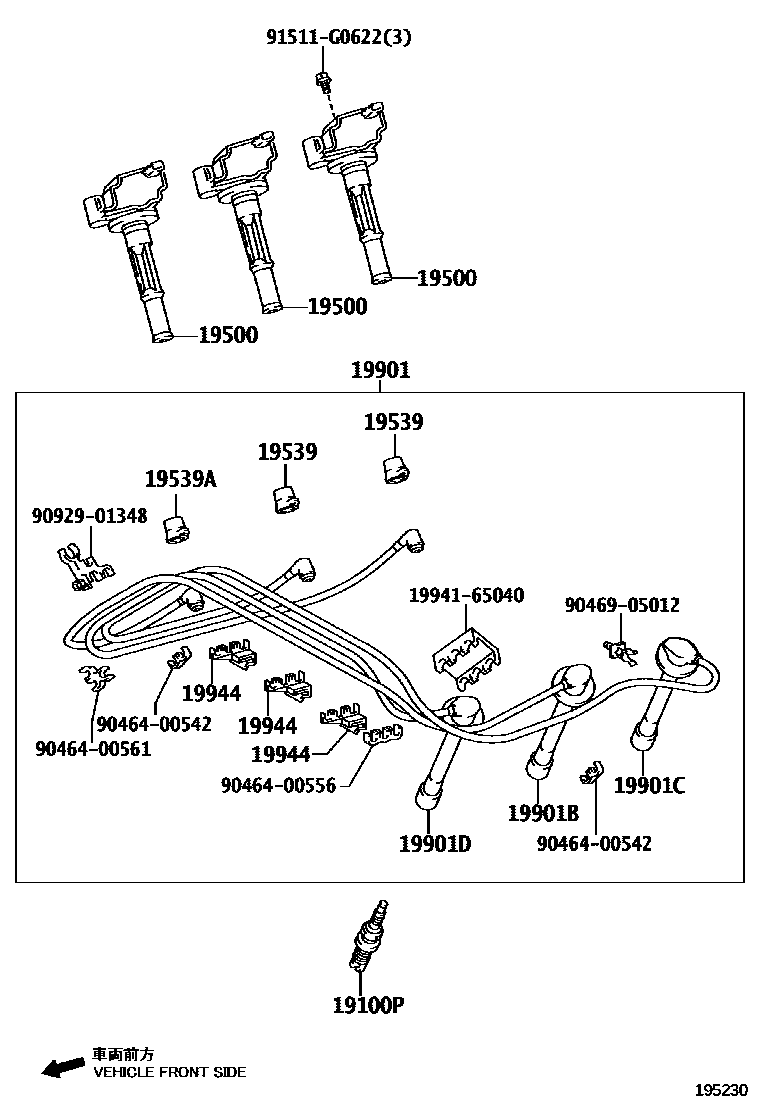

| 19901 | Coil and spark plug assembly with damper wire | 19037-62010 |
| 19901B | No. 1 spark plug damper wire | 90919-15417 |
| 19901C | No. 2 spark plug damper wire | 90919-15418 |
| 19901D | No. 3 spark plug damper wire | 90919-15419 |
| 19944 | No. 2 damping wire clip support plate | 19944-62010 |
