Toyota HILUX vacuum tube — Figure 1708

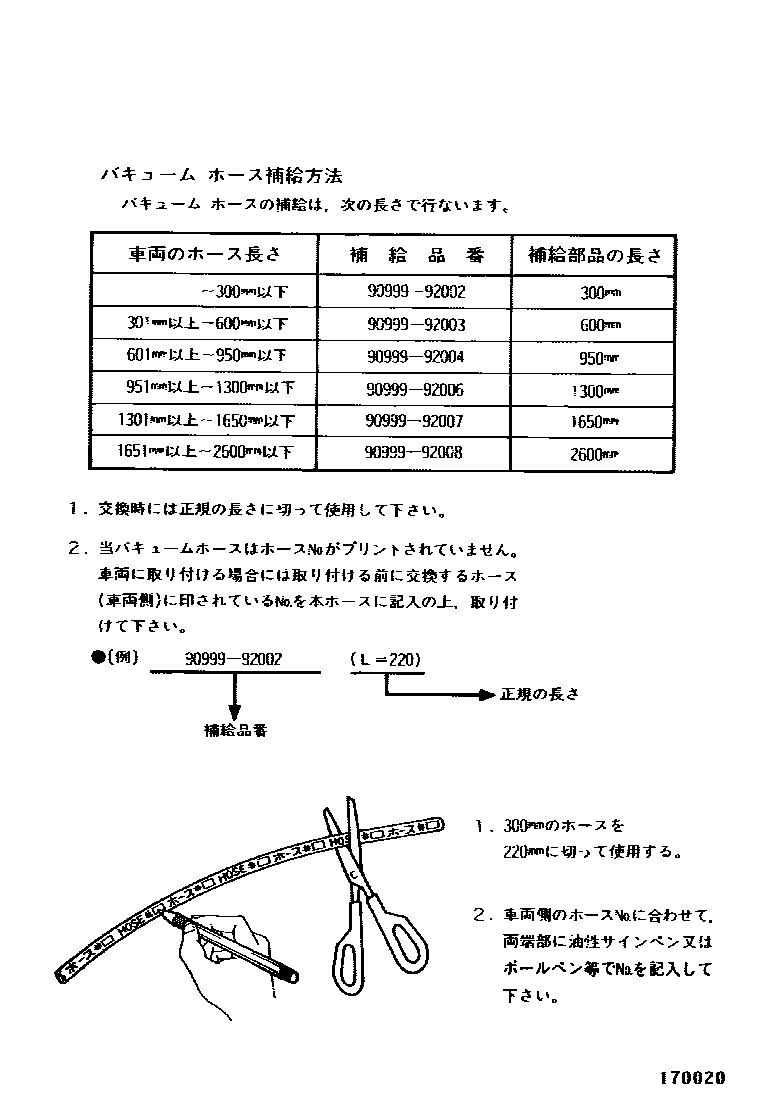

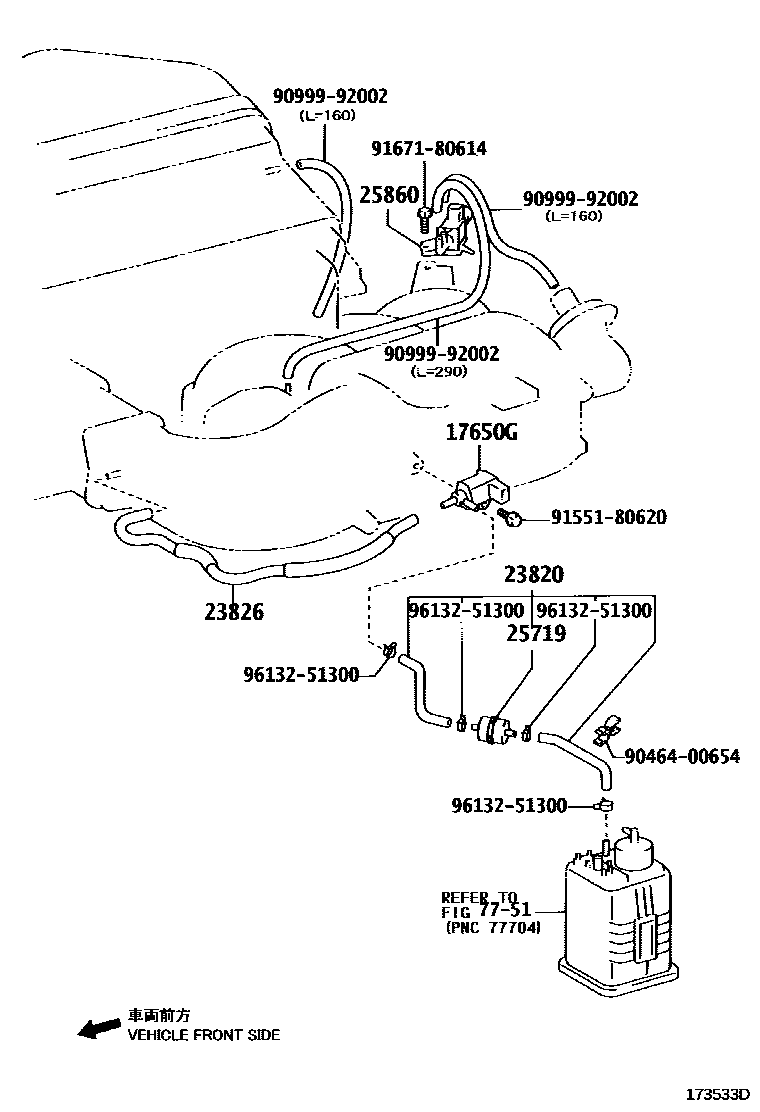

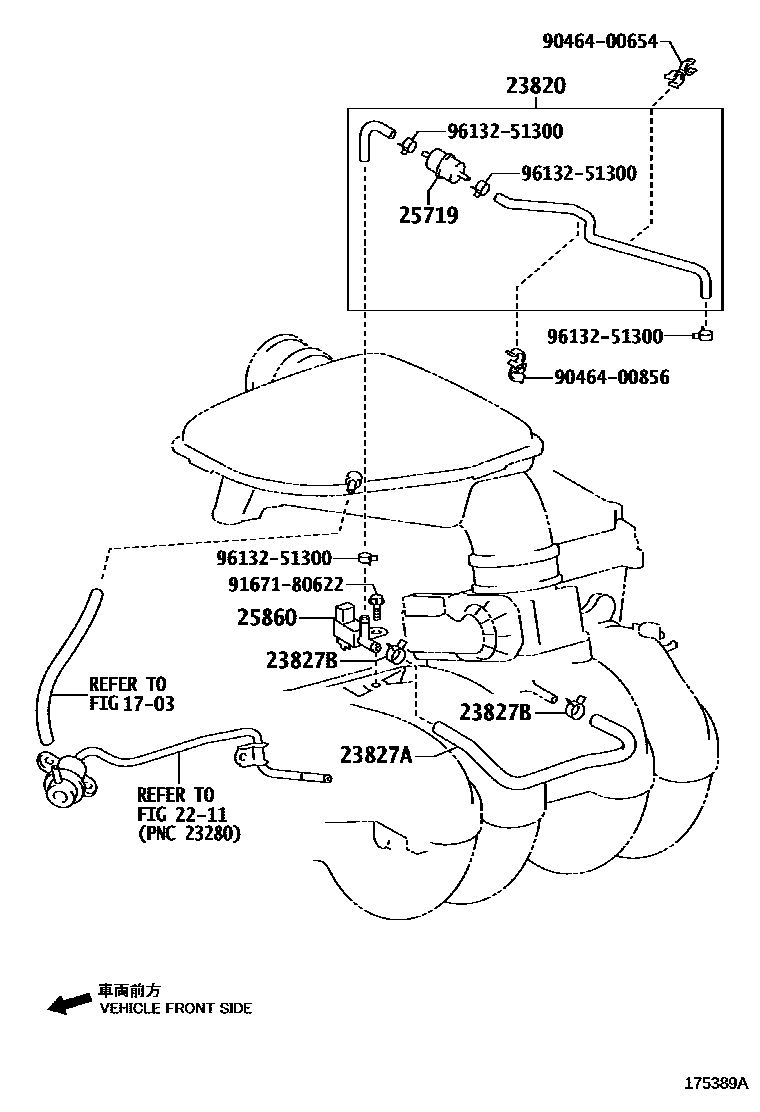

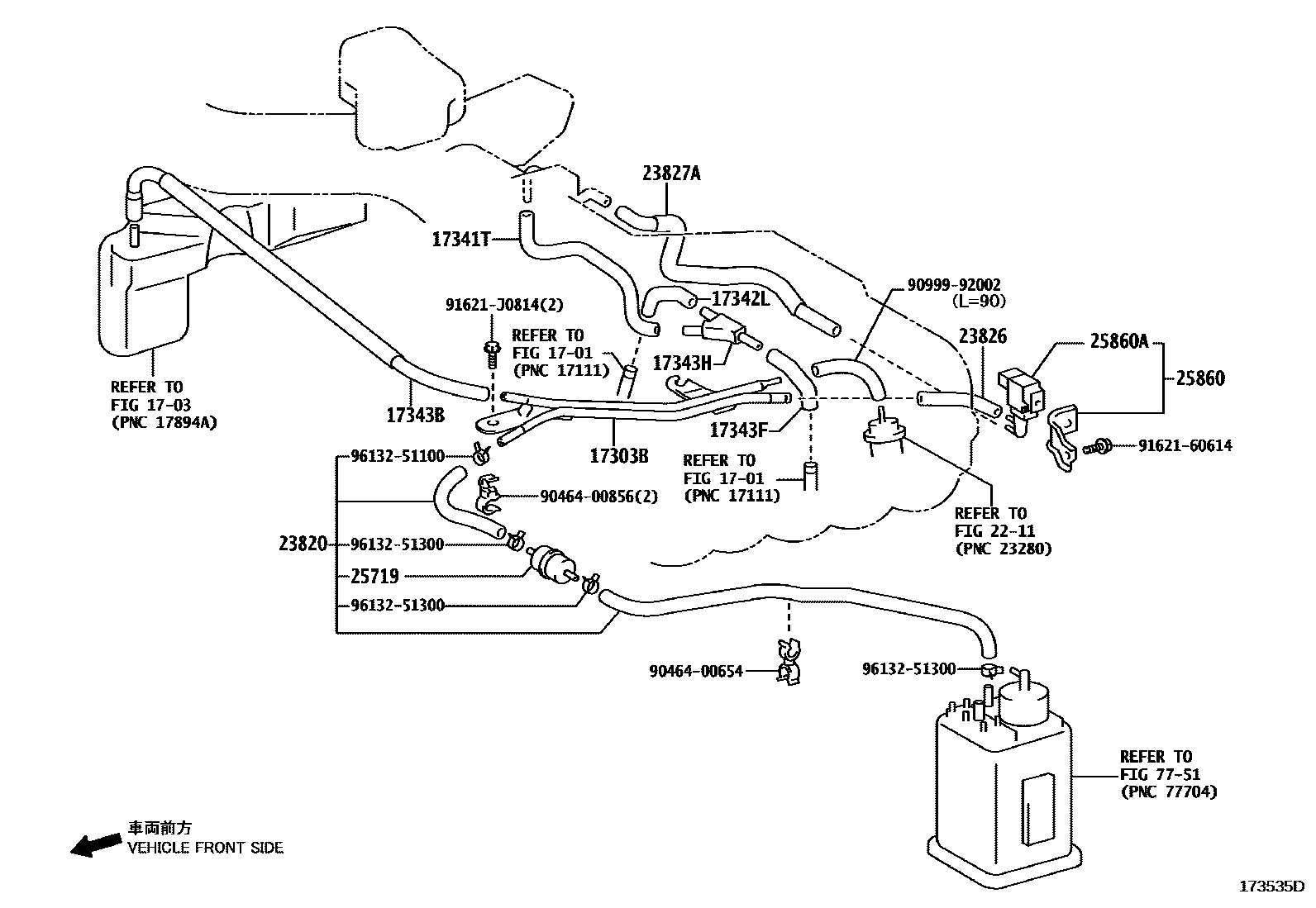

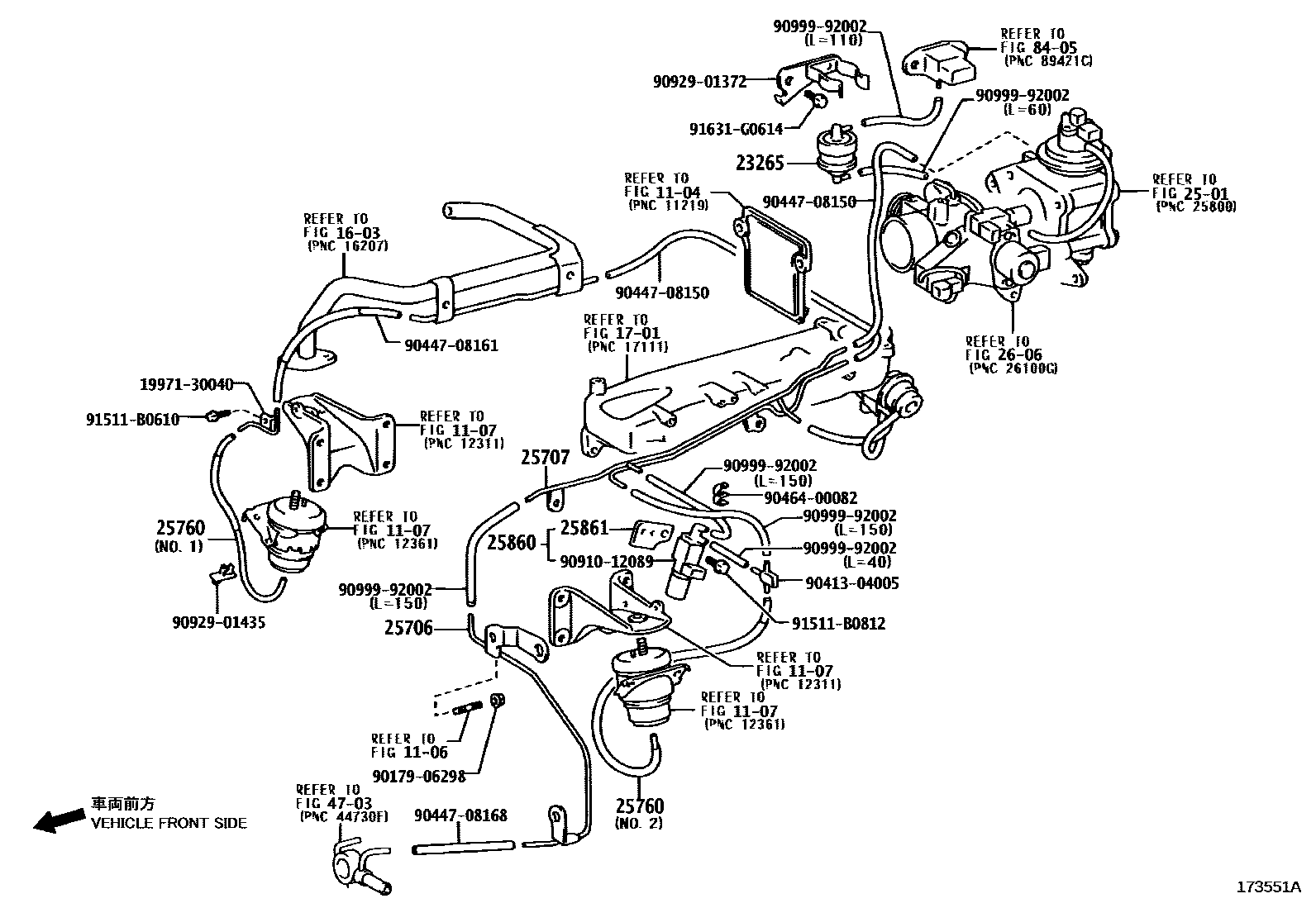

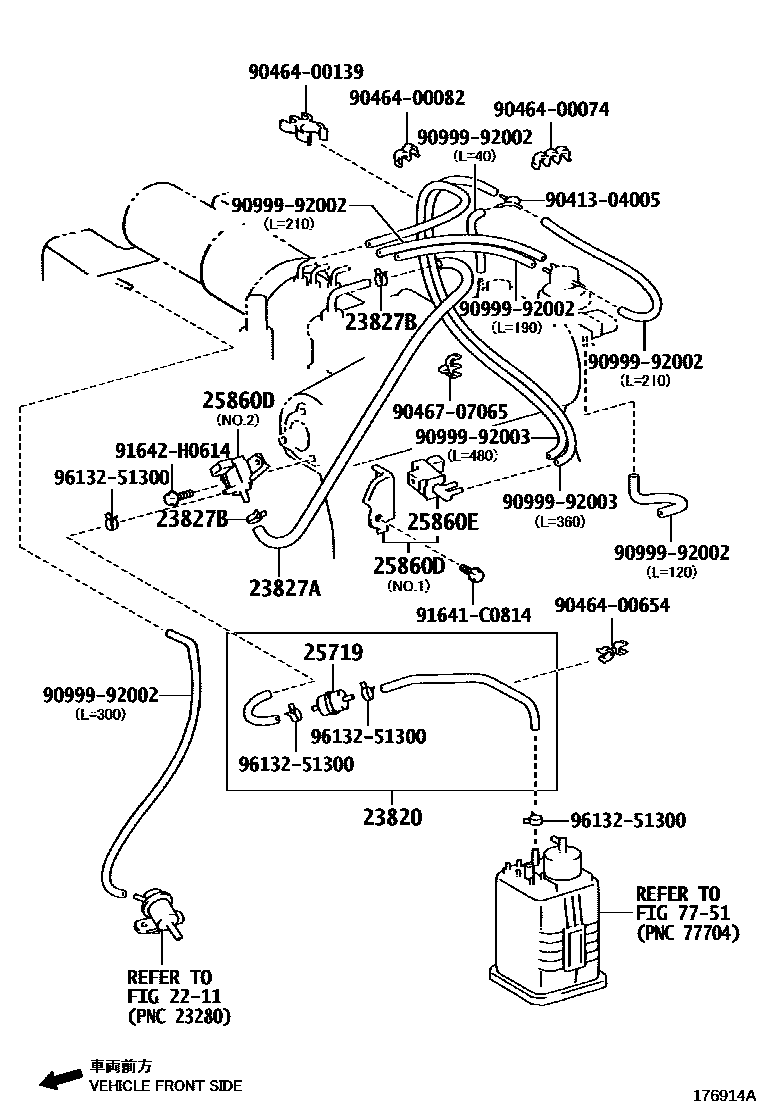

Toyota HILUX EPC diagram 1708, vacuum tube, with 6 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17303B | No. 1 air pipe sub-assembly | 17303-62031 |
| 17341T | Air hose No. 1 | 17341-62100 |
| 17342L | Air hose No. 2 | 17342-62080 |
| 17343B | No. 3 hose (for idle speed boost) | 17343-62120 |
| 17343F | No. 3 air hose | 17343-62080 |
| 17343H | Tee (for air hose) | 90904-13015 |
| 17650G | Duty cycle controlled vacuum switching valve | 90910-12262 |
| 23265 | No. 1 gas filter | 90917-11036 |
| 23820 | Fuel vapor supply hose assembly | 23820-31010 · 23820-62050 · 23820-75090 · 23820-75091 |
| 23826 | No. 1 fuel vapor supply hose | 23826-31010 · 23826-62030 |
| 23827A | No. 2 fuel vapor supply hose | 23827-62110 · 23827-75270 · 23827-75280 |
| 23827B | Clamp (for No. 2 fuel vapor supply hose) | 90467-13073 · 96132-51300 |
| 25706 | No. 1 vacuum transfer tube sub-assembly | 25706-30010 |
| 25707 | No. 2 vacuum transfer pipe sub-assembly | 25707-30010 |
| 25719 | Vacuum pressure tank | 25719-50040 |
| 25760 | Vacuum transfer hose assembly | 25760-30040 · 25760-46120 |
| 25860 | No. 1 vacuum switch valve assembly | 25860-30080 · 25860-31010 · 25860-62110 · 90910-12275 |
| 25860A | No. 1 vacuum switch valve | 90910-12149 |
| 25860D | No. 2 vacuum switch valve assembly | 25860-75060 · 25860-75260 |
| 25860E | No. 2 vacuum switch valve | 90910-12065 |
| 25861 | Vacuum switch valve bracket | 25861-30030 |
