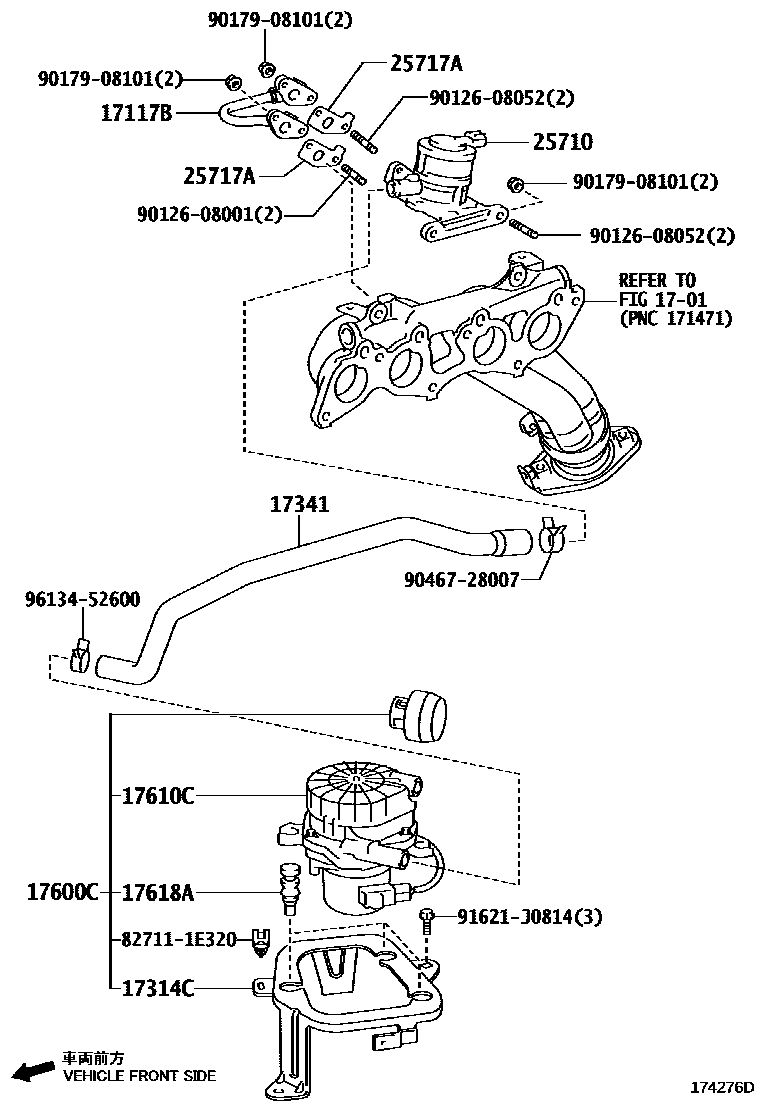

Toyota HILUX 歧管喷气系统 — Figure 1706
Toyota HILUX EPC diagram 1706, 歧管喷气系统, with 1 images and 8 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17117B | No. 4 intake pipe | 17117-75010 |
| 17314C | air pump bracket | 17314-0W010 |
| 17341 | Hoses No. 1 (for air injection systems) | 17341-75170 |
| 17600C | air pump assembly | 17600-0W010 |
| 17610C | air pump assembly | 17610-0C010 |
| 17618A | Air pump vibration isolation pad | 17618-0C010 |
| 25710 | Air switch valve assembly | 25710-75020 |
| 25717A | air switch valve gasket | 25717-75010 |
