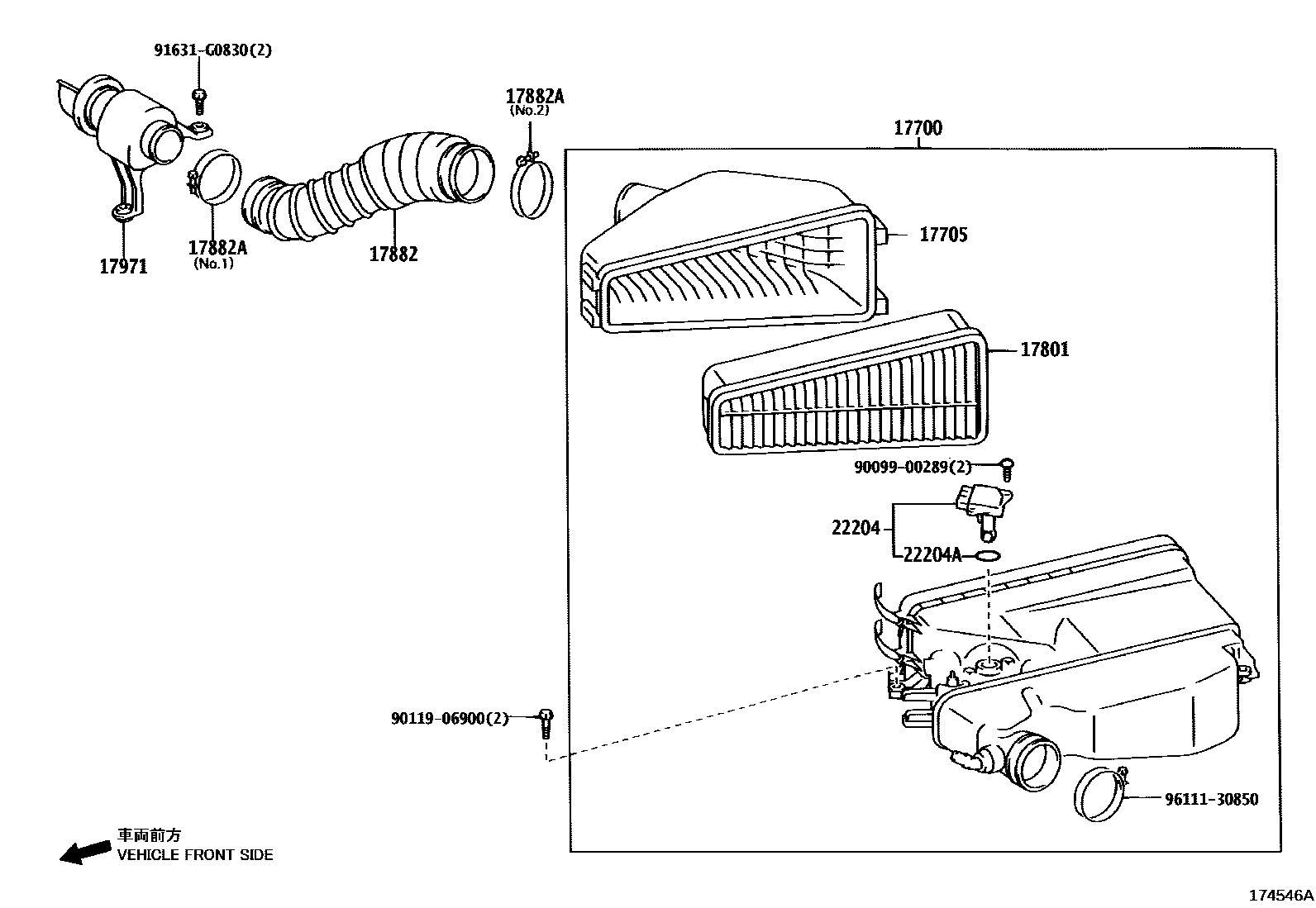

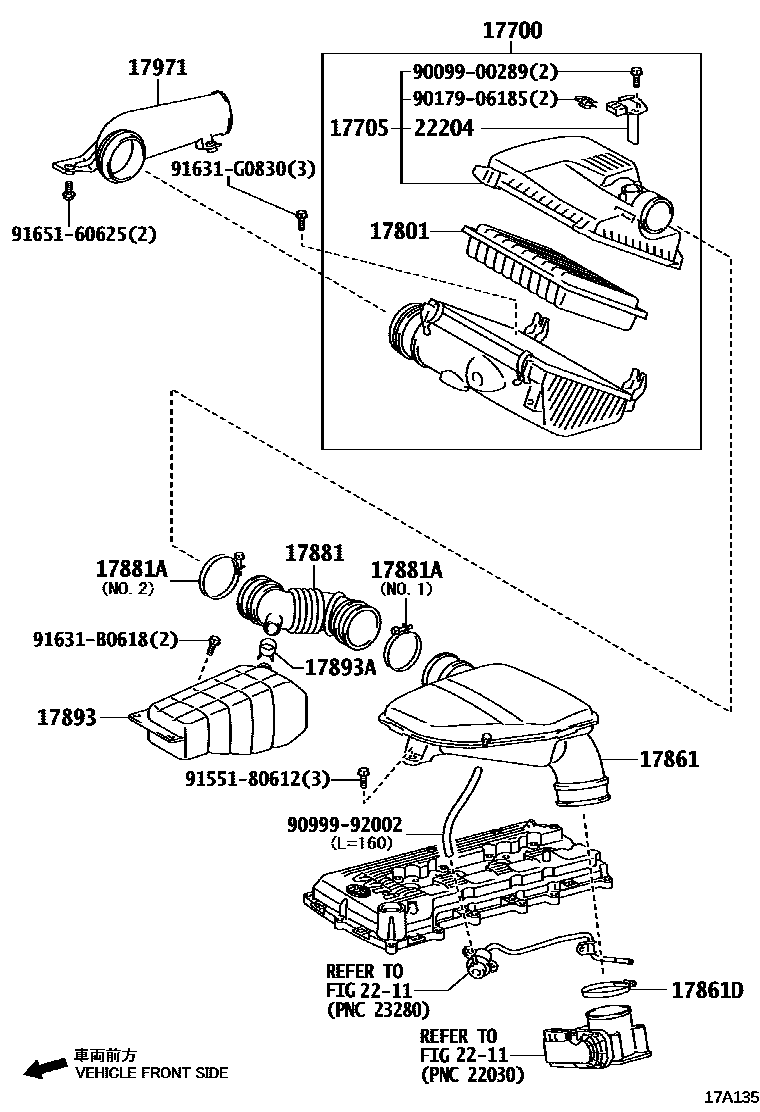

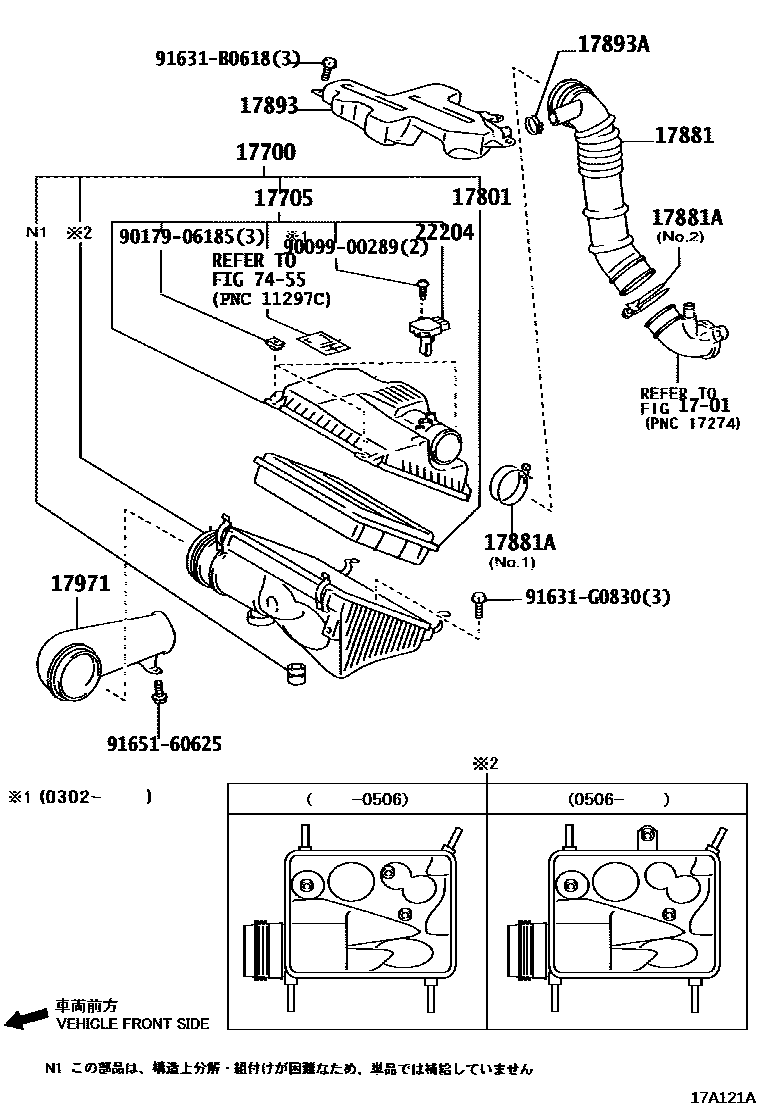

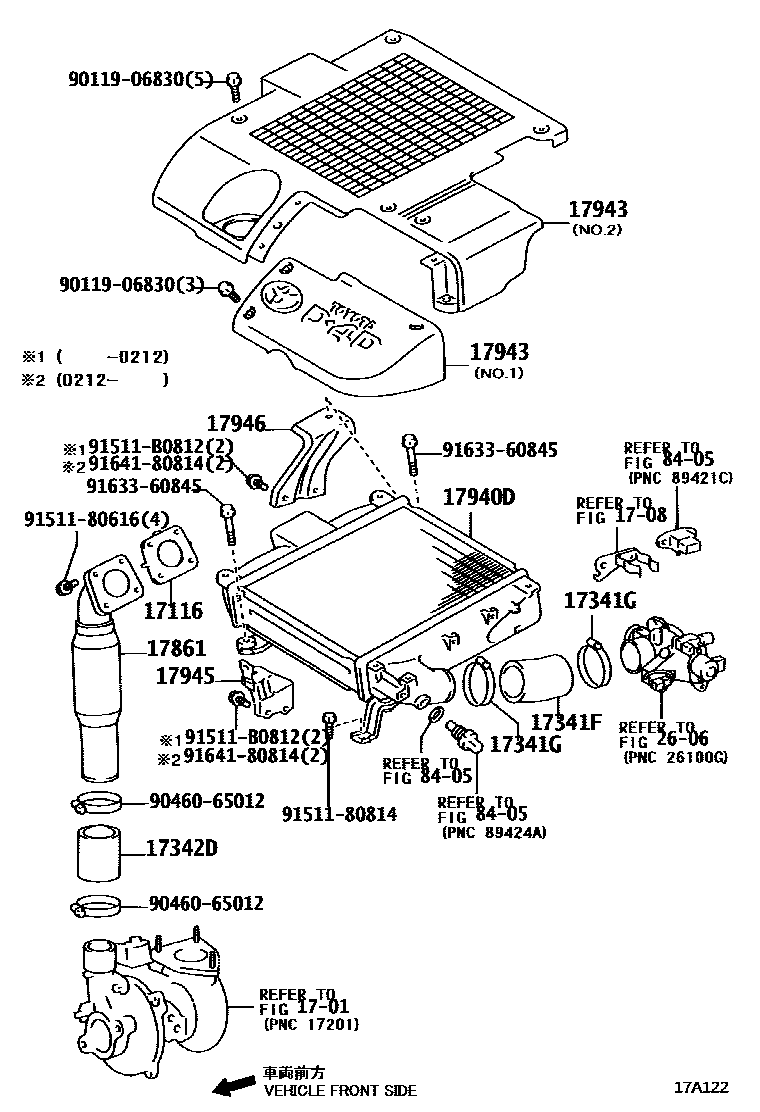

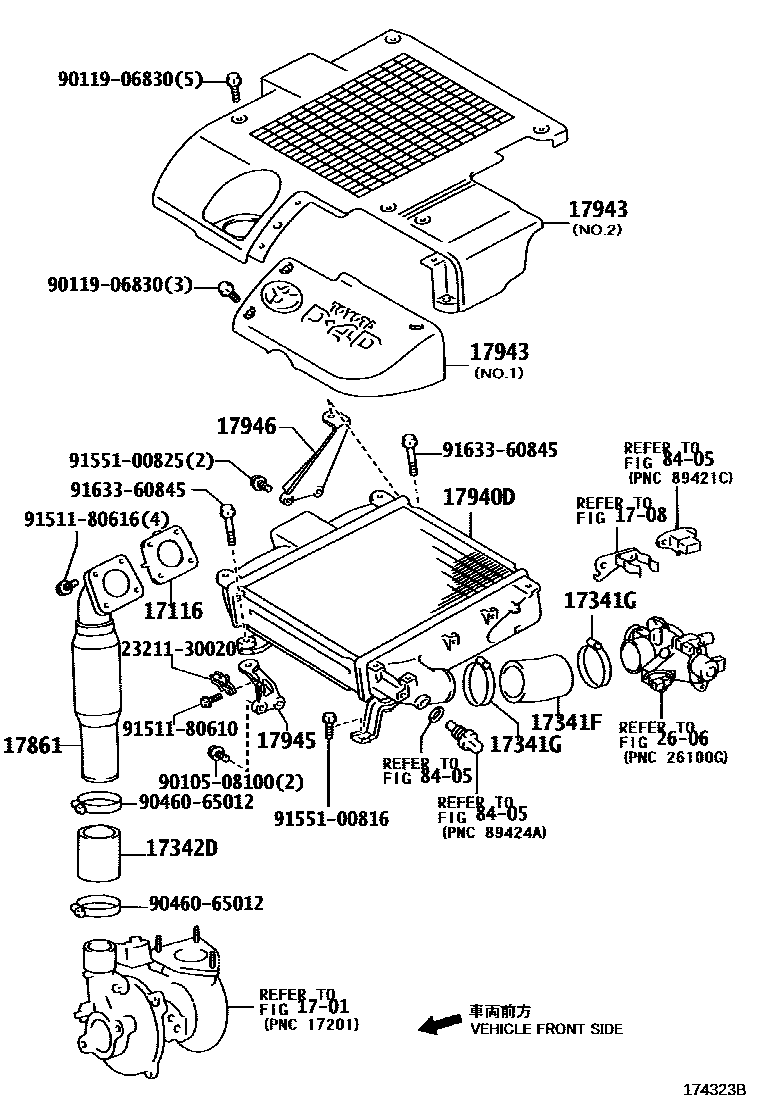

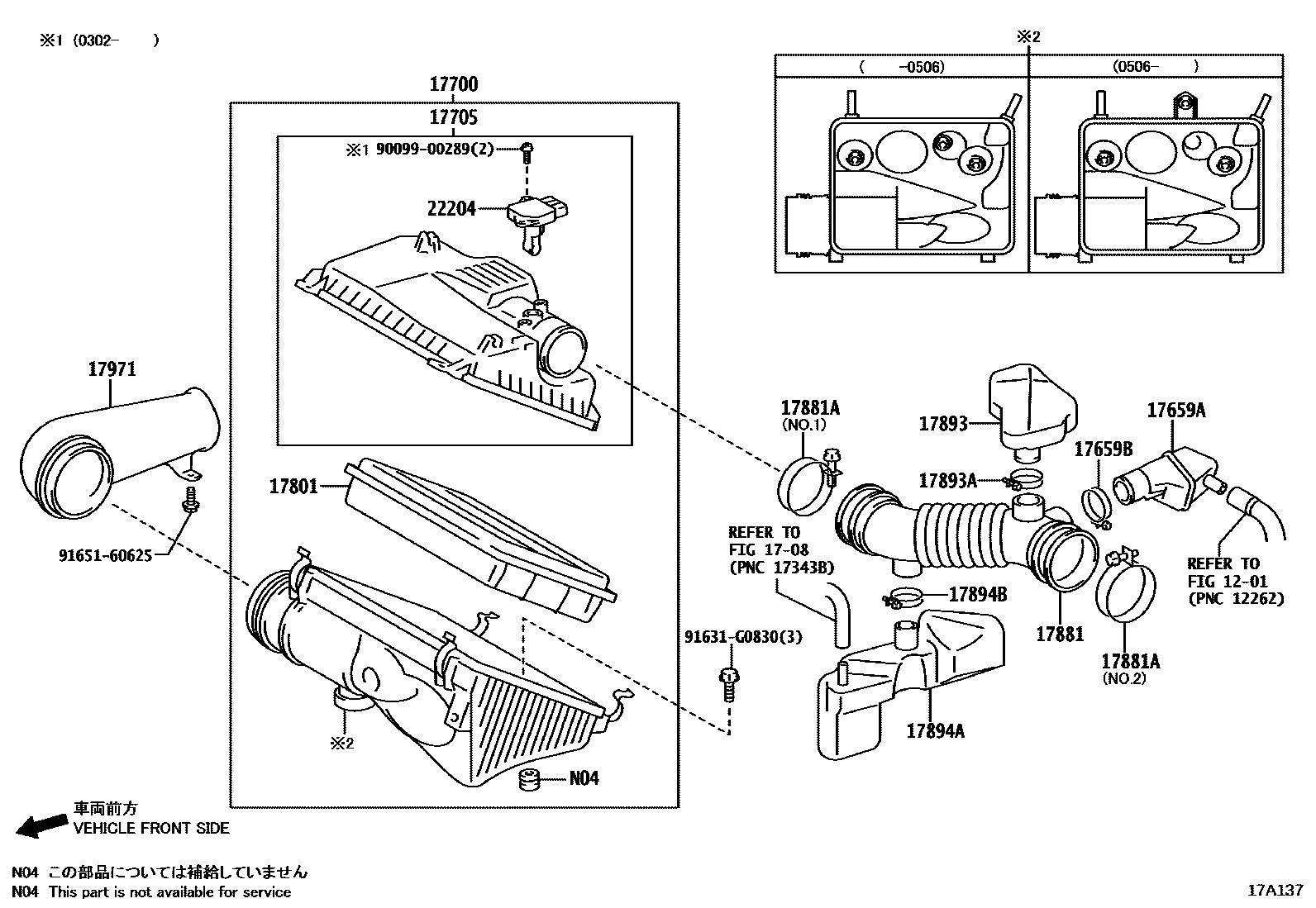

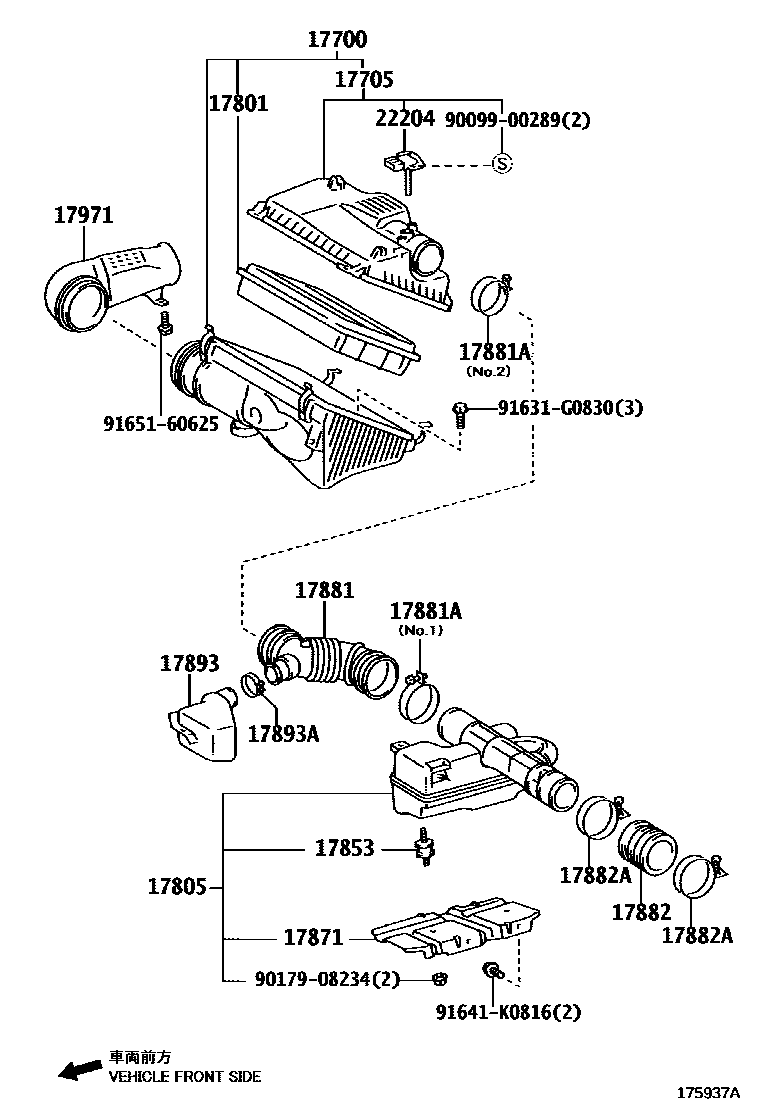

Toyota HILUX Air Cleaner — Figure 1703
Toyota HILUX EPC diagram 1703, Air Cleaner, with 7 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17116 | Intake flange gasket | 17116-67021 |
| 17341F | Air hose No. 1 | 17341-30050 |
| 17341G | Clip or clip (for No. 1 air hose) | 90460-80006 |
| 17342D | Air hose No. 2 | 17342-30010 |
| 17659A | air connector | 17659-62010 |
| 17659B | Hose clamp (for air connector) | 96111-10480 |
| 17700 | air filter assembly | 17700-30150 · 17700-30151 · 17700-31540 · 17700-31541 · 17700-62140 · 17700-62141 · 17700-75400 · 17700-75401 · 17700-75402 |
| 17705 | Air filter cover sub-assembly | 17705-30090 · 17705-31090 · 17705-62110 · 17705-75280 · 17705-75281 |
| 17801 | Air filter element sub-assembly | 17801-30040 · 17801-31090 · 17801-50040 |
| 17805 | Intake connecting pipe sub-assembly | 17805-75171 |
| 17853 | Air filter bracket vibration isolation pad | 17853-75020 |
| 17861 | Intake connecting pipe | 17860-30020 · 17861-75120 |
| 17861D | Clamp (for air intake connecting pipe) | 96111-30800 |
| 17871 | Air intake connecting pipe stay | 17871-75020 |
| 17881 | No. 1 air cleaner hose | 17881-30030 · 17881-62200 · 17881-75210 · 17881-75211 |
| 17881A | Clamp (for No. 1 air cleaner hose) | 96111-30800 · 96111-30830 · 96111-30900 |
| 17882 | No. 2 air cleaner hose | 17882-0C010 · 17882-31080 · 17882-75040 |
| 17882A | Clamp (for No. 2 air cleaner hose) | 96111-10800 · 96111-30980 · 96111-31120 |
| 17893 | Intake resonator | 17893-30020 · 17893-62090 · 17893-75080 · 17893-75090 |
| 17893A | hose clamp | 96111-10480 · 96111-30380 · 96134-52600 |
| 17894A | No. 2 intake resonator | 17894-62050 |
| 17894B | Hose clamp (for intake resonator No. 2) | 96111-10430 |
| 17940D | Intercooler assembly | 17940-30040 · 17940-30070 |
| 17943 | Intercooler protection device | 12602-30010 · 12602-30011 · 17943-30020 · 17943-30021 |
| 17945 | intercooler bracket | 17945-30030 · 17945-30031 · 17945-30060 |
| 17946 | No. 2 intercooler bracket | 17946-30010 · 17946-30011 · 17946-30020 |
| 17971 | No. 1 air-conditioning air inlet | 17971-30010 · 17971-31010 · 17971-62010 · 17971-75010 · 17971-75011 · 17971-75012 |
| 22204 | Intake air flow meter assembly | 22204-21010 · 22204-22010 · 22204-30010 · 22204-75030 |
| 22204A | O-ring (for intake air flow meter) | 90099-14141 |
