Toyota HILUX Exhaust Pipe — Figure 1702

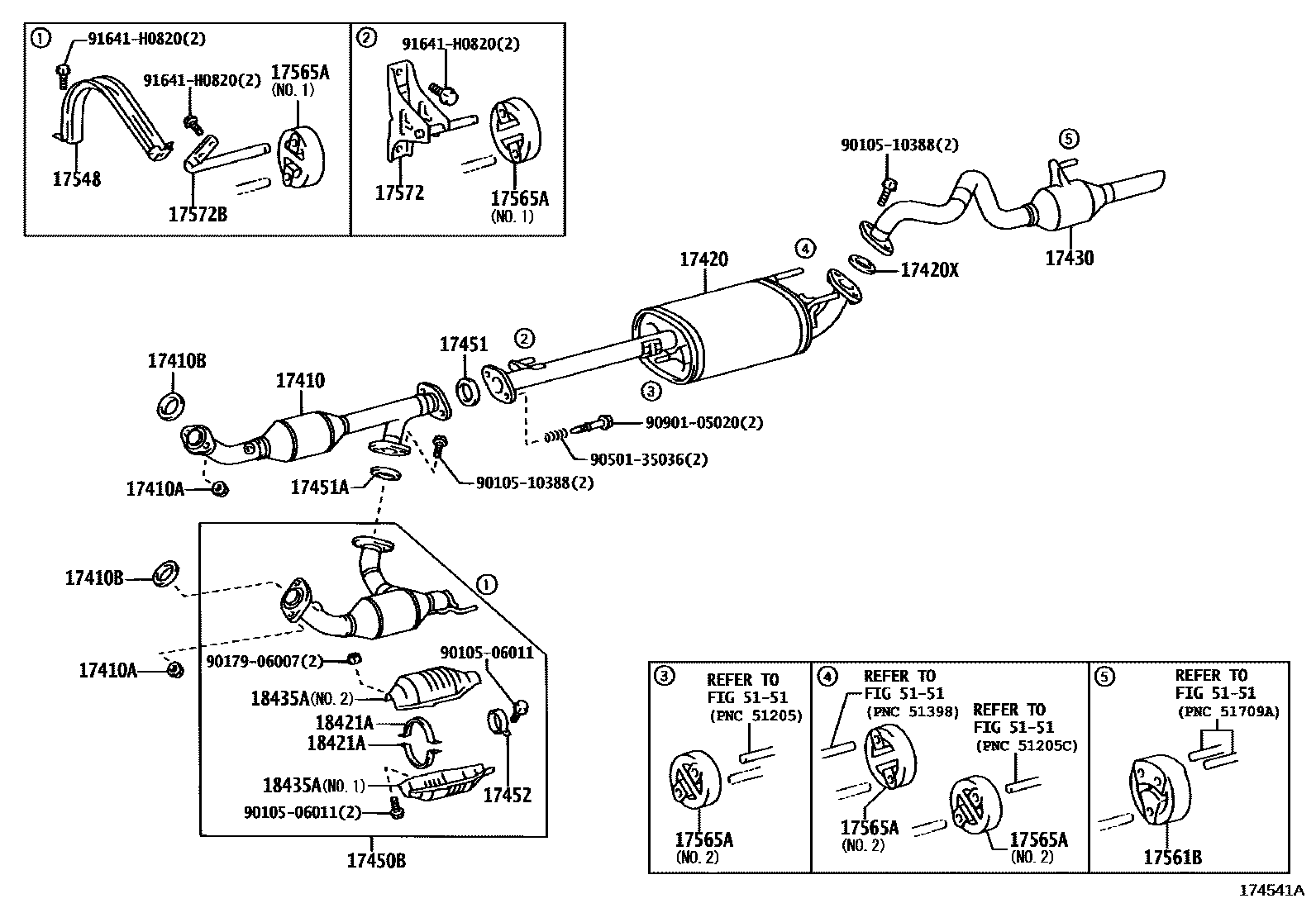

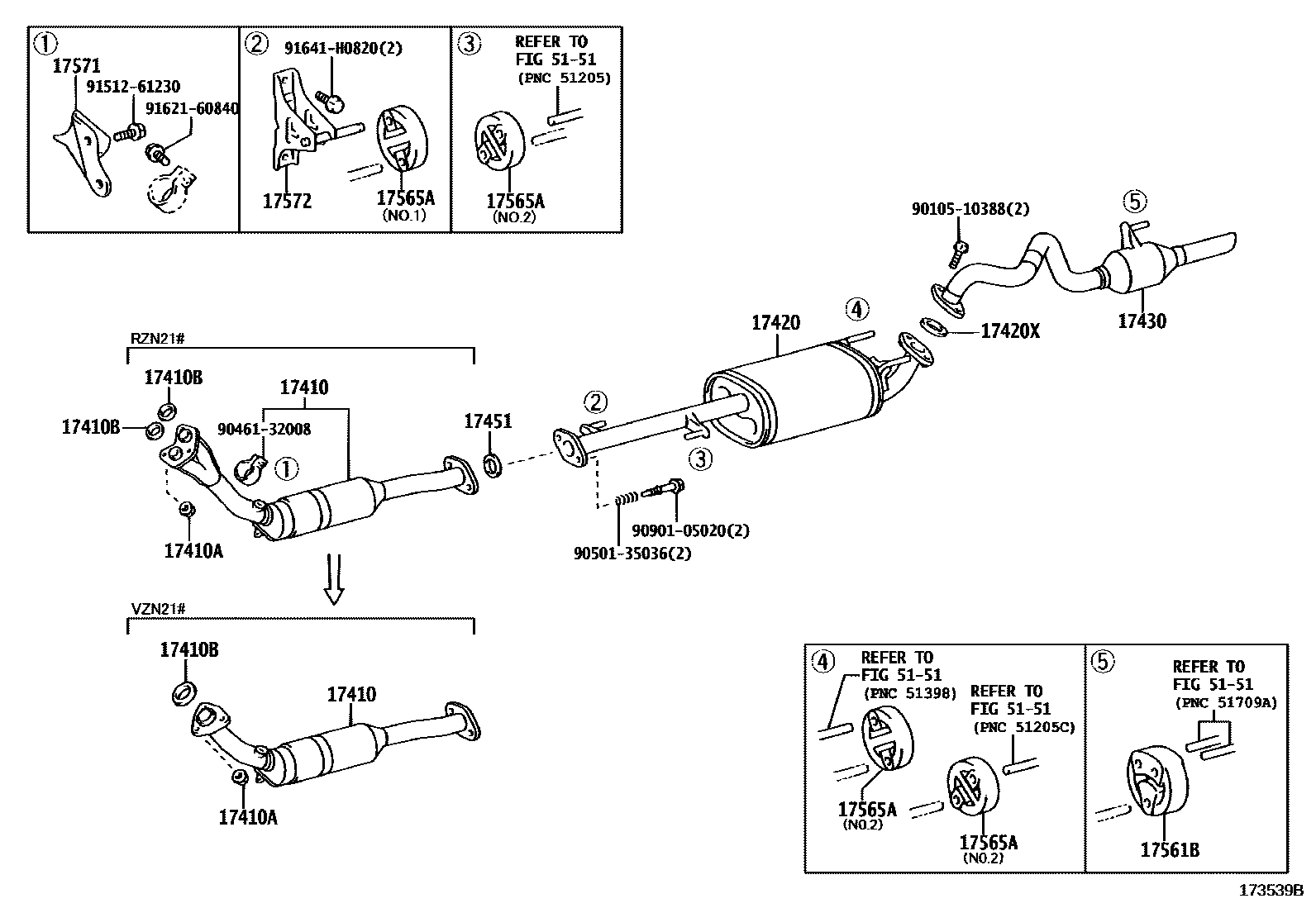

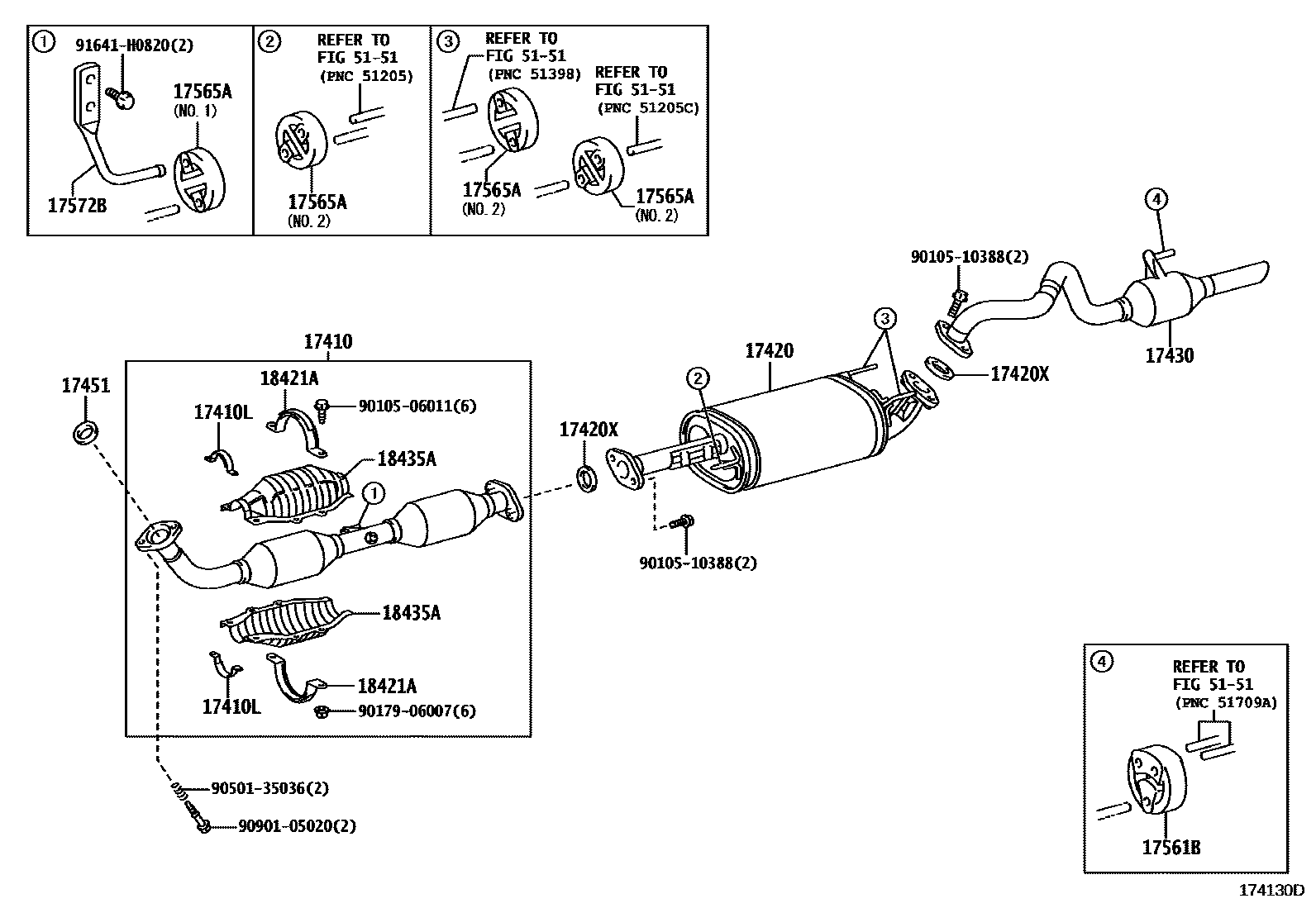

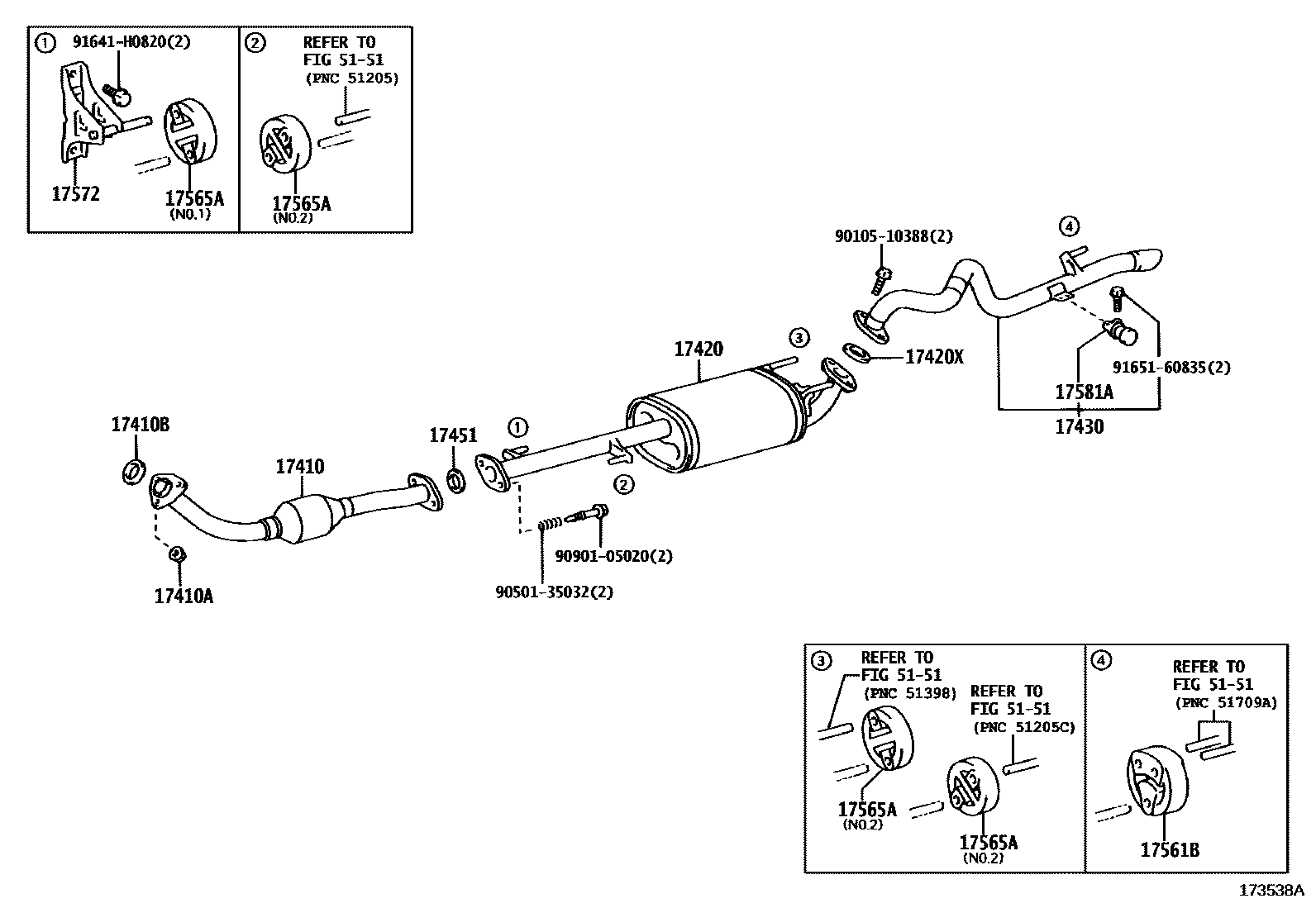

Toyota HILUX EPC diagram 1702, Exhaust Pipe, with 4 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 17410 | Front exhaust pipe assembly | 17410-30050 · 17410-31450 · 17410-62180 · 17410-75360 · 17410-75520 |
| 17410A | Exhaust pipe fixing studs and nuts | 90179-10070 |
| 17410B | Exhaust pipe gasket | 90917-06061 · 90917-06086 · 90917-06089 · 90917-06090 |
| 17410L | Exhaust pipe protector stay (for front) | 17541-75030 |
| 17420 | Central exhaust pipe assembly | 17420-30060 · 17420-50220 · 17420-62310 · 17420-75440 |
| 17420X | Center exhaust pipe liner | 90917-06072 |
| 17430 | Exhaust tailpipe assembly | 17430-30050 · 17430-31410 · 17430-50220 |
| 17450B | No. 2 front exhaust pipe assembly | 17450-31030 |
| 17451 | Exhaust pipe gasket | 17451-74040 · 17451-74051 |
| 17451A | No. 2 exhaust pipe gasket | 90917-06083 |
| 17452 | Exhaust pipe clamp | 90461-12353 |
| 17548 | Exhaust pipe block bracket | 17548-31011 |
| 17561B | No. 1 exhaust pipe lifting lug | 17561-73020 · 17565-31050 · 17565-74320 |
| 17565A | No. 4 exhaust pipe lifting lug | 17565-22040 · 17565-46040 |
| 17571 | No. 1 exhaust pipe bracket | 17571-75260 |
| 17572 | No. 1 exhaust pipe bracket | 17571-50140 |
| 17572B | No. 2 exhaust pipe bracket | 17572-31070 · 17572-75290 |
| 17581A | Exhaust pipe damper | 17581-30010 |
| 18421A | Three-way catalytic converter protection device left support | 18421-75010 · 18421-75020 |
| 18435A | Integrated three-way catalytic converter protection device | 18435-31030 · 18435-75070 · 18445-31010 |
