Toyota HILUX Manifold — Figure 1701

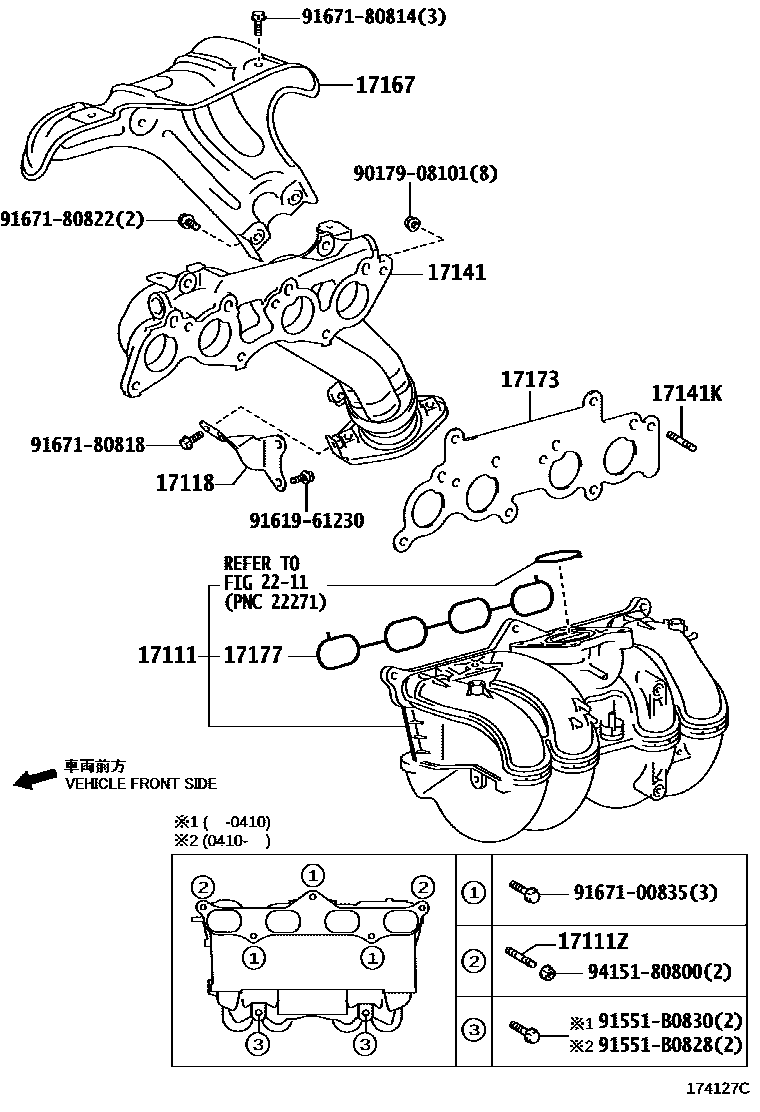

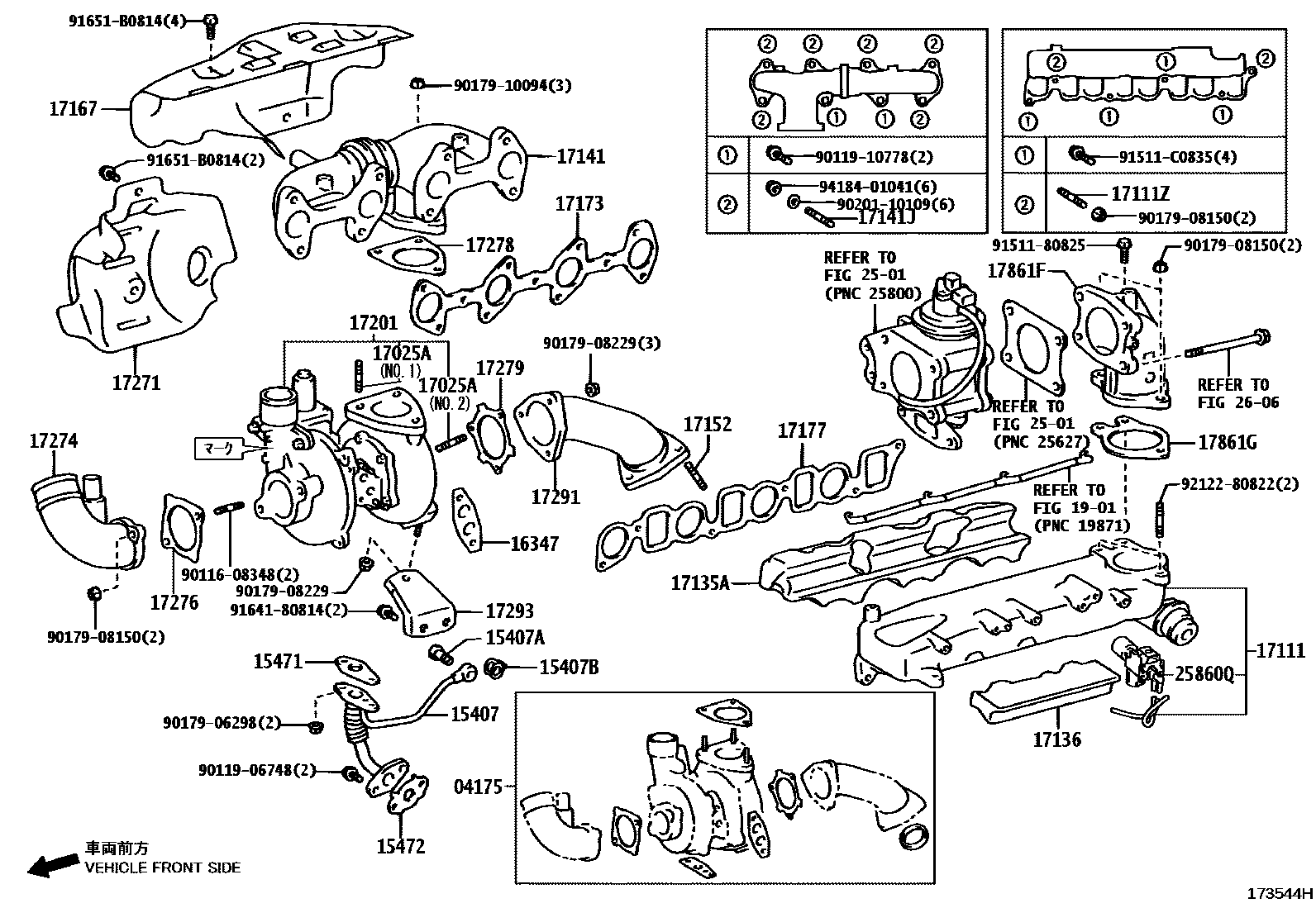

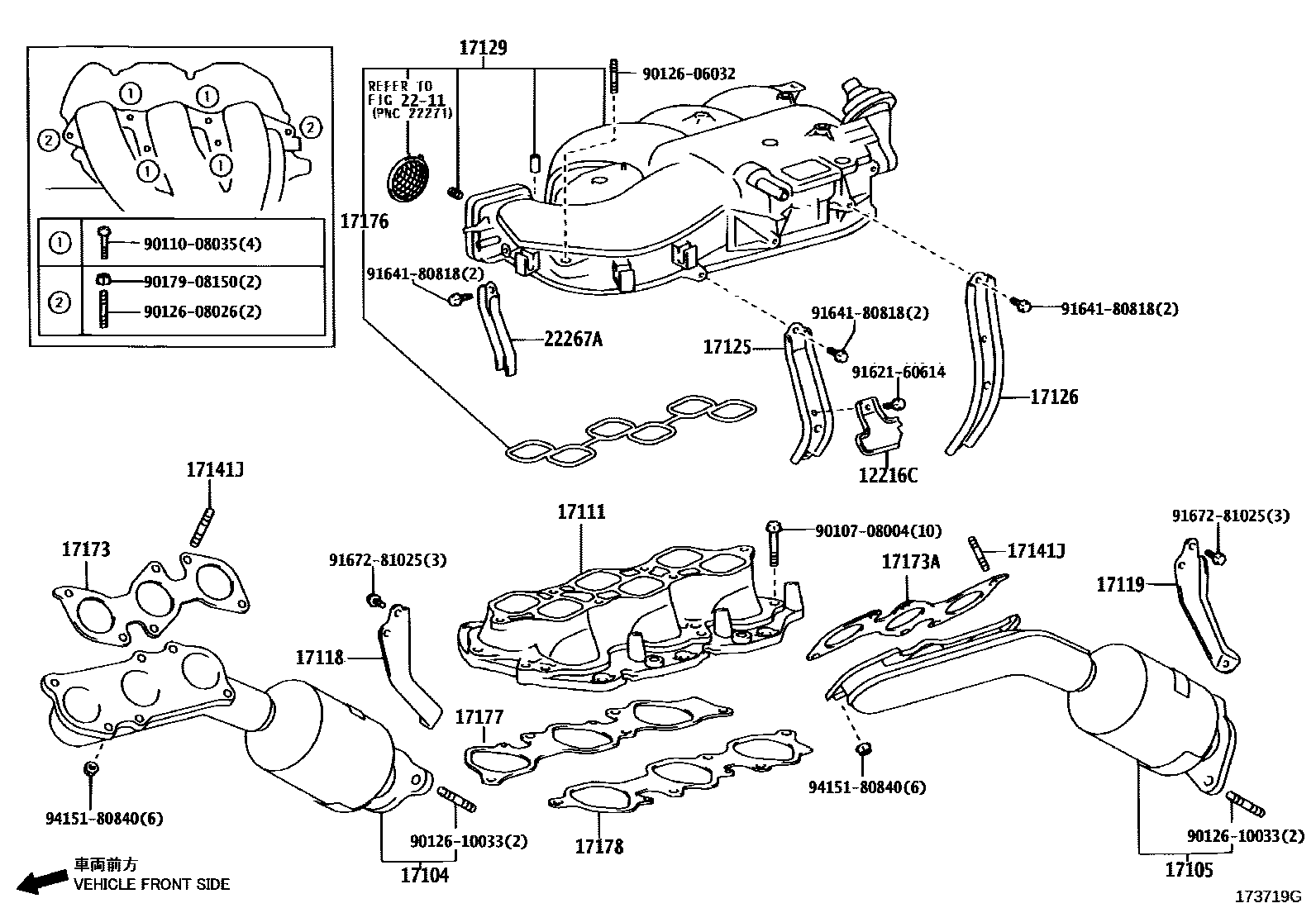

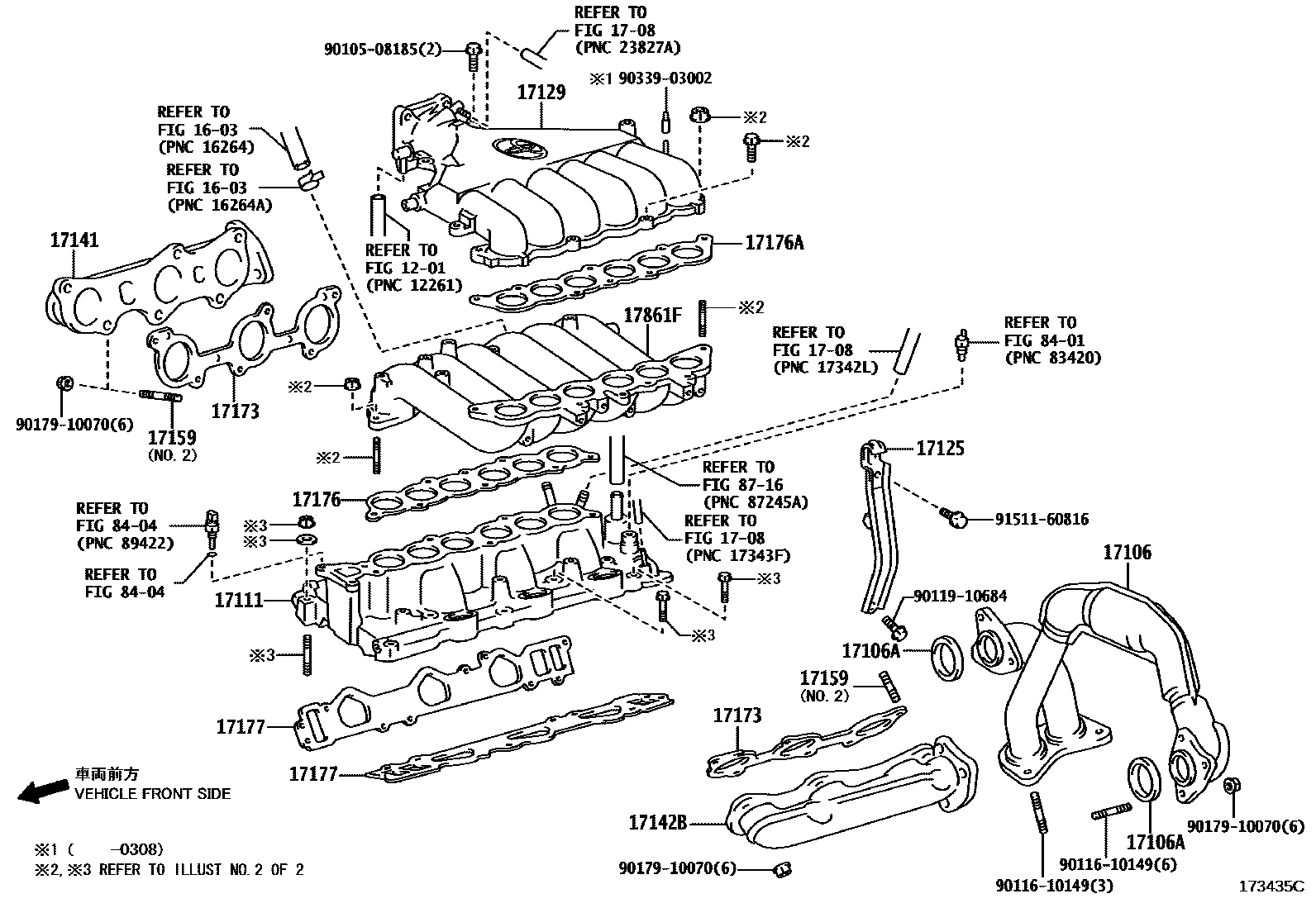

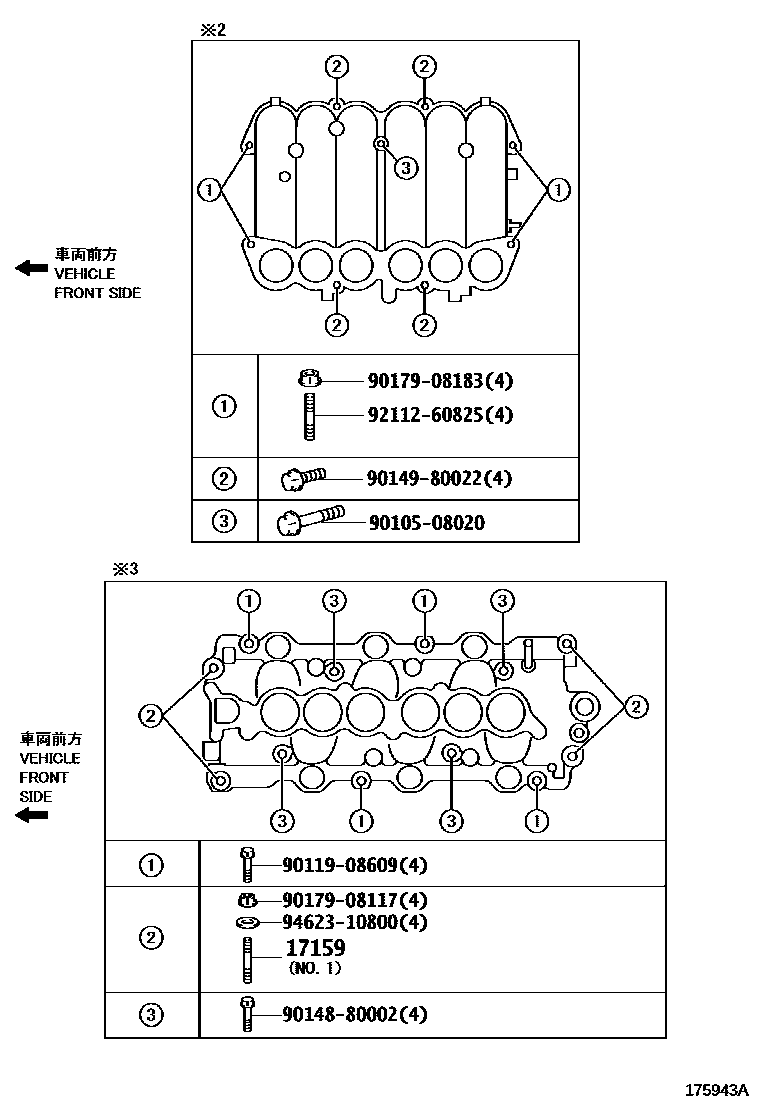

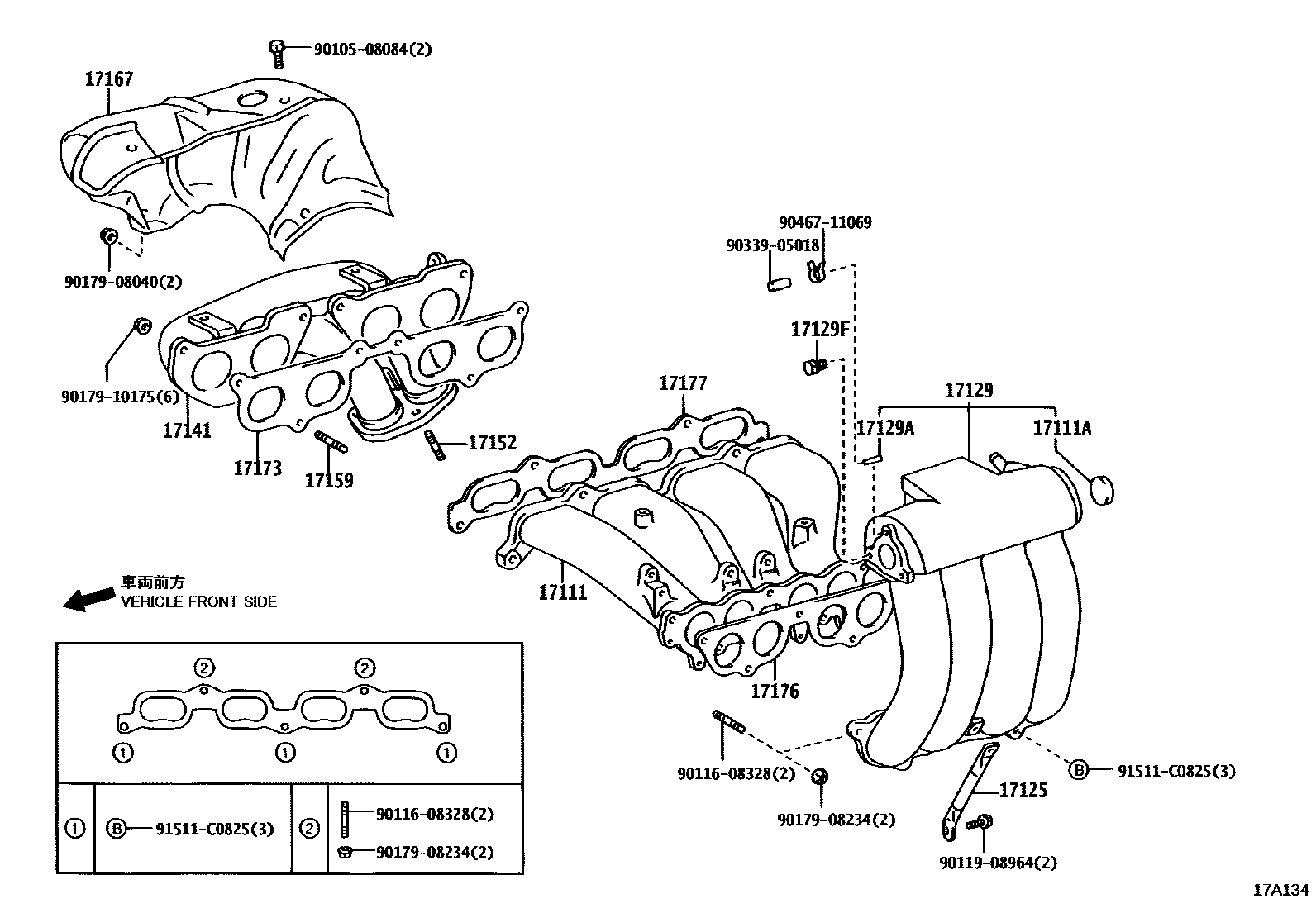

Toyota HILUX EPC diagram 1701, Manifold, with 6 images and 50 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 04175 | Turbocharger gasket assembly | 04175-30040 |
| 12216C | Oil baffle | 12216-31020 |
| 15407 | Turbine oil inlet pipe sub-assembly | 15407-30010 |
| 15407A | Connector bolt (for turbine oil inlet pipe) | 90401-12097 |
| 15407B | Gasket (for turbine oil inlet pipe) | 90904-30004 |
| 15471 | Turbine oil inlet pipe gasket | 15471-30010 |
| 15472 | No. 1 turbine oil outlet pipe gasket | 15472-67010 |
| 16347 | water bypass liner | 16347-30010 |
| 17025A | Stud bolts (for turbine housing) | 90116-10175 · 90126-08009 |
| 17104 | Right exhaust manifold sub-assembly | 17140-31070 · 17140-31250 |
| 17105 | Left exhaust manifold sub-assembly | 17150-31070 · 17150-31250 |
| 17106 | Exhaust crossover pipe assembly | 17106-62030 |
| 17106A | Exhaust pipe gasket | 90917-06083 |
| 17111 | Intake Manifold | 17101-30010 · 17101-30011 · 17101-31010 · 17101-62020 · 17111-75070 · 17120-0C020 |
| 17111A | No. 1 screw plug | 96411-43500 |
| 17111Z | Stud bolts (for intake manifold to cylinder head) | 90126-08026 · 92122-80822 |
| 17118 | Manifold stays | 17118-31030 · 17118-75060 |
| 17119 | No. 2 manifold stay | 17119-31040 |
| 17125 | No. 1 pressure tank stay | 17125-31010 · 17125-62041 · 17125-75030 |
| 17126 | No. 2 pressure tank stay | 17126-31010 |
| 17129 | Intake pressure tank | 17109-31012 · 17109-62090 · 17109-62100 · 17109-75030 |
| 17129A | Connector No. 1 | 90406-06002 |
| 17129F | Intake manifold intake hole plug | 90345-51025 |
| 17135A | Intake manifold No. 1 heat shield | 17135-30011 |
| 17136 | Intake manifold No. 2 heat shield | 17136-30010 |
| 17141 | exhaust manifold | 17104-30010 · 17141-62110 · 17141-75080 · 17141-75110 |
| 17141J | Studs (for right exhaust manifold) | 90126-08052 · 90126-10017 · 90126-10037 |
| 17141K | Stud bolts (for exhaust manifold to cylinder head) | 90126-08052 |
| 17142B | Left exhaust manifold | 17142-62110 |
| 17152 | Studs (for manifold to exhaust) | 90116-10088 · 90116-10149 |
| 17159 | Studs (for manifold to cylinder head) | 90116-08251 · 90116-10150 · 90116-10163 |
| 17167 | Exhaust manifold No. 1 heat shield | 17167-30011 · 17167-75100 · 17167-75160 |
| 17173 | Gasket (exhaust manifold to cylinder head) | 17173-30020 · 17173-31010 · 17173-62060 · 17173-75020 · 17173-75040 |
| 17173A | Left side gasket (exhaust manifold to cylinder head) | 17173-31010 |
| 17176 | Gasket (intake surge tank to intake manifold) | 17176-31010 · 17176-62040 · 17176-75010 |
| 17176A | No. 2 gasket (intake surge tank to intake manifold) | 17176-62040 |
| 17177 | No. 1 gasket (intake manifold to cylinder head) | 17177-0C010 · 17177-30010 · 17177-30011 · 17177-31010 · 17177-62060 · 17177-75030 |
| 17178 | No. 2 gasket (intake manifold to cylinder head) | 17178-31010 |
| 17201 | Turbocharger sub-assembly | 17201-30060 · 17201-30061 |
| 17271 | No. 1 turbine vibration isolation pad | 17271-30011 |
| 17274 | Compressor oil inlet elbow pipe | 17274-30010 |
| 17276 | Compressor oil inlet gasket | 17276-67010 |
| 17278 | Gasket (turbo to exhaust manifold) | 17278-67010 |
| 17279 | Turbine outlet elbow gasket | 17279-30030 |
| 17291 | Turbine oil outlet elbow | 17291-30010 |
| 17293 | Turbocharger stay | 17293-30010 |
| 17861F | Intake connecting pipe | 17861-30040 · 17861-62012 |
| 17861G | Intake connecting pipe gasket | 26171-30012 · 26171-30013 |
| 22267A | Throttle body bracket | 22267-31010 |
| 25860Q | Toyota part | 25860-30070 |
