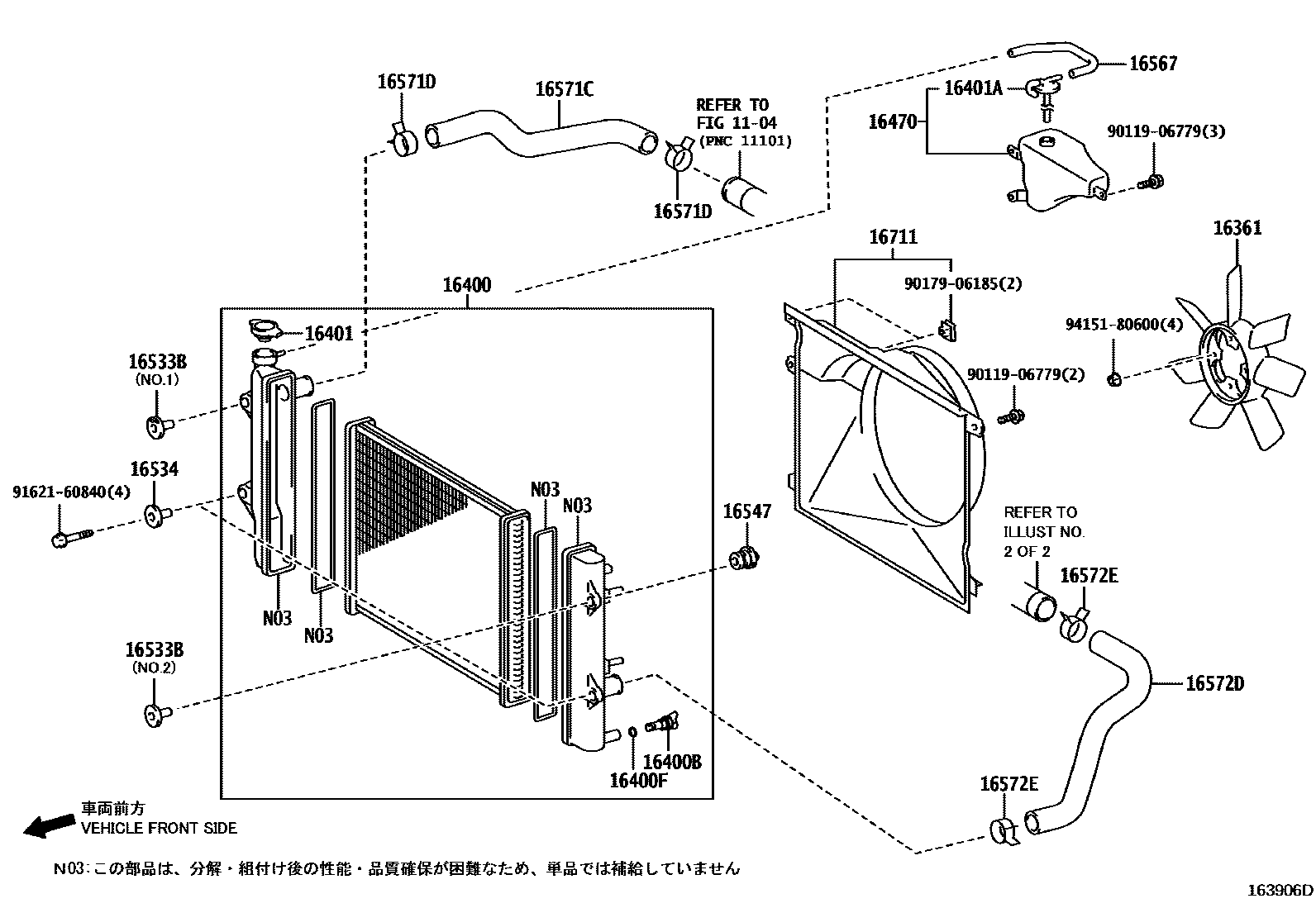

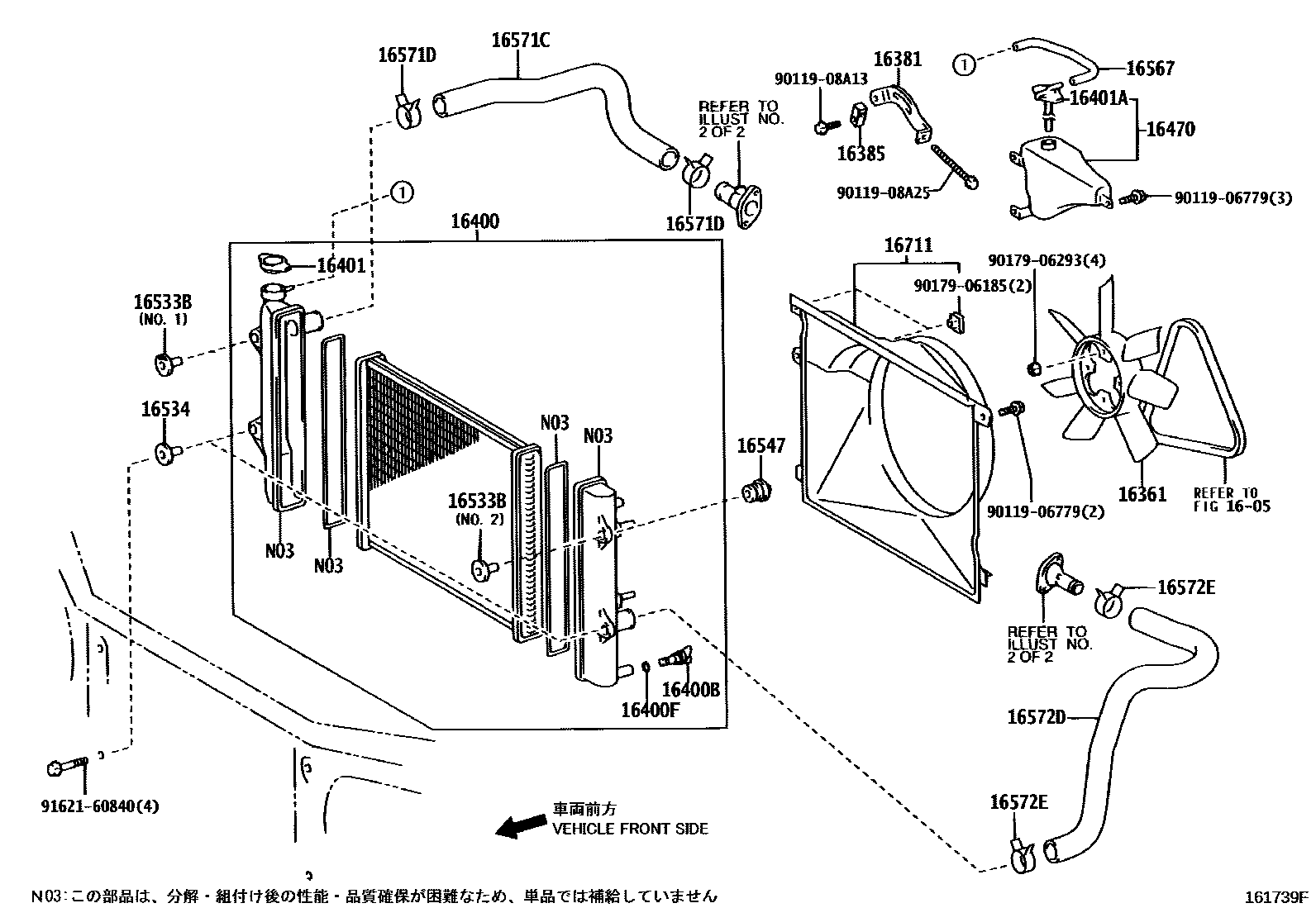

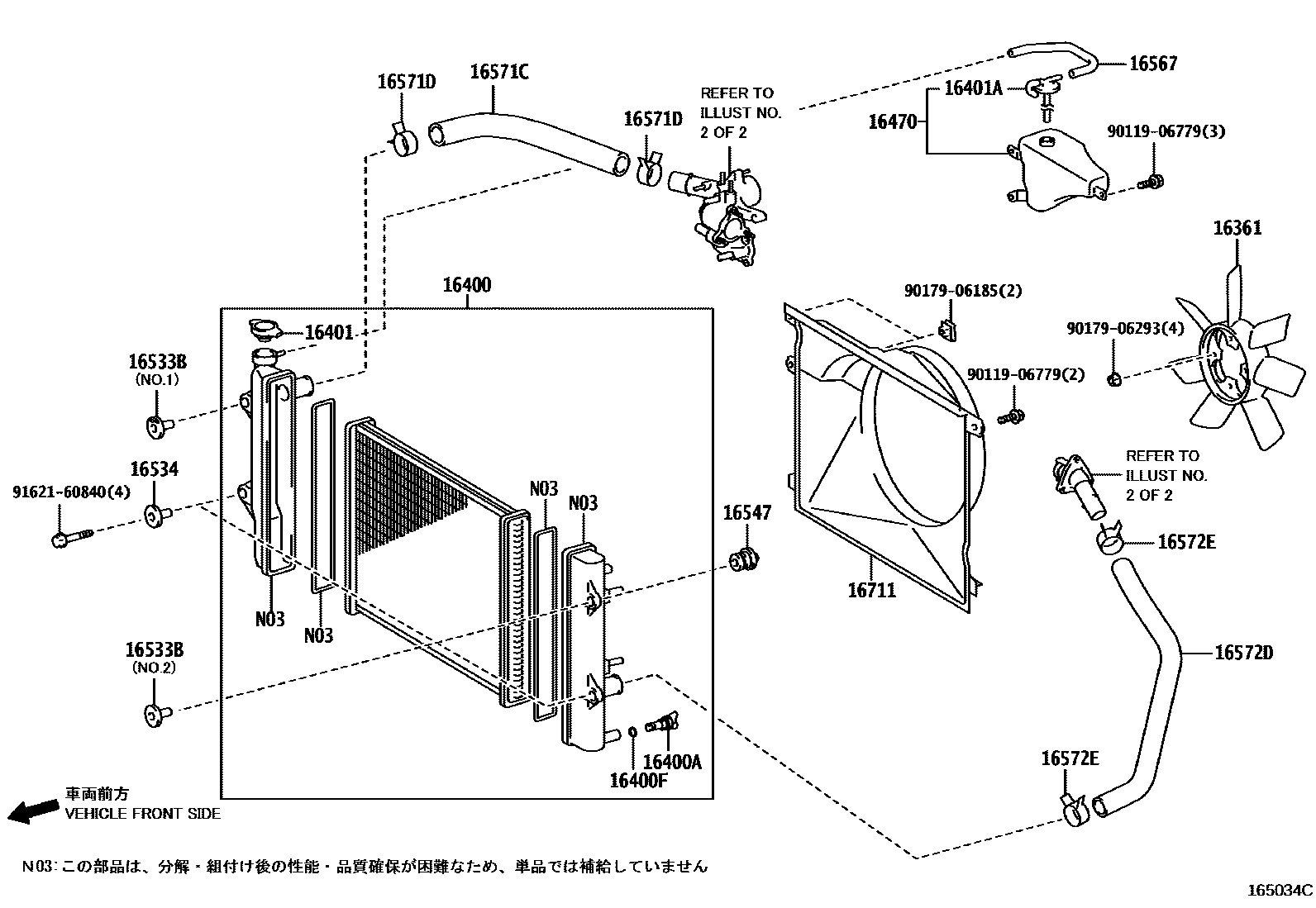

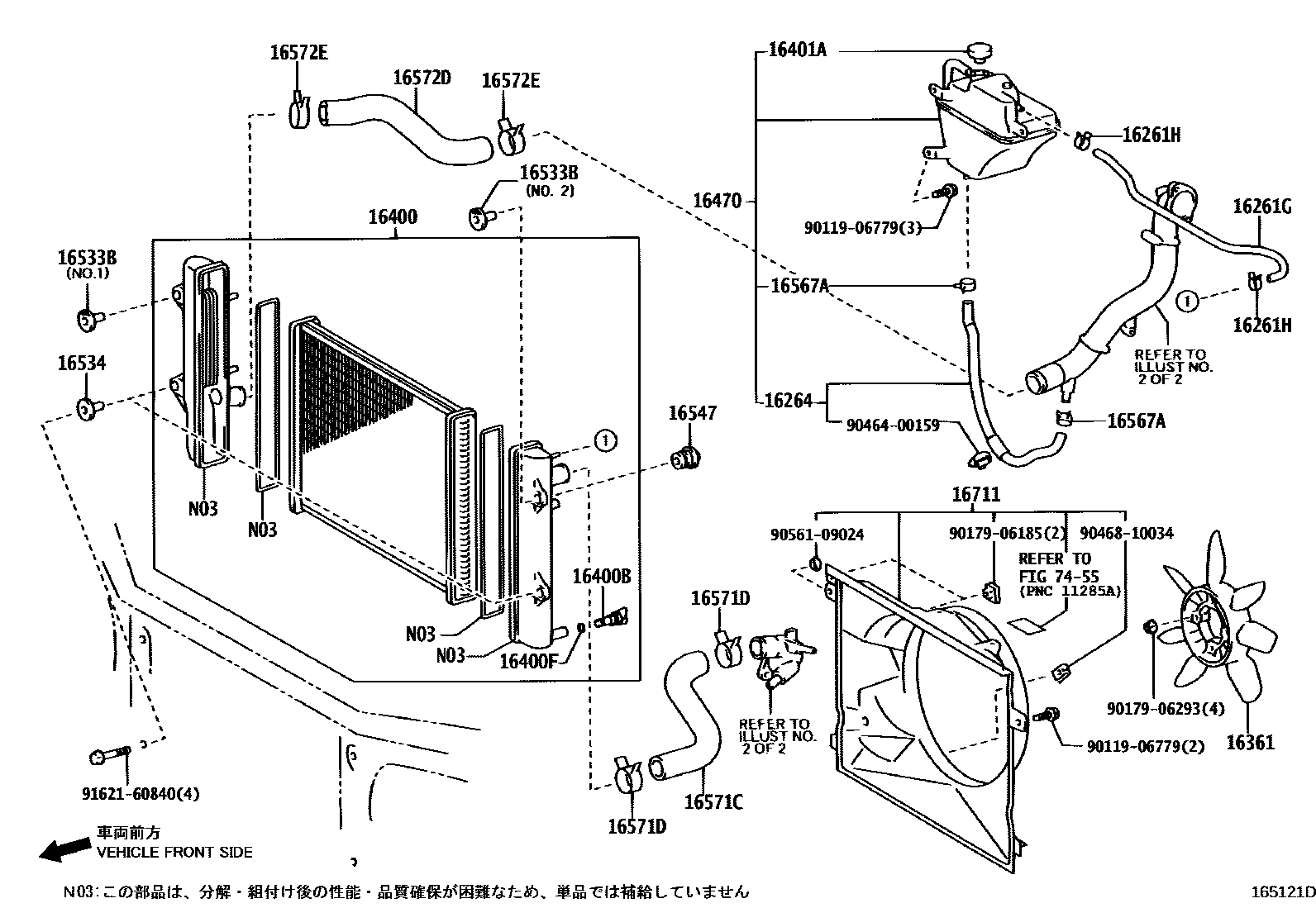

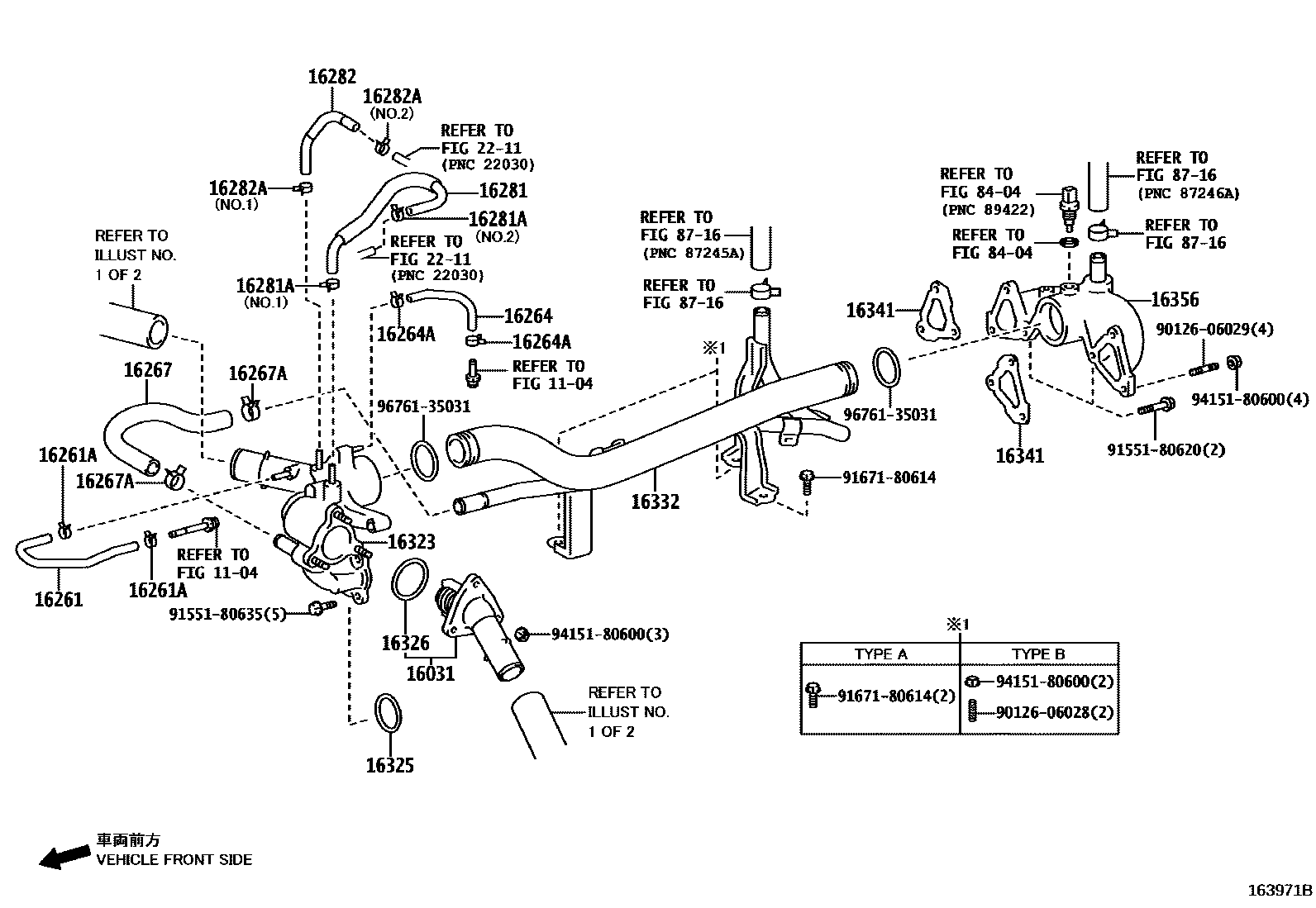

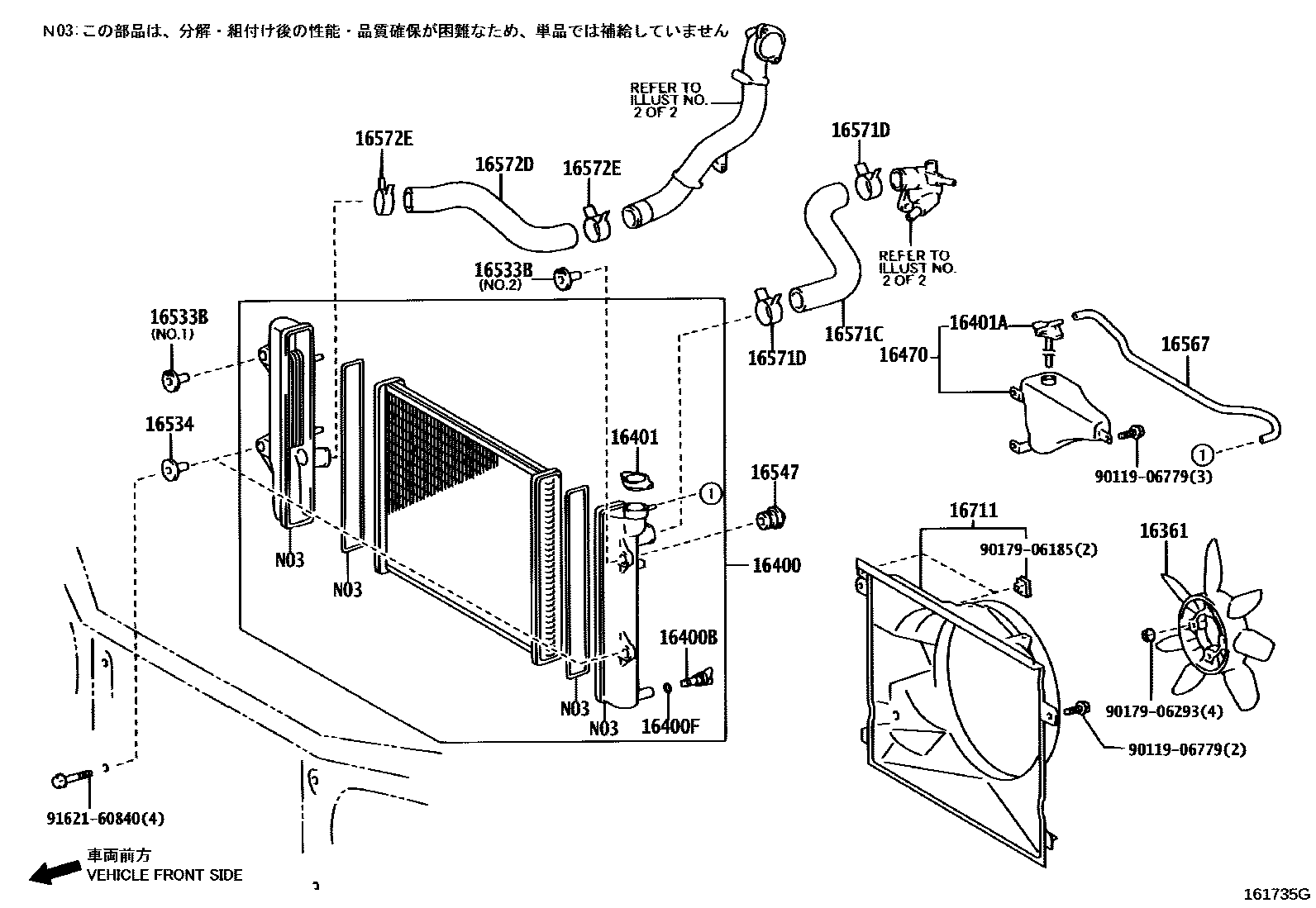

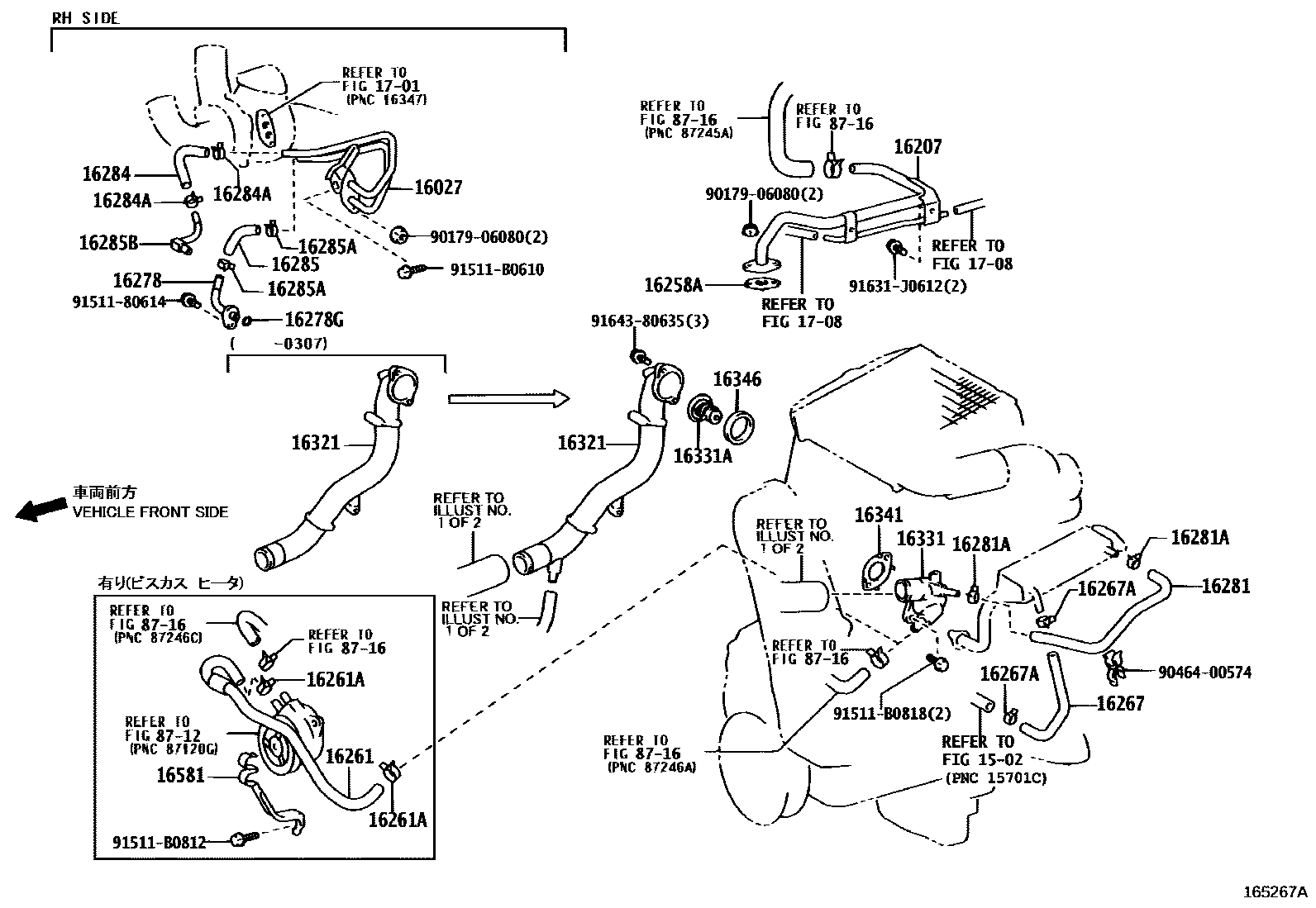

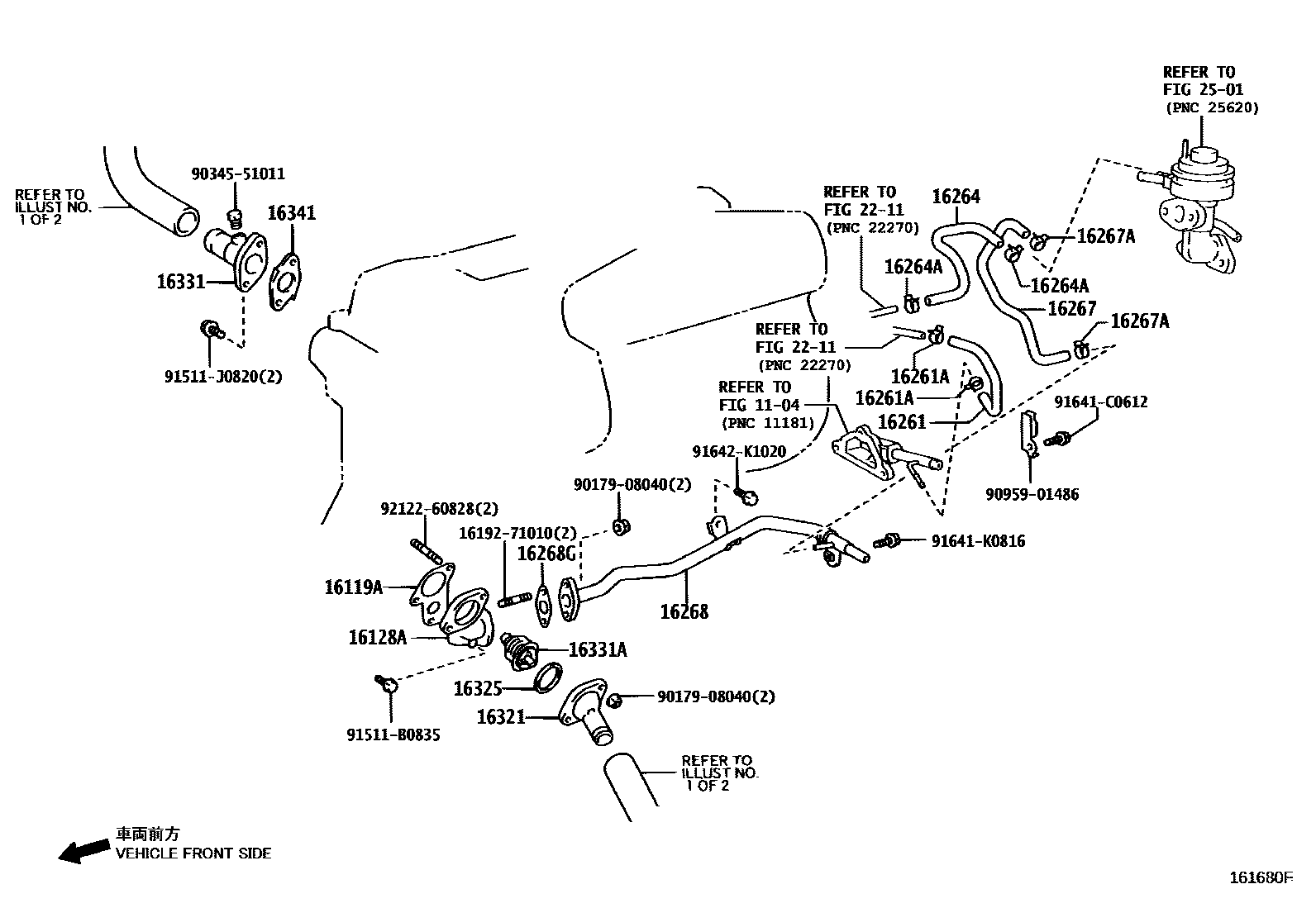

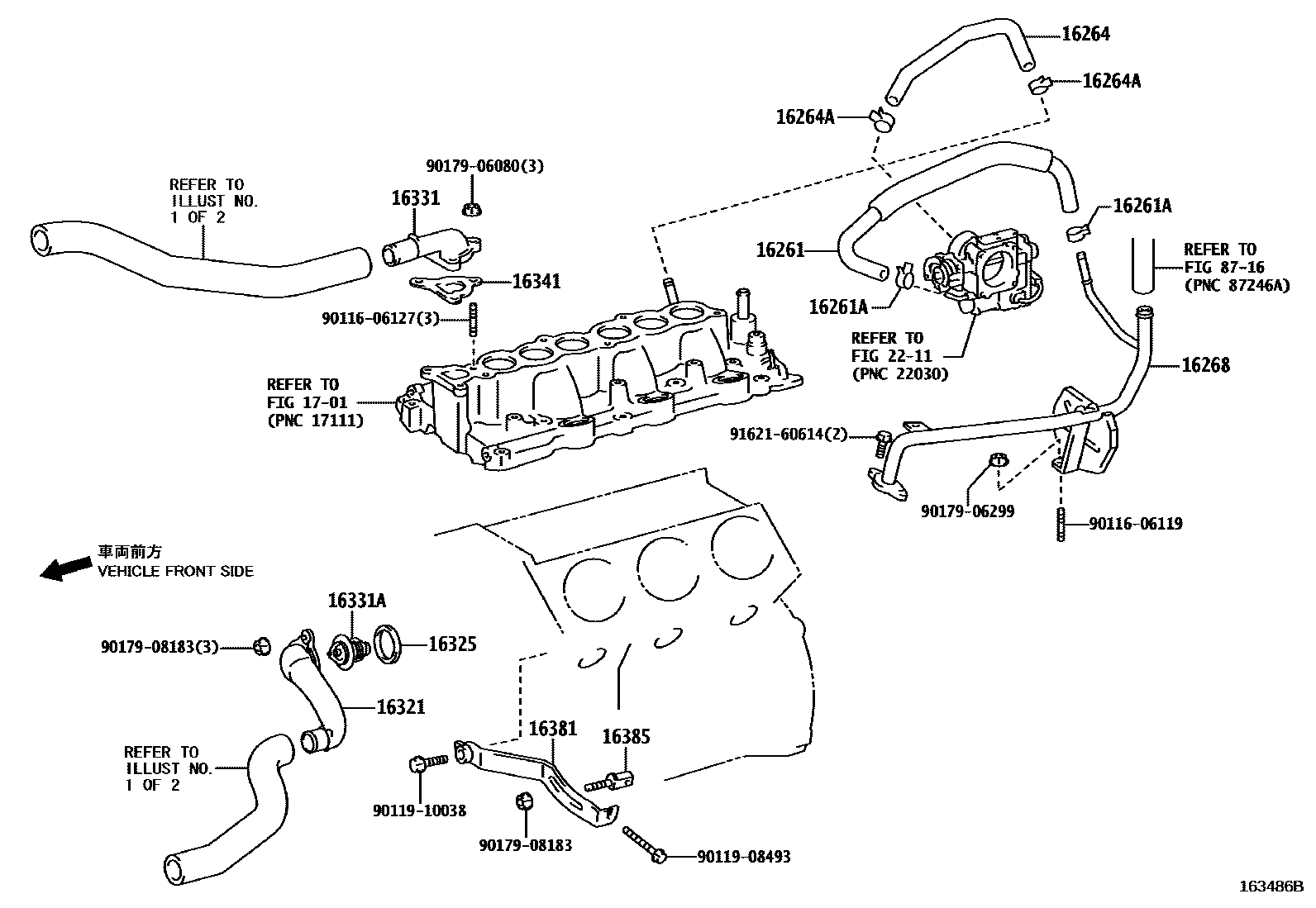

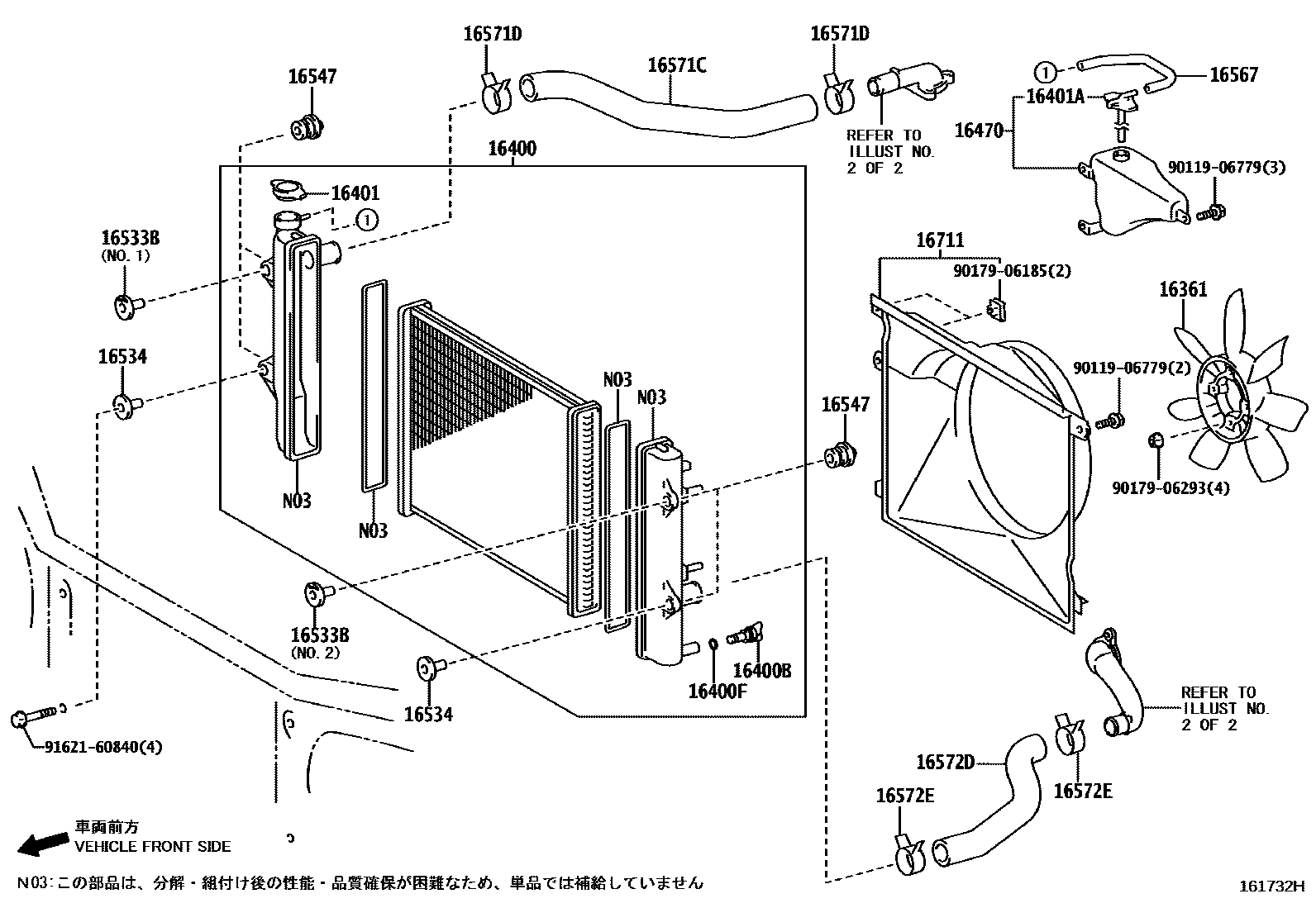

Toyota HILUX RADIATOR & WATER OUTLET — Figure 1603
Toyota HILUX EPC diagram 1603, RADIATOR & WATER OUTLET, with 11 images and 59 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16027 | No. 1 turbine water pipe sub-assembly | 16027-30040 · 16027-30041 |
| 16031 | INLET SUB-ASSY, WATER W/THERMOSTAT | 16031-31011 |
| 16119A | thermostat duct gasket | 16119-75020 |
| 16128A | water pump thermostat guide plate | 16128-75020 |
| 16207 | No. 2 water bypass pipe sub-assembly | 16207-30050 |
| 16258A | Pad (for heater return) | 16258-67010 |
| 16261 | HOSE, WATER BY-PASS | 16261-30040 · 16261-31020 · 16261-62070 · 16261-75100 · 16261-75190 · 16261-75191 |
| 16261A | CLAMP OR CLIP, WATER BY-PASS HOSE | 90466-21001 · 96135-51300 · 96137-41301 · 96137-41501 |
| 16261G | HOSE, WATER BY-PASS, NO.1 | 16261-30050 |
| 16261H | CLIP, WATER BY-PASS HOSE NO.1 | 96135-51300 |
| 16264 | HOSE, WATER BY-PASS, NO.2 | 16264-30020 · 16264-31010 · 16264-62040 · 16264-75070 · 16264-75130 · 16264-75131 |
| 16264A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.2 | 96135-51300 · 96137-41301 · 96137-41501 |
| 16267 | HOSE, WATER BY-PASS, NO.3 | 16267-30030 · 16267-31010 · 16267-75010 · 16267-75070 |
| 16267A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.3 | 90467-19022 · 96134-42100 · 96135-51300 · 96136-42501 |
| 16267B | Clip (for water bypass hose) | 96137-41501 |
| 16268 | PIPE, WATER BY-PASS, NO.1 | 16268-62060 · 16268-75080 · 16268-75091 |
| 16268G | Gasket (for water bypass pipe) | 16258-75010 · 17175-75010 |
| 16278 | PIPE, WATER BY-PASS, NO.2 | 16278-67010 |
| 16278G | O-ring (for No. 2 water bypass pipe) | 96761-24010 |
| 16281 | HOSE, WATER BY-PASS, NO.4 | 16281-30030 · 16281-31011 |
| 16281A | CLAMP OR CLIP, WATER BY-PASS HOSE NO.4 | 90467-13073 · 90467-19022 · 96136-41501 |
| 16282 | HOSE, WATER BY-PASS, NO.5 | 16282-31010 |
| 16282A | Clip or clip (for No. 5 water bypass hose) | 90467-13073 · 96136-41501 |
| 16284 | Turbine Water Hose No. 1 | 16284-30010 |
| 16284A | Clamp (for No. 1 turbine water hose) | 90467-15022 |
| 16285 | Turbine Water Hose No. 2 | 16285-67010 |
| 16285A | Clamp (for No. 2 turbine water hose) | 90467-15022 |
| 16285B | Connector (for turbine water hose No. 2) | 90405-10044 |
| 16321 | water inlet | 16321-0W010 · 16321-30030 · 16321-30031 · 16321-62020 · 16321-75020 |
| 16323 | HOUSING, WATER INLET | 16323-31011 |
| 16325 | GASKET, WATER INLET HOUSING, NO.1 | 16325-31010 · 16325-62010 · 16325-75010 · 16325-76010 |
| 16326 | GASKET, WATER INLET HOUSING, NO.2 | 16325-76010 · 16326-31020 |
| 16331 | Water outlet | 16331-0W010 · 16331-30060 · 16331-30061 · 16331-62040 |
| 16331A | thermostat | 90916-03075 · 90916-03093 · 90916-03118 · 90916-03120 |
| 16332 | No. 1 outlet pipe | 16306-31010 · 16306-31011 |
| 16341 | GASKET, WATER OUTLET | 16341-30020 · 16341-31010 · 16341-62040 · 16341-75020 |
| 16346 | thermostat gasket | 16346-67010 |
| 16356 | Rear water bypass connector | 16356-31010 |
| 16361 | Fan | 16361-31060 · 16361-62010 · 16361-67020 · 16361-75020 |
| 16381 | Fan belt adjustment lever | 16381-62041 · 16381-75050 |
| 16385 | Fan belt adjustment slider | 16385-62020 · 16385-75030 |
| 16400 | Radiator assembly | 16400-30140 · 16400-30141 · 16400-30142 · 16400-31351 · 16400-62230 · 16400-62231 |
| 16400A | Radiator drain switch sub-assembly | 23322-54010 |
| 16400B | Radiator drain switch screw plug | 16417-15210 · 23322-54010 |
| 16400F | Seal (for radiator drain switch) | 16418-15520 · 16492-21050 |
| 16401 | Radiator cover sub-assembly | 16401-46610 · 16401-5B630 · 16401-6A140 · 16401-75440 |
| 16401A | Radiator reservoir cap sub-assembly | 16401-53010 · 16405-50051 |
| 16470 | Radiator reservoir assembly | 16470-30030 · 16470-50140 |
| 16533B | Radiator bracket No. 1 | 16533-50090 · 16534-50050 |
| 16534 | Radiator bracket No. 2 | 16534-50050 |
| 16547 | Radiator bracket bushing No. 1 | 16547-50010 |
| 16567 | Hoses (for radiator reservoir) | 16567-31010 · 16567-50080 |
| 16567A | Clamp (for radiator reservoir hose) | 90467-22011 |
| 16571C | Radiator hose No. 1 | 16571-30060 · 16571-31130 · 16571-62090 · 16571-75230 · 16571-75231 |
| 16571D | No. 1 radiator hose clip | 90466-41008 · 90467-37005 · 96136-44301 |
| 16572D | Radiator hose No. 2 | 16572-30050 · 16572-31170 · 16572-62110 · 16572-75240 · 16572-75241 |
| 16572E | No. 2 radiator hose clip | 90466-41008 · 90467-37005 · 96136-44301 |
| 16581 | Hose clamp (for water hose) | 16581-30050 |
| 16711 | fan cover | 16711-30040 · 16711-30041 · 16711-31200 · 16711-62080 · 16711-75220 |
