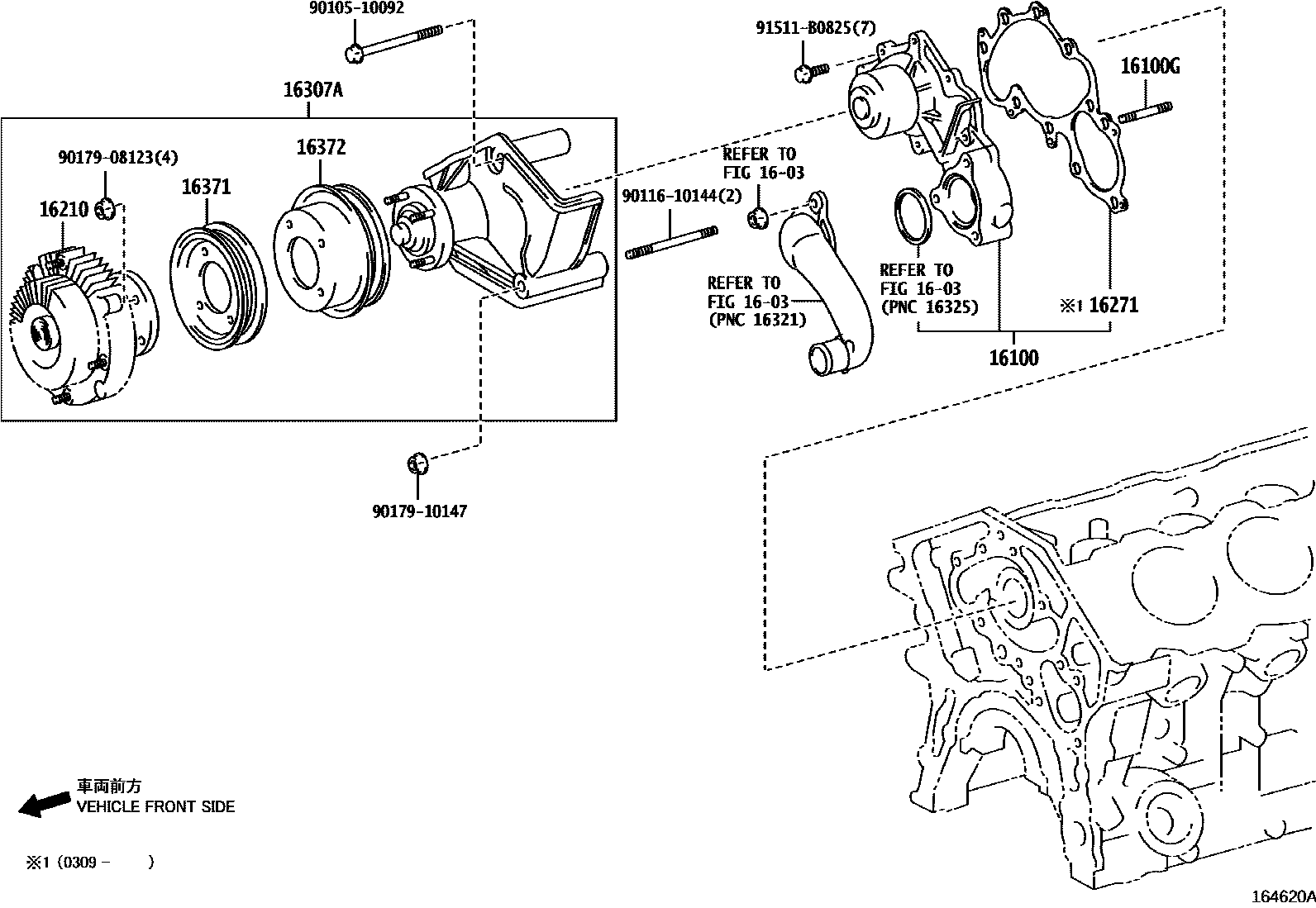

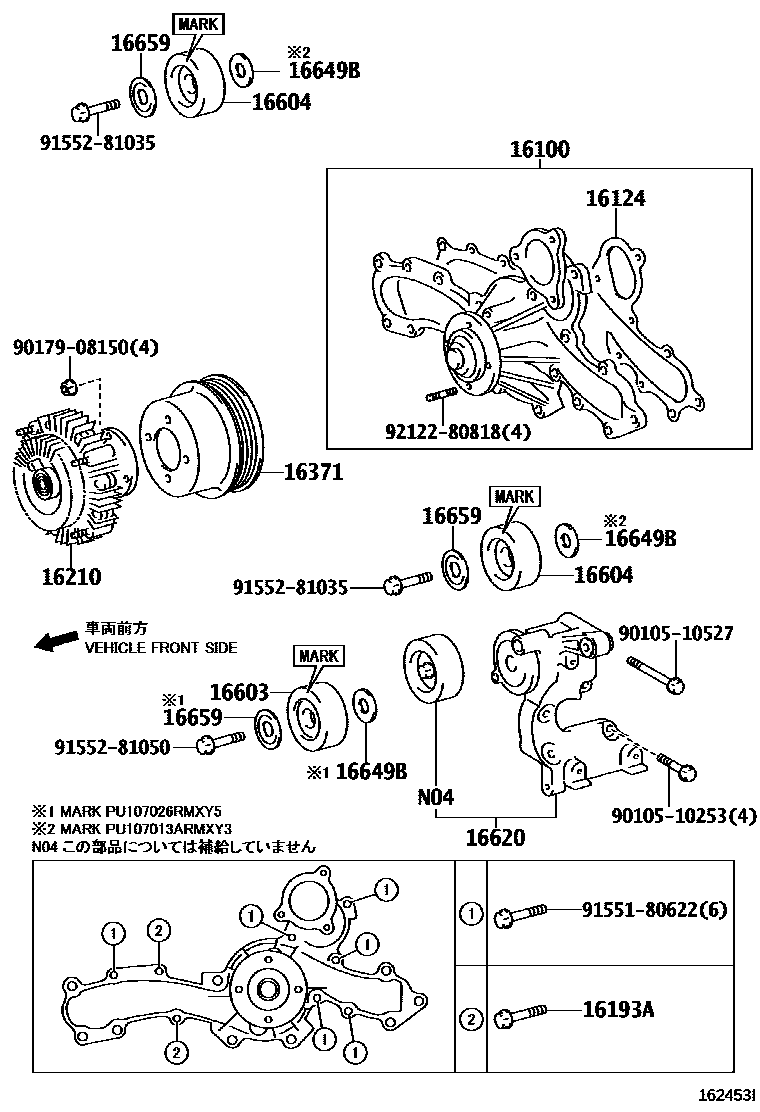

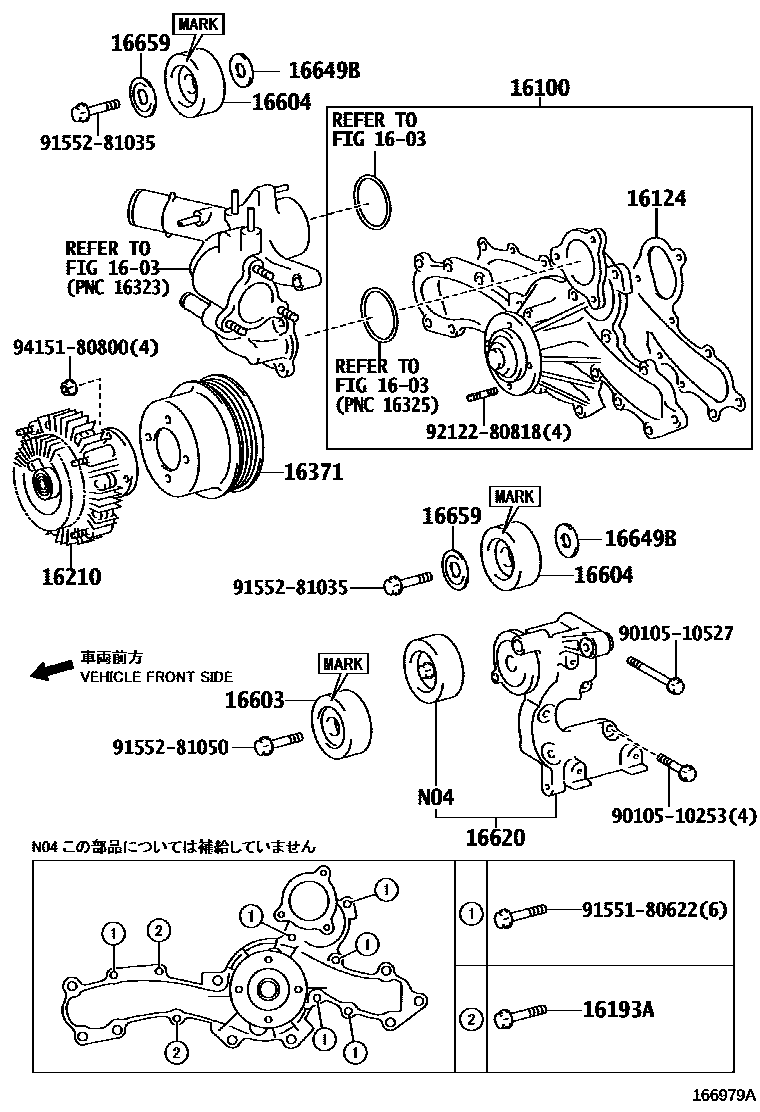

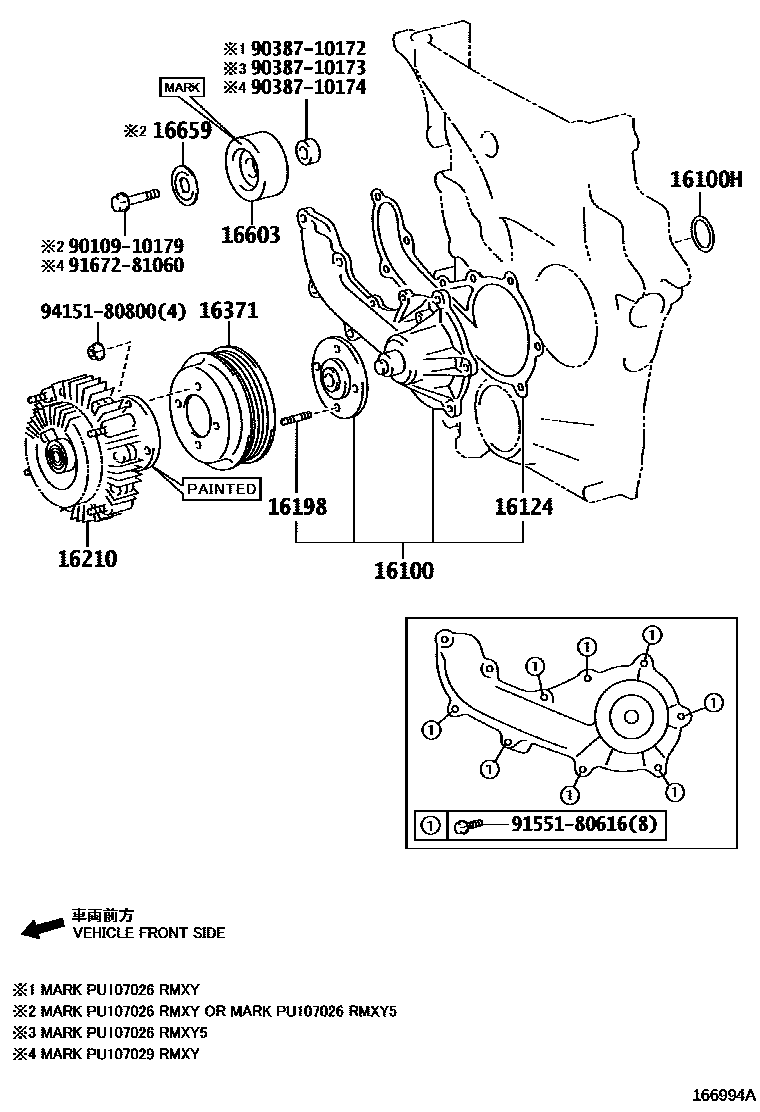

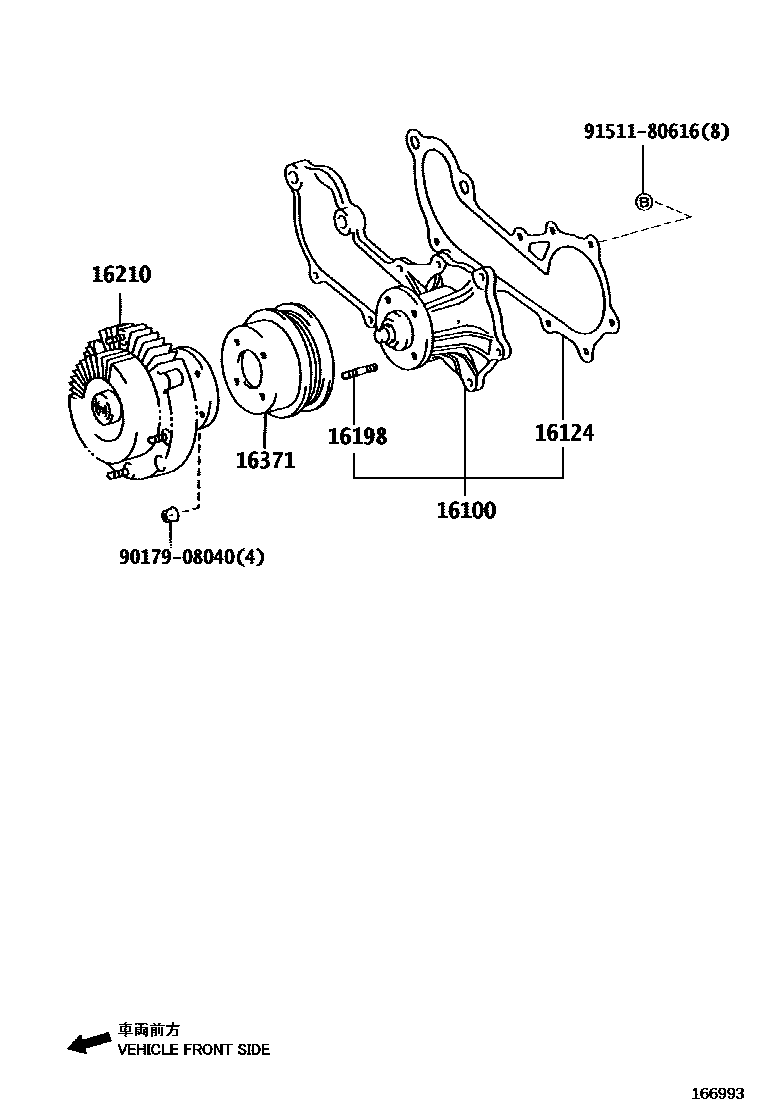

Toyota HILUX Water Pump — Figure 1601
Toyota HILUX EPC diagram 1601, Water Pump, with 6 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 16100 | Engine water pump assembly | 16100-39405 · 16100-39406 · 16100-69356 · 16100-69407 · 16100-69408 · 16100-69535 · 16100-79255 · 16100-79445 |
| 16100B | Ring pin (for water pump assembly) | 16159-70040 |
| 16100G | Studs (for water pump assembly) | 90116-08270 |
| 16100H | O-ring (for water pump) | 90301-28012 |
| 16110C | Water pump assembly without cover | 16110-69045 |
| 16124 | water pump cover gasket | 16124-31070 · 16124-67010 · 16124-75030 |
| 16193A | Bolts (for water pump cover) | 16193-31080 |
| 16198 | Stud bolts (for water pump pulley seat) | 92122-60818 · 92122-80818 |
| 16210 | Hydraulic coupler assembly | 16210-30010 · 16210-31020 · 16210-62030 · 16210-75060 · 16210-75100 · 16210-75110 |
| 16271 | water pump gasket | 16271-62010 · 16271-62011 · 16271-67020 |
| 16307A | Fan bracket sub-assembly | 16307-62030 |
| 16371 | fan pulley | 16371-30020 · 16371-31040 · 16371-62010 · 16371-75030 · 16371-75040 |
| 16372 | No. 2 fan pulley | 16372-65010 |
| 16603 | No. 1 idler pulley sub-assembly | 16603-31010 · 16603-31030 · 16603-31040 · 16603-31050 |
| 16604 | No. 2 idler pulley sub-assembly | 16604-31010 · 16604-31020 |
| 16620 | Poly V-belt tensioner assembly | 16620-31012 |
| 16649B | Idler cover | 16649-31010 · 16649-31020 |
| 16659 | No. 2 idler cover | 16659-31011 |
