Toyota HILUX Engine Oil Pump — Figure 1501

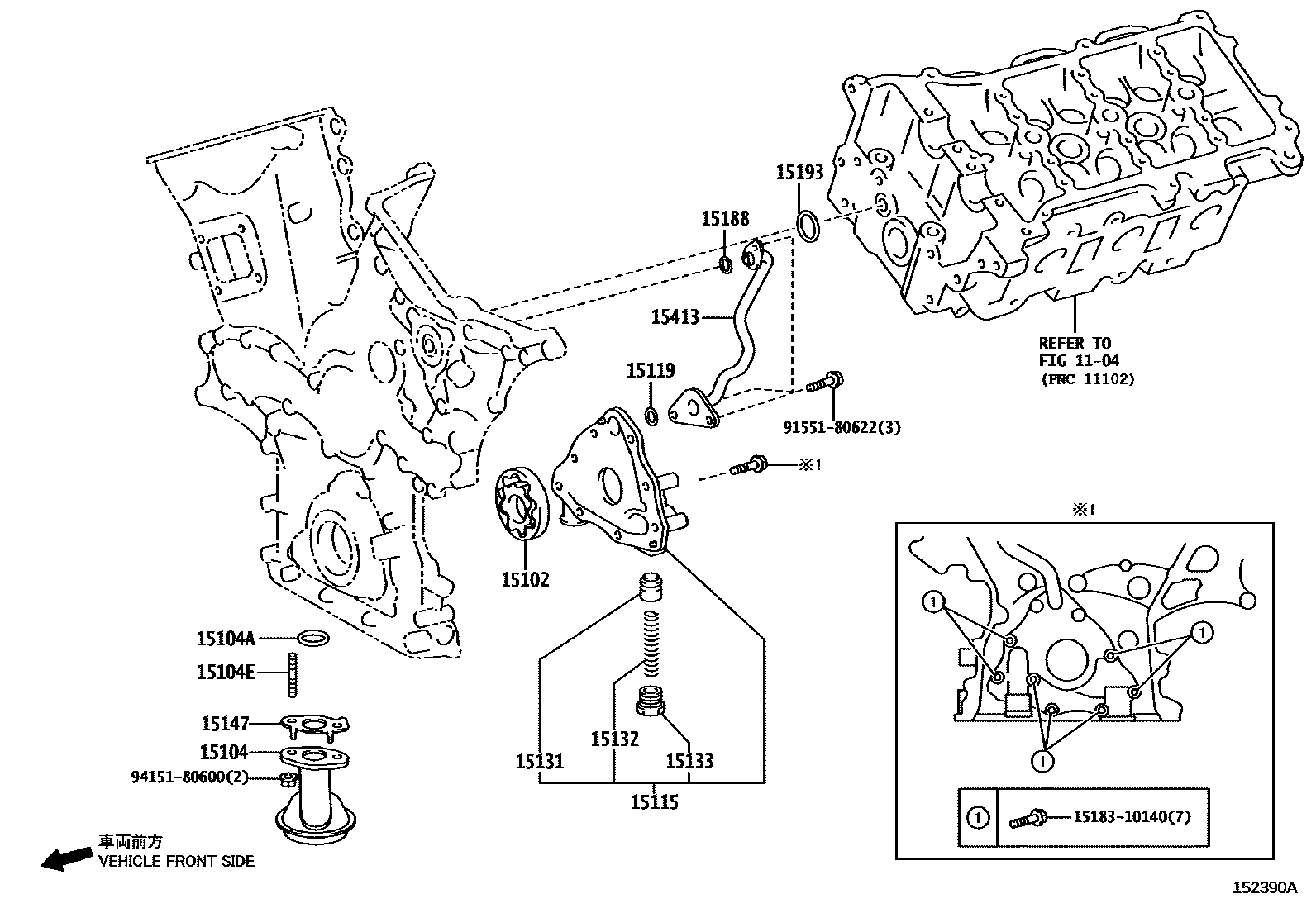

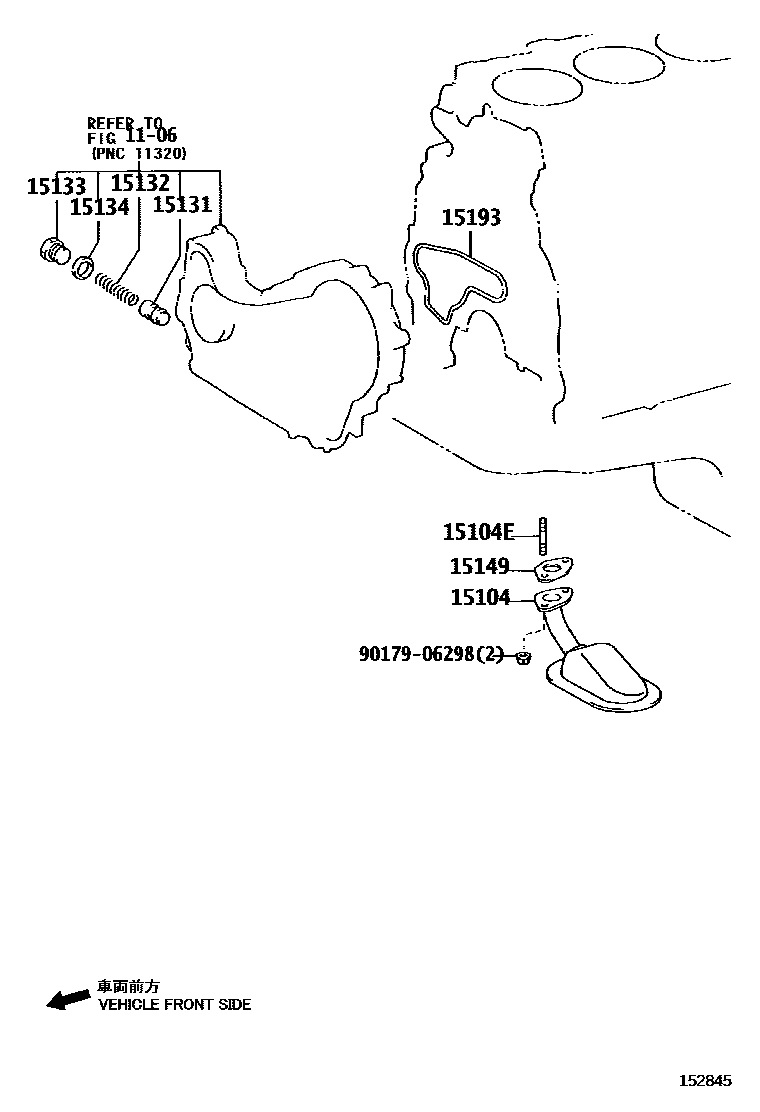

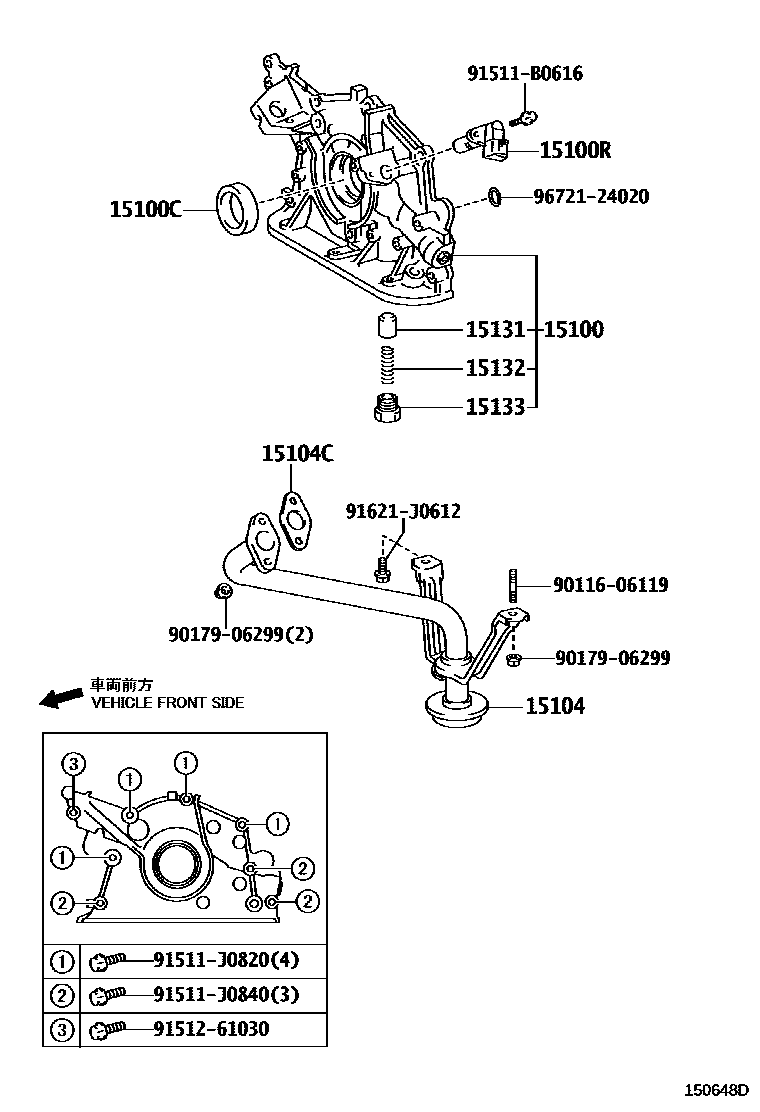

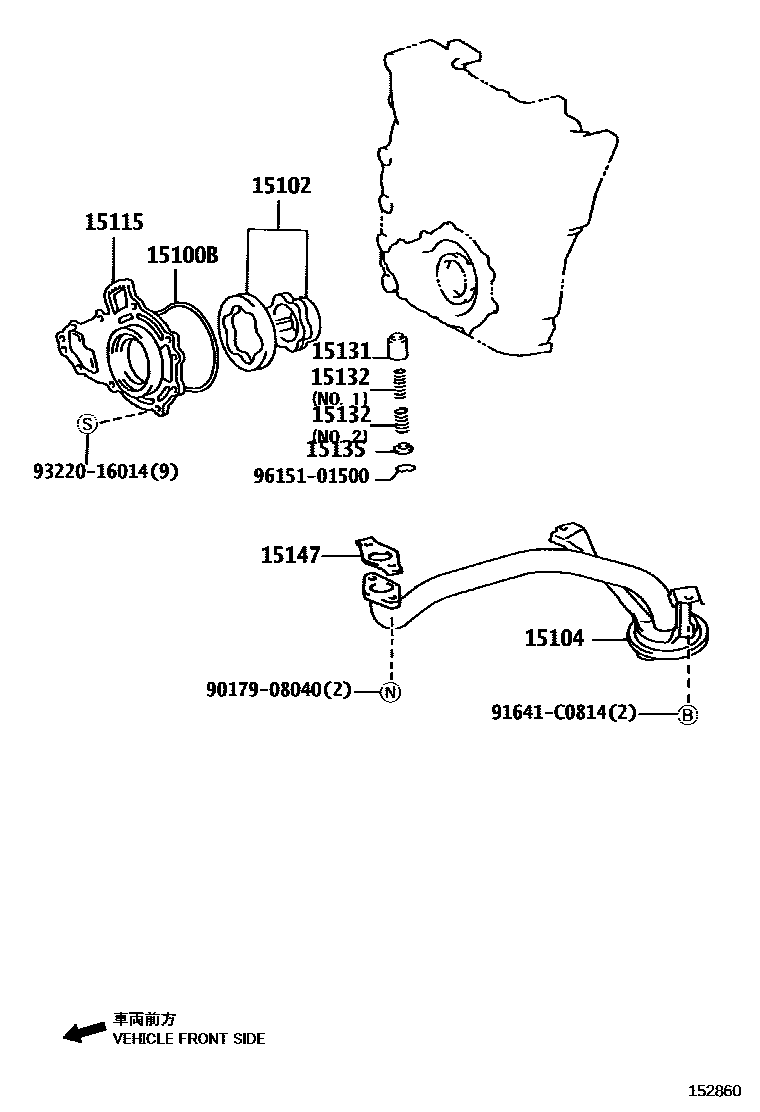

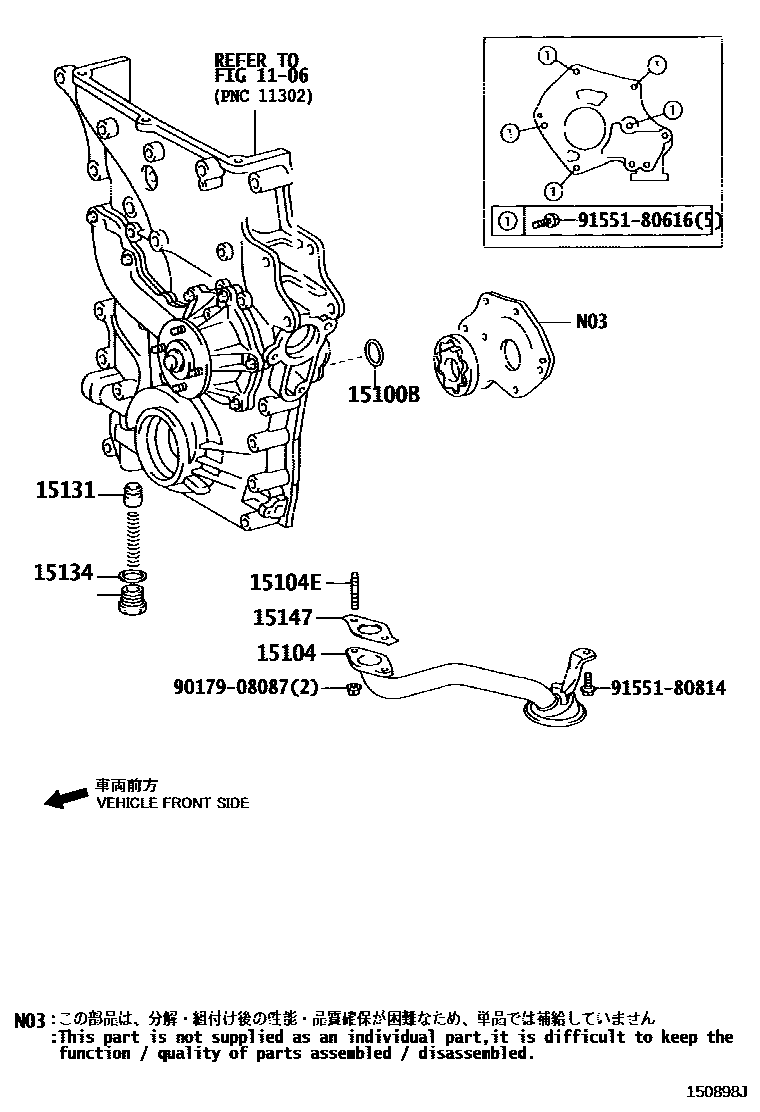

Toyota HILUX EPC diagram 1501, Engine Oil Pump, with 5 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 15100 | Oil pump assembly | 15100-62040 |
| 15100B | O-ring (for oil pump) | 15188-75021 · 90301-19021 |
| 15100C | Seals (for oil pump) | 90311-40022 |
| 15100R | crankshaft position sensor | 90919-05020 |
| 15102 | Oil pump rotor assembly | 15103-31050 · 15103-75020 |
| 15104 | Oil filter sub-assembly | 15104-30040 · 15104-31050 · 15104-62080 · 15104-75061 · 15104-75120 |
| 15104A | O-ring (for oil filter) | 96722-24030 |
| 15104C | Gasket (for oil filter) | 15147-62020 |
| 15104E | Stud bolts (for oil filter) | 90116-06140 · 90126-06029 · 90126-08037 |
| 15115 | oil pump cover | 15115-31050 · 15115-75020 |
| 15119 | Oil pump cover gasket | 15119-31050 |
| 15131 | Oil pump pressure reducing valve | 15131-24010 · 15131-46040 |
| 15132 | Oil pump pressure reducing valve spring | 15132-17010 · 15132-20020 · 15132-46020 · 15132-75020 · 15132-75021 |
| 15133 | PLUG, OIL PUMP RELIEF VALVE | 15133-17010 · 15133-24010 · 15133-28020 |
| 15134 | Oil pump pressure reducing valve gasket | 15134-67020 |
| 15135 | Oil pump pressure reducing valve retaining ring | 15135-75040 |
| 15147 | Oil filter gasket | 15147-46010 · 15147-75020 · 15147-75030 |
| 15149 | Oil filter flange gasket | 15149-67010 |
| 15188 | oil pump gasket | 15188-31050 |
| 15193 | oil pump gasket | 15193-31010 · 15193-67011 |
| 15413 | Oil pump outlet pipe | 15413-31020 |
