Toyota HILUX Ventilation Hose — Figure 1201

Toyota HILUX EPC diagram 1201, Ventilation Hose, with 5 images and 10 PNC and OE references.

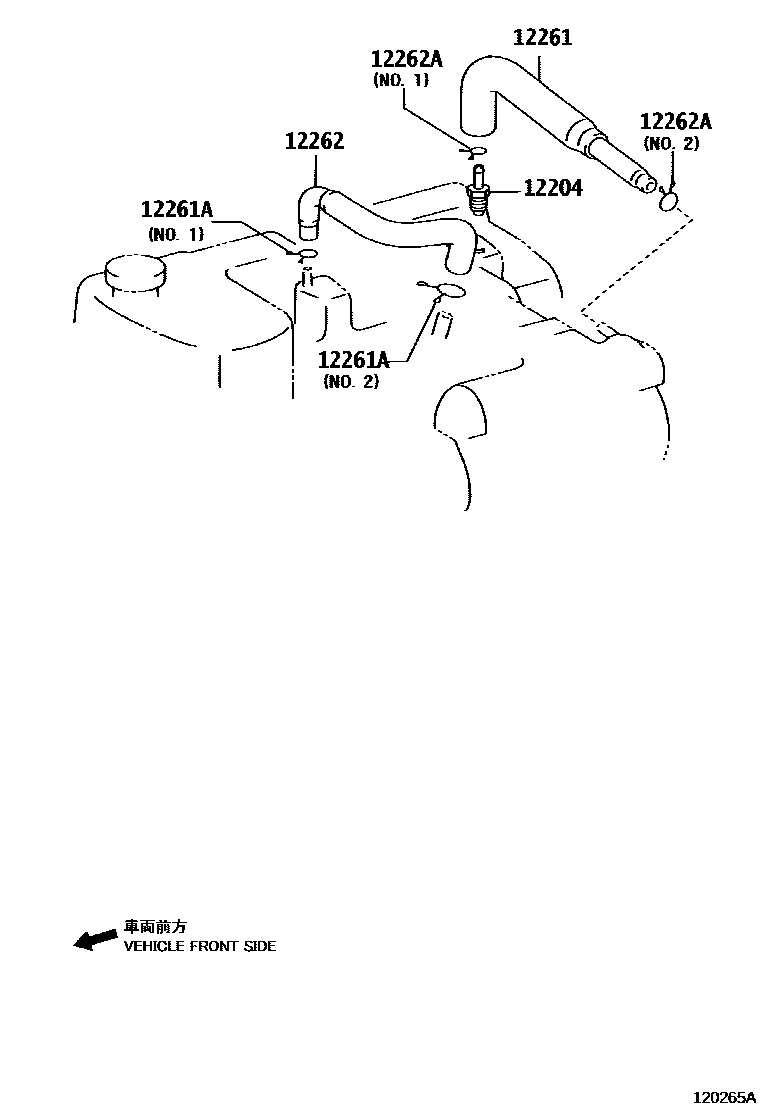

Toyota HILUX Ventilation Hose EPC diagram — 120265A
Ventilation Hose — 120265A (200211 – 999999)

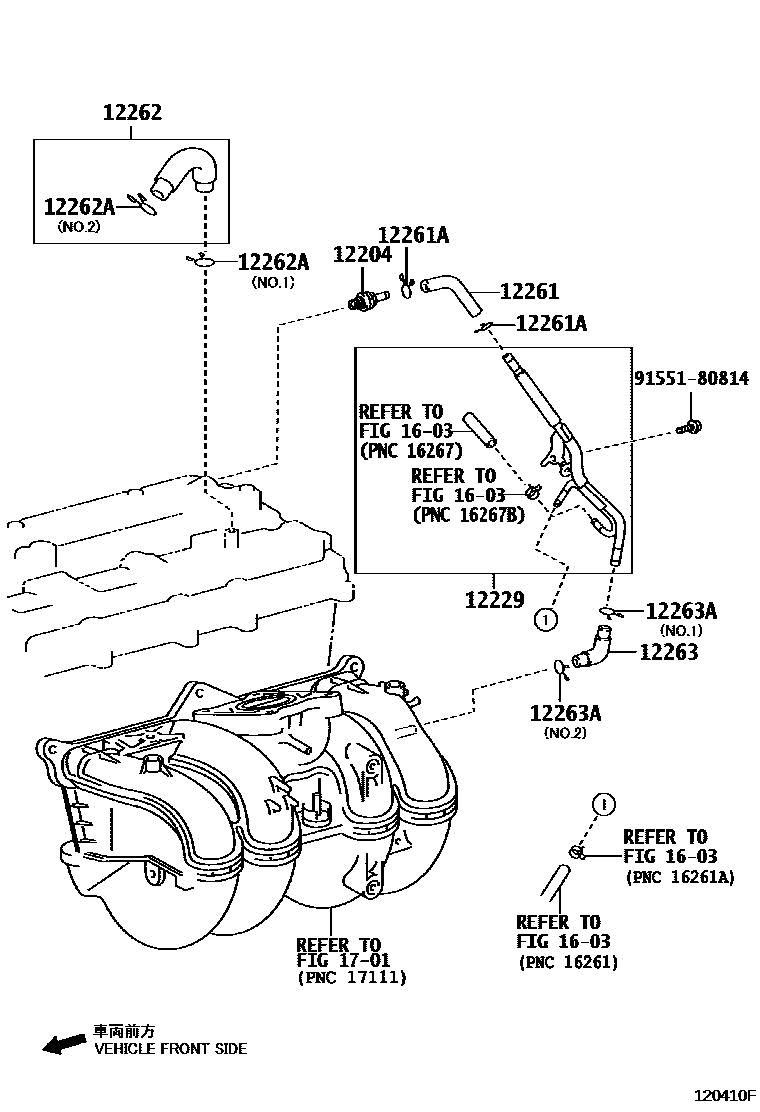

Toyota HILUX Ventilation Hose EPC diagram — 120410F
Ventilation Hose — 120410F (200408 – 999999)

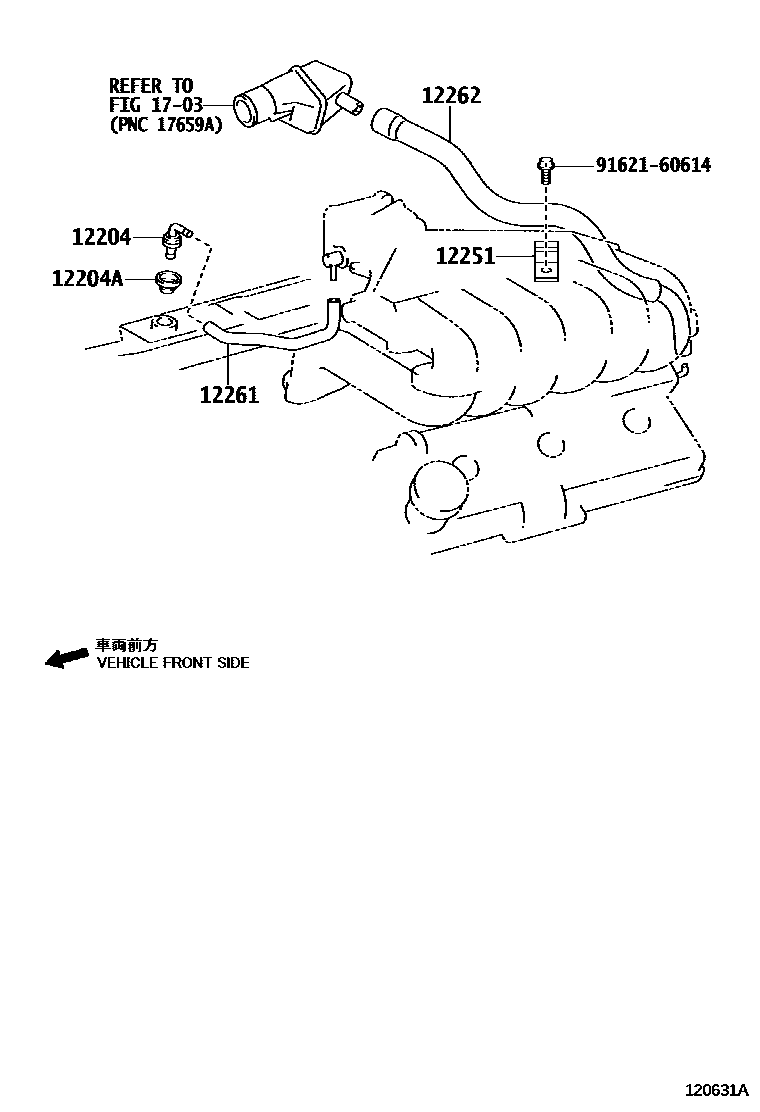

Toyota HILUX Ventilation Hose EPC diagram — 120631A
Ventilation Hose — 120631A (200211 – 999999)

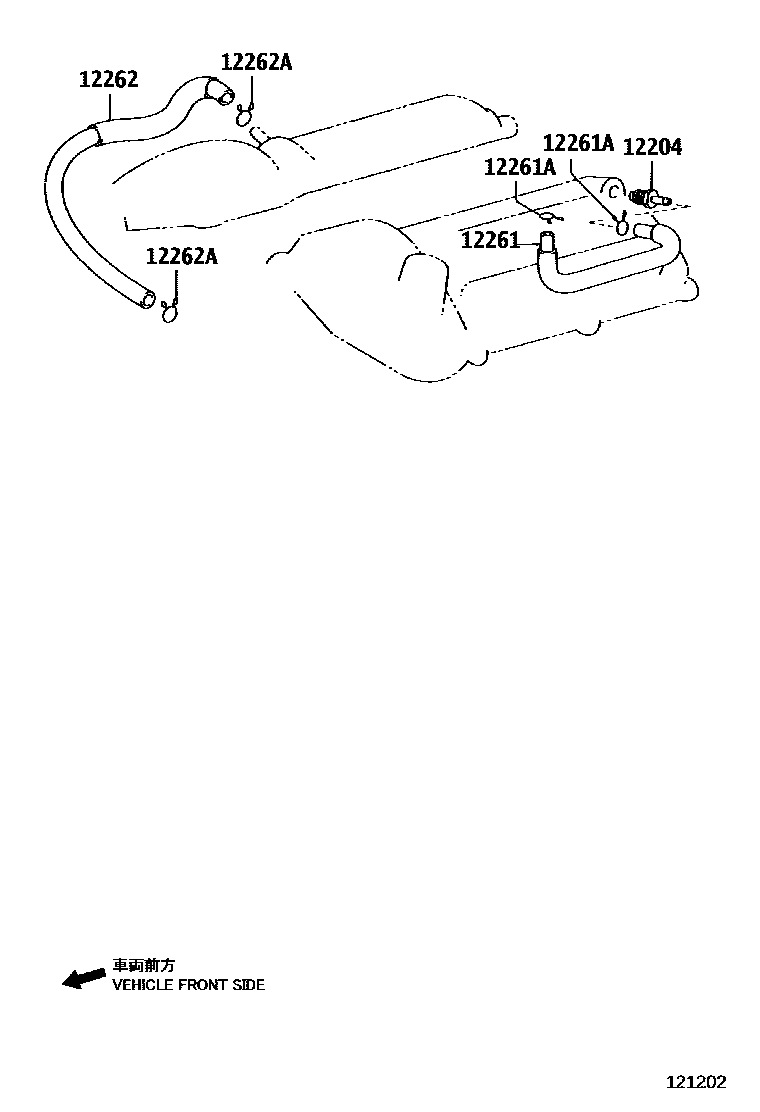

Toyota HILUX Ventilation Hose EPC diagram — 121202
Ventilation Hose — 121202 (200508 – 999999)
Toyota HILUX Ventilation Hose EPC diagram — 121203
Ventilation Hose — 121203 (200211 – 999999)

PNC and OE references

PNCPart nameOE numbers
12204Ventilation valve sub-assembly12204-0C010 · 12204-31030 · 12204-62010 · 12204-62030 · 12204-75020
12204AGasket (for ventilation system)90480-18001
12229ventilation duct12229-30020 · 12229-75050
12251Ventilation duct clamp12251-62010
12261Ventilation Hose12261-31030 · 12261-62041 · 12261-67010 · 12261-75080 · 12261-75100
12261AClip or clip (for vent hose)90467-14001 · 90467-14017 · 90467-22010
12262Ventilation hose No. 212262-30010 · 12262-31030 · 12262-62060 · 12262-75130 · 12262-75190
12262AClamp (for vent hose No. 2)90467-14001 · 90467-21004 · 90467-21152 · 90467-22010 · 90467-24038
12263No. 3 ventilation hose12263-75070
12263AClip (for ventilation hose)90467-14001 · 90467-17012
