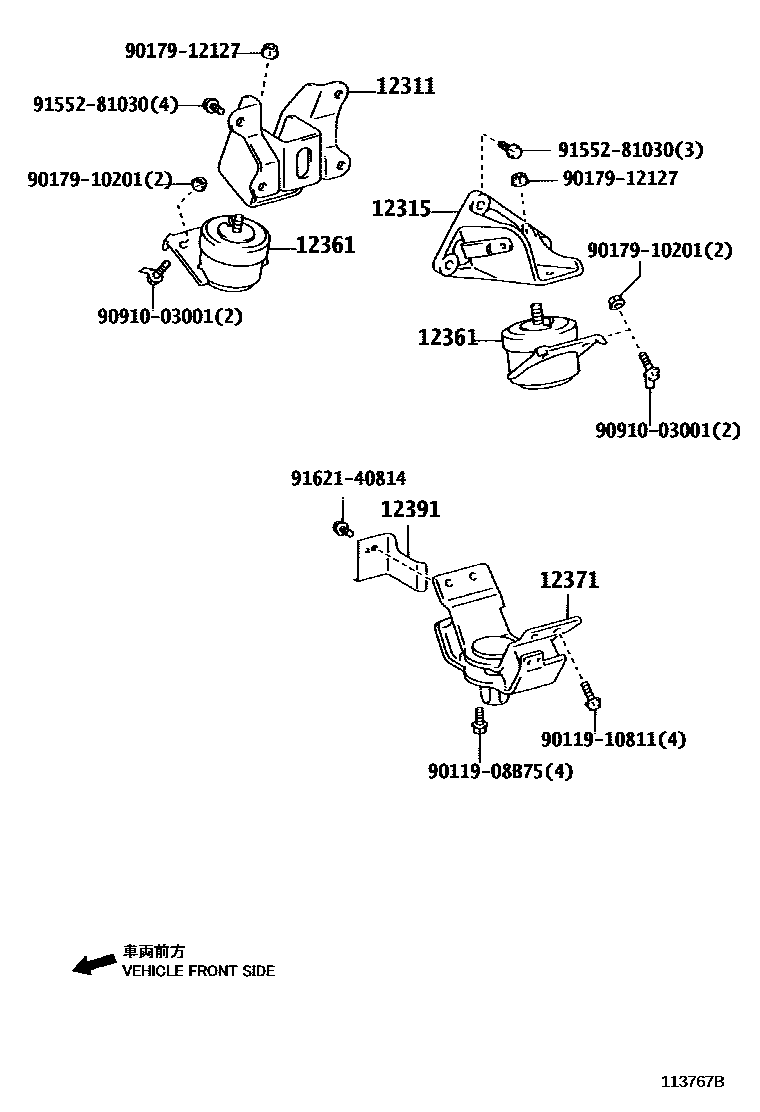

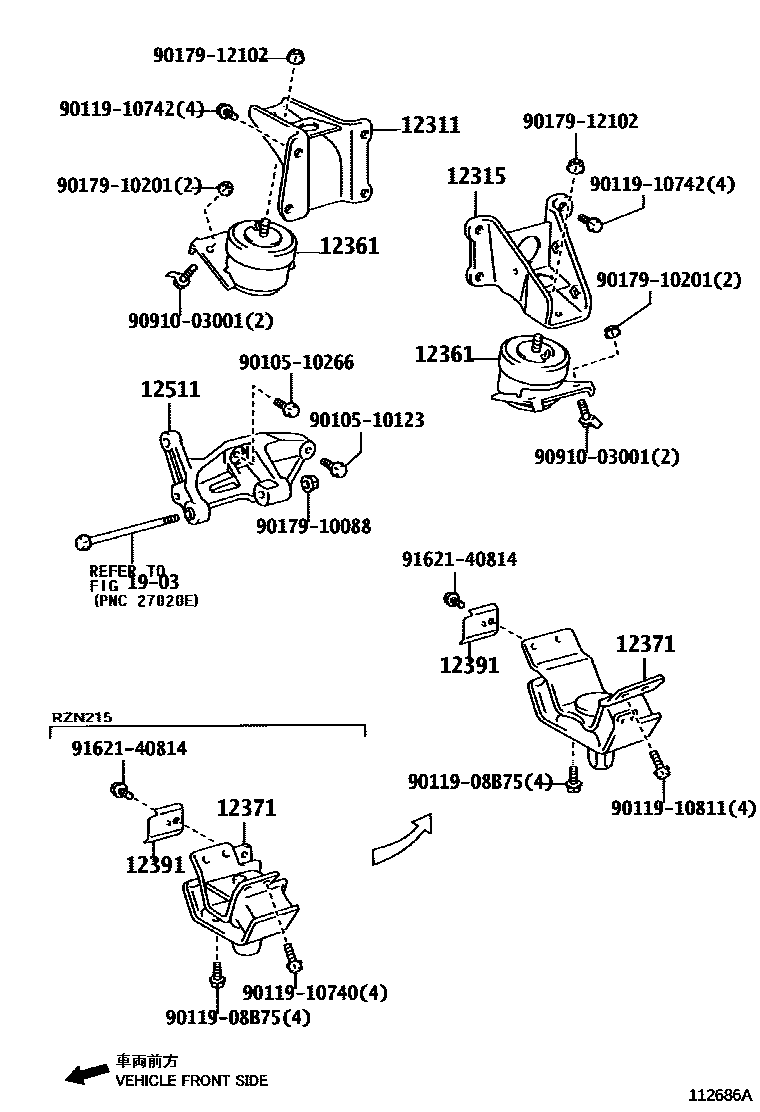

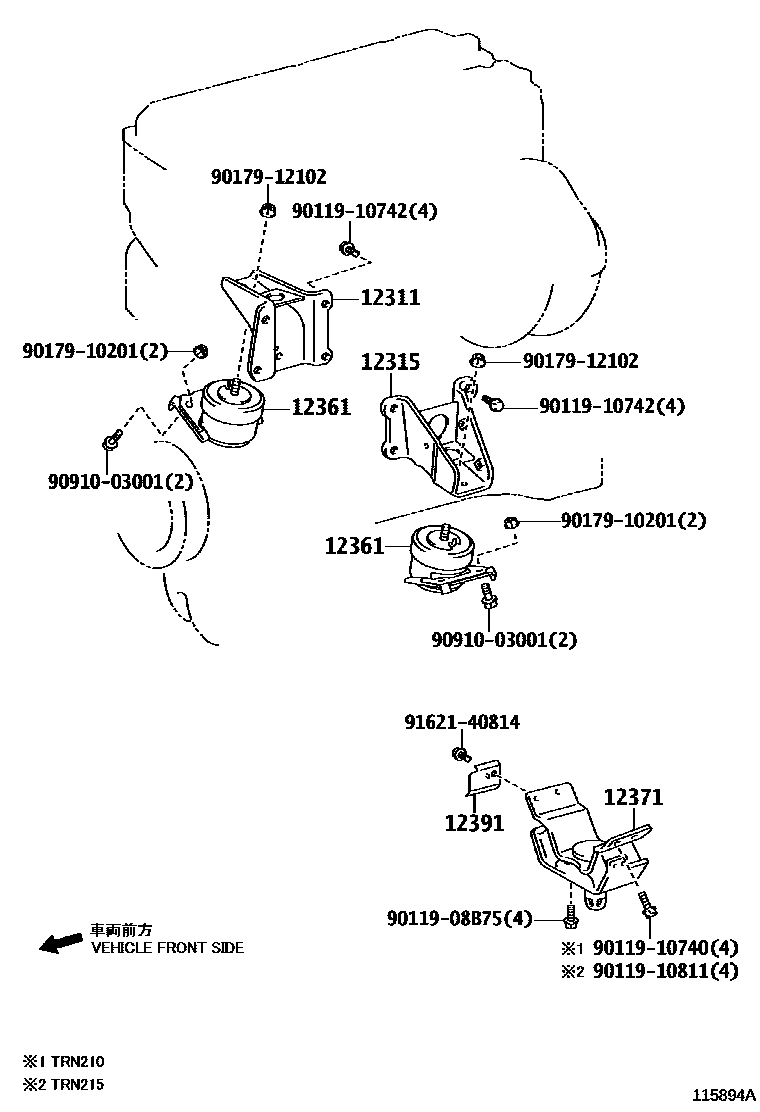

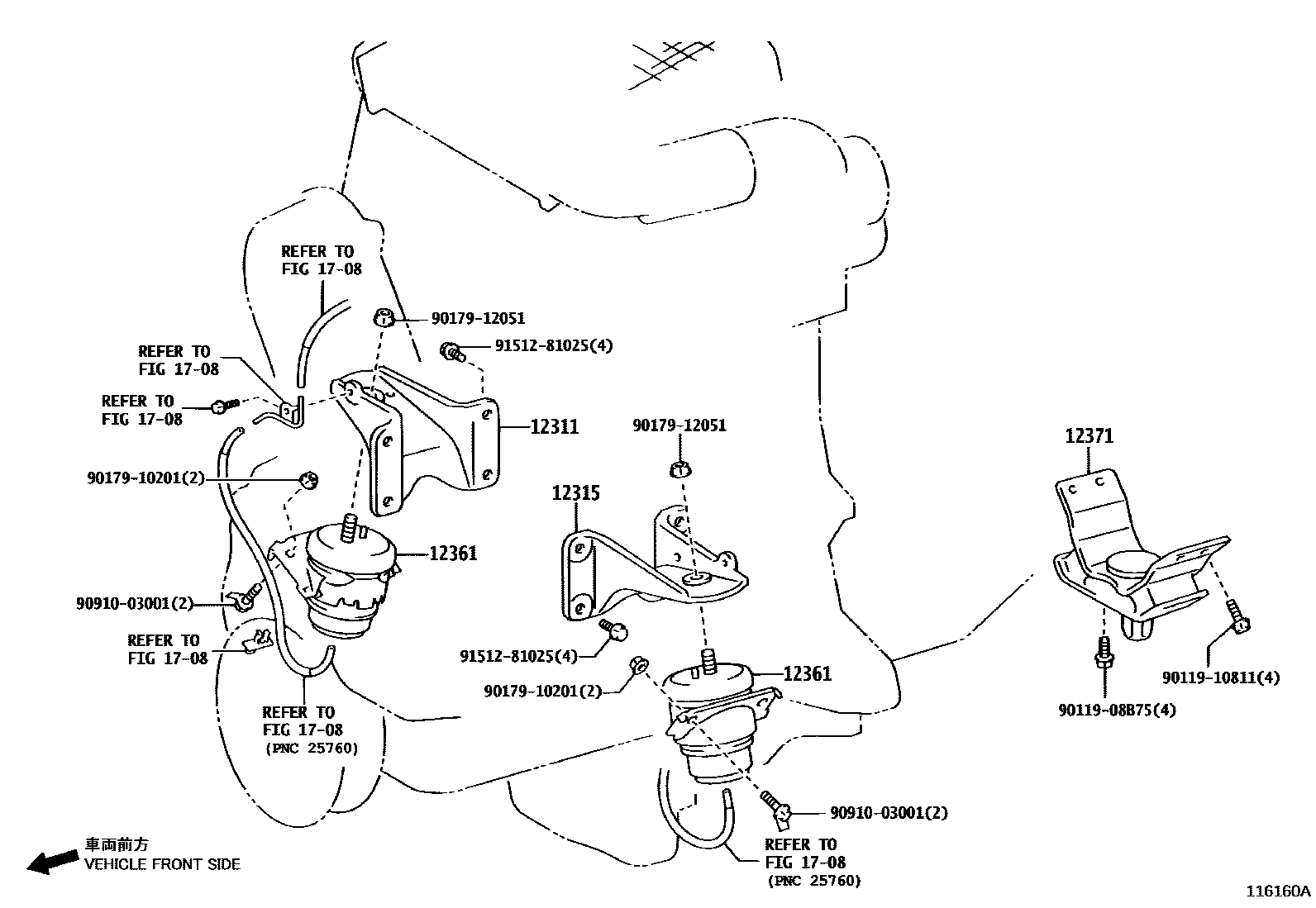

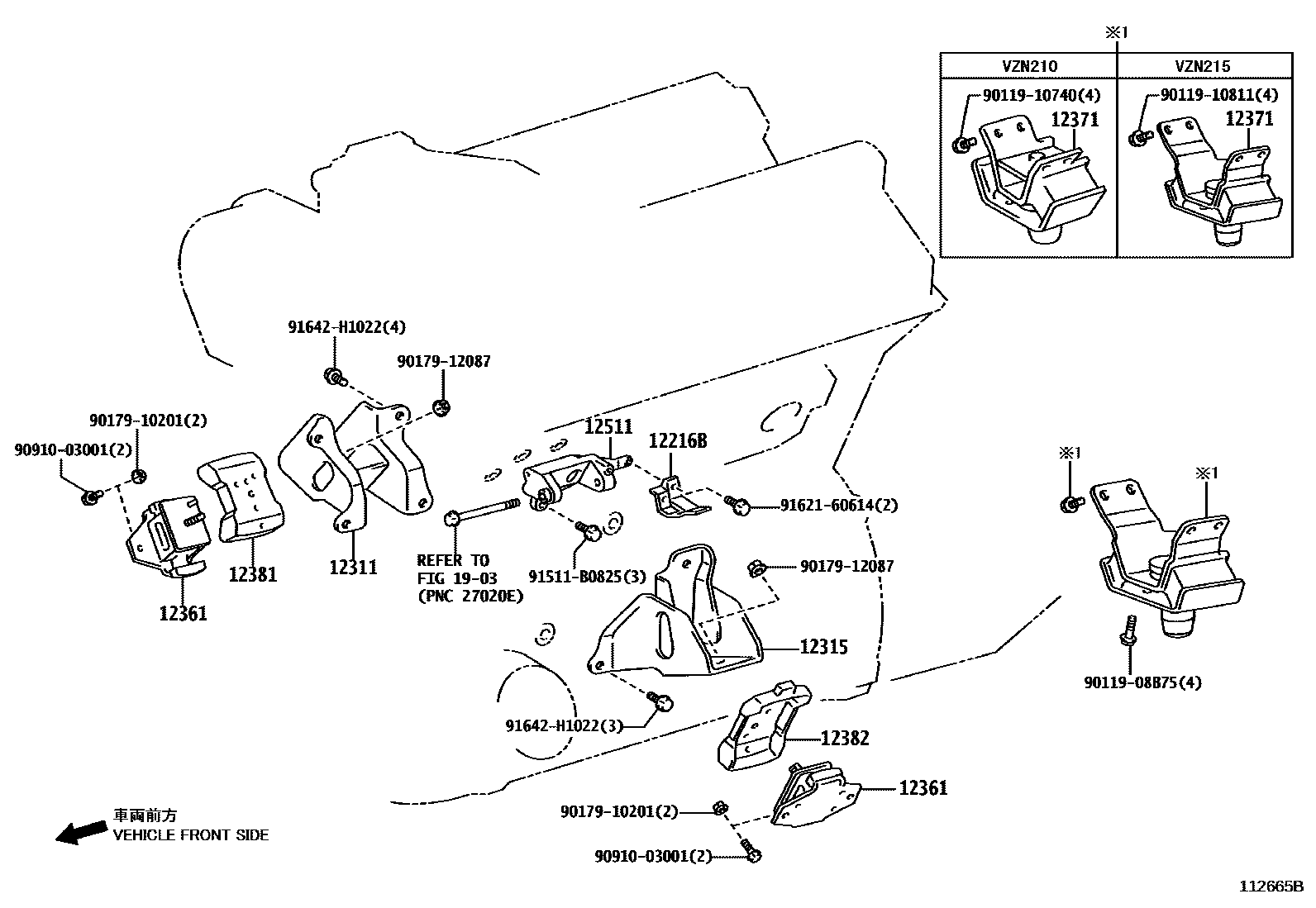

Toyota HILUX Engine Mounting — Figure 1107
Toyota HILUX EPC diagram 1107, Engine Mounting, with 5 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 12216B | Oil baffle | 12216-62030 |
| 12311 | Engine Mounting Bracket No. 1, Front RH | 12311-30060 · 12311-31021 · 12311-62070 · 12311-75090 |
| 12315 | Engine No. 1 left front suspension bracket | 12311-30060 · 12315-31051 · 12315-62080 · 12315-75090 |
| 12361 | Engine front mounting vibration isolation pad | 12361-30050 · 12361-31080 · 12361-31081 · 12361-62160 · 12361-75070 · 12361-75071 |
| 12371 | Engine No. 1 rear mount vibration isolation pad | 12371-30060 · 12371-31050 · 12371-31060 · 12371-75140 · 12371-75150 |
| 12381 | engine mount stabilizer bar | 12381-62020 |
| 12382 | Engine left mounting stabilizer bar | 12382-62010 |
| 12391 | Engine right front mounting heat insulation pad | 12391-31020 · 12391-50070 |
| 12511 | No. 1 generator bracket | 12511-62010 · 12511-75041 |
