Toyota HILUX Timing Gear Cover & Rear End Plate — Figure 1106

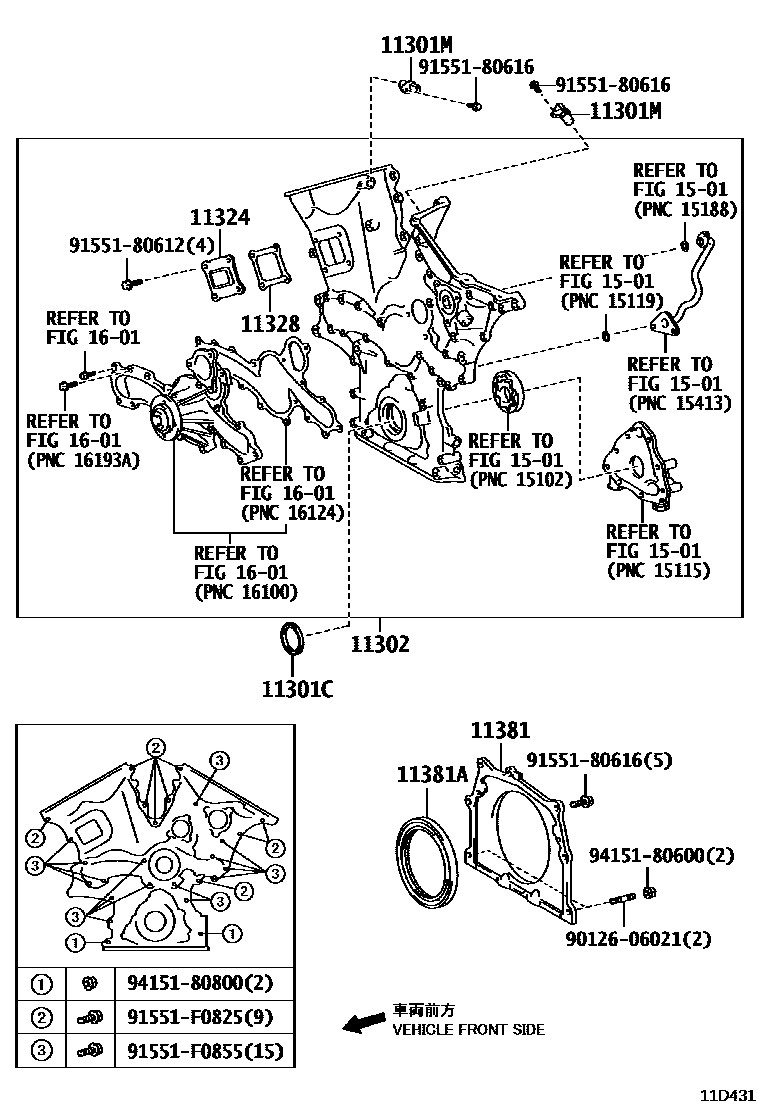

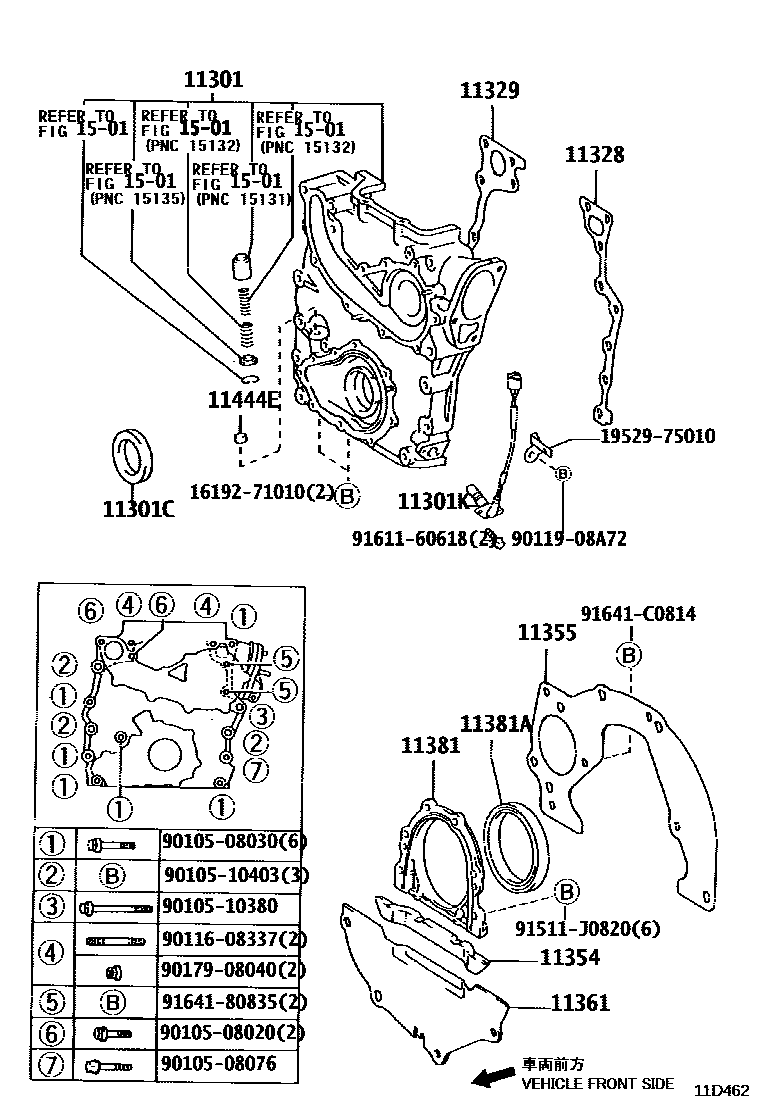

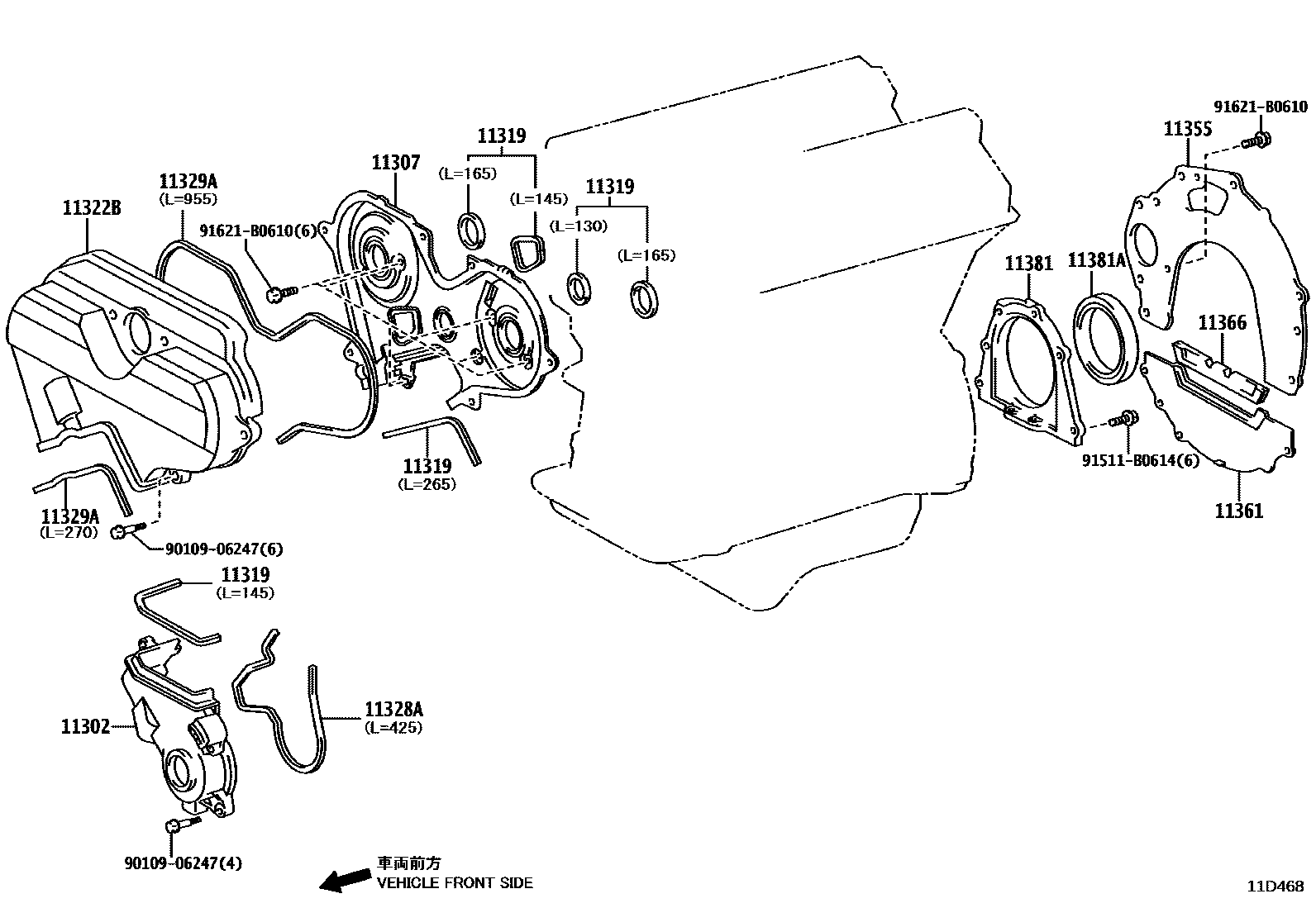

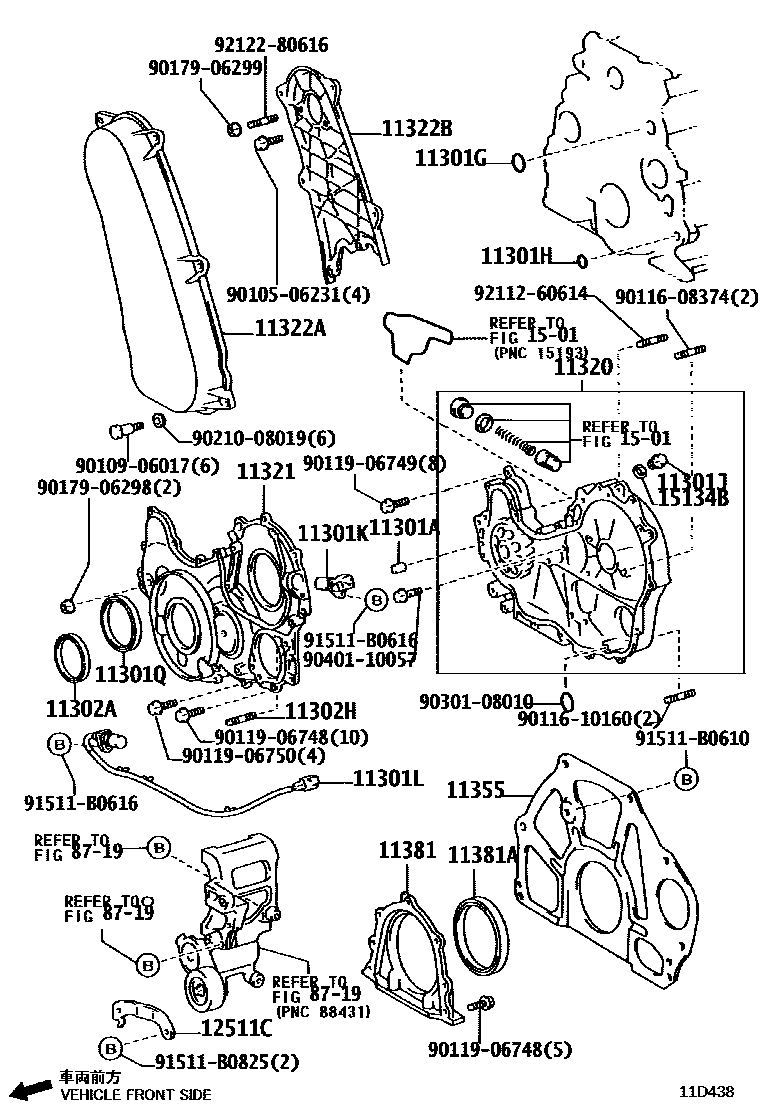

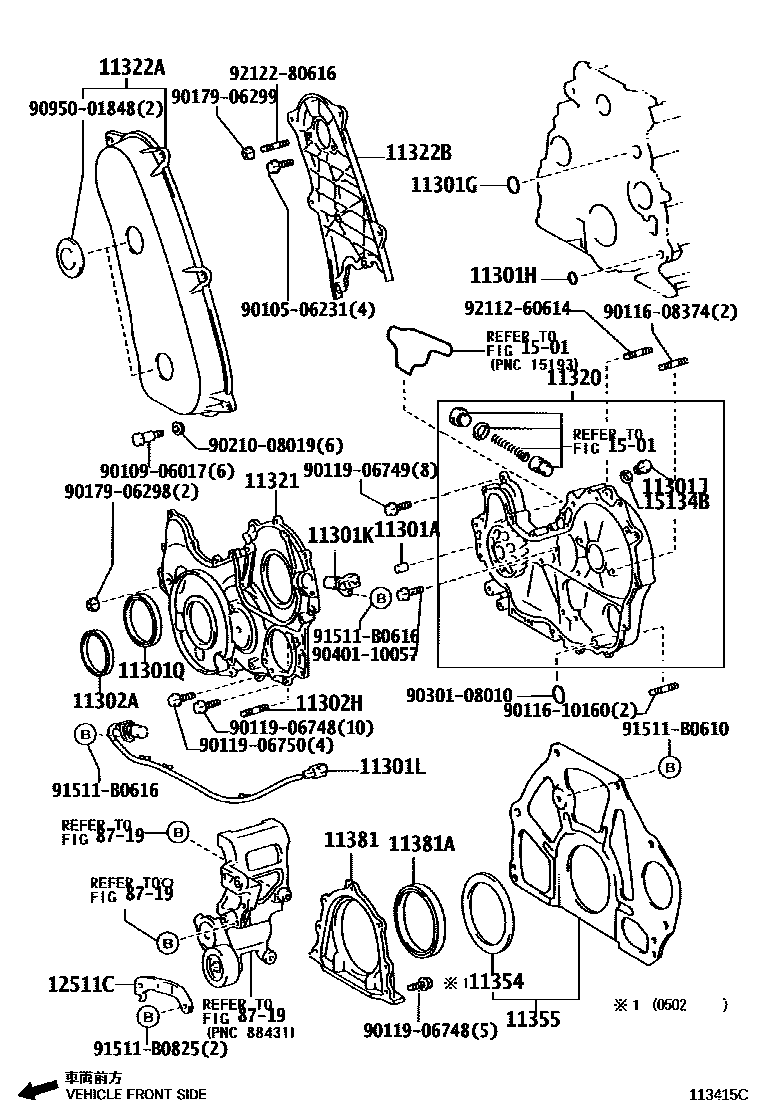

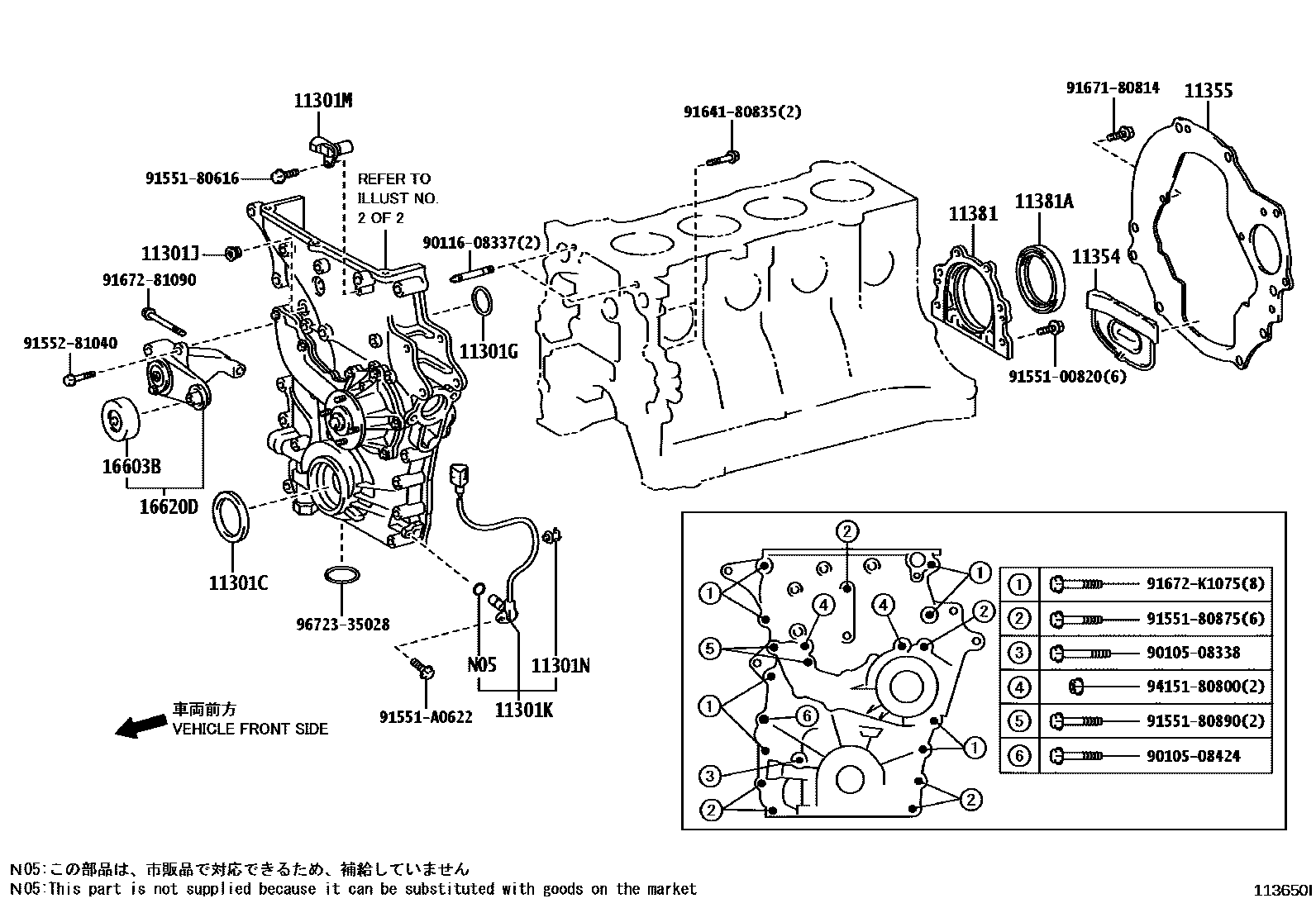

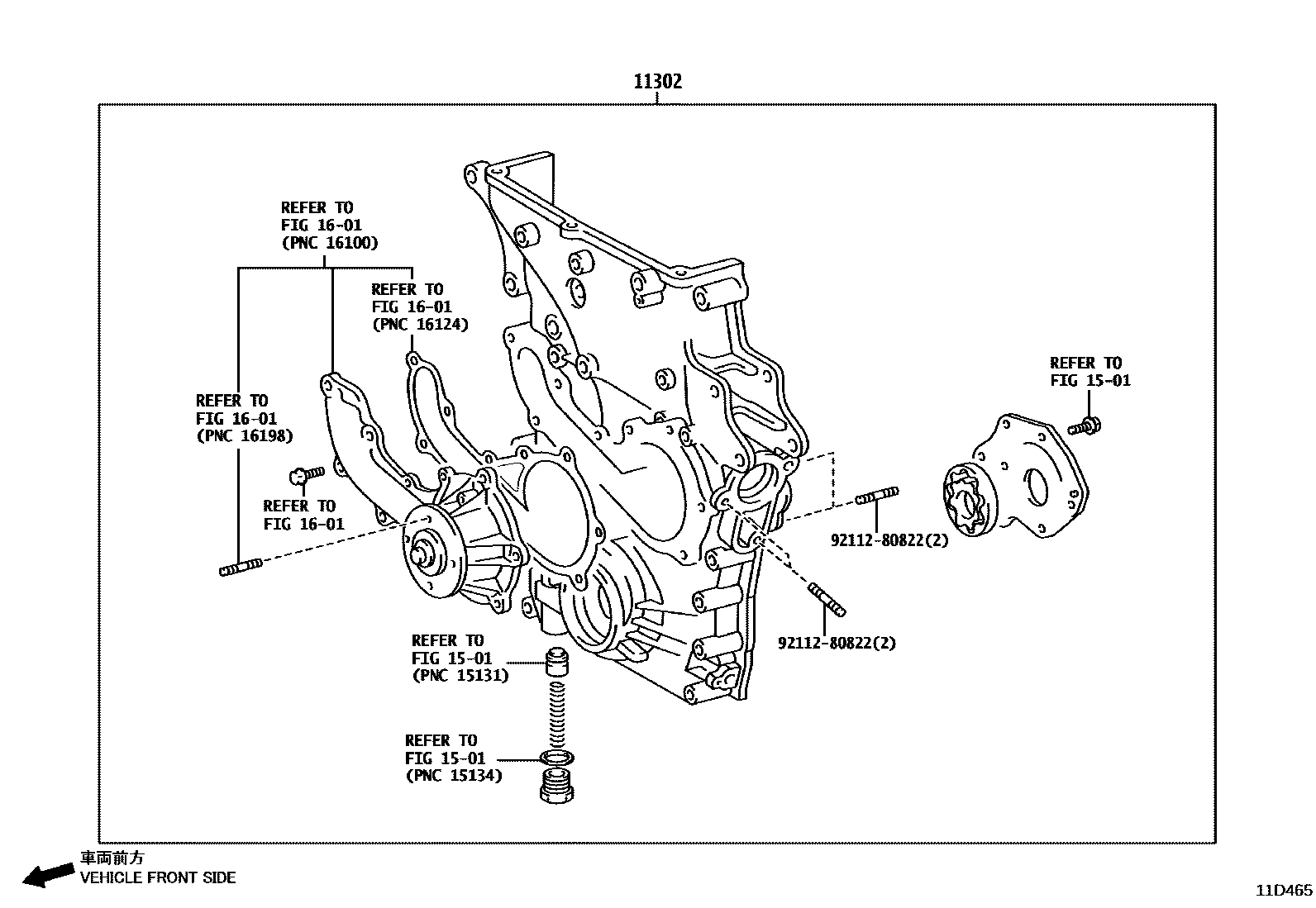

Toyota HILUX EPC diagram 1106, Timing Gear Cover & Rear End Plate, with 7 images and 36 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11301 | Timing gearbox sub-assembly | 11301-75021 |
| 11301A | Direct sales (for timing gearbox) | 90250-08120 |
| 11301C | OIL SEAL (FOR TIMING GEAR OR CHAIN CASE) | 90311-42037 · 90311-42045 · 90311-48020 · 90311-48029 |
| 11301G | O-ring (for upper timing gearbox) | 90301-22007 · 90301-25014 |
| 11301H | O-RING (FOR LOWER TIMING GEAR CASE) | 90301-09018 |
| 11301J | Headed straight thread plug (for timing gearbox) | 90341-16022 · 90341-18015 |
| 11301K | crankshaft position sensor | 90919-05016 · 90919-05052 · 90919-05059 |
| 11301L | No. 2 crankshaft position sensor | 90919-05050 · 90919-05066 |
| 11301M | Cam position sensor | 90919-05036 · 90919-05060 |
| 11301N | card holder | 90469-07018 |
| 11301Q | Toyota part | 90311-65003 |
| 11302 | TIMING CHAIN OR BELT COVER SUB-ASSY | 11310-31013 · 11310-75070 · 11310-75071 · 11310-75073 · 11321-62900 |
| 11302A | Oil seal (for timing chain or timing belt cover) | 90311-50017 |
| 11302H | Studs (for timing gear cover) | 90116-08376 |
| 11307 | No. 3 timing belt cover sub-assembly | 11323-62050 |
| 11319 | No. 3 timing belt cover gasket | 11319-20010 |
| 11320 | Timing gearbox assembly | 11320-30030 |
| 11321 | timing gearbox | 11321-30020 |
| 11322A | No. 1 timing belt cover | 11332-30010 · 11332-30011 |
| 11322B | No. 2 timing belt cover | 11322-30010 · 11322-62901 |
| 11324 | Timing chain cover | 11324-31020 |
| 11328 | GASKET, TIMING GEAR OR CHAIN COVER | 11328-31030 · 11328-75021 |
| 11328A | No. 1 timing belt cover gasket | 11328-20020 |
| 11329 | Timing gear rear cover gasket | 11329-75021 |
| 11329A | No. 2 timing belt or chain cover gasket | 11329-20010 |
| 11354 | Flywheel housing dust seal | 11354-30010 · 11354-75010 · 11354-75030 |
| 11355 | rear end plate | 11355-65011 · 11355-67010 · 11355-67011 · 11355-75010 · 11355-75021 |
| 11361 | Flywheel housing bottom cover | 11361-62010 · 11361-75020 |
| 11366 | Flywheel housing bottom cover dust seal | 11366-65010 · 11366-65011 |
| 11381 | RETAINER, ENGINE REAR OIL SEAL | 11381-31010 · 11381-62010 · 11381-67020 · 11381-75010 · 11381-75011 |
| 11381A | SEAL, ENGINE REAR OIL | 90311-88005 · 90311-92006 · 90311-95008 · 90311-99010 |
| 11444E | hole plug | 11444-75020 |
| 12511C | Generator bracket | 12511-30020 |
| 15134B | Oil pump pressure reducing valve gasket | 15134-67010 |
| 16603B | Idler gear sub-assembly | 16603-75010 |
| 16620D | Poly V-belt tensioner assembly | 16620-75010 · 16620-75011 |
