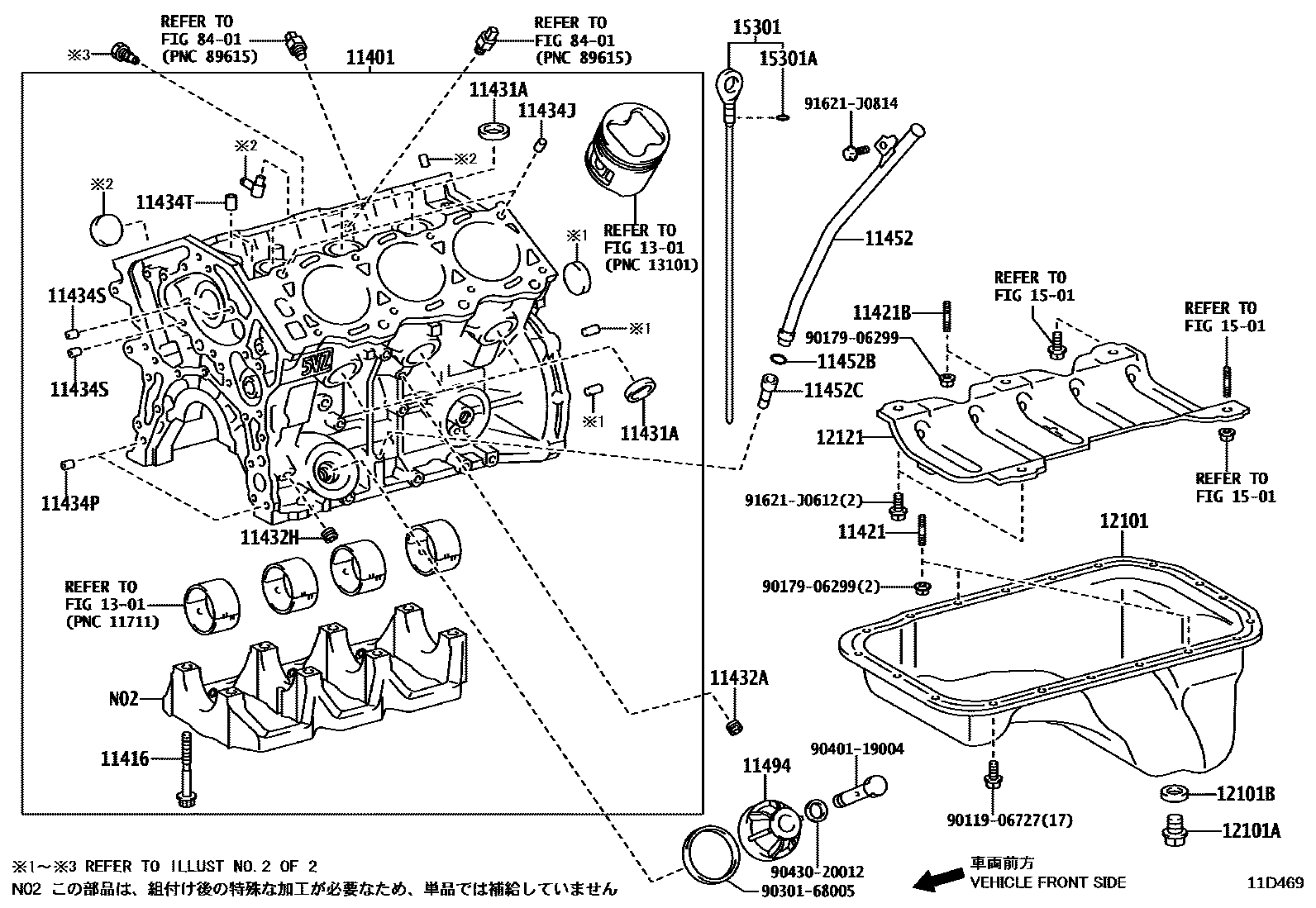

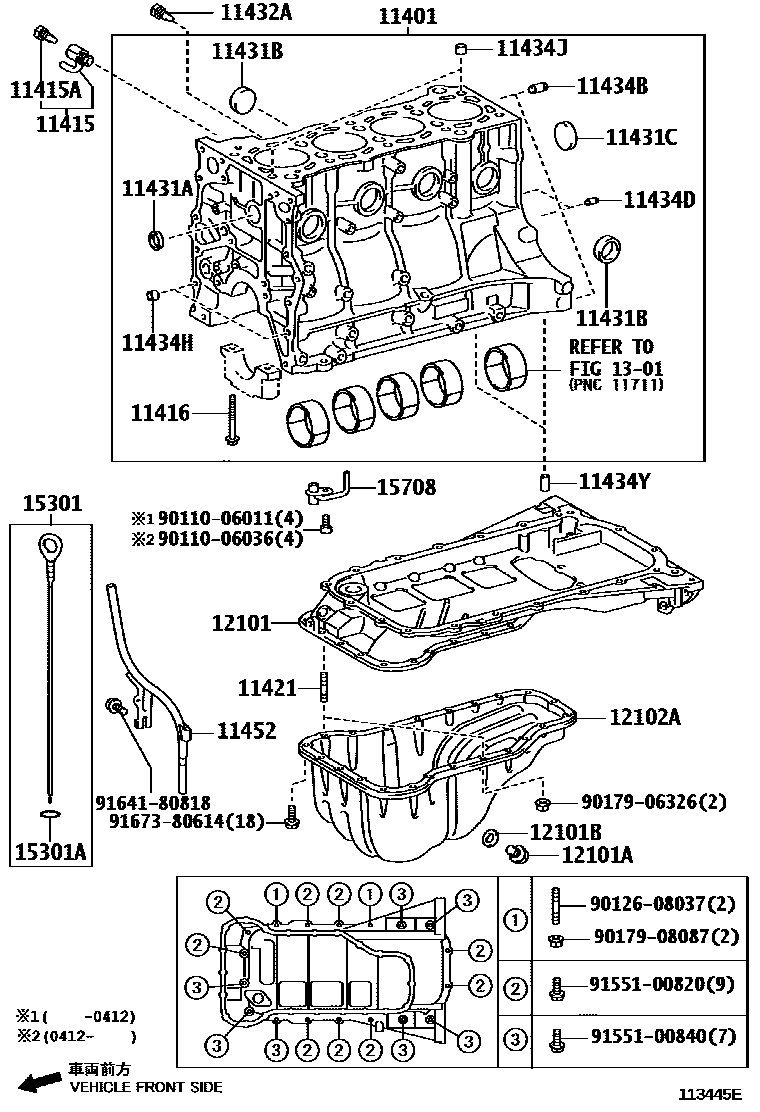

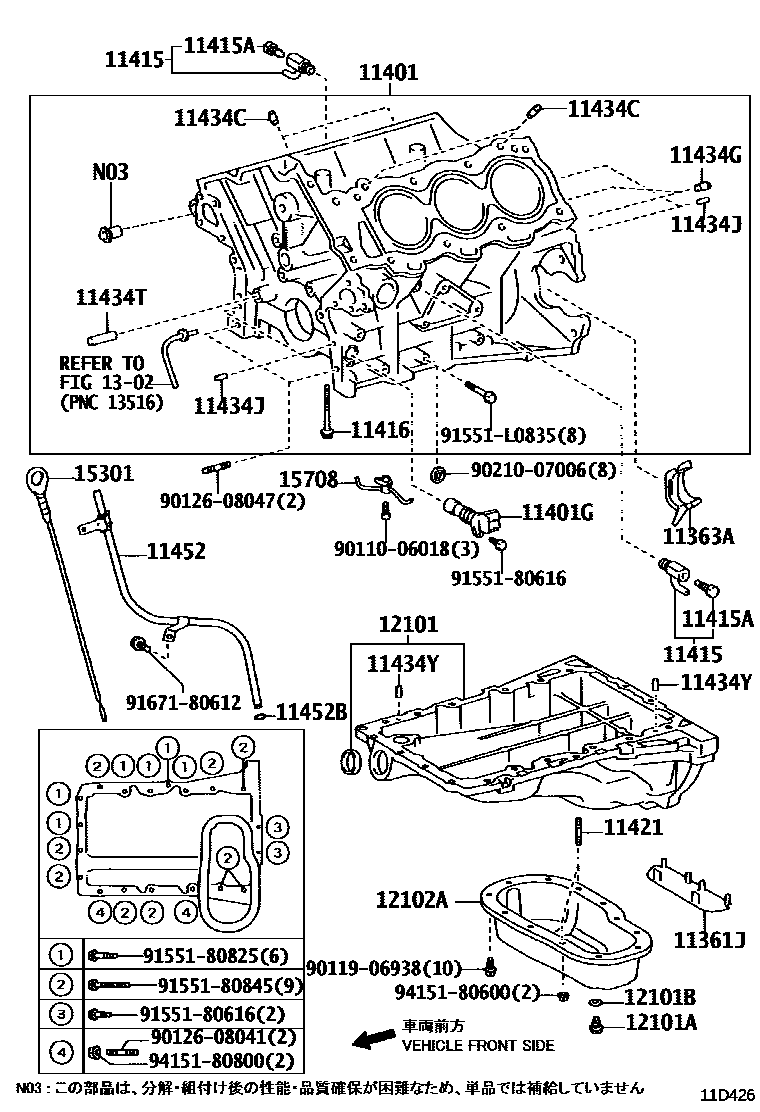

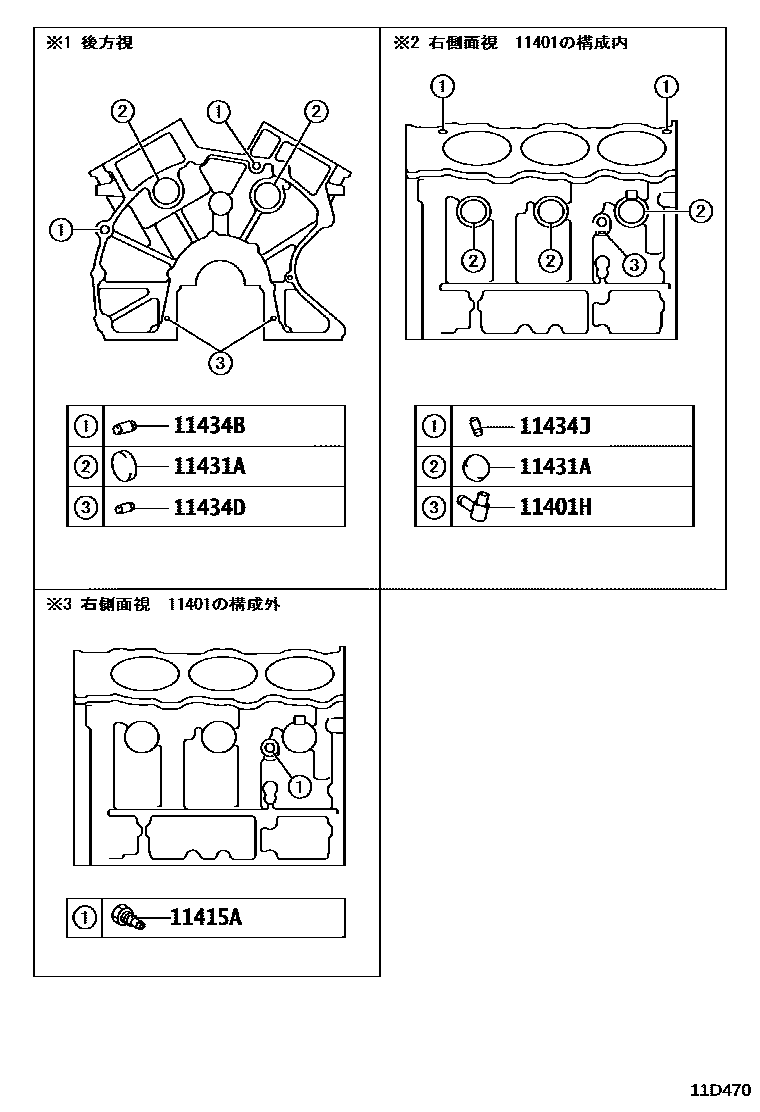

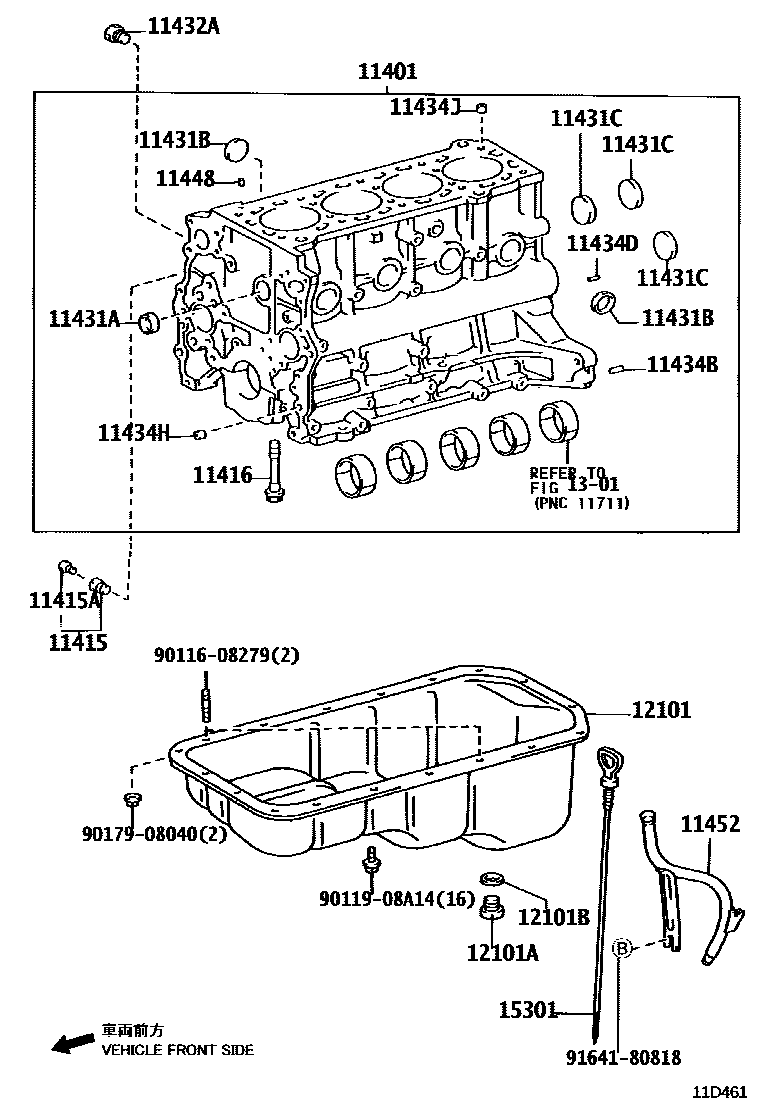

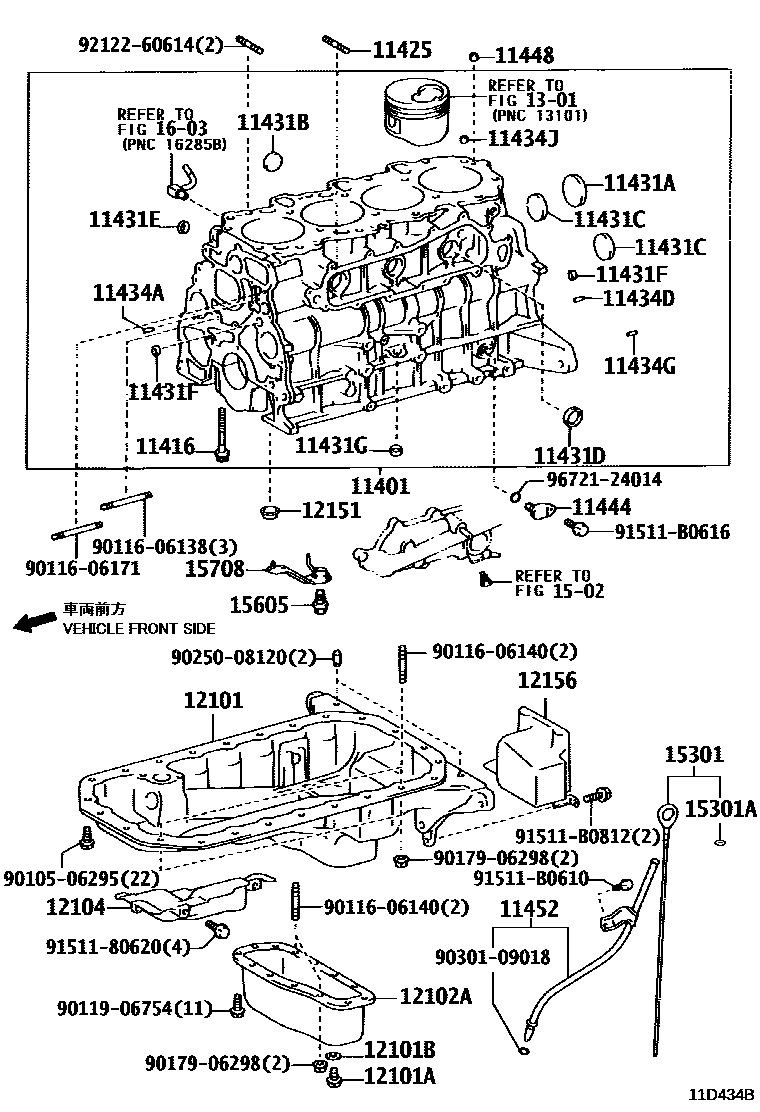

Toyota HILUX Cylinder Block — Figure 1105
Toyota HILUX EPC diagram 1105, Cylinder Block, with 6 images and 49 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 11361J | Flywheel housing bottom cover | 11361-31040 |
| 11363A | Flywheel housing side cover | 11363-31020 |
| 11401 | Cylinder block sub-assembly | 11401-39565 · 11401-39566 · 11401-39695 · 11401-39725 · 11401-69985 · 11401-79686 · 11401-80741 · 11401-80790 |
| 11401G | crankshaft position sensor | 90919-05057 |
| 11401H | Connector (for cylinder block discharge LLC) | 90406-08023 |
| 11415 | Water release switch sub-assembly (for cylinder block) | 90910-09118 · 90910-09129 |
| 11415A | Water drain switch screw plug (for cylinder block) | 90910-09087 · 96431-23814 |
| 11416 | Bolts (for crankshaft bearing cap assembly) | 90910-02072 · 90910-02092 · 90910-02113 |
| 11421 | Stud bolts (for oil pan) | 90116-06119 · 90126-06015 · 90126-06028 |
| 11421B | Studs (for oil pan baffle) | 90116-06119 |
| 11425 | Studs (for oil filter) | 90116-06171 |
| 11431A | No. 1 sealing plug (for cylinder block) | 90331-35005 · 96411-63000 · 96411-64500 |
| 11431B | No. 2 sealing plug (for cylinder block) | 96411-63500 |
| 11431C | No. 3 sealing plug (for cylinder block) | 96411-64000 |
| 11431D | No. 4 sealing plug (for cylinder block) | 90331-35004 |
| 11431E | No. 5 sealing plug (for cylinder block) | 96411-62000 |
| 11431F | No. 6 sealing plug (for cylinder block) | 96411-61800 |
| 11431G | sealing plug | 90331-14006 |
| 11432A | No. 1 headed tapered thread plug | 90344-53015 · 90345-53009 |
| 11432H | No. 5 headed tapered thread plug | 90344-53015 |
| 11434A | Direct sales (for timing gear cover assembly) | 90250-08120 |
| 11434B | Direct sales (for clutch housing assembly) | 90250-10113 |
| 11434C | Direct sales (for cylinder head components) | 90250-08120 |
| 11434D | Direct sales (for engine rear oil seal) | 90250-06003 · 90250-06015 · 90250-06068 |
| 11434G | Direct sales (for end plates) | 90250-10113 · 90250-10192 |
| 11434H | Ring pin (for timing belt cover assembly) | 90253-11005 |
| 11434J | Ring pin (for cylinder head assembly) | 90250-04097 · 90253-15001 · 90253-15016 · 90253-16001 |
| 11434P | Direct sales (for oil pump components) | 90253-11021 |
| 11434S | Ring pin (for water pump assembly) | 90253-11021 |
| 11434T | Ring pin (for timing belt idler bracket assembly) | 90250-10030 · 90253-11021 |
| 11434Y | Direct sales (for oil pan) | 90250-04097 · 90253-14004 |
| 11444 | hole plug | 11444-67020 |
| 11448 | Cylinder block oil orifice | 11448-67010 · 90977-02011 |
| 11452 | Engine oil level gauge guide | 11409-75020 · 11409-75071 · 11452-30010 · 11452-31030 · 11452-62100 |
| 11452B | O-ring (for oil level gauge guide) | 96721-19010 · 96723-19010 |
| 11452C | Connector (for oil level gauge tube) | 90405-10033 |
| 11494 | Oil hole cover | 11494-65010 |
| 12101 | Oil pan sub-assembly | 12101-30080 · 12101-31071 · 12101-62110 · 12101-75130 · 12101-75140 |
| 12101A | Screw plug (for draining oil from the oil pan) | 90341-12012 |
| 12101B | Gasket (for oil pan drain plug) | 90430-12031 |
| 12102A | No. 2 oil pan sub-assembly | 12102-30020 · 12102-31010 · 12102-75021 |
| 12104 | No. 1 oil pan cover sub-assembly | 12104-30010 |
| 12121 | No. 1 oil pan baffle | 12122-62040 |
| 12151 | oil pan gasket | 12151-30020 |
| 12156 | Oil pan vibration isolation pad | 12156-30010 |
| 15301 | Engine oil level scoring assembly | 15301-17050 · 15301-31060 · 15301-67031 · 15301-75011 · 15301-75091 |
| 15301A | O-ring (for engine oil level gauge) | 96741-19005 |
| 15605 | Oil check valve sub-assembly | 15605-17030 |
| 15708 | No. 1 oil nozzle sub-assembly | 15708-30010 · 15708-30011 · 15708-31020 · 15708-75010 |
