Toyota HILUX Short Block Assembly — Figure 1102

Toyota HILUX EPC diagram 1102, Short Block Assembly, with 1 images and 1 PNC and OE references.

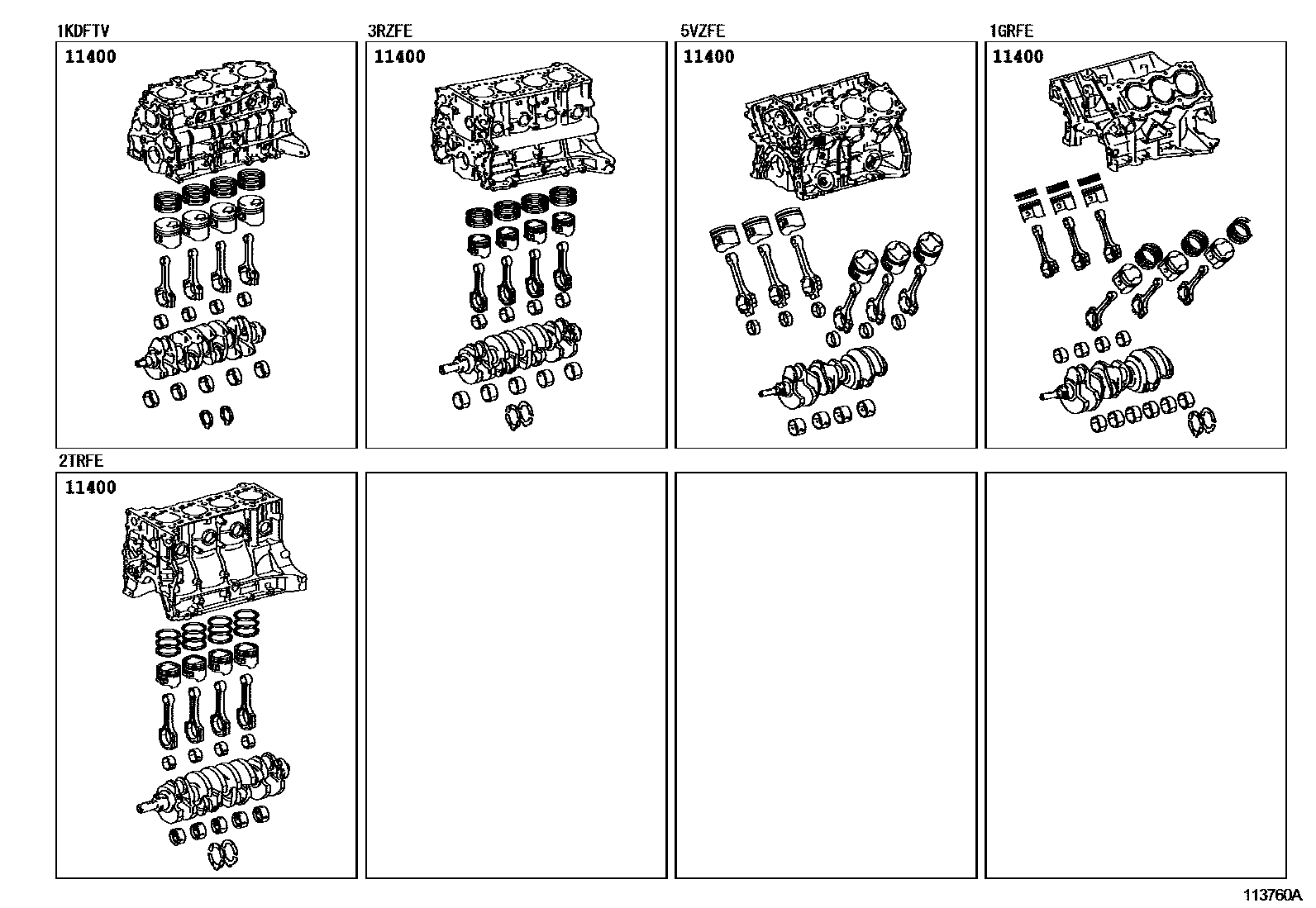

Toyota HILUX Short Block Assembly EPC diagram — 113760A
Short Block Assembly — 113760A (200211 – 999999)

PNC and OE references

PNCPart nameOE numbers
11400Short Block Assembly11400-30050 · 11400-31040 · 11400-31300 · 11400-62170 · 11400-75061 · 11400-75380
