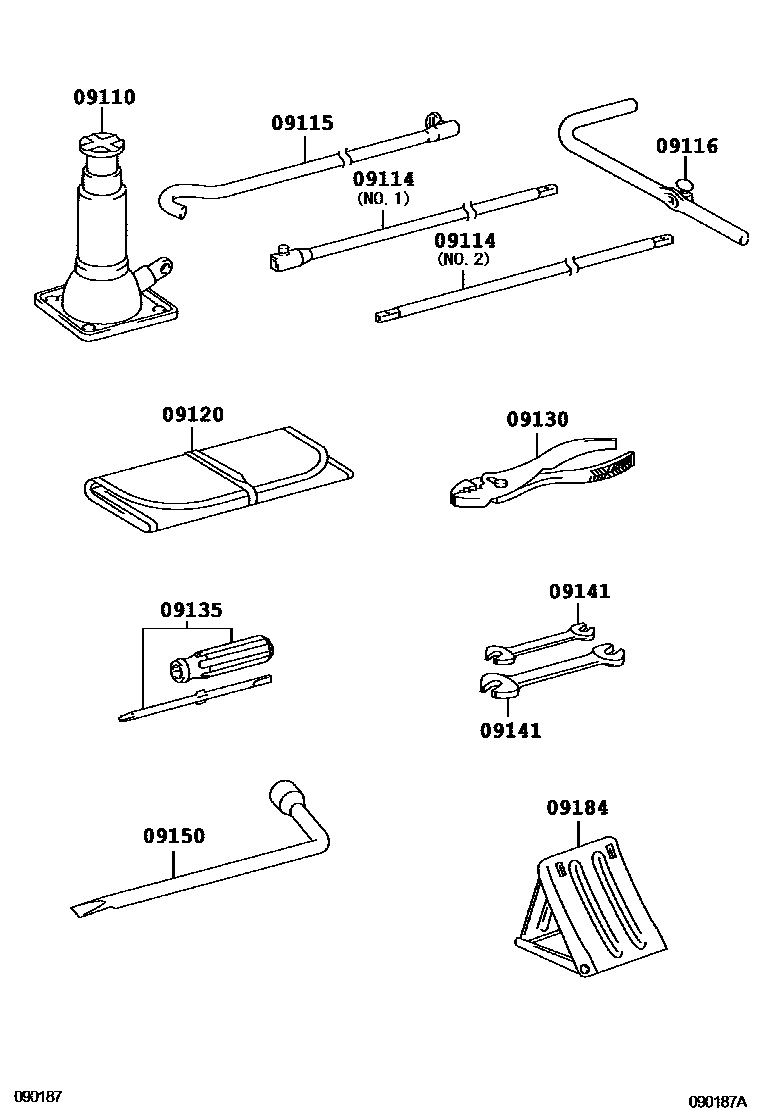

Toyota HILUX Standard Tools — Figure 0901
Toyota HILUX EPC diagram 0901, Standard Tools, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 09110 | Jack Assembly | 09111-35180 · 09111-35181 · 09111-35182 |
| 09114 | Jack Handle Extension Sub-Assembly | 09114-35040 · 09114-35050 |
| 09115 | Jack Handle Rod Sub-Assembly | 09115-35110 |
| 09116 | Jack Handle Rod | 09116-35080 |
| 09120 | Tool Bag | 09120-35160 |
| 09130 | Pliers | 99913-11500 |
| 09135 | Screwdriver | 99915-10700 |
| 09141 | Wrench | 99914-10810 · 99914-11214 |
| 09150 | Wheel Nut Wrench | 09150-35070 |
| 09184 | Wheel Chock | 09184-60010 |
