Toyota HILUX Heating & Air Conditioning - Compressor — Figure 8719

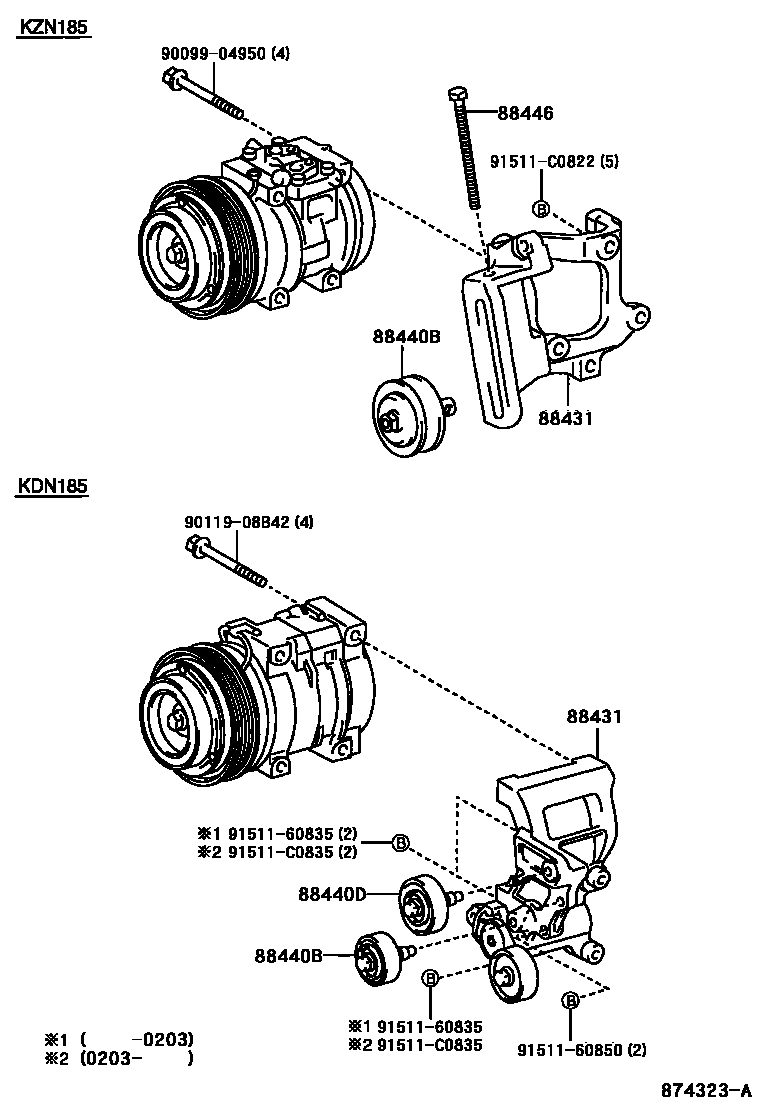

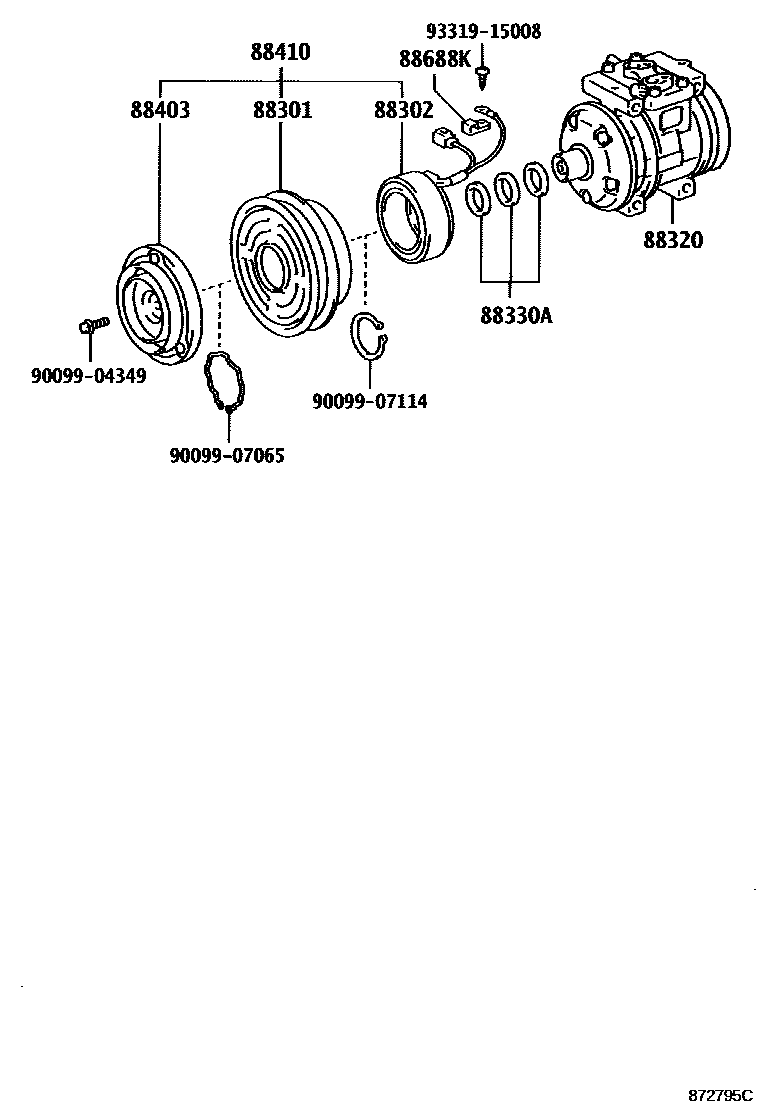

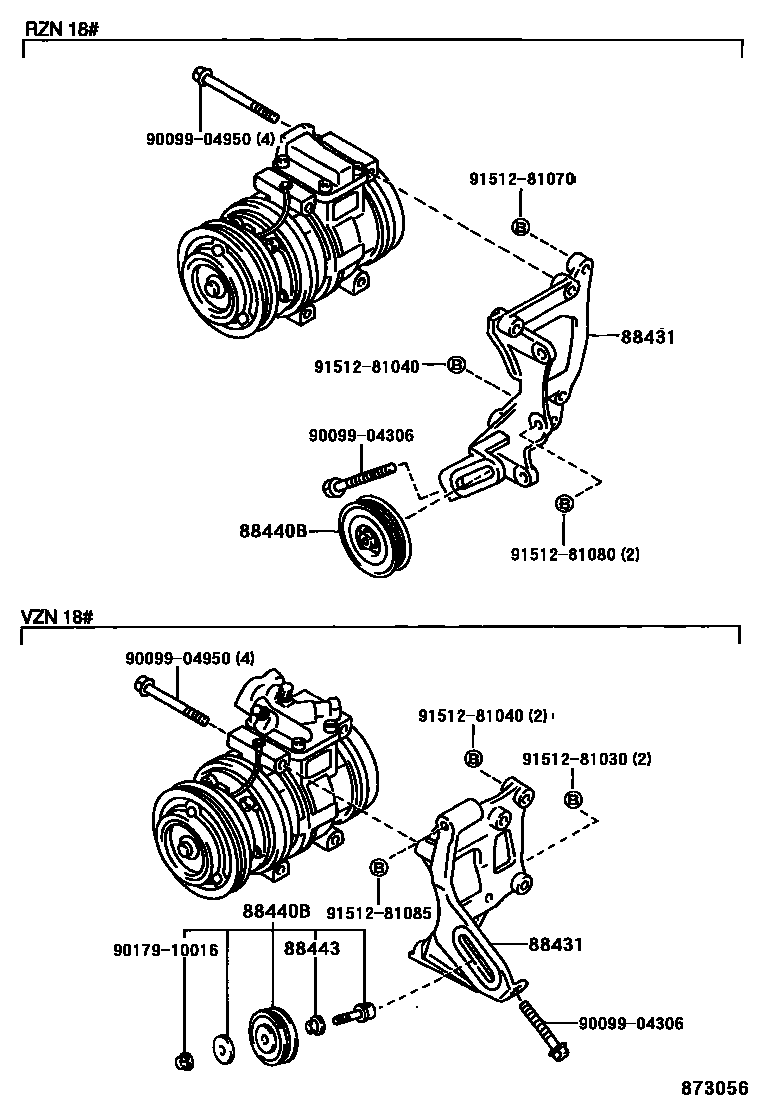

Toyota HILUX EPC diagram 8719, Heating & Air Conditioning - Compressor, with 3 images and 12 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88301 | Electromagnetic clutch rotor sub-assembly | 88412-12150 · 88412-26030 · 88412-28090 · 88412-35090 · 88412-95J00 |
| 88302 | Electromagnetic clutch stator sub-assembly | 88411-22310 · 88411-2A030 · 88411-44010 |
| 88320 | Cooler Compressor Assembly | 88320-35450 · 88320-35470 · 88320-35600 · 88320-35610 · 88320-35670 |
| 88330A | Washer (for electromagnetic clutch) | 88335-14020 |
| 88403 | Electromagnetic clutch hub sub-assembly | 88403-30290 · 88403-32010 |
| 88410 | Magnetic Clutch Assembly | 88410-28200 · 88410-34040 · 88410-35250 · 88410-35340 |
| 88431 | Compressor No. 1 mounting bracket | 16620-30010 · 88431-0C020 · 88431-26290 · 88431-35070 · 88431-60220 |
| 88440B | Idler gear assembly | 88440-35060 · 88440-35090 · 88440-60050 |
| 88440D | No. 2 idler gear assembly | 88440-35100 |
| 88443 | Idler gear collar | 88443-36010 |
| 88446 | Idler gear bolt | 88446-60040 |
| 88688K | Cooler compressor bracket | 88569-35170 · 88688-2D770 · 88688-35390 · 88688-37320 |
