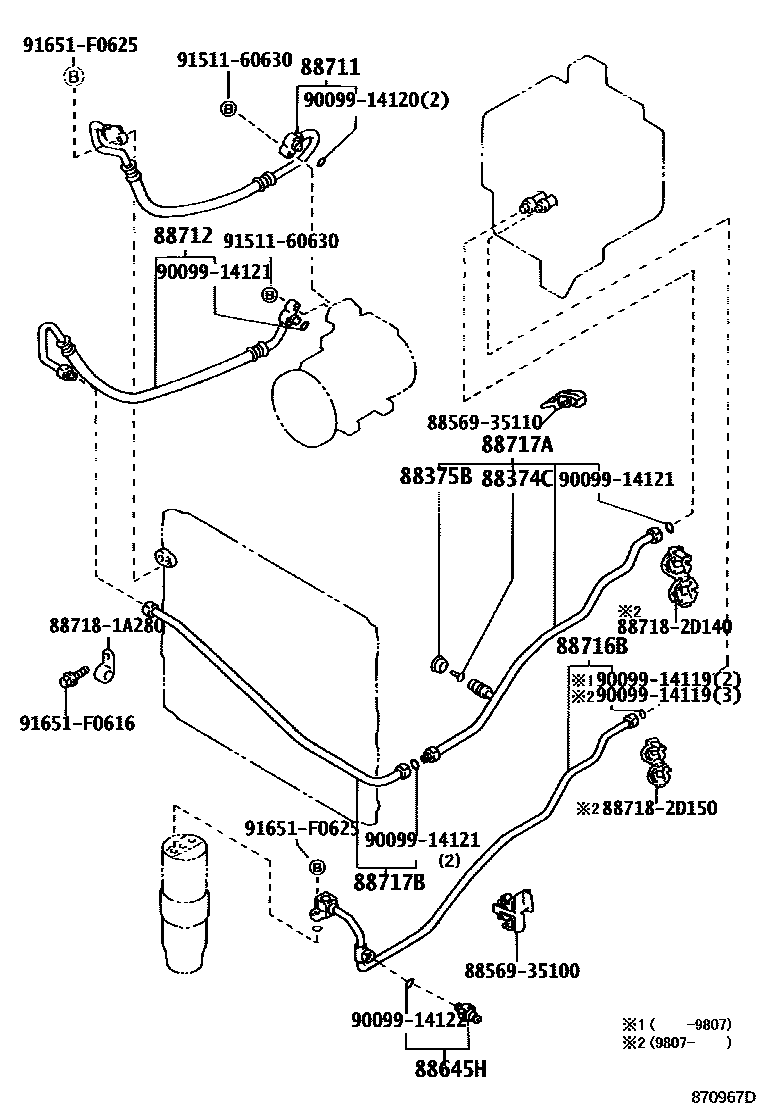

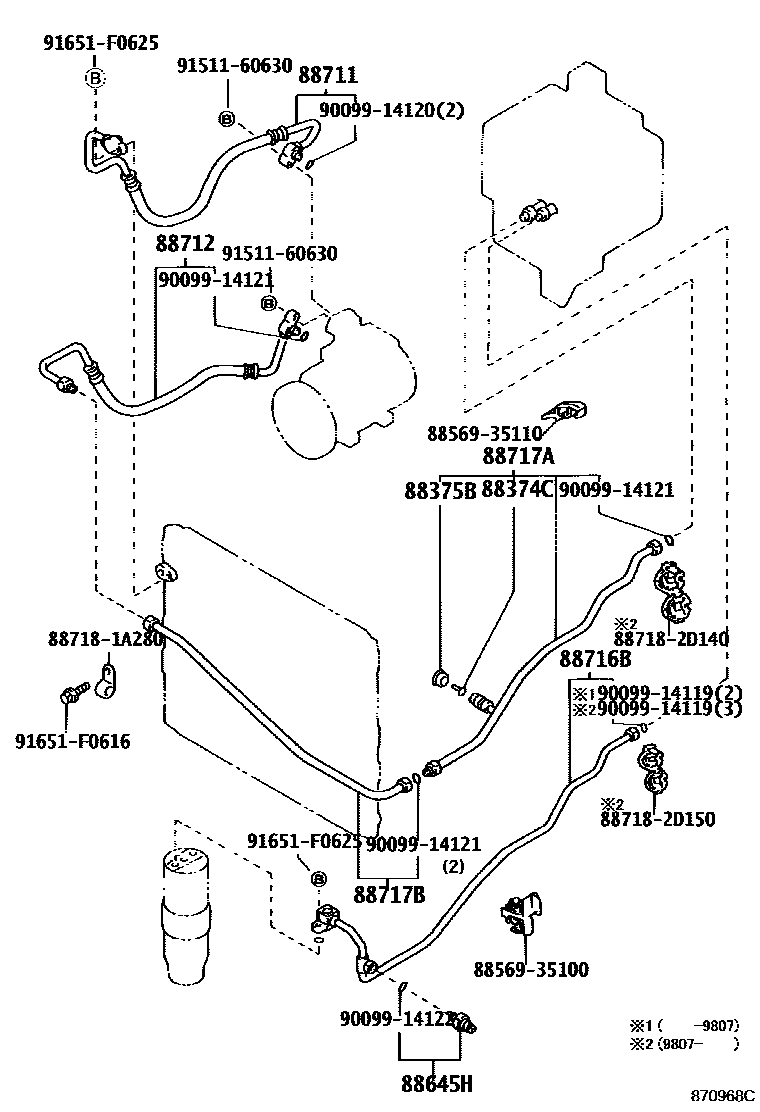

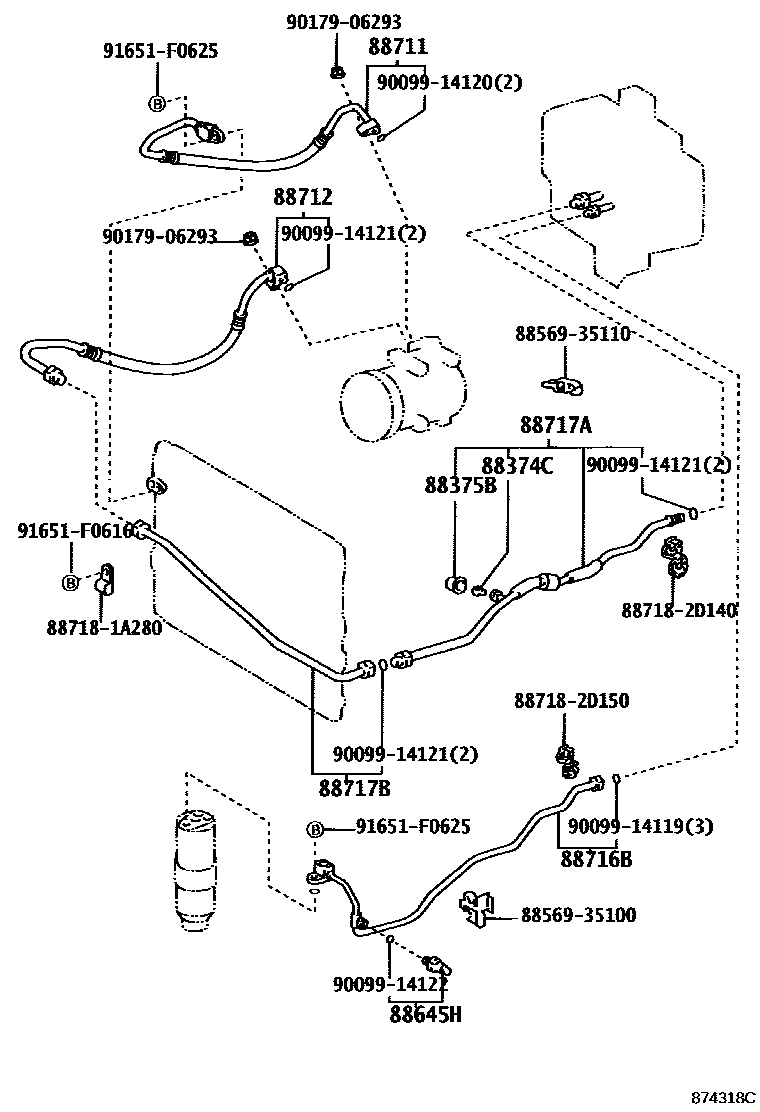

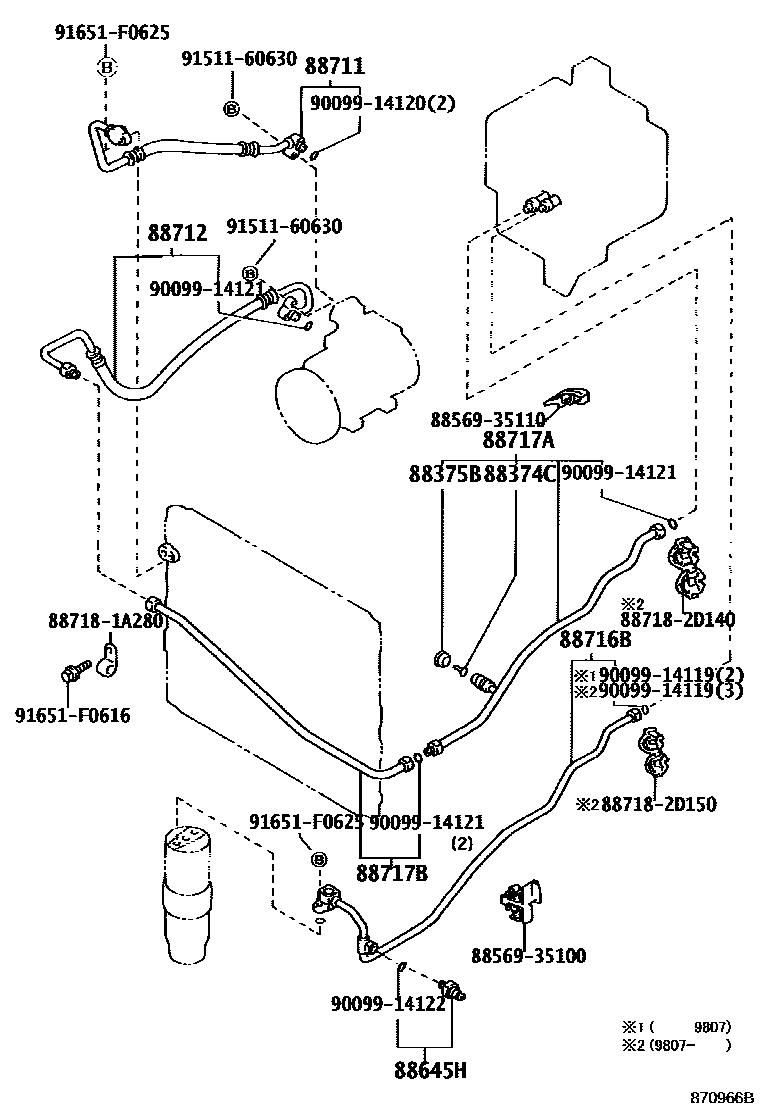

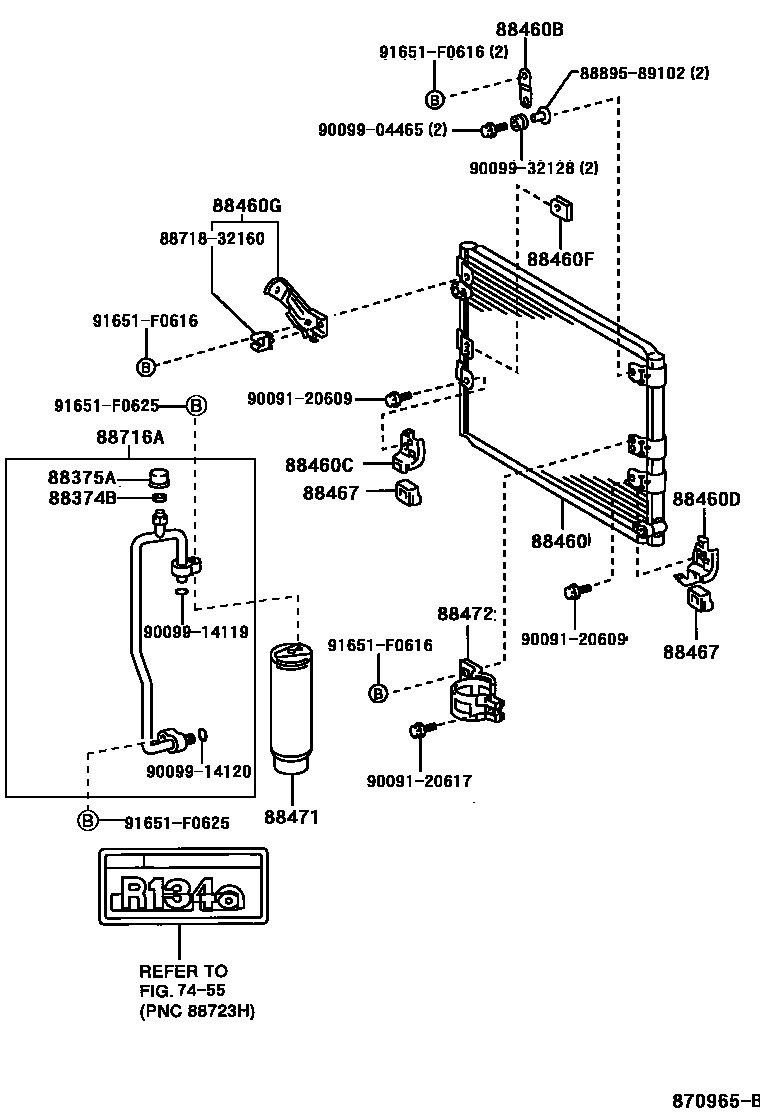

Toyota HILUX Heating & Air Conditioning - Cooler Piping — Figure 8718
Toyota HILUX EPC diagram 8718, Heating & Air Conditioning - Cooler Piping, with 5 images and 20 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 88374B | Service valve No. 1 | 88374-30010 |
| 88374C | Service valve No. 2 | 88374-30010 |
| 88375A | Repair valve cover (for cooler tube) | 88375-30280 |
| 88375B | No. 1 maintenance valve cover | 88375-30290 |
| 88460 | Air conditioning condenser assembly | 88461-35050 |
| 88460B | No. 1 air conditioner condenser bracket | 88688-35290 |
| 88460C | No. 2 air conditioner condenser bracket | 88688-35310 |
| 88460D | No. 3 air conditioner condenser bracket | 88688-35300 |
| 88460F | No. 4 air conditioner condenser bracket | 88688-26470 |
| 88460G | No. 5 air conditioner condenser bracket | 88688-35320 |
| 88467 | No. 1 air conditioning condenser buffer pad | 88467-35020 |
| 88471 | Air conditioning fluid storage tank | 88471-34010 |
| 88472 | No. 1 liquid storage tank bracket | 88472-35020 |
| 88645H | No. 1 pressure switch | 88645-34010 |
| 88711 | Cooler No. 1 refrigerant drain hose | 88711-35460 · 88711-35470 · 88711-35480 · 88711-35580 |
| 88712 | Cooler No. 1 refrigerant suction hose | 88712-35420 · 88712-35421 · 88712-35430 · 88712-35440 · 88712-35560 |
| 88716A | Cooler refrigerant liquid pipe A | 88726-35010 |
| 88716B | Cooler refrigerant liquid pipe B | 88716-35340 · 88716-35380 · 88716-6B010 |
| 88717A | Cooler refrigerant suction pipe A | 88717-35120 · 88717-35130 · 88717-35150 · 88717-6A250 |
| 88717B | Cooler refrigerant suction pipe B | 88727-35010 |
