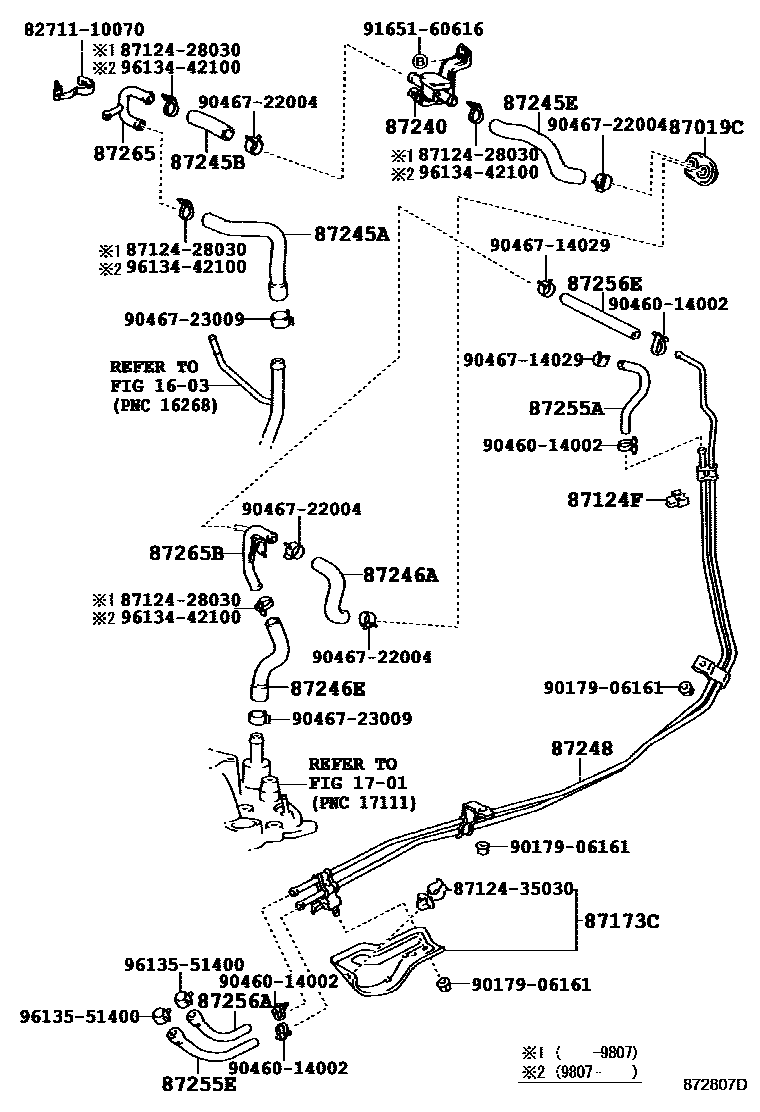

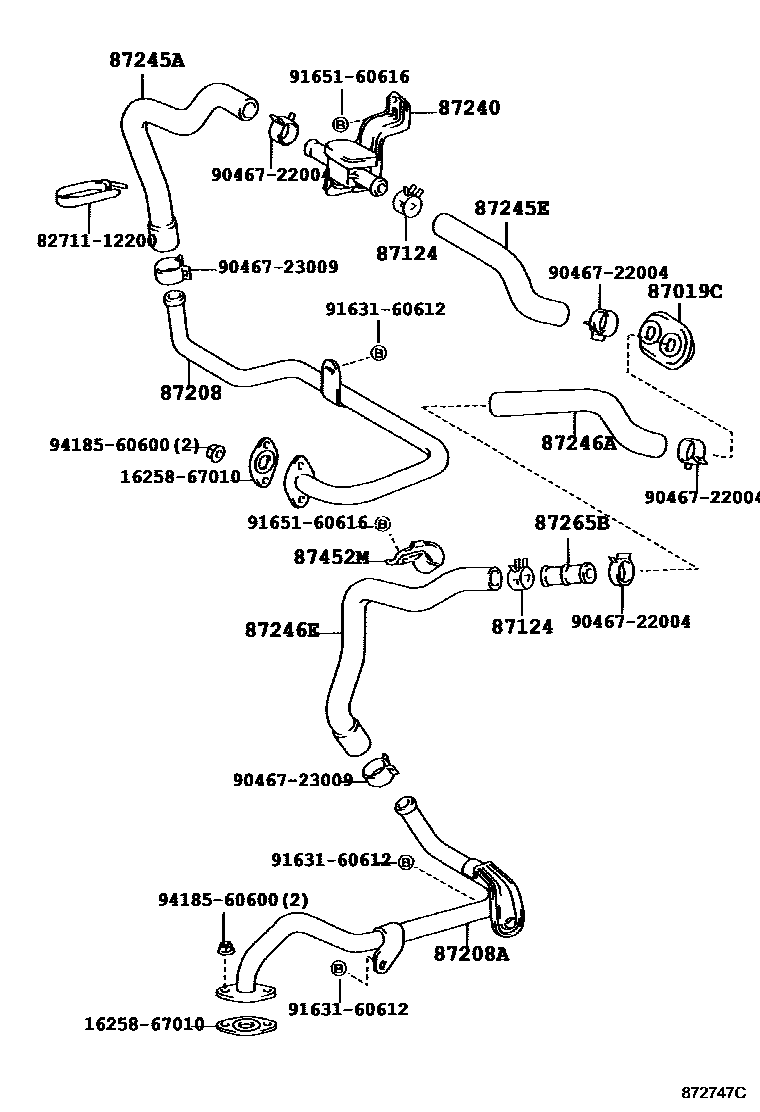

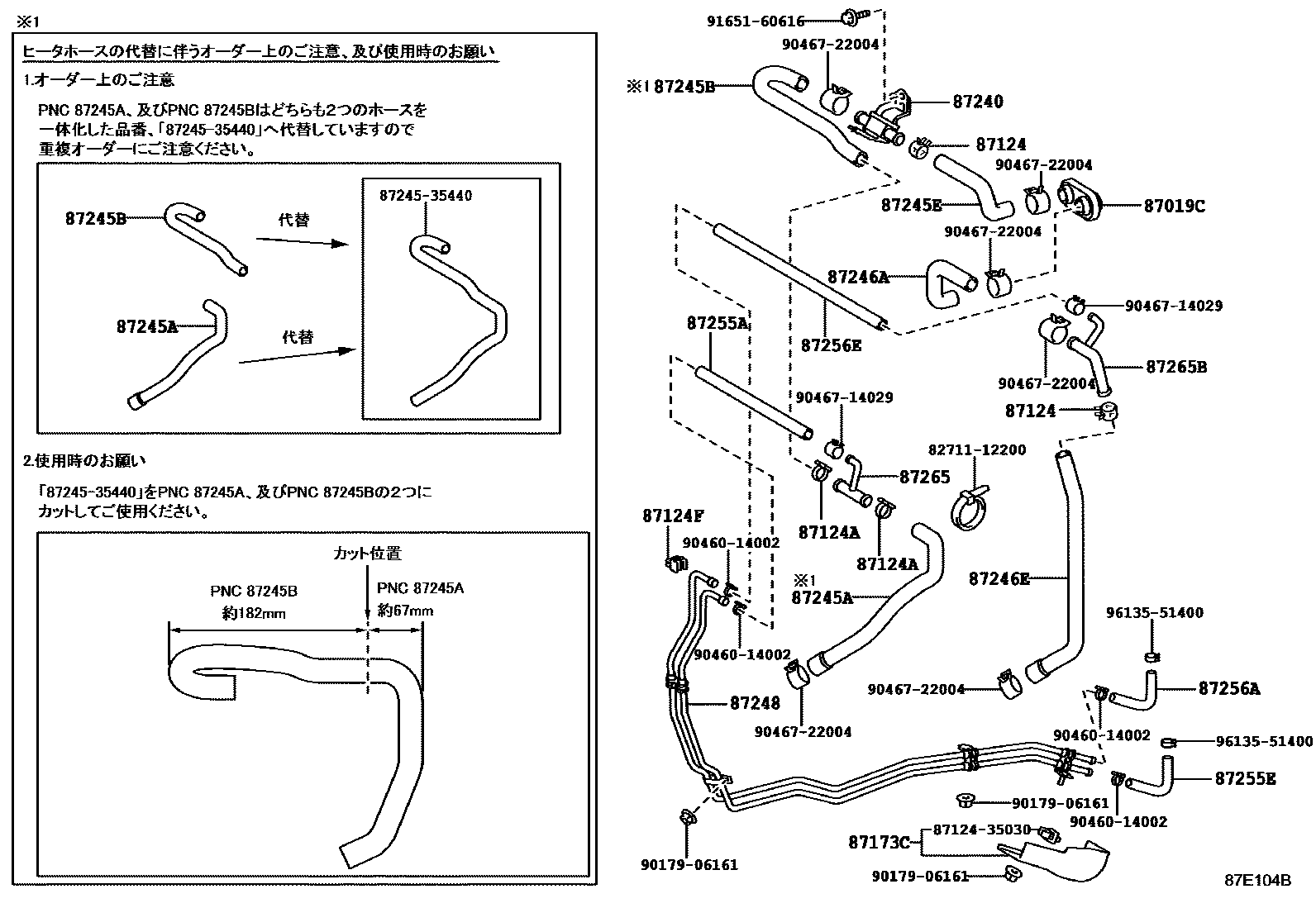

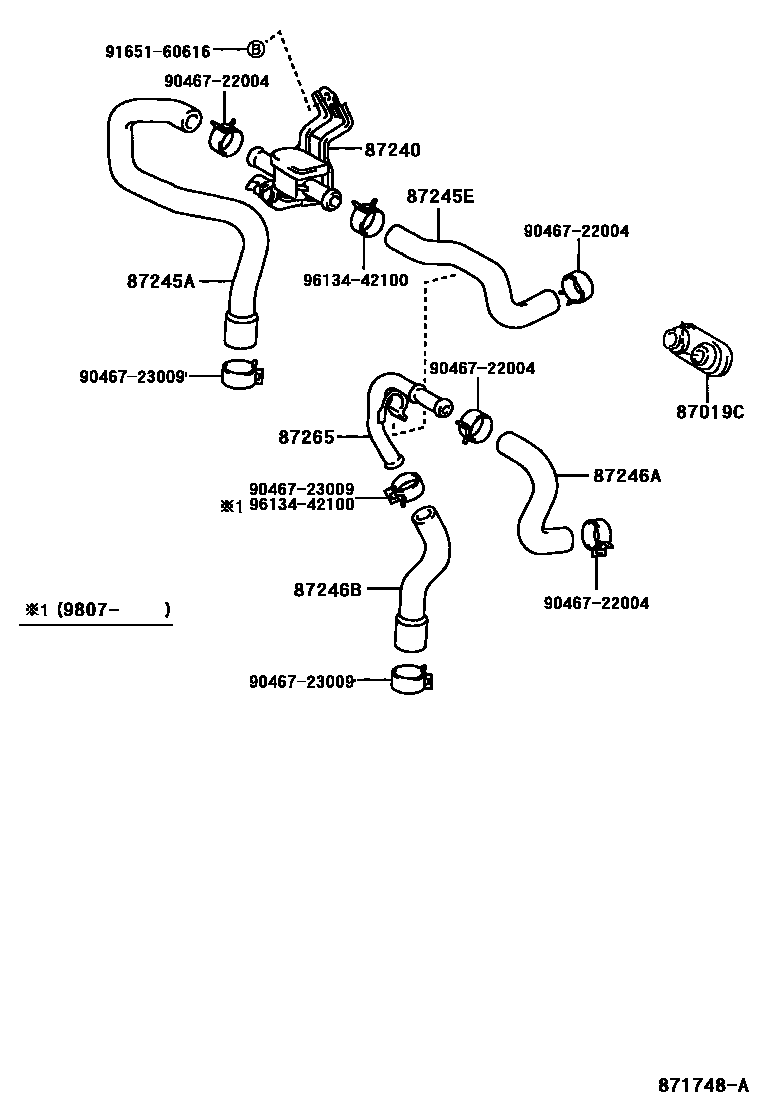

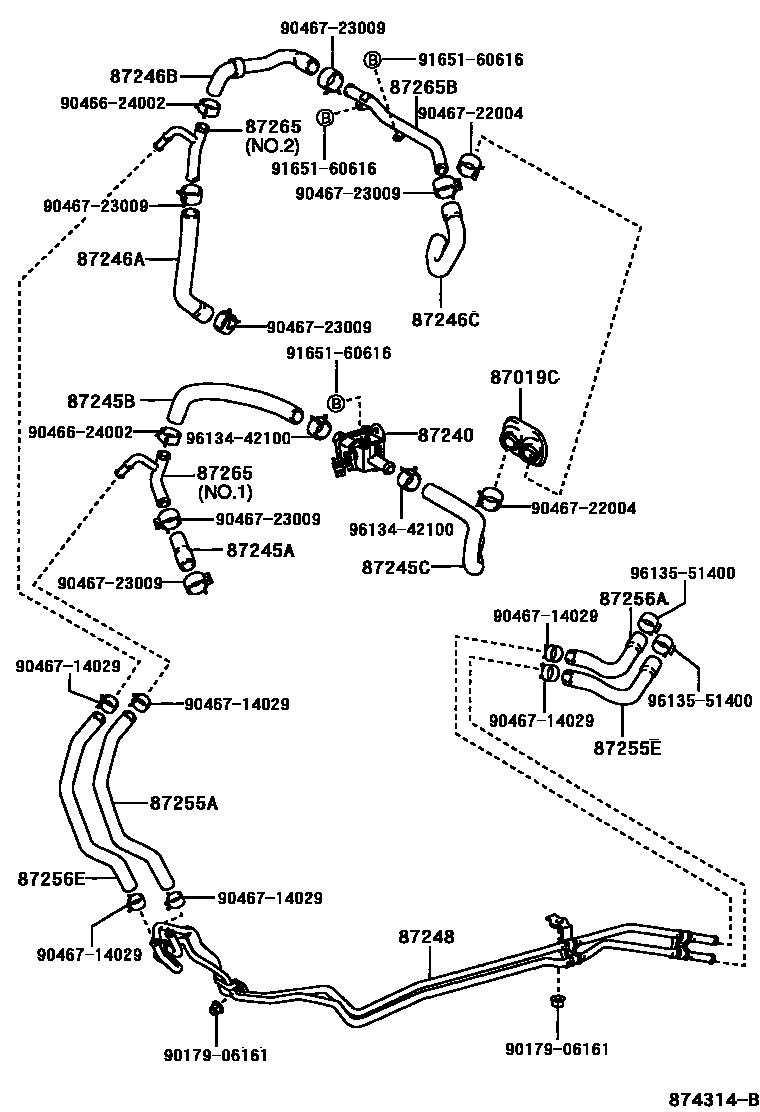

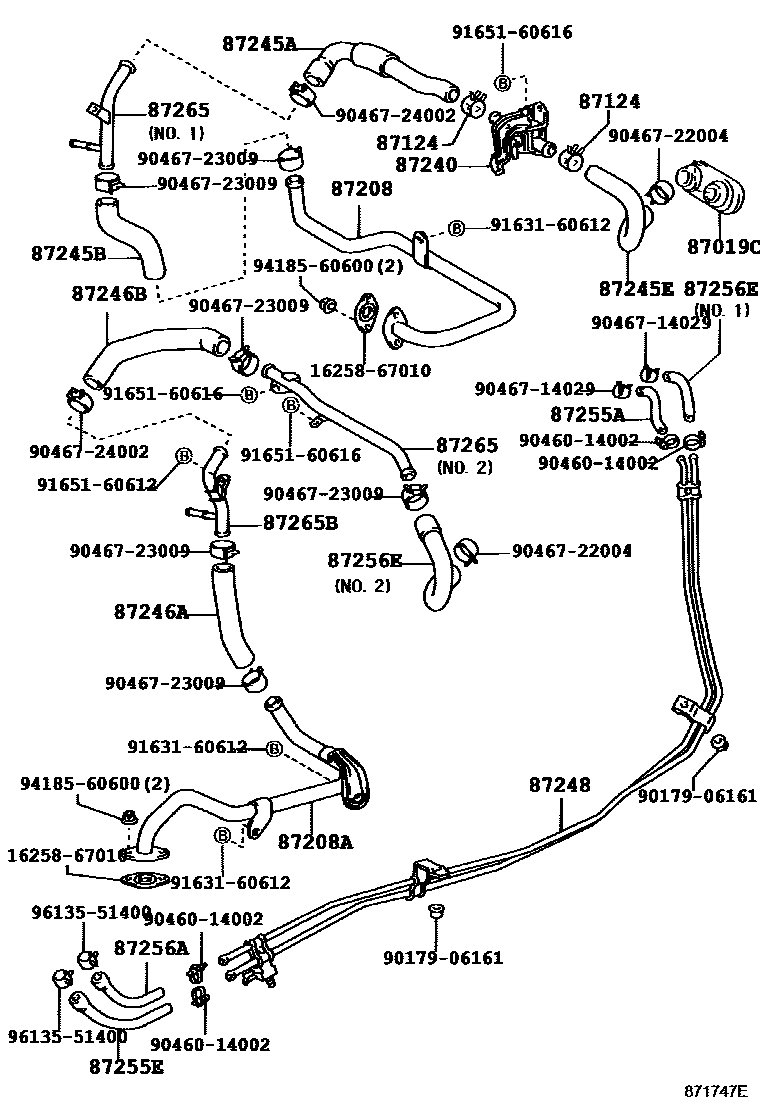

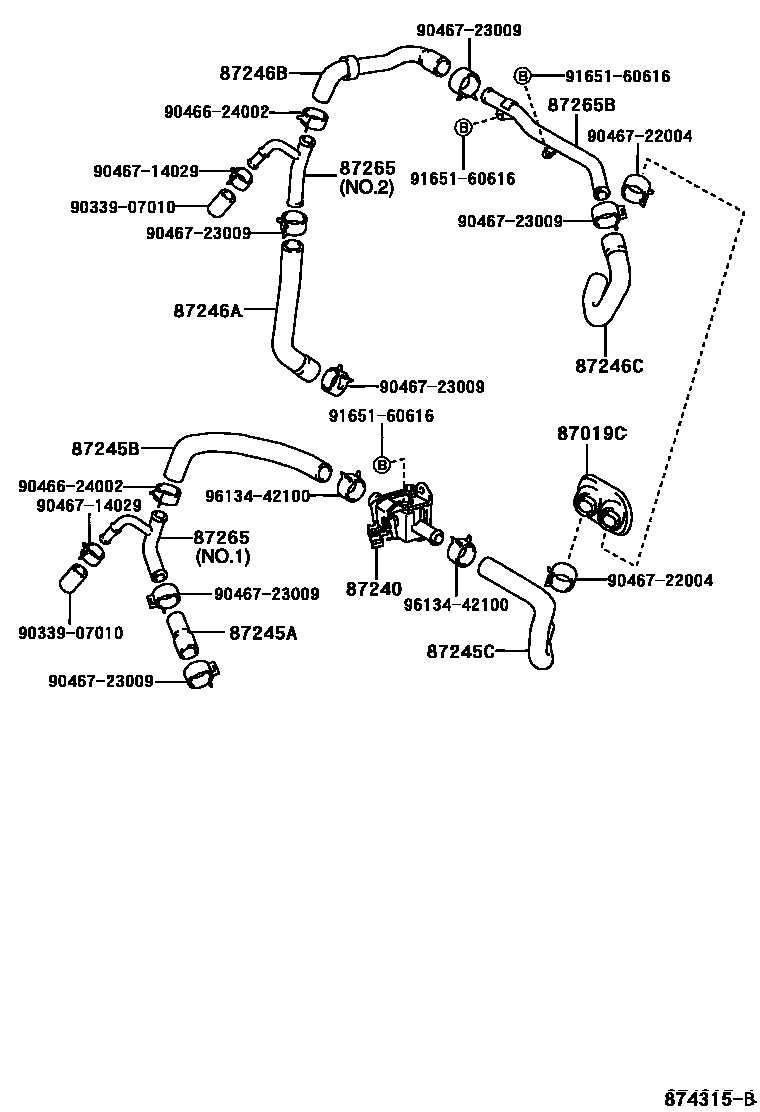

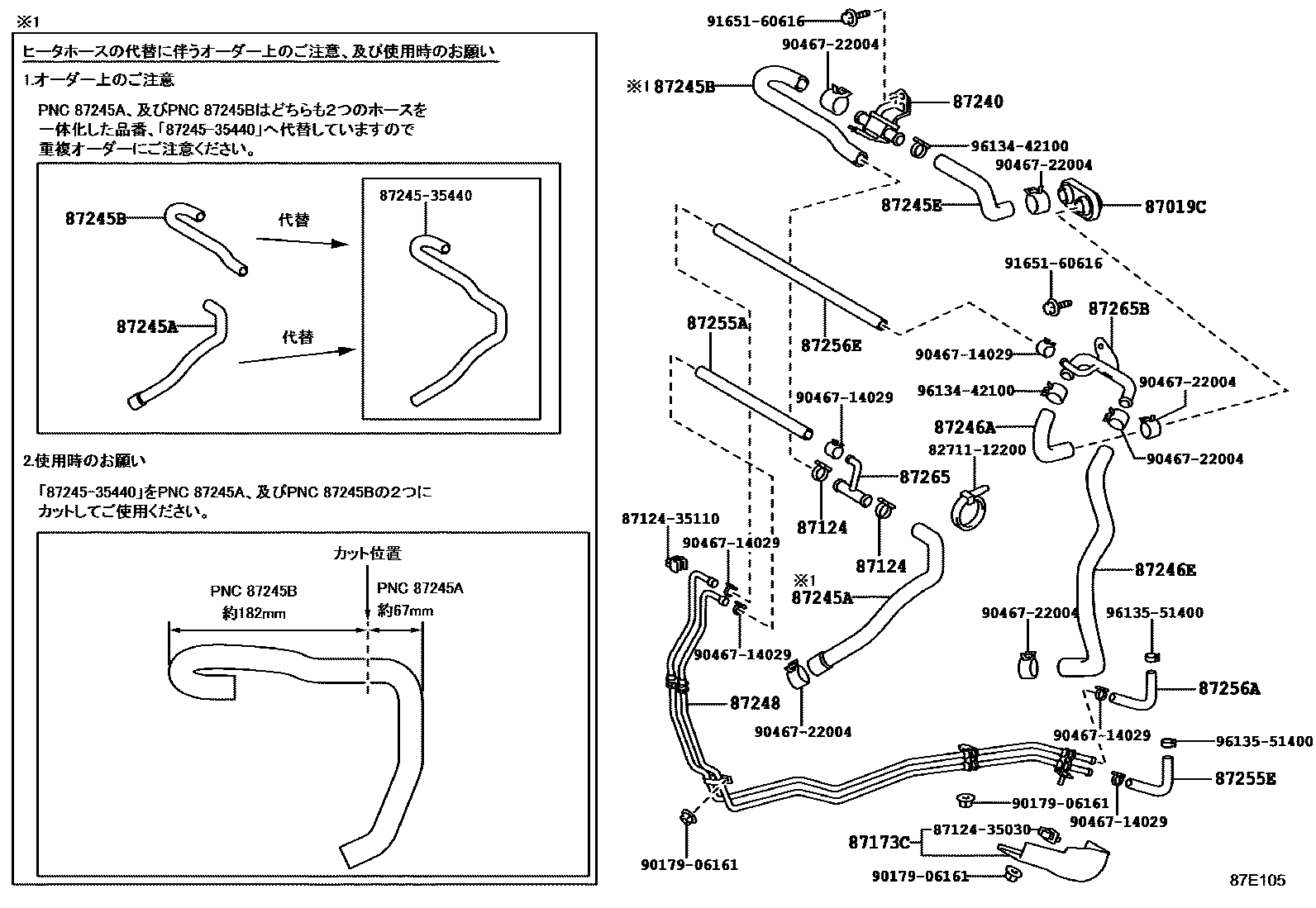

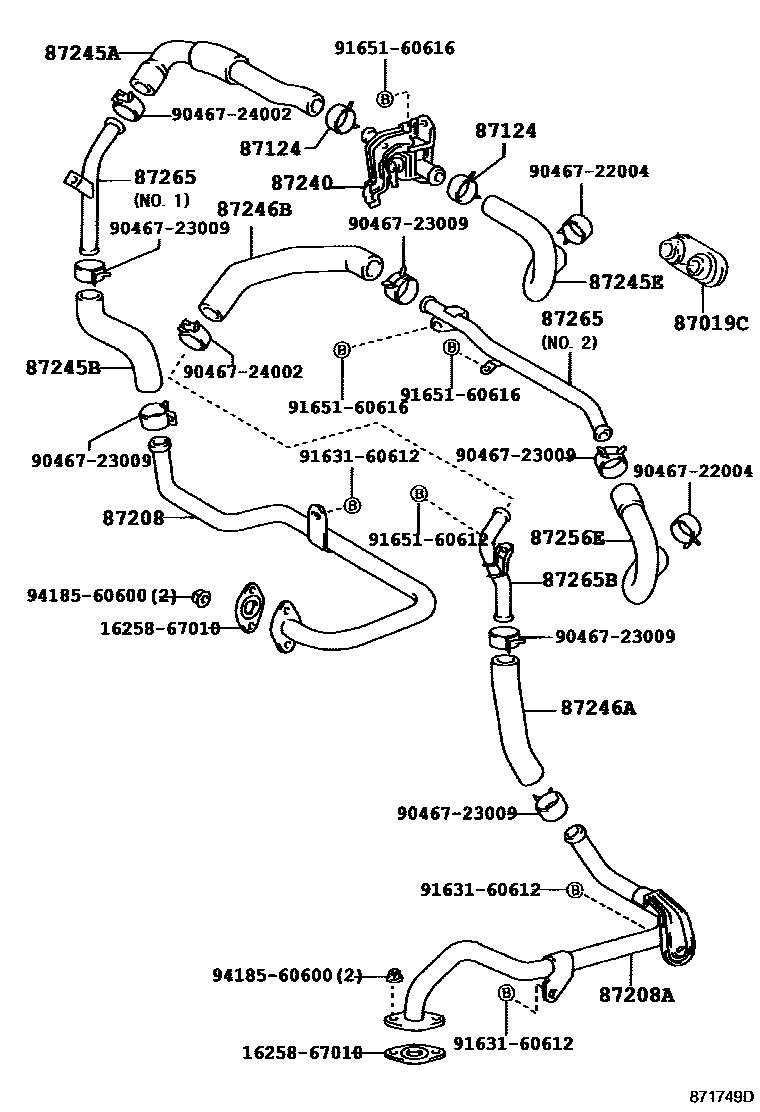

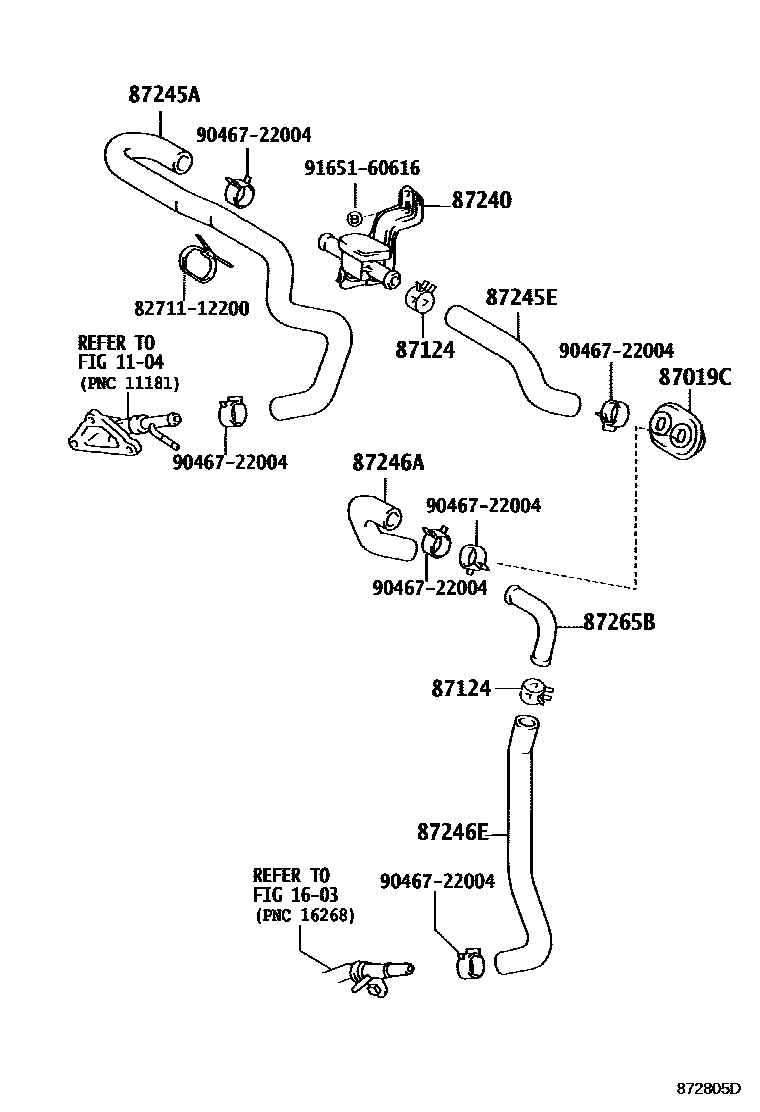

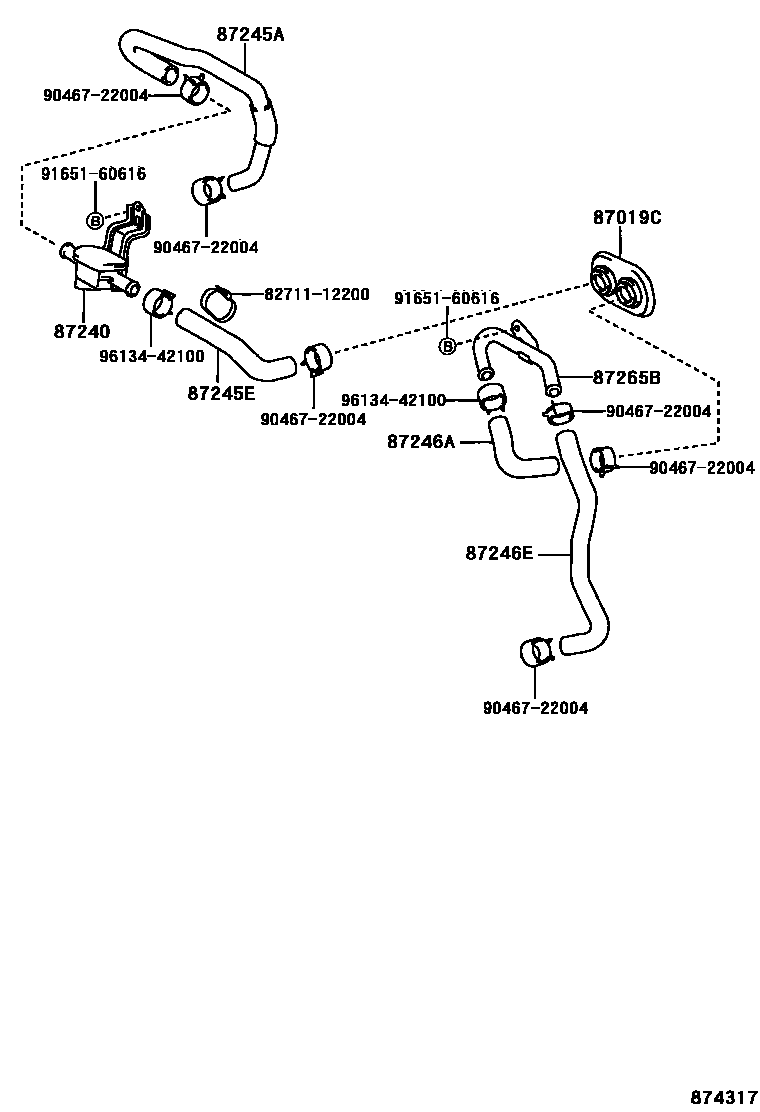

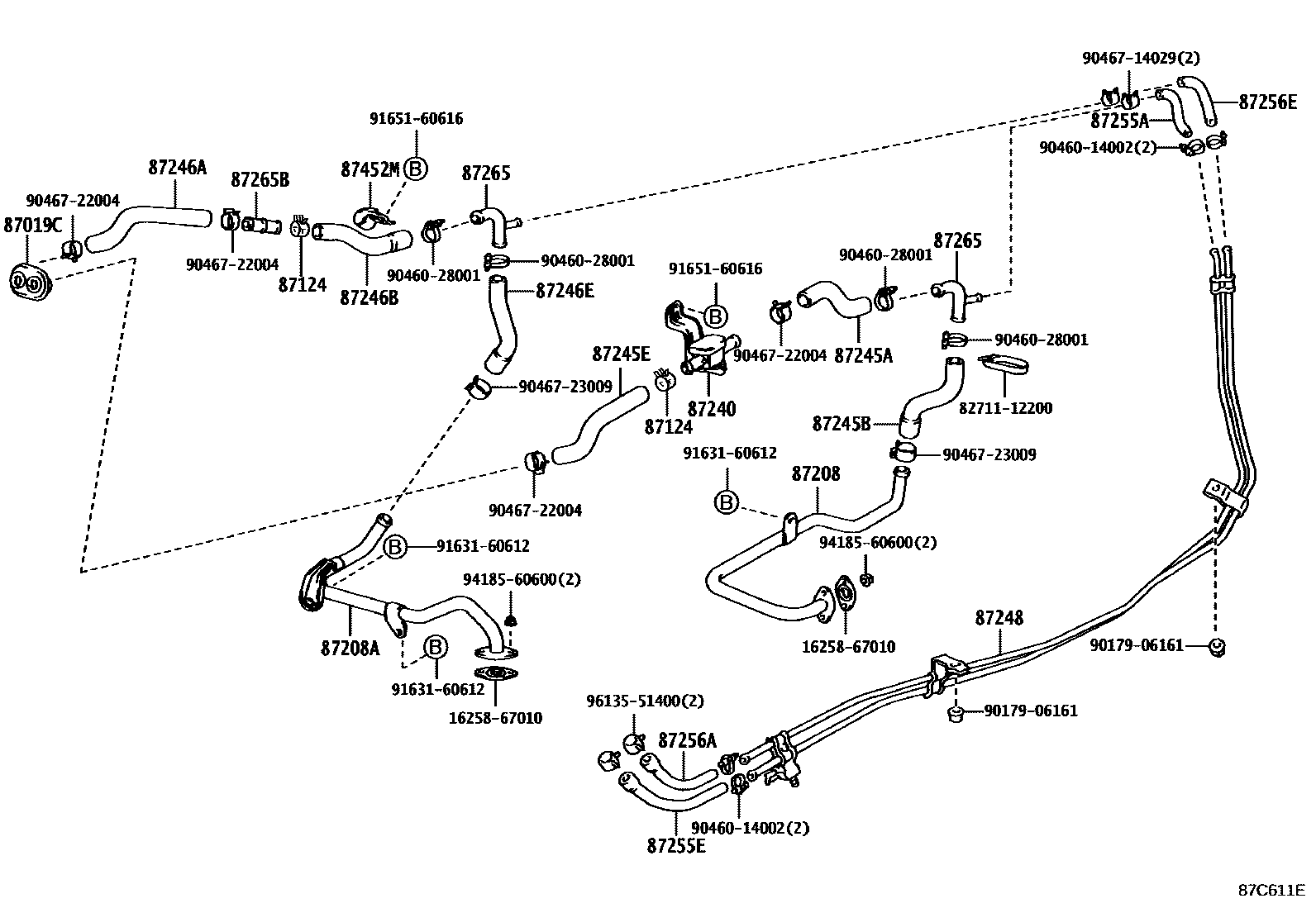

Toyota HILUX 暖风和空调系统 - 水管 — Figure 8716
Toyota HILUX EPC diagram 8716, 暖风和空调系统 - 水管, with 12 images and 24 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87019C | heater hose seal | 90480-01405 · 90480-01682 |
| 87124 | heater clip | 87124-28030 · 96134-42100 |
| 87124A | heater clip | 87124-28030 |
| 87124F | No. 1 heater hose clamp | 87124-35020 · 87124-35110 |
| 87173C | Heater protection device | 87173-35010 |
| 87208 | Heater water pipe sub-assembly | 87208-35250 |
| 87208A | Heater water pipe sub-assembly A | 87208-35260 |
| 87240 | Heater water valve assembly | 87240-35030 · 87240-35040 · 87240-35060 |
| 87245A | Heater water inlet hose A | 87245-35360 · 87245-35440 · 87245-35490 · 87245-35540 · 87245-35580 · 87245-35790 · 87245-35870 · 87245-35871 · 87245-3D140 · 87245-3D160 · 87245-60670 |
| 87245B | Heater water inlet hose B | 87245-35500 · 87245-35530 · 87245-35590 · 87245-35800 · 87245-3D200 · 87245-3D201 · 87245-60710 |
| 87245C | Heater water inlet hose C | 87245-3D190 |
| 87245E | Heater water inlet hose E | 87245-35520 · 87245-35610 · 87245-35780 |
| 87246A | Heater outlet hose A | 87245-35370 · 87245-35380 · 87245-35400 · 87245-35830 · 87245-35880 · 87245-35881 · 87245-3D210 · 87245-60740 |
| 87246B | Heater outlet hose B | 87245-35560 · 87245-35820 · 87245-35850 · 87245-35851 · 87245-3D130 · 87245-60860 |
| 87246C | Heater outlet hose C | 87245-3D350 |
| 87246E | Heater outlet hose E | 87245-35510 · 87245-35550 · 87245-35570 · 87245-35600 · 87245-35760 · 87245-3D220 |
| 87248 | Water pipe sub-assembly | 87248-35020 · 87248-35030 · 87248-35040 · 87248-35070 · 87248-35080 |
| 87255A | Rear heater water inlet hose A (from engine) | 87245-35470 · 87245-35740 · 87245-3D240 |
| 87255E | Rear heater water inlet hose E (to heating device) | 87245-35450 · 87245-35451 |
| 87256A | Rear heater water outlet hose A (self-heating device) | 87245-35460 · 87245-35461 |
| 87256E | Rear heater water outlet hose E (to engine) | 87245-35480 · 87245-35810 · 87245-3D120 · 87245-3D250 · 99555-10200 |
| 87265 | Heater water hose connector | 87265-35220 · 87265-35250 · 87265-35280 · 87265-35350 · 87265-35360 · 87265-35380 · 87265-35390 · 87265-35400 · 87265-35420 · 87265-35421 · 87265-35430 · 87265-35431 · 87265-60050 · 87265-60150 |
| 87265B | Heater water hose connector No. 2 | 87265-35190 · 87265-35230 · 87265-35240 · 87265-35290 · 87265-35370 · 87265-35400 · 87265-35440 · 87265-35450 · 87265-60080 |
| 87452M | Rear heater tube No. 4 bracket | 87452-35020 |
