Toyota HILUX 暖风和空调系统 - 控制器和风管 — Figure 8715

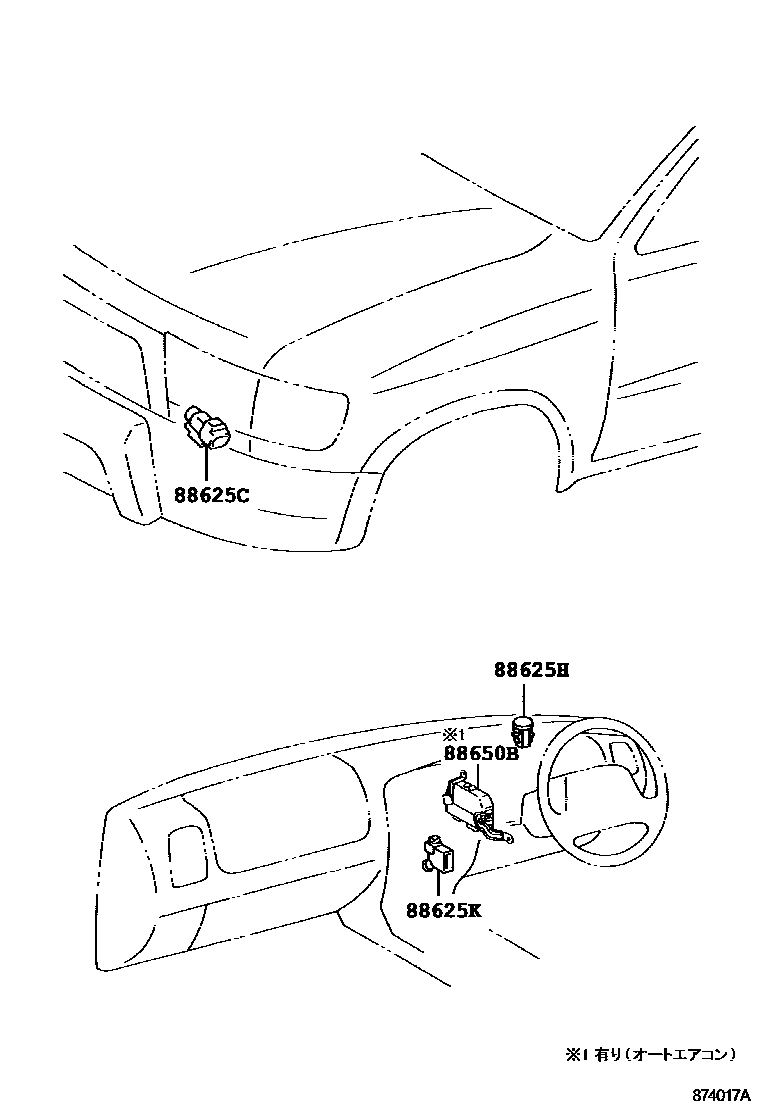

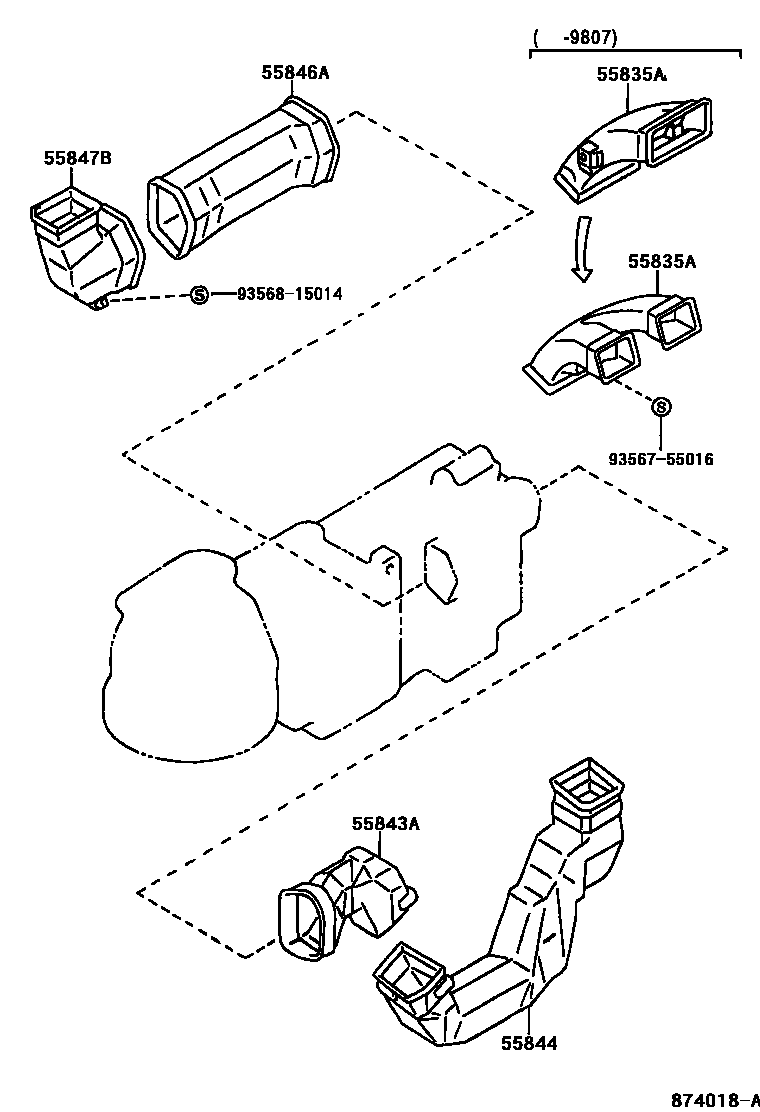

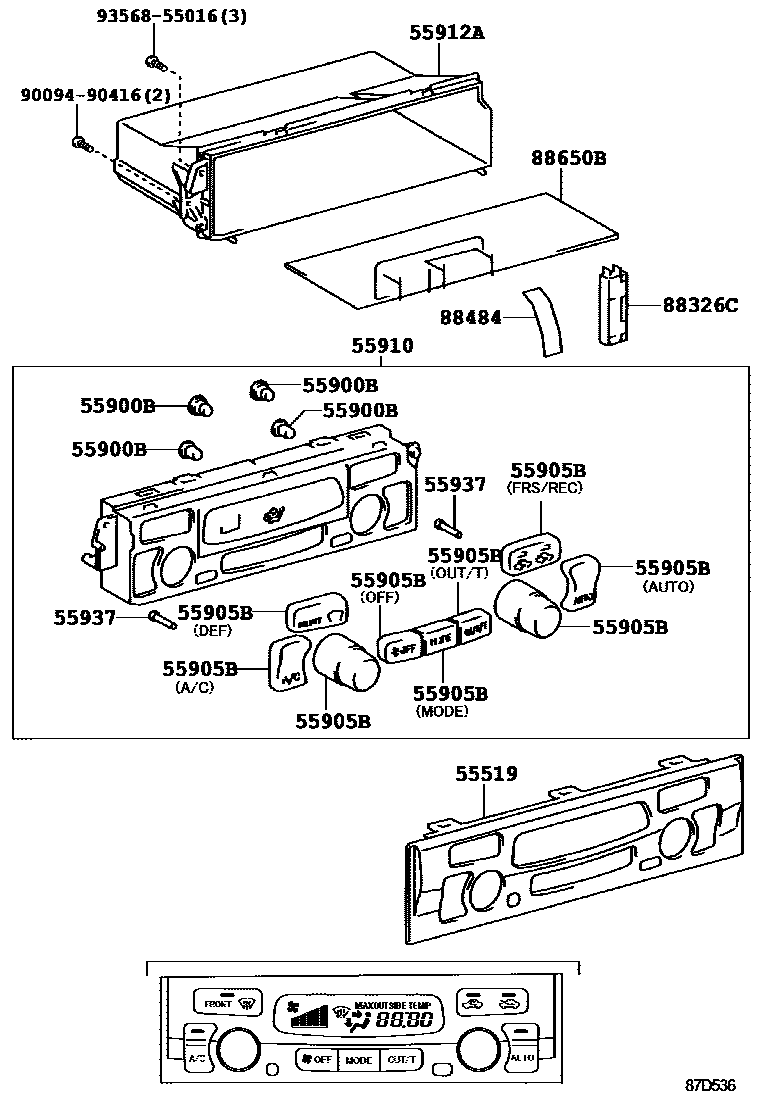

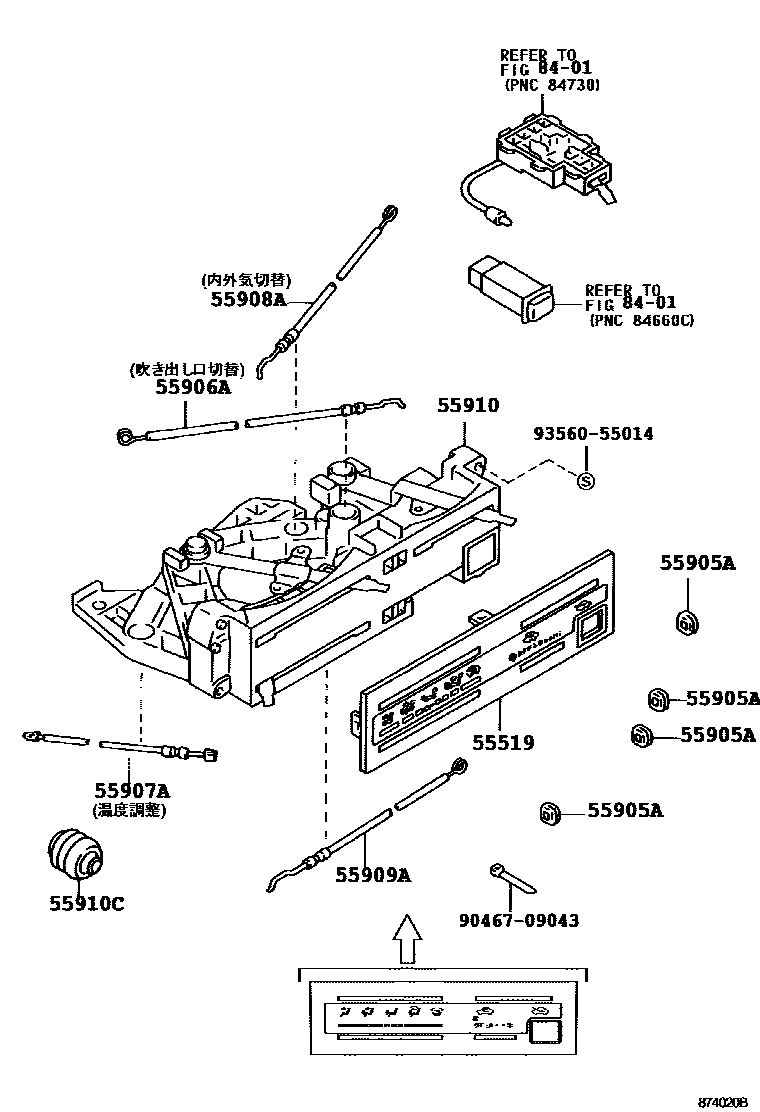

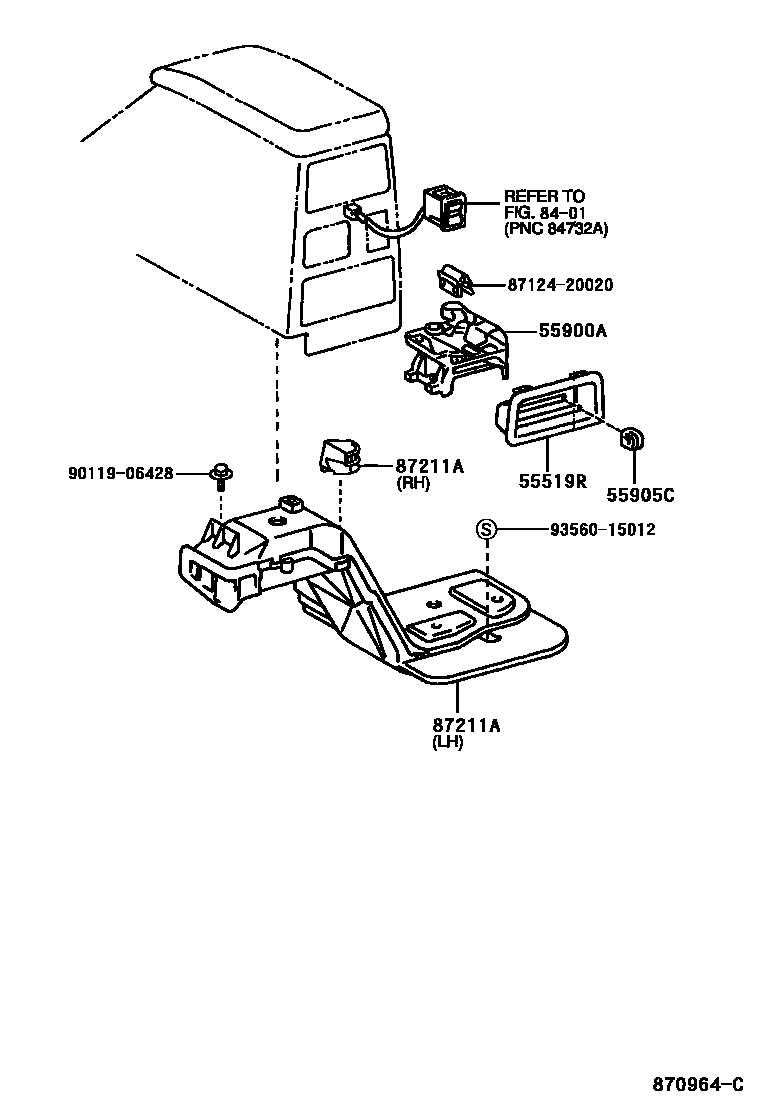

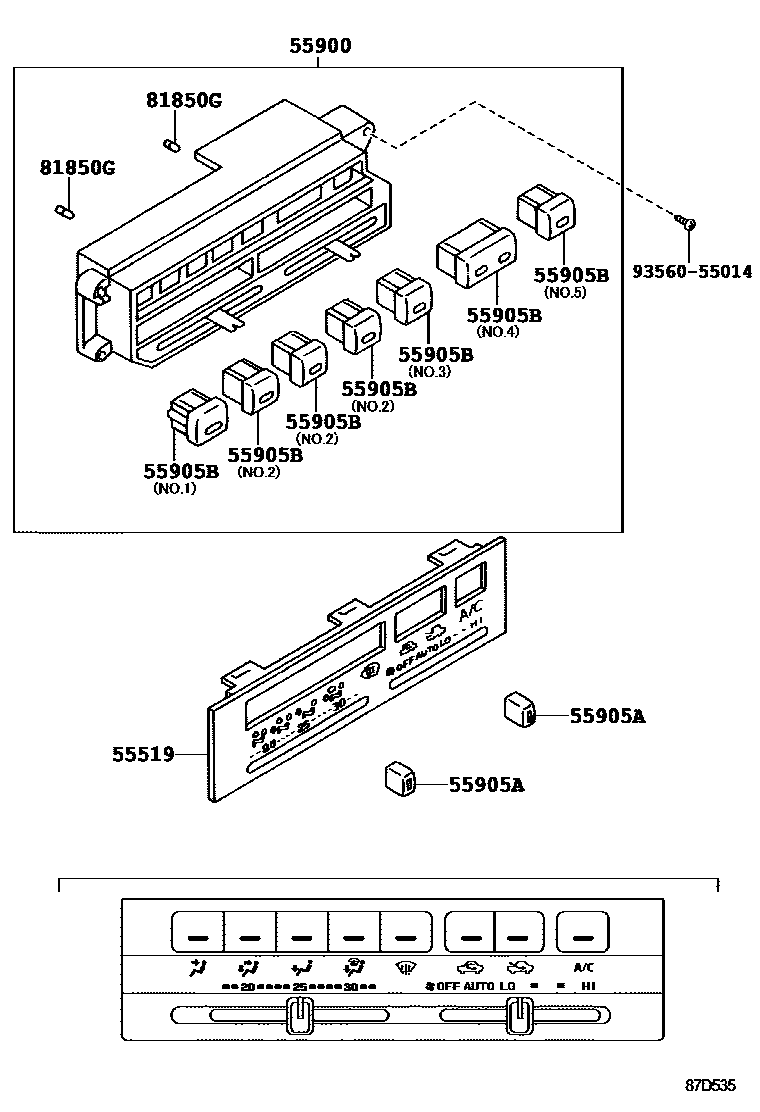

Toyota HILUX EPC diagram 8715, 暖风和空调系统 - 控制器和风管, with 6 images and 28 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55519 | Heater controller nameplate | 55519-35100 · 55519-35110 · 55519-35320 |
| 55835A | Central air duct from heater to air register | 55835-35020 · 55835-35021 · 55835-35060 |
| 55843A | Air duct No. 1 from heater to air register | 55843-35020 |
| 55844 | Air duct No. 2 from heater to air regulator | 55844-35020 · 55844-35040 |
| 55846A | Air duct No. 4 from heater to air register | 55846-35020 |
| 55847B | Air duct No. 5 from heater to air regulator | 55847-35020 |
| 55900 | Air conditioning control assembly | 55900-35160 |
| 55900A | Heater control and accessory assembly | 55900-35150 |
| 55900B | air conditioning control light bulb | 81850-35020 · 81850-35030 |
| 55905A | Heater control button | 55905-35100 · 55905-89115 |
| 55905B | Heater control button 2 | 55905-35110 · 55905-35120 · 55905-35130 · 55905-35140 · 55905-35150 · 55905-35170 · 55905-35180 · 55905-35200 · 55905-35220 · 55905-35240 · 55905-35260 · 55905-35280 · 55905-35300 |
| 55905C | Heater control button No. 3 | 55905-89115 |
| 55906A | Defroster damper control cable sub-assembly | 55906-35050 |
| 55907A | Water valve control cable sub-assembly | 55907-35060 |
| 55908A | Intake air valve control cable sub-assembly | 55908-35040 |
| 55909A | Air mix damper control cable sub-assembly | 55909-35070 |
| 55910 | Heater or auxiliary ventilation control assembly | 55910-35150 · 55910-35220 |
| 55910C | Gasket (for heater control cable) | 90480-13024 |
| 55912A | heater control housing | 55912-35010 |
| 55937 | Heater lever button | 55937-35010 |
| 81850G | Indicator light assembly | 81850-35010 |
| 87211A | Duct No. 2 | 87211-35300 |
| 88326C | Cover plate | 88326-35020 |
| 88484 | No. 1 cooler wiring harness | 88484-35020 |
| 88625C | Cooler thermistor | 88625-32170 · 88625-32171 |
| 88625H | Cooler thermistor (sunlight sensor) | 88625-32160 |
| 88625K | Cooler thermistor | 88790-35020 · 88790-35040 |
| 88650B | Air conditioning amplifier assembly | 88650-35070 · 88650-35100 · 88650-35130 |
