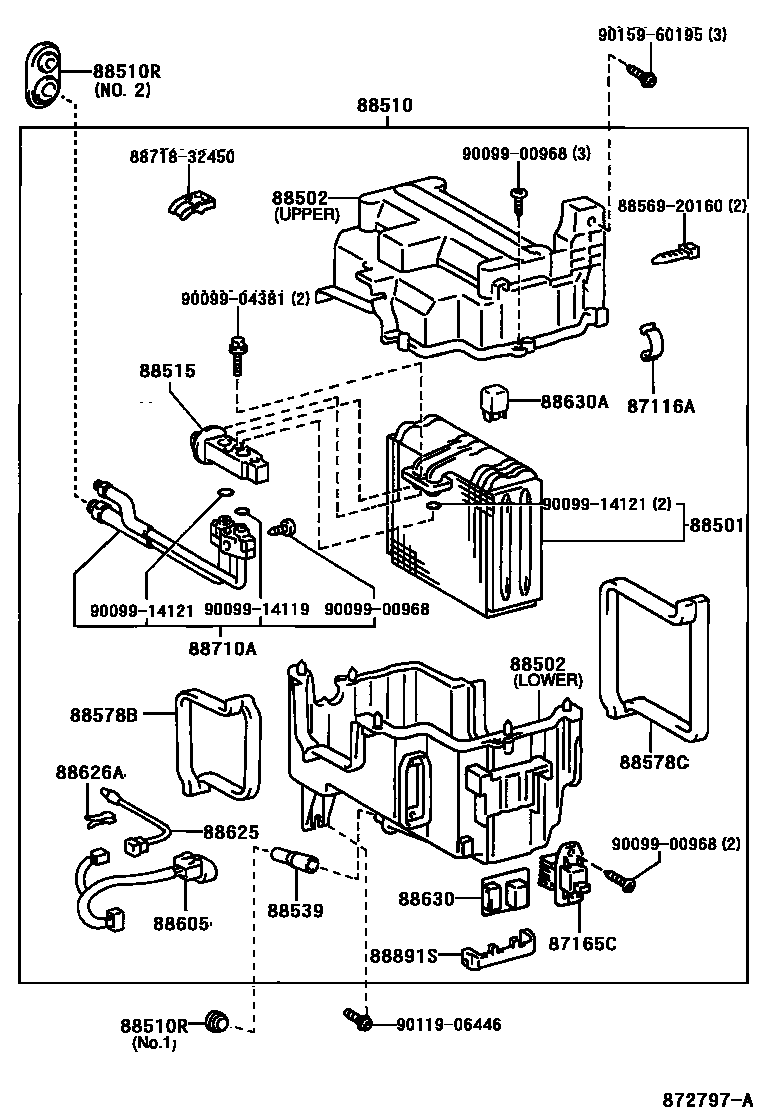

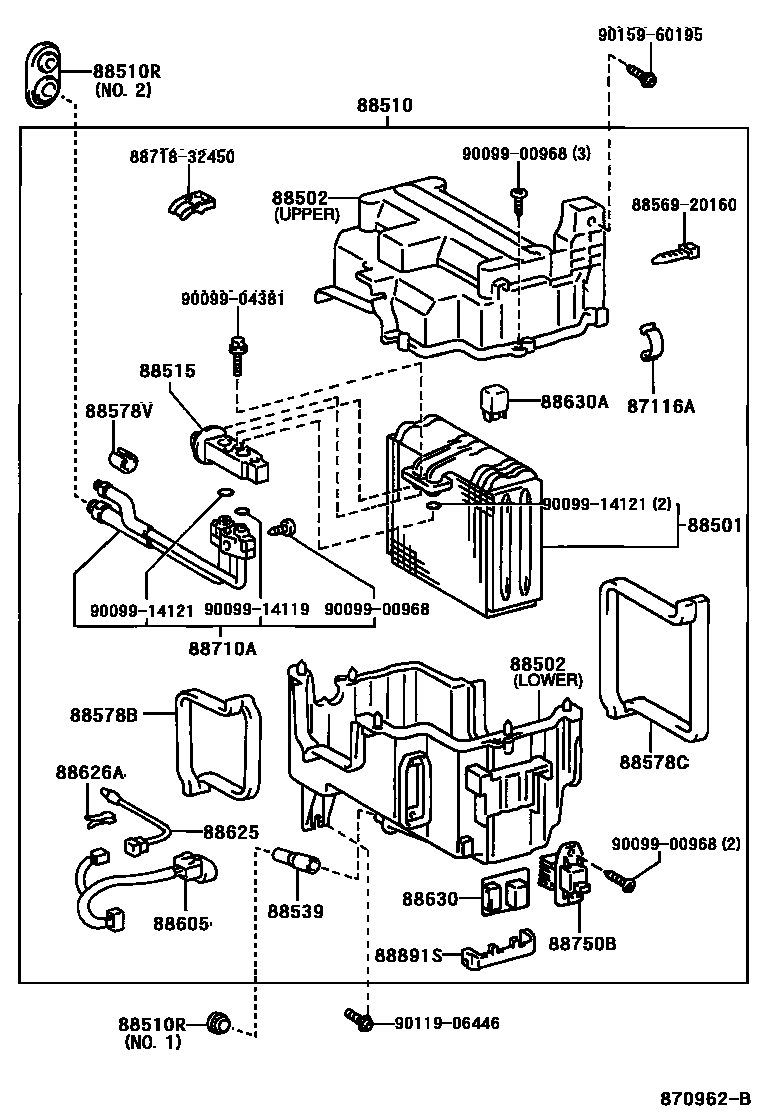

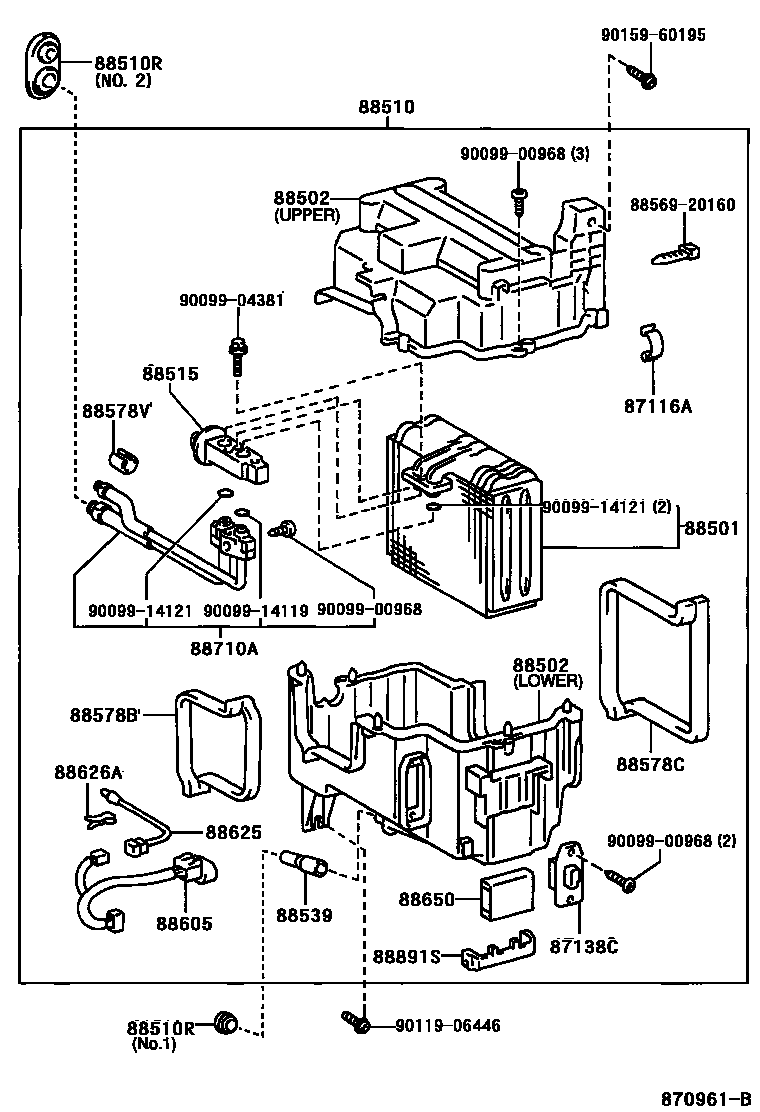

Toyota HILUX 暖风和空调系统 - 冷却器组件 — Figure 8714
Toyota HILUX EPC diagram 8714, 暖风和空调系统 - 冷却器组件, with 3 images and 21 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 87116A | Fixing spring (for cooler unit housing) | 87116-14010 |
| 87138C | Blower resistor | 87138-35050 |
| 87165C | Blower motor control device | 87165-32010 |
| 88501 | Cooler No. 1 evaporator sub-assembly | 88501-35040 |
| 88502 | Cooling device shell sub-assembly | 88502-35010 · 88502-35020 · 88502-35110 |
| 88510 | Cooler device assembly | 88510-35530 · 88510-35540 · 88510-35550 · 88510-35710 |
| 88510R | Seals (for cooler units) | 90480-01677 · 90480-26022 |
| 88515 | Cooler expansion valve | 88515-20100 |
| 88539 | No. 1 Cooler Unit Drain Hose | 88539-35010 |
| 88578B | Cooling unit seal No. 1 | 88578-35040 |
| 88578C | No. 2 cooling unit seal | 88578-35050 |
| 88578V | No. 3 cooling device seal | 88578-35070 |
| 88605 | No. 1 cooler wiring harness sub-assembly | 88605-35220 · 88605-35230 · 88605-35290 |
| 88625 | Cooler No. 1 Thermistor | 88625-3A090 |
| 88626A | Thermistor mount | 88626-28010 |
| 88630 | Cooler relay assembly | 88630-35010 |
| 88630A | Cooler relay assembly | 90987-02004 |
| 88650 | Cooler stabilized amplifier assembly | 88650-35040 · 88650-35060 |
| 88710A | Air conditioning pipe assembly | 88710-35280 · 88710-35370 |
| 88750B | Blower resistor transistor assembly | 88750-35010 |
| 88891S | Cooler cover No. 1 | 88891-35010 |
