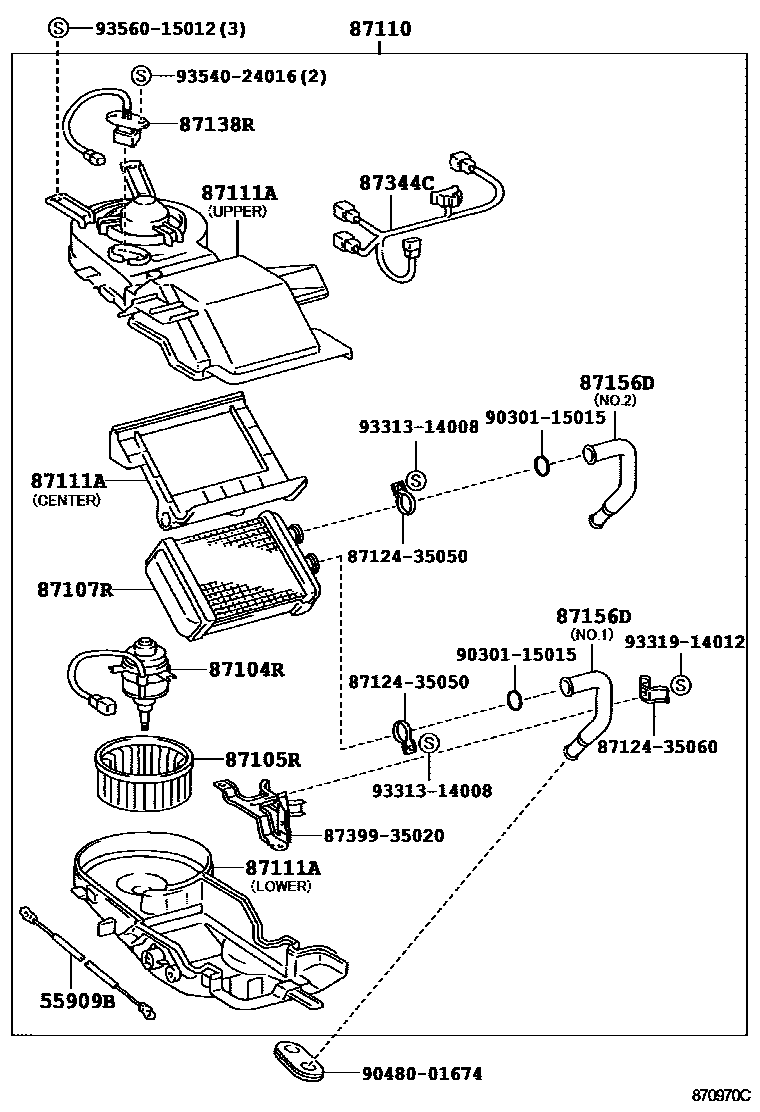

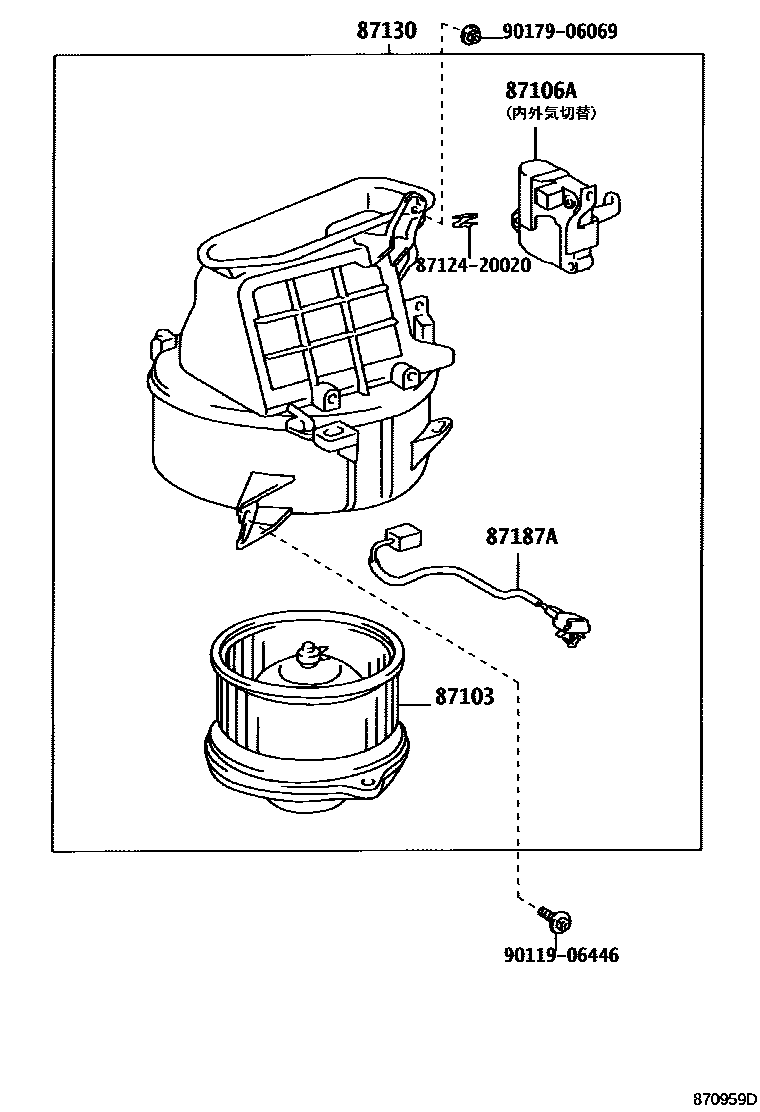

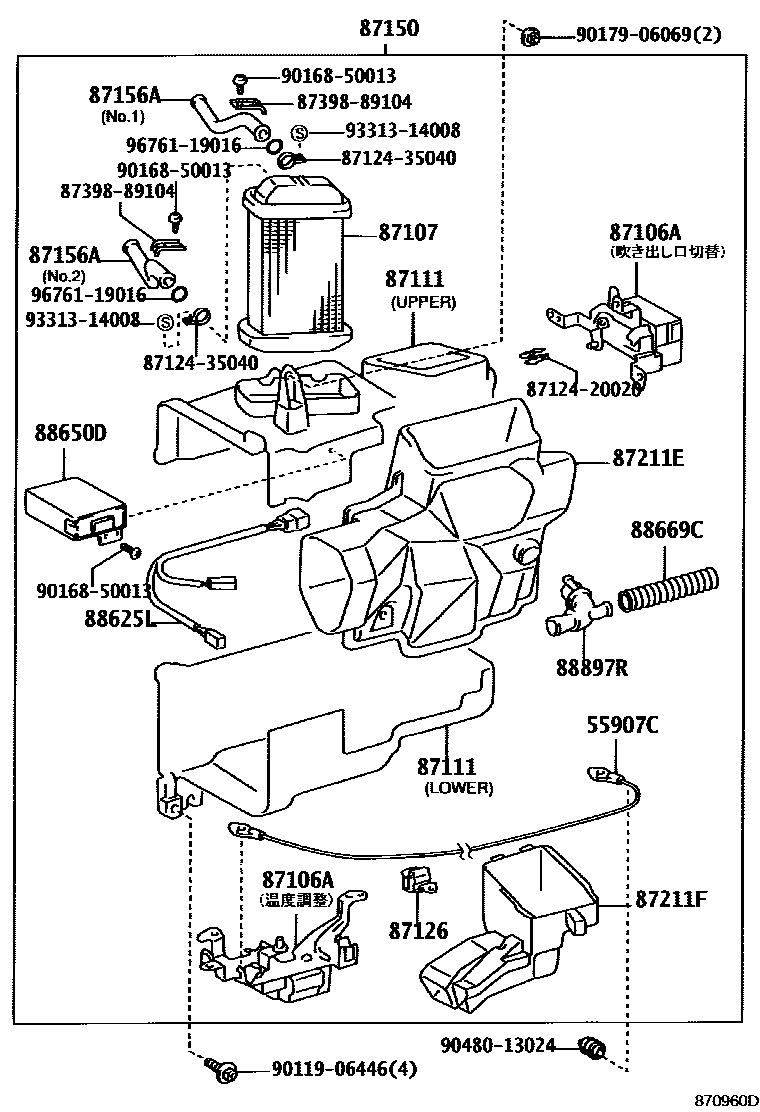

Toyota HILUX 暖风和空调系统 - 加热装置和鼓风机 — Figure 8712
Toyota HILUX EPC diagram 8712, 暖风和空调系统 - 加热装置和鼓风机, with 4 images and 29 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 55907C | Water valve control cable sub-assembly | 87286-35020 · 87286-35030 |
| 55909B | Air mix damper control cable sub-assembly | 55909-35060 |
| 87101 | No. 1 viscous heater bracket sub-assembly | 87101-35010 |
| 87103 | Heater blower motor sub-assembly with fan | 87103-35010 · 87103-35030 |
| 87104R | Rear heater blower motor sub-assembly | 87104-35010 |
| 87105R | Rear heater blower fan sub-assembly | 88541-95J00 |
| 87106A | Damper servo mechanism sub-assembly | 87106-35030 · 87106-35040 · 87106-35050 · 87106-35110 |
| 87107 | Heater radiator device sub-assembly | 87107-35050 |
| 87107R | Rear heater device sub-assembly | 87107-35040 |
| 87110 | heater assembly | 87110-35030 · 87110-35031 · 87110-35040 |
| 87111 | heater shell | 87111-35140 · 87111-35150 · 87111-35160 · 87111-35340 · 87111-35350 |
| 87111A | heater shell | 87111-35190 · 87111-35200 · 87111-35210 |
| 87120G | Viscous heater assembly with electromagnetic clutch | 87120-35030 |
| 87126 | heater control clip | 87126-89101 |
| 87130 | Front heater blower assembly | 87130-35050 · 87130-35060 · 87130-35130 |
| 87138R | Rear heater blower resistor | 87138-35070 |
| 87150 | Heater radiator assembly | 87150-35110 · 87150-35120 · 87150-35140 · 87150-35190 · 87150-35200 · 87150-35240 · 87150-35250 |
| 87156A | Heater water hose connector | 87156-35010 · 87156-35020 · 87156-35070 · 87156-35080 |
| 87156D | Heater water hose connector No. 2 | 87156-35050 · 87156-35051 · 87156-35060 · 87156-35061 |
| 87187A | Blower motor lead | 87187-35030 |
| 87211E | air duct | 87211-35100 · 87211-35110 · 87211-35240 |
| 87211F | air duct | 87211-35130 · 87211-35220 |
| 87344C | heating wire | 87344-35010 · 87344-35020 |
| 87452P | Viscous Heater Bracket No. 2 | 87452-35050 |
| 87480F | heater amplifier assembly | 87480-35010 |
| 88625L | Cooler thermistor | 88790-35010 |
| 88650D | amplifier assembly | 88650-35140 |
| 88669C | air hose | 88669-35010 |
| 88897R | aspirator | 88897-12210 |
