Toyota HILUX 后视镜 — Figure 8701

Toyota HILUX EPC diagram 8701, 后视镜, with 4 images and 4 PNC and OE references.

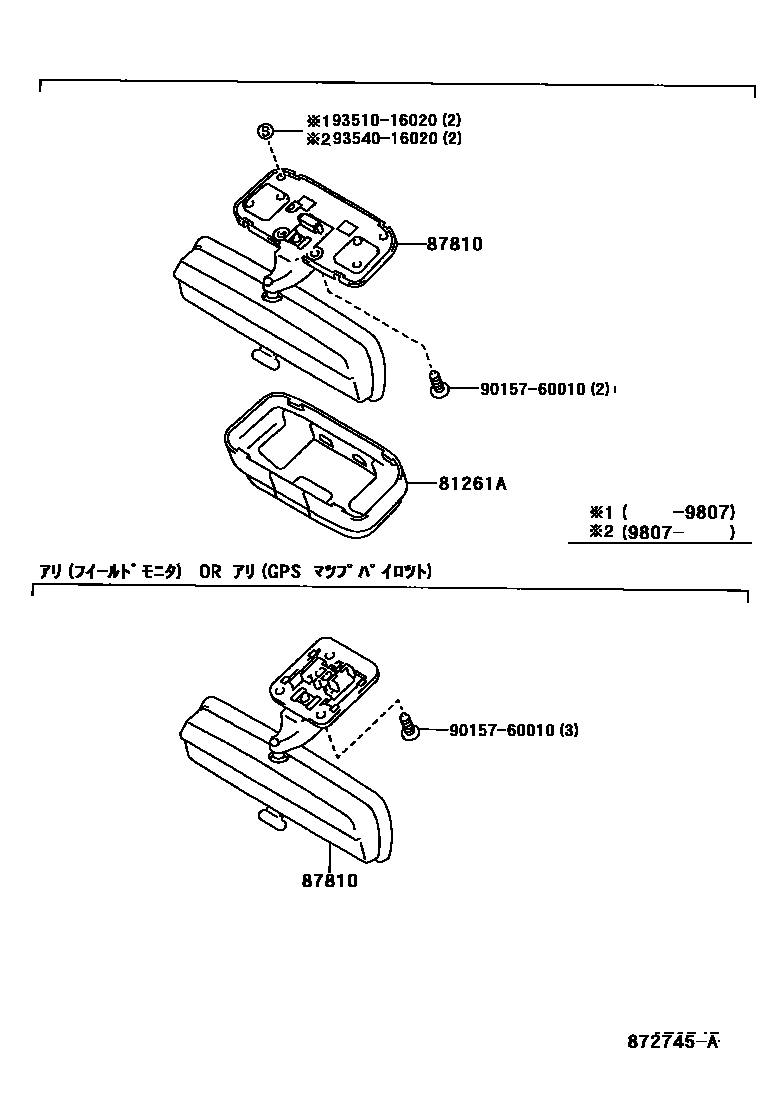

Toyota HILUX 后视镜 EPC diagram — 872745A
后视镜 — 872745A (199511 – 200008)

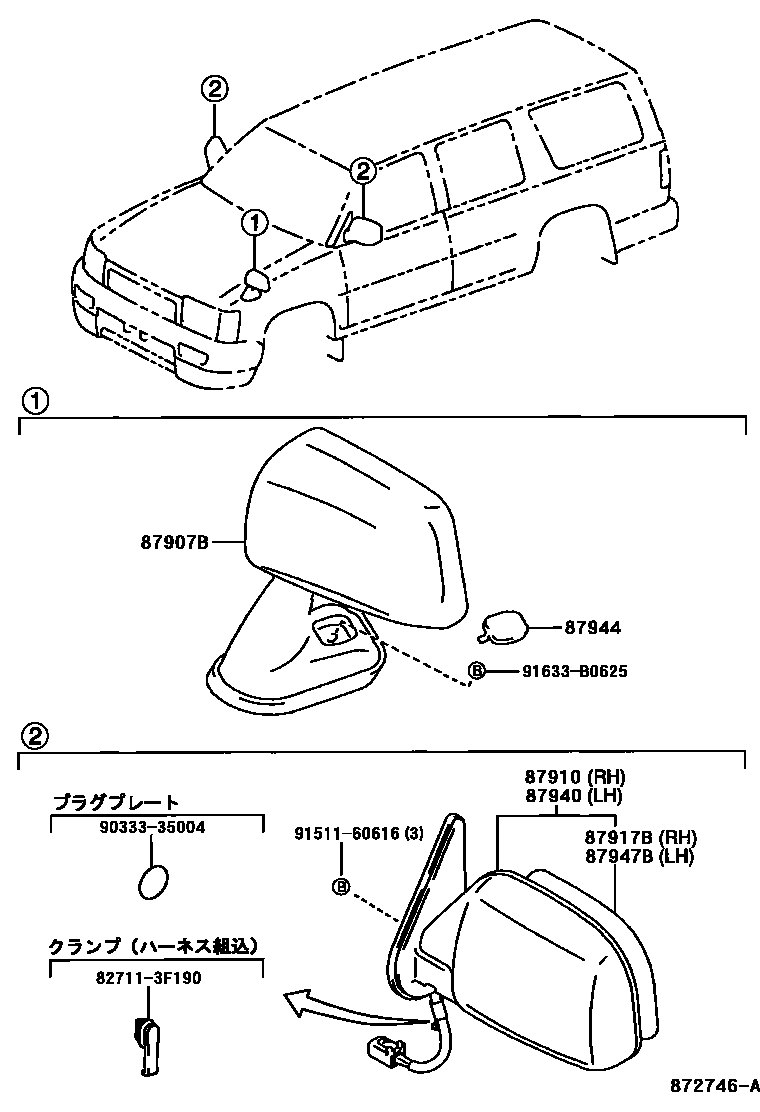

Toyota HILUX 后视镜 EPC diagram — 872746A
后视镜 — 872746A (199511 – 999999)

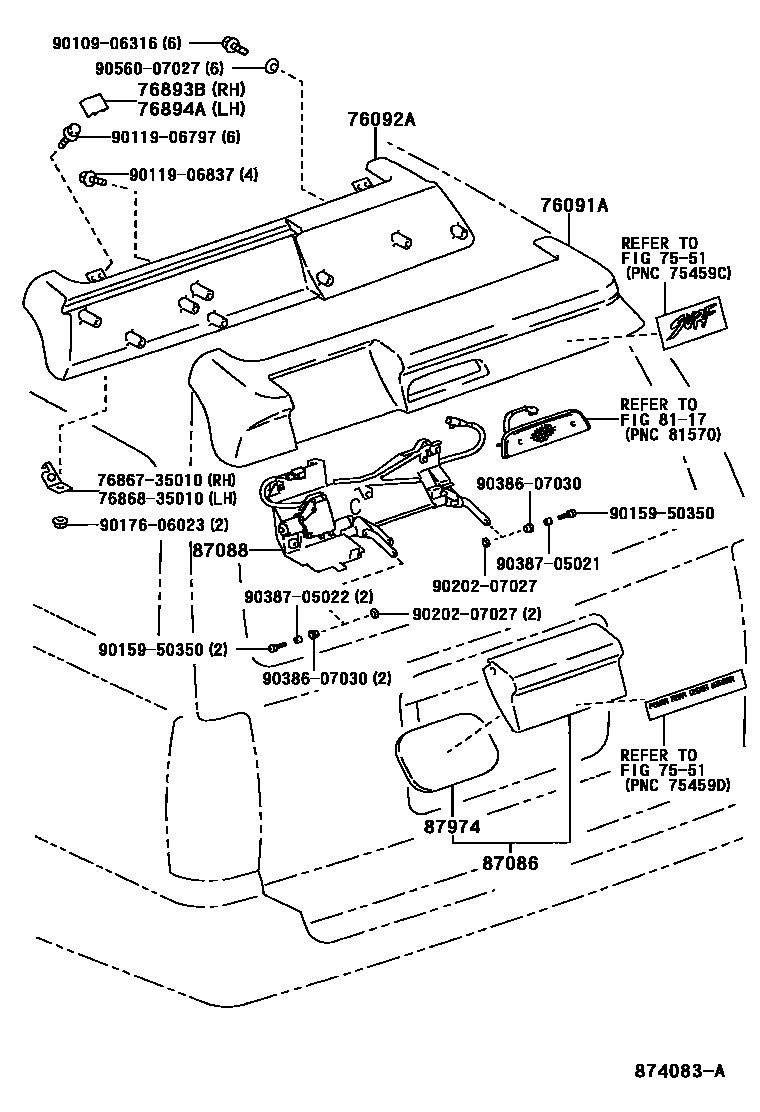

Toyota HILUX 后视镜 EPC diagram — 874083A
后视镜 — 874083A (199511 – 999999)

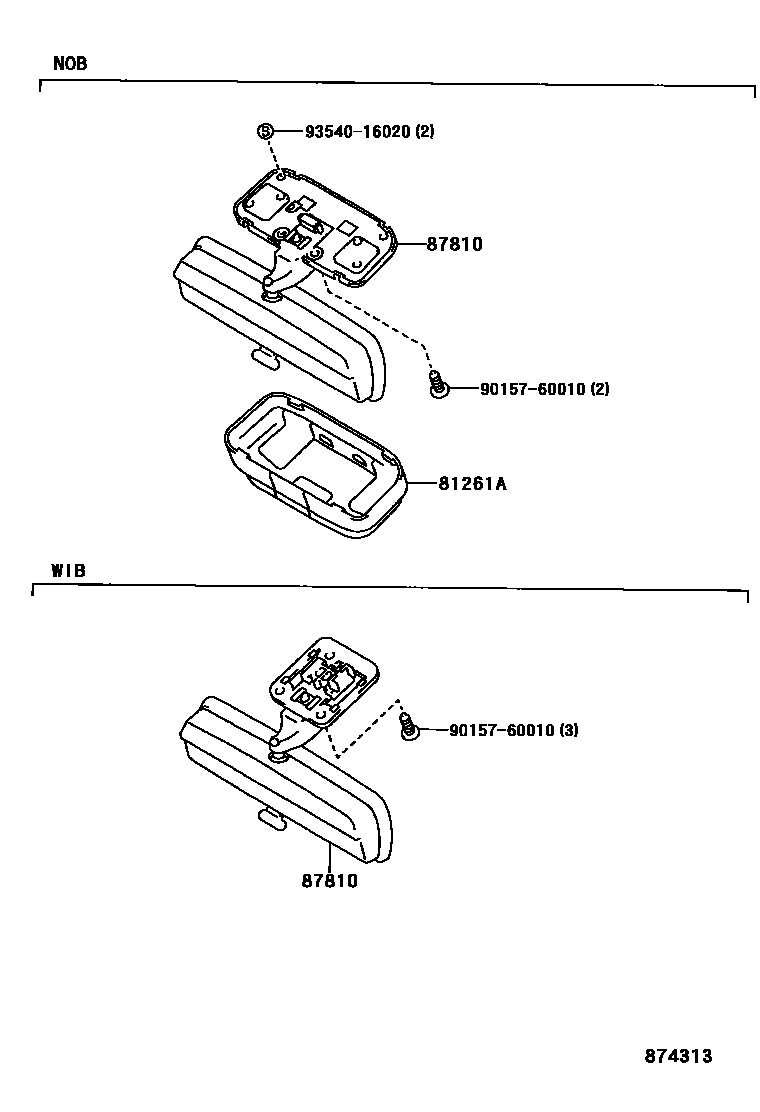

Toyota HILUX 后视镜 EPC diagram — 874313
后视镜 — 874313 (200008 – 999999)

PNC and OE references

PNCPart nameOE numbers
87088Exterior rear lower view mirror arm sub-assembly87088-35020 · 87088-35021 · 87088-35030
87917BRight exterior rearview mirror87917-35270 · 87931-35540
87947BLeft exterior rearview mirror87947-35260 · 87961-35510
87974Car exterior rear view mirror87974-35010
