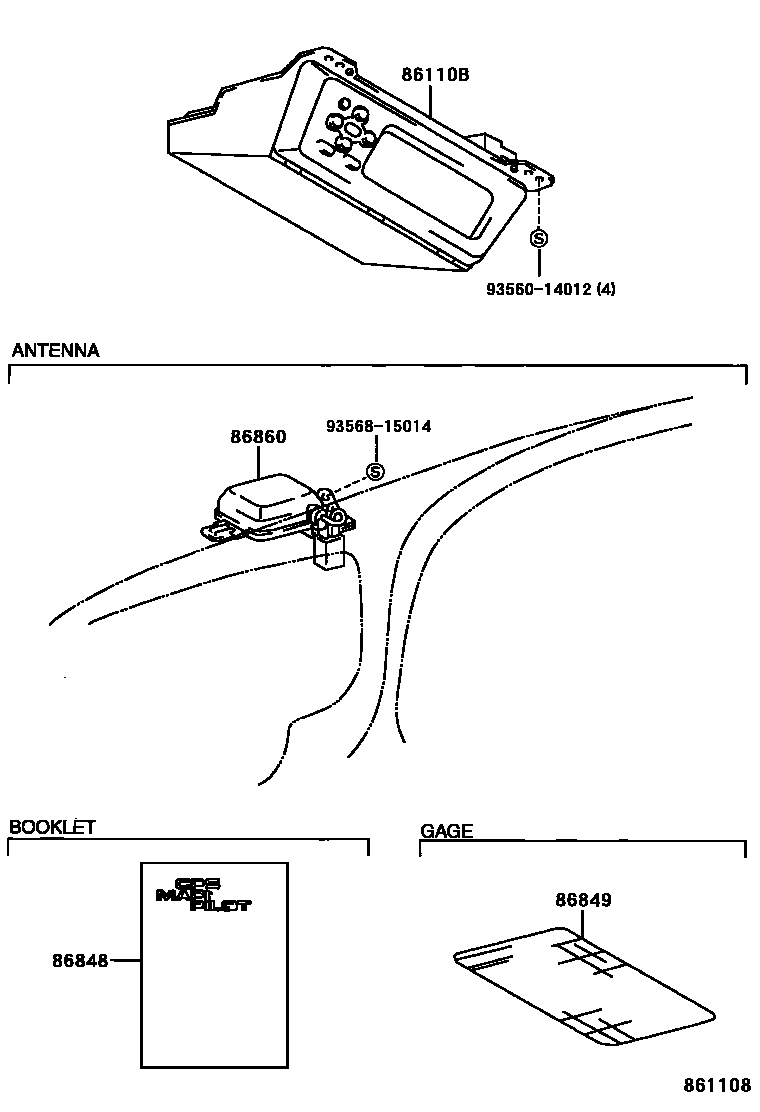

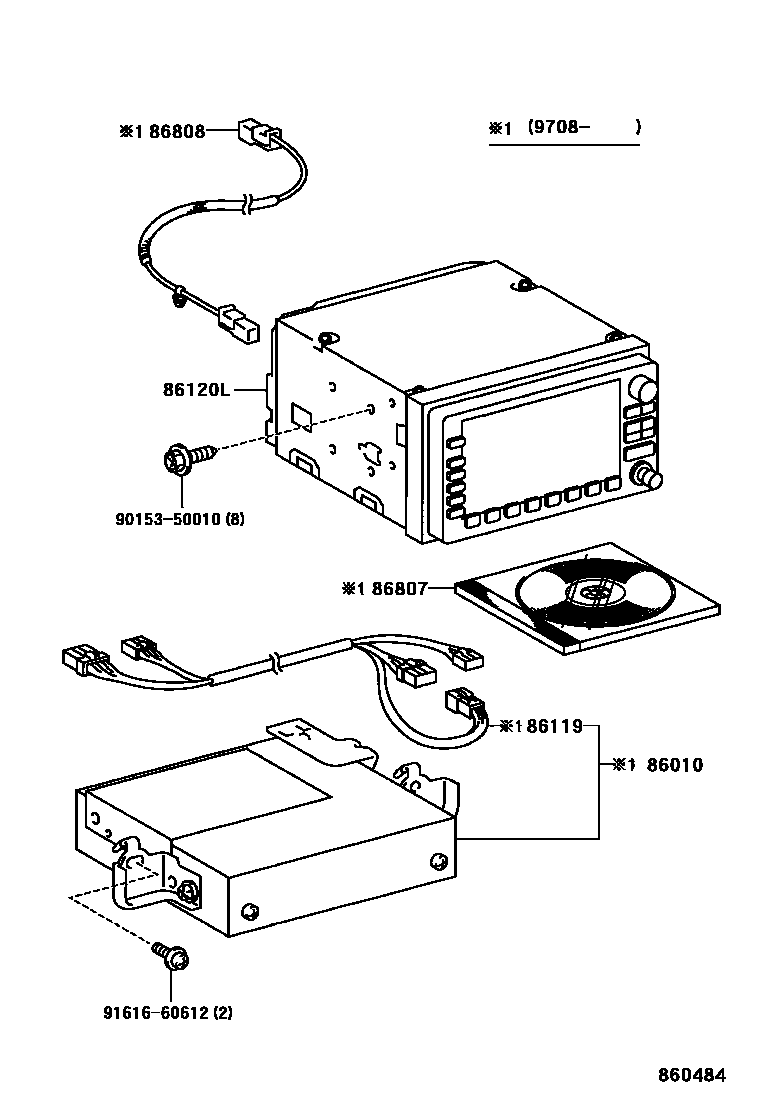

Toyota HILUX 导航和前监视器显示屏 — Figure 8603
Toyota HILUX EPC diagram 8603, 导航和前监视器显示屏, with 2 images and 9 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 86010 | Monitor tuner assembly | 86010-35011 |
| 86110B | Multifunctional display assembly | 86110-35010 |
| 86119 | Monitor switch harness | 86119-35010 |
| 86120L | Navigation receiver assembly | 86120-35140 · 86120-35150 · 86120-35151 · 86120-35180 · 86120-35181 · 86120-35182 · 86120-46010 |
| 86807 | CD-ROM disc repair kit | 86807-44010 · 86807-44011 · 86807-52010 |
| 86808 | No. 1 navigation antenna wire sub-assembly | 86808-35030 · 86808-35040 |
| 86848 | Navigation map book | 86848-35010 |
| 86849 | Navigation mapper | 86849-35010 |
| 86860 | Navigation antenna assembly | 86860-35010 · 86860-35020 |
