Toyota HILUX 后清洗器 — Figure 8504

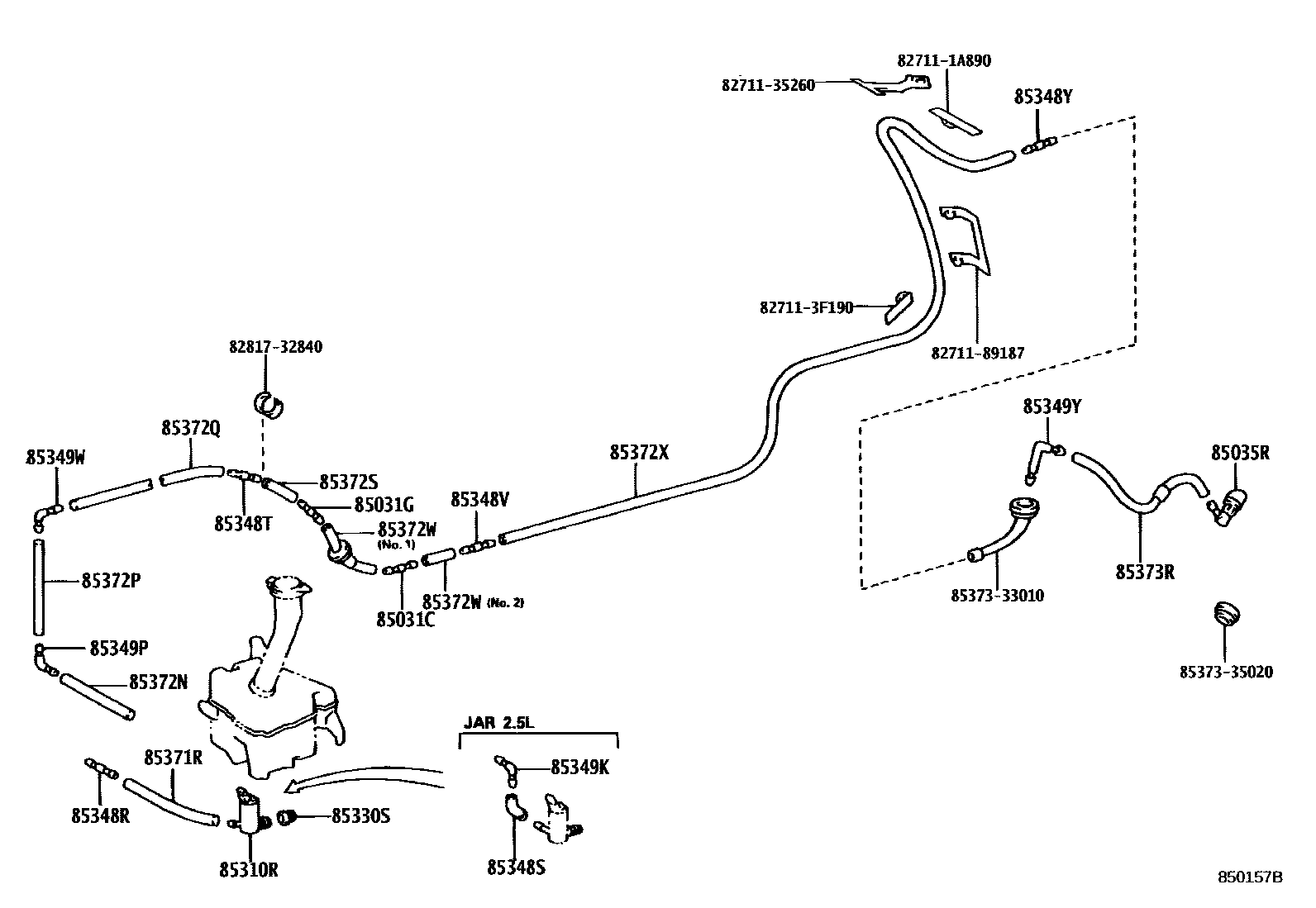

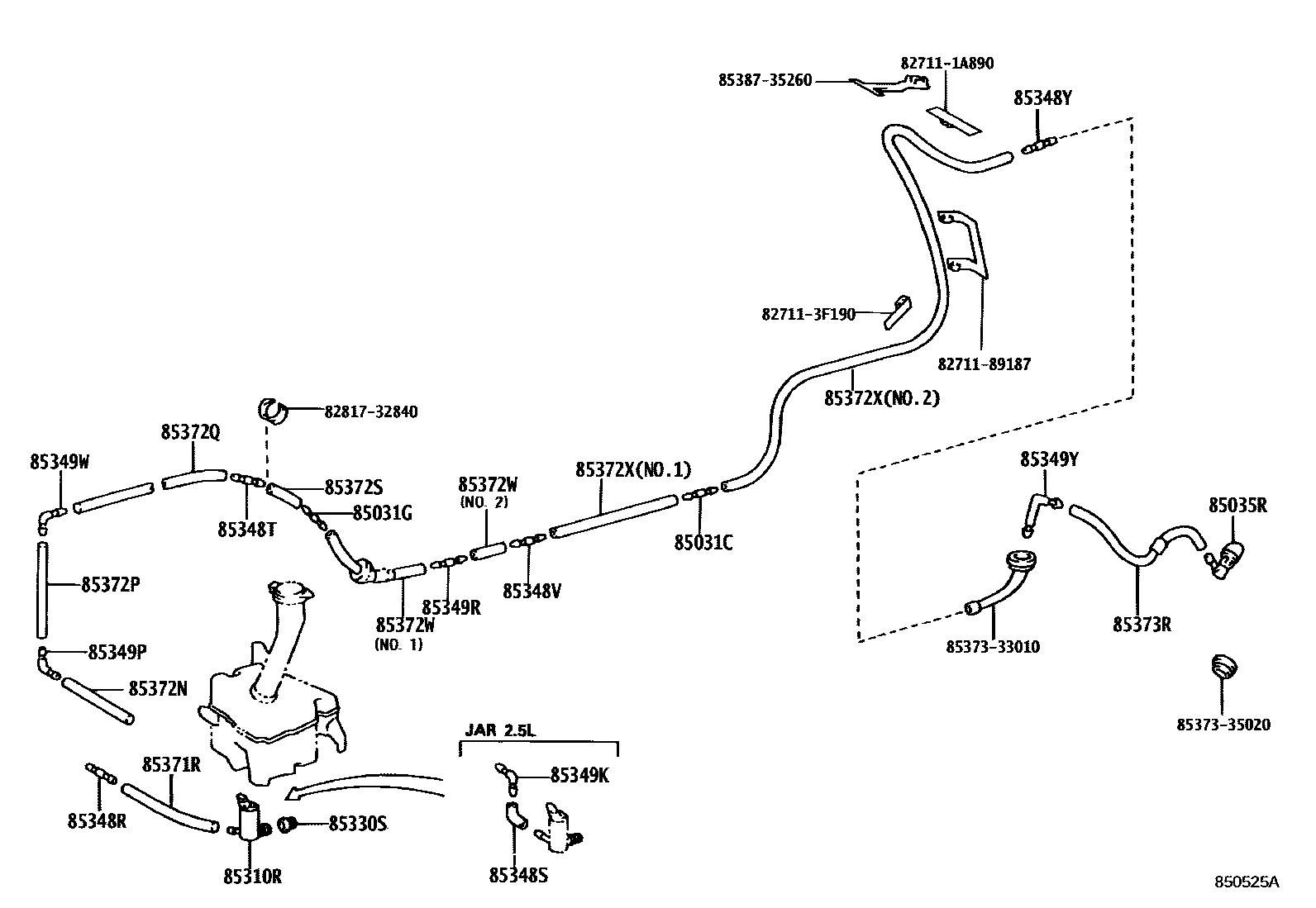

Toyota HILUX EPC diagram 8504, 后清洗器, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85031C | Cleaner valve sub-assembly | 85031-90A00 |
| 85031G | No. 3 rear cleaner valve | 85031-12250 |
| 85035R | Rear washer nozzle sub-assembly | 85391-35010 |
| 85310R | Rear washer motor assembly | 85330-35080 |
| 85330S | Rear washer fluid tank bushing | 90099-32089 |
| 85348R | No. 1 rear washer hose connector | 85349-89122 |
| 85348S | No. 1 rear cleaner elbow joint | 85355-14481 |
| 85348T | No. 2 rear washer hose connector | 85349-89122 |
| 85348V | No. 4 rear washer hose connector | 85349-89122 |
| 85348Y | No. 5 rear washer hose connector | 85349-89122 |
| 85349K | No. 2 rear cleaner elbow joint | 85355-20200 |
| 85349P | No. 3 rear cleaner elbow joint | 85355-20200 |
| 85349R | No. 5 rear washer hose connector | 85349-89122 |
| 85349W | No. 4 rear cleaner elbow joint | 85355-20200 |
| 85349Y | No. 5 rear cleaner elbow joint | 85355-20200 |
| 85372S | No. 4 rear washer hose (from connector to connector) | 90099-33080 |
| 85372W | No. 5 rear washer hose (from connector to connector) | 90099-33080 · 90446-07001 |
| 85372X | No. 6 rear washer hose (from connector to connector) | 90099-33553 |
