Toyota HILUX 挡风玻璃清洗器 — Figure 8503

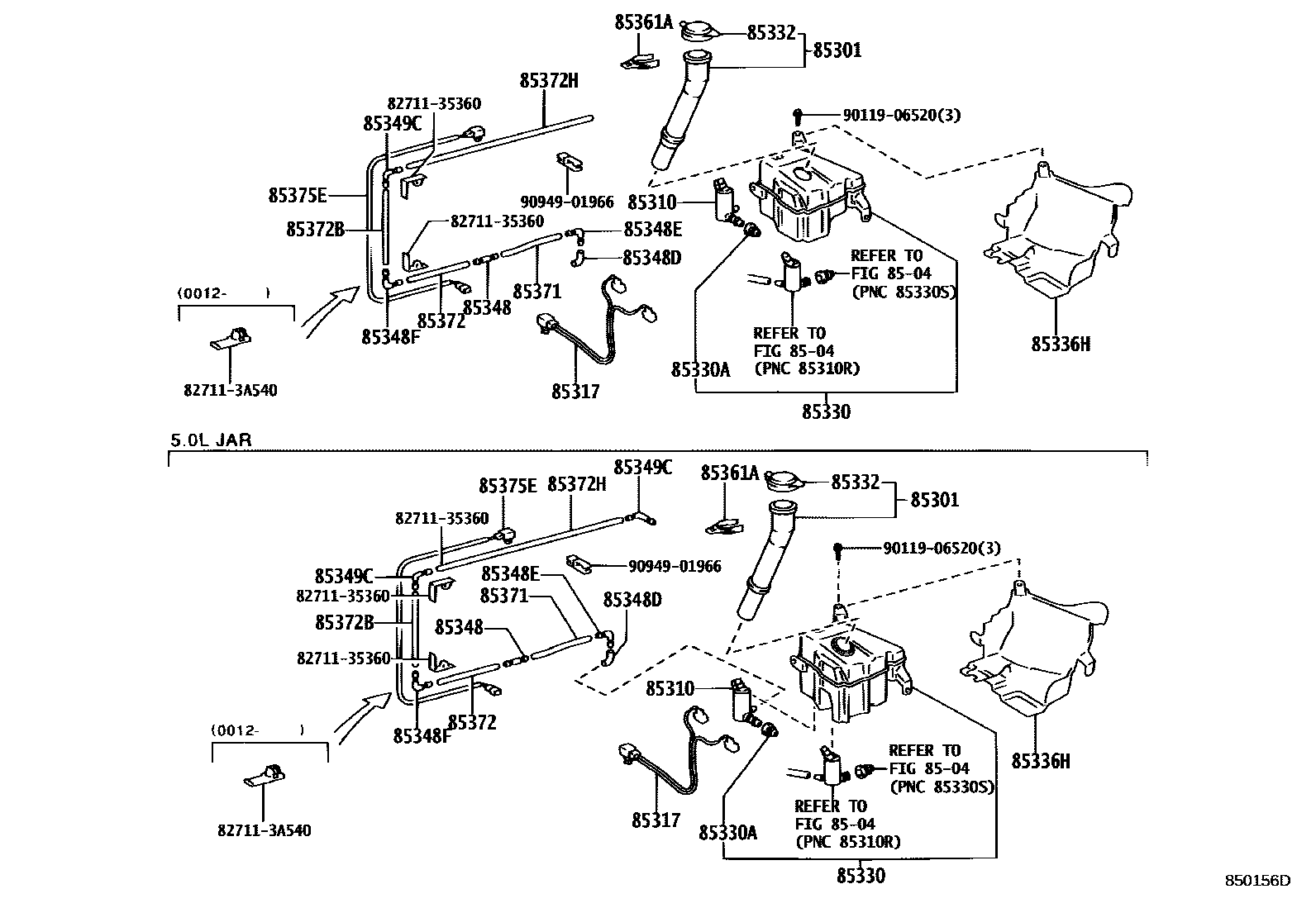

Toyota HILUX EPC diagram 8503, 挡风玻璃清洗器, with 2 images and 18 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85035 | Cleaner nozzle sub-assembly | 85381-35010 |
| 85301 | Cleaner water inlet sub-assembly | 85301-35010 · 85301-35020 |
| 85310 | Windshield washer motor and pump assembly | 85330-35050 · 85330-35070 |
| 85317 | Cleaner wiring assembly | 85317-35240 · 85317-35260 |
| 85330 | Windshield washer fluid tank assembly | 85315-35240 · 85315-35241 · 85315-35260 · 85315-35261 |
| 85330A | Windshield washer fluid tank bushing | 90099-32089 |
| 85332 | Windshield washer fluid tank cap | 85316-33050 · 85316-33120 |
| 85336H | Windshield washer fluid tank lower cover | 85336-35240 · 85336-35260 |
| 85348 | Windshield washer hose connector No. 1 | 85349-89122 |
| 85348D | No. 1 windshield washer elbow joint | 85355-16192 · 85355-20200 |
| 85348E | No. 2 windshield washer elbow joint | 85355-14481 · 85355-20200 |
| 85348F | No. 3 windshield washer elbow joint | 85355-20200 |
| 85348G | Windshield washer hose connector No. 2 | 85377-34010 |
| 85348M | No. 3 windshield washer hose connector | 85377-32220 |
| 85348N | No. 4 windshield washer hose connector | 85348-12250 |
| 85349C | No. 4 windshield washer elbow joint | 85355-20200 |
| 85361A | Windshield washer bracket No. 1 | 85361-35060 |
| 85375E | Cleaner wiring | 85375-35200 |
