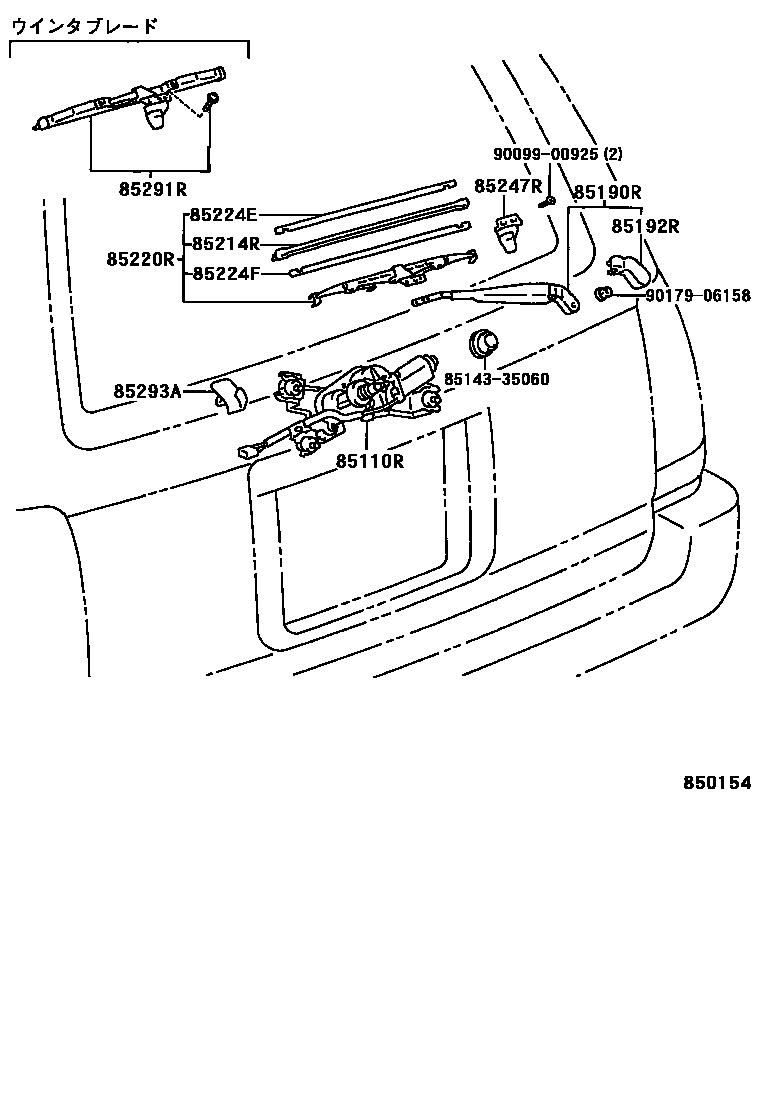

Toyota HILUX 后刮水器 — Figure 8502
Toyota HILUX EPC diagram 8502, 后刮水器, with 1 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110R | Rear wiper motor assembly | 85130-35070 |
| 85190R | Rear wiper arm assembly | 85241-35020 |
| 85192R | Rear wiper arm cover | 85245-35010 |
| 85214R | Rear wiper rubber strip | 85214-35060 |
| 85220R | Rear wiper blade assembly | 85242-35010 |
| 85224E | No. 1 rear wiper rubber strip back plate | 85224-35070 |
| 85224F | No. 2 rear wiper rubber strip back plate | 85224-35070 |
| 85247R | Rear wiper arm slider sub-assembly | 85247-35010 |
| 85291R | Rear wiper blade for winter | 85291-35030 |
| 85293A | Right linear wiper step | 85293-35010 |
