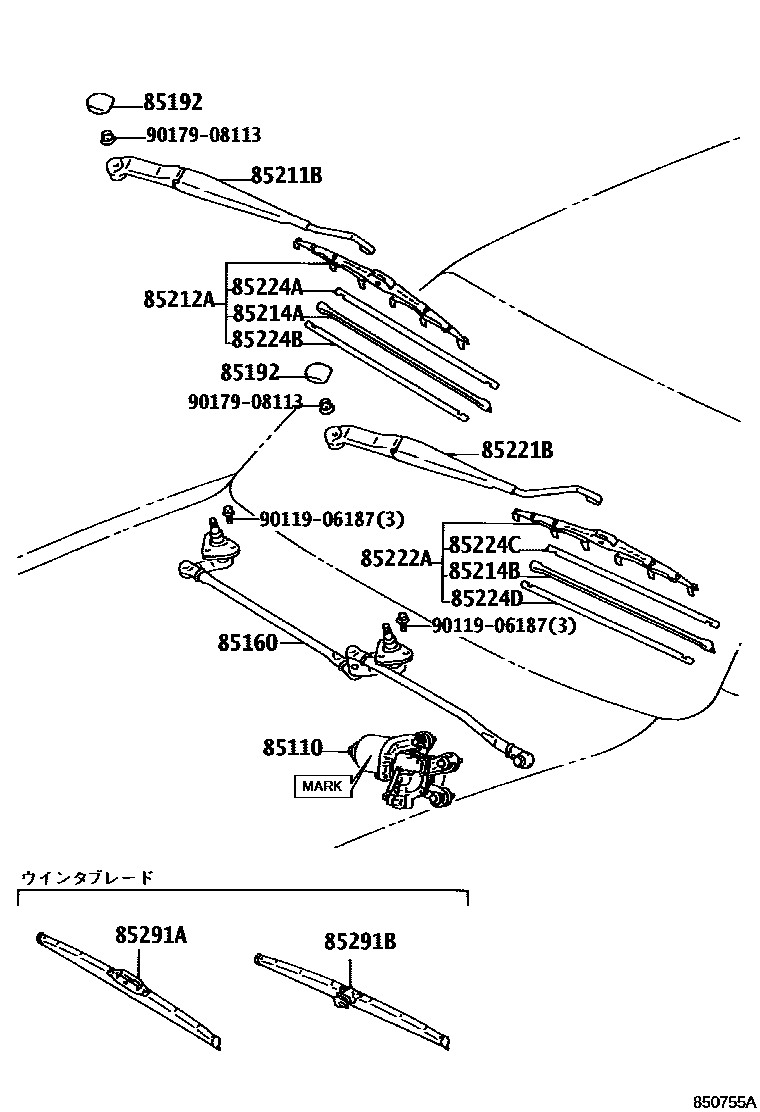

Toyota HILUX 挡风玻璃刮水器 — Figure 8501
Toyota HILUX EPC diagram 8501, 挡风玻璃刮水器, with 1 images and 15 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85110 | Windshield wiper motor assembly | 85110-35220 · 85110-35340 |
| 85160 | Windshield wiper connecting rod assembly | 85150-35140 · 85150-35190 |
| 85192 | windshield wiper arm cover | 85192-12800 |
| 85211B | Right front wiper arm | 85211-35070 |
| 85212A | Right front wiper blade | 85212-35060 |
| 85214A | Right wiper rubber strip | 85214-35030 |
| 85214B | Left wiper rubber strip | 85214-35040 |
| 85221B | Left front wiper arm | 85221-35070 |
| 85222A | Left front wiper blade | 85222-35080 |
| 85224A | No. 1 wiper rubber strip back plate | 85224-35010 |
| 85224B | No. 2 wiper rubber strip back plate | 85224-35010 |
| 85224C | No. 3 wiper rubber strip back plate | 85224-35040 |
| 85224D | No. 4 wiper rubber strip back plate | 85224-35040 |
| 85291A | Right front wiper blade for winter use | 85291-60020 · 85291-60080 |
| 85291B | Left front wiper blade for winter use | 85291-30030 |
