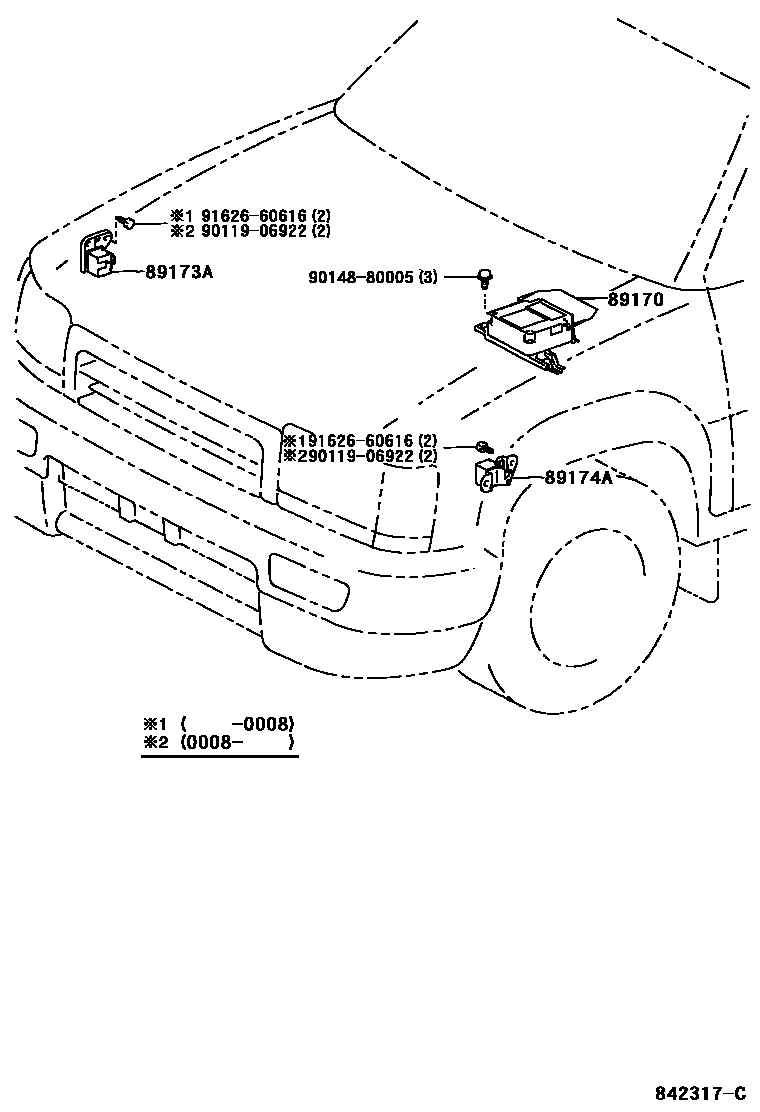

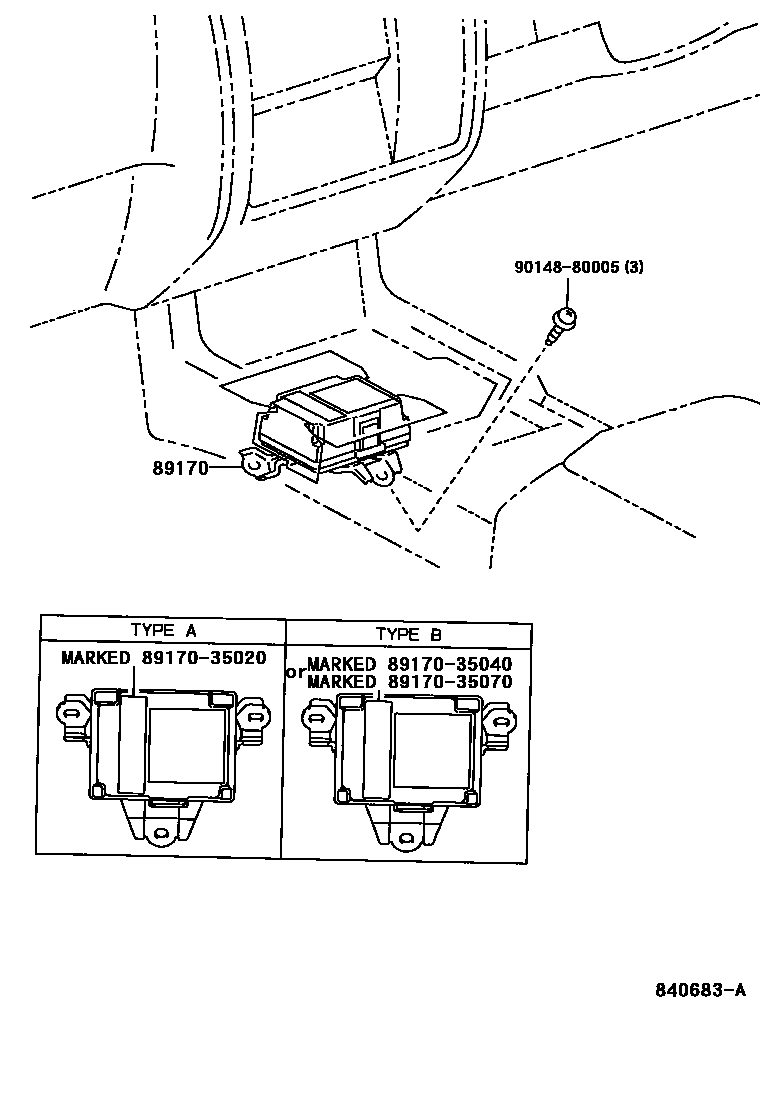

Toyota HILUX 空气囊 — Figure 8421
Toyota HILUX EPC diagram 8421, 空气囊, with 2 images and 3 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 89170 | air bag sensor assembly | 89170-35020 · 89170-35040 · 89170-35070 · 89170-35080 · 89170-35130 |
| 89173A | Right front air bag sensor | 89173-39205 · 89173-39215 |
| 89174A | Left front air bag sensor | 89174-39075 |
