Toyota HILUX ABS 和 VSC — Figure 8414

Toyota HILUX EPC diagram 8414, ABS 和 VSC, with 1 images and 8 PNC and OE references.

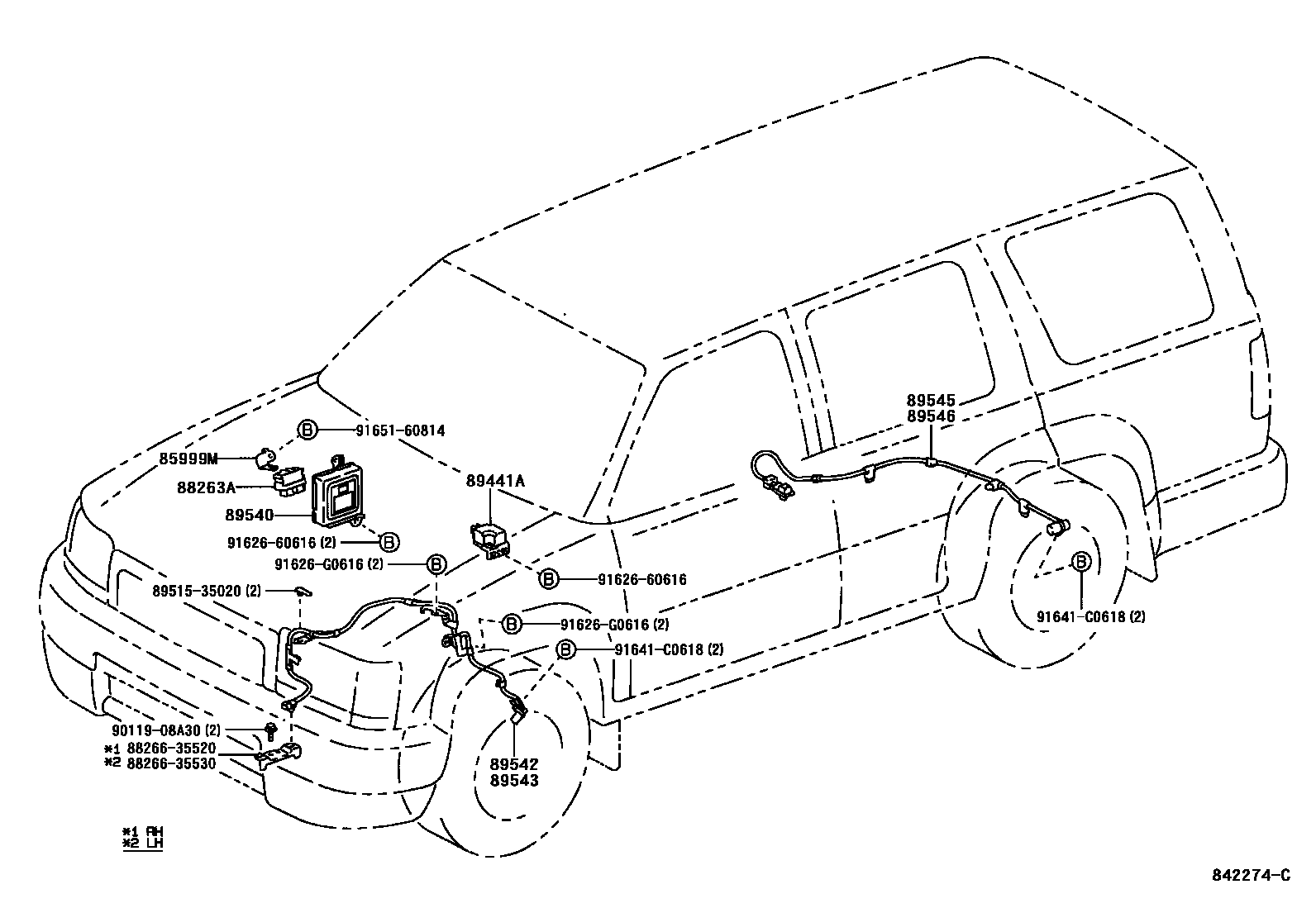

Toyota HILUX ABS 和 VSC EPC diagram — 842274C
ABS 和 VSC — 842274C (199511 – 999999)

PNC and OE references

PNCPart nameOE numbers
85999MRelay bracket85999-35070
88263AAnti-skid control relay88263-12070 · 88263-35090
89441Adeceleration sensor89440-35030
89540Anti-skid control ECU assembly89540-35110 · 89540-35111 · 89540-35131 · 89540-35210 · 89540-35220 · 89540-35230 · 89540-35240 · 89540-35250
89542Right front wheel speed sensor89542-35050
89543Left front wheel speed sensor89543-35050
89545Right rear wheel speed sensor89545-35030
89546Left rear wheel speed sensor89546-35030
