Toyota HILUX 电子燃油喷射系统 — Figure 8404

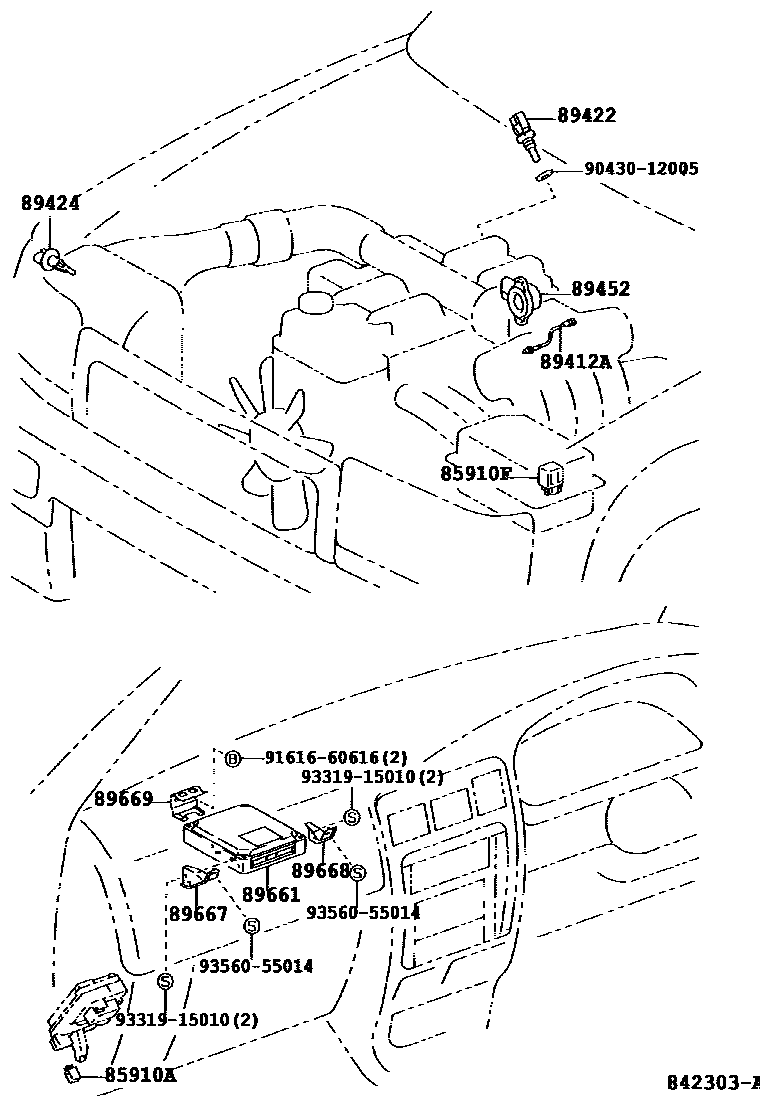

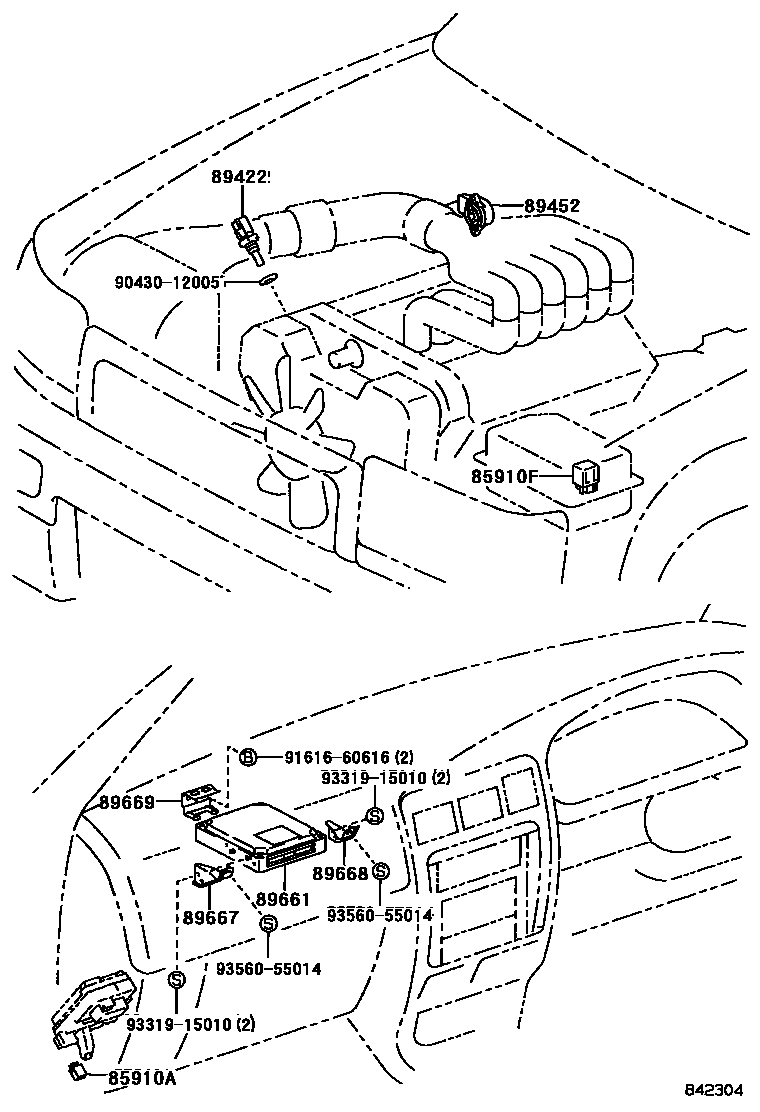

Toyota HILUX EPC diagram 8404, 电子燃油喷射系统, with 2 images and 10 PNC and OE references.
PNC and OE references
| PNC | Part name | OE numbers |
|---|---|---|
| 85910A | Circuit breaking relay assembly (for EFI) | 90987-02012 |
| 85910F | ECU relay (for EFI) | 90987-02012 |
| 89412A | E.G.R exhaust gas temperature sensor | 89412-34010 |
| 89422 | Water temperature sensor (for E.F.I.) | 89422-35010 |
| 89424 | Intake air temperature sensor (for E.F.I.) | 89424-12010 |
| 89452 | Throttle position sensor (for E.F.I.) | 89452-22080 · 89452-35020 |
| 89661 | Engine control ECU | 89661-3D130 · 89661-3D170 · 89661-3D180 · 89661-3D400 · 89661-3D410 · 89661-3D680 · 89661-3D690 · 89666-35400 · 89666-35460 · 89666-35470 |
| 89667 | Engine control ECU bracket | 89667-35070 · 89667-35120 |
| 89668 | No. 2 engine control ECU bracket | 89668-35100 · 89668-35110 · 89668-35150 |
| 89669 | No. 3 engine control ECU bracket | 89669-35050 · 89669-35060 |
